Soundcraft / Ui12

The Soundcraft Ui12 is an I/O box type of digital mixer that can be remote controlled with a tablet or computer. Compatible with iOS, Android, Windows, and Mac. Completely recallable microphone gain, phantom power, 4-band parametric EQ, and dynamics.

■ Digital mixer

□ Freely remote controlable with general terminals

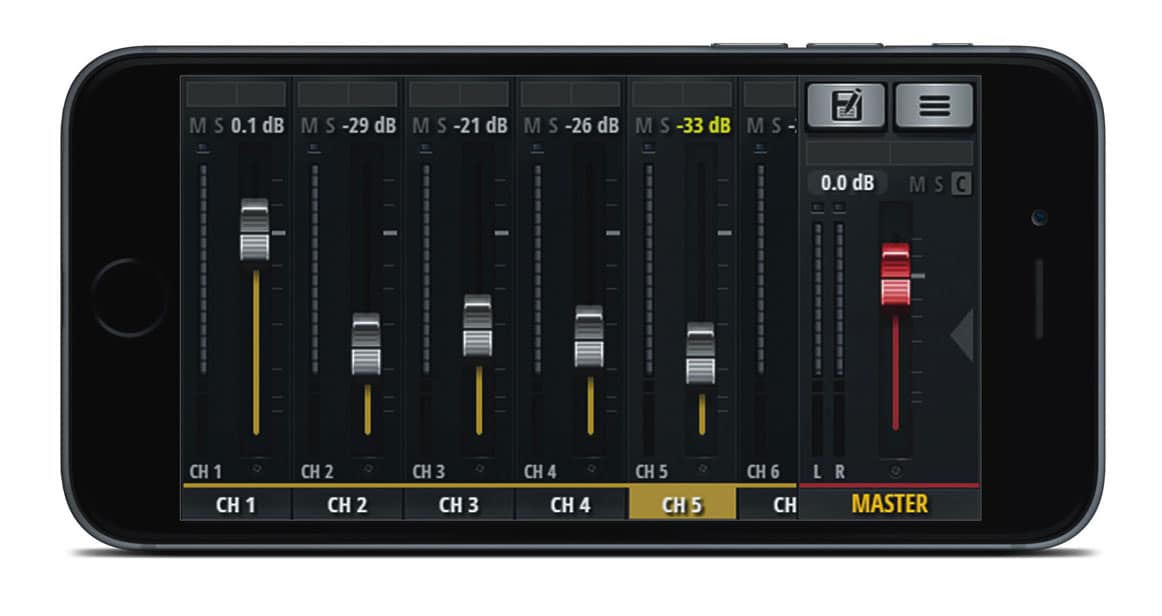

Tablets, smartphones and PCs can be directly connected via Wi-Fi, and almost all functions can be operated wirelessly. Because it can be controlled from anywhere, it is ideal for scenes where you do not want to make the device stand out or where there are restrictions on the installation location. In addition, since you can remotely control the actual sound while listening to it on the stage or in the audience, the time and effort required for setting can be greatly reduced.

2.4GHz band is used for Wi-Fi connection. The Ui24R can also select the 5.2GHz band with less congestion. The Ui24R also has an antenna on the right side as well as the front. It is designed so that communication is hard to be interrupted even when operated from any direction.

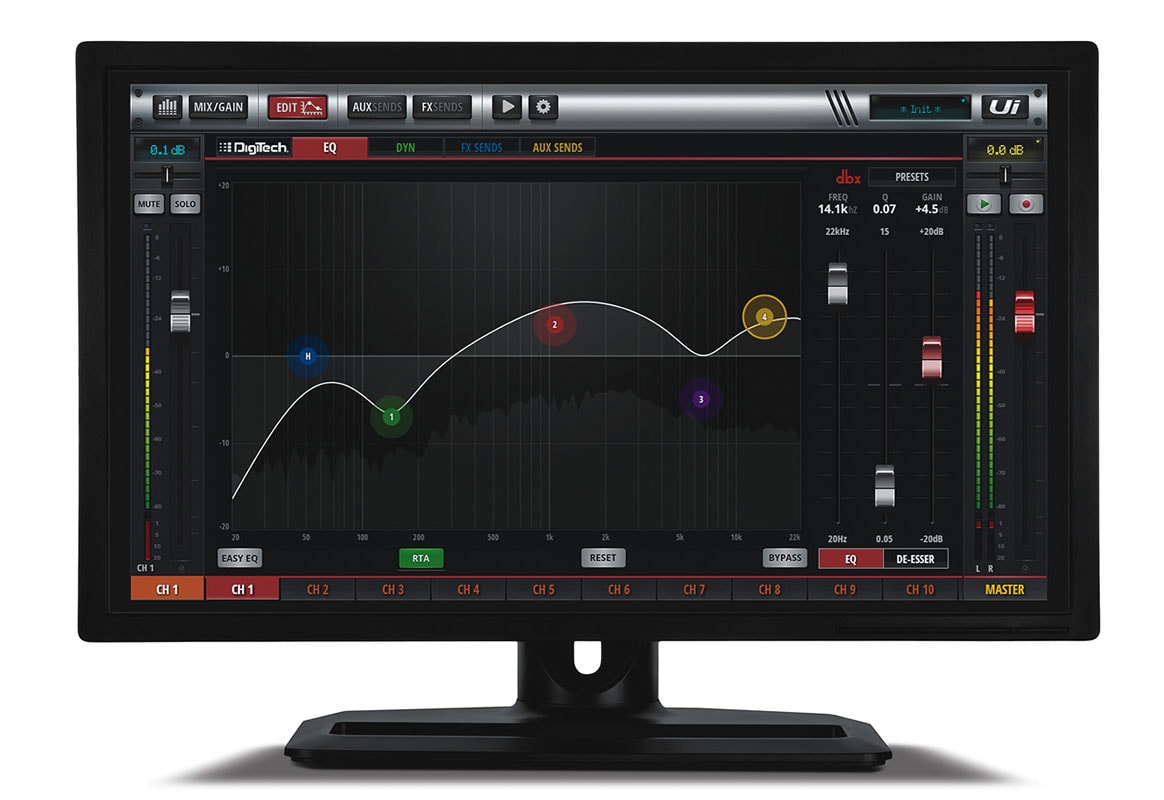

Can be connected to a terminal via wired LAN or external network device. The Ui24R can be operated without a terminal by connecting a display, mouse, and keyboard directly to the main unit.

Up to 10 terminals can be connected wirelessly. In addition to being able to operate from different locations at the same time, different information can be displayed on multiple devices. In addition, it is possible to operate simultaneously from the terminal connected by wireless connection and wired LAN.

As not being equipped with the main unit with control functions, an extremely compact body is realized. Can be installed without taking up space. Ui16 and Ui24R are also compatible with EIA4U rack mount.

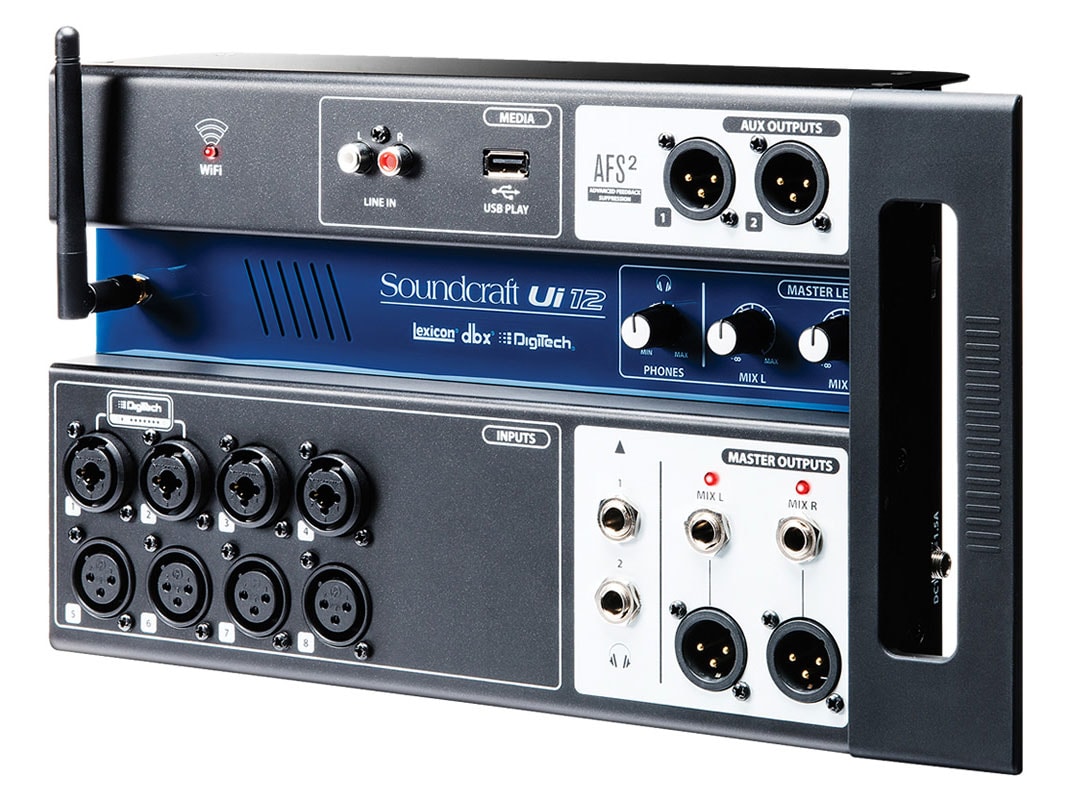

■ Input / output terminal
Combo jack: 4
XLR input: 4
Stereo line input (RCA): 1
MIX L / R line output (XLR / TRS): 1 each
AUX line output (XLR): 2 (two systems can be added by switching headphone terminals)
Headphone jack: 2

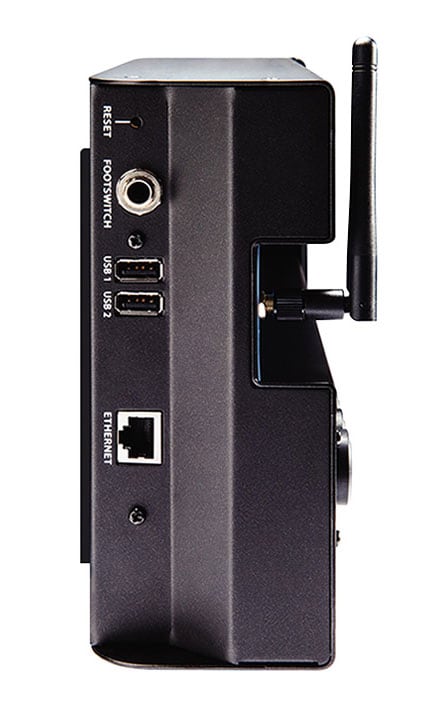

USB: 3
Ethernet (RJ45): 1
Foot switch (standard phone)
■ Bus
MIX L / R bus: 1 each
AUX bus: 2 (two systems can be added by switching the headphone terminal)
FX bus: 3
■ AD-DA conversion: 24bit, 48kHz
■ Internal processing: 32-bit floating point operation
■ Latency: 1.8ms (microphone / line input to line output)
■ Power supply: DC18V (1.5A), AC adapter (AC100V, 50 / 60Hz)
■ Size (WxHxD): 321 * 177 * 77mm ■ (we remove protrusion)
■ Weight: 2.3kg
