DASLIGHT / DPAD 512 DMX Software & Wall Mount Controller

Dimmer & lighting controller for indoor wall mount. Scenes created on DASLIGHT4 software can be saved to the 96kB memory built into the controller and used in stand-alone mode. Equipped with a large display for excellent visibility. Supports up to 512 channels.

Compatible with 512ch. Wall-mount DMX controller with large LED display

■ DMX stand-alone controller
■ Four touch sensor type buttons
(ON / OFF, CHANGE MODE, PREVIOUS, NEXT)
■ Up to 99 scenes can be saved.
■ Number of DMX channels: 512ch
■ Compatible with DVC3 and DVC2

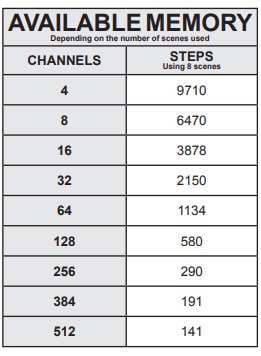

■ Stand-alone memory: 96k

■ Contents:
Controller
USB cable (micro USB)
Connector block
■ Target OS
Windwos 7/8/10 32bit / 64bit * DASLIGHT4
mac OS X 10.10 or higher
USB 2.0
■ Power supply
5.5V ~ 12VDC
■ Keypad
Dimensions: 86 x 110 x 10mm
Weight: about 145g
■ IP20 (0 ℃ ～ 50 ℃)

* Download the latest version of DASLIGHT4 software from the manufacturer site.
* Free download. You can try the software in advance.

■ Minimum operating environment
・ Windows7 or higher, macOS X 10.10 or higher
・ 1GHz processor or higher
・ 2GB memory (RAM)
・ 1280 x 768 pixel screen
・ OpenGL3.1 (3D)

■ Recommended operating environment
・ Windows7 or higher, macOS X 10.10 or higher
(Windows 10, macOS Mojave compatible)
・ 2GHz Dual Core processor or higher
・ 4GB memory (RAM) or more
・ Video card with 1GB or more memory
・ 1920 x 1080 pixel screen
・ OpenGL3.1 (3D)
