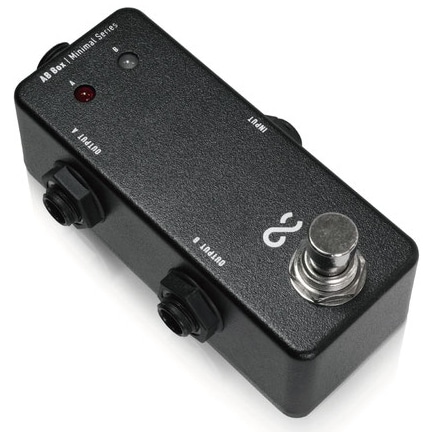

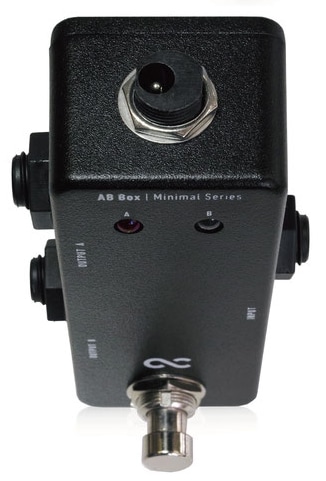

One Control / Minimal Series AB BOX

This A/B BOX can be used not only to switch between two amplifiers or as a tuner output, but also as an input selector thanks to its simple configuration. One Control's streamlined design allows for a variety of uses while taking up minimal space on your effects board.

■Guitar Effects Pedal
■AB Box
■Power Supply: DC9V (sold separately, center negative, EPA-2000 recommended, no built-in batteries)
■Dimensions and Weight: 54W x 48H x 101mm, approximately 120g
~From the Manufacturer~
The Minimal Series pedals are manufactured by eliminating all unnecessary elements, achieving the smallest, most compact size possible, and combining simple yet sophisticated functionality. These pedals truly deserve the title ""Minimal."" This pedal switches one signal between two channels. Its extremely simple passive circuitry allows for a wide range of uses, including switching between two amplifiers, using it as a tuner output that can be muted while tuning, or switching between the left and right stereo outputs. Furthermore, a signal can be sent from the RED/BLUE output to the INPUT, making it ideal as an input selector, allowing you to instantly switch between two guitars, basses, synthesizers, or other instruments on a single amplifier or mixer channel. To minimize signal interference, the Minimal Series ABBOX features true bypass with a mechanical footswitch. Its passive circuitry means it can operate without a power source. For enhanced visibility, the LED indicator for the current output channel requires a standard center-negative DC9V adapter (EPA-2000 recommended).
