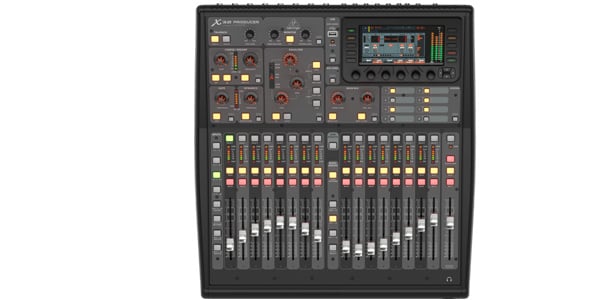

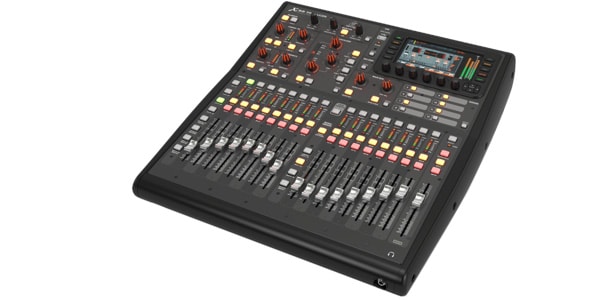

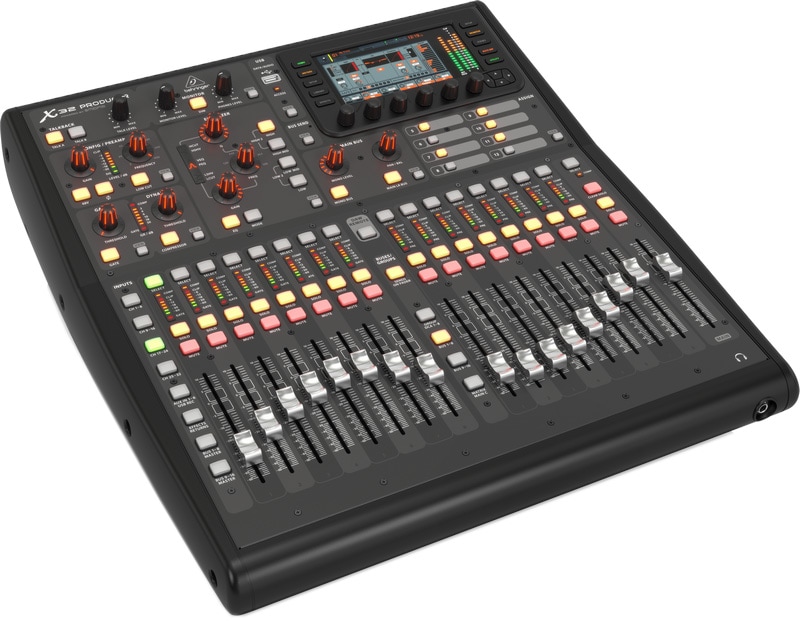

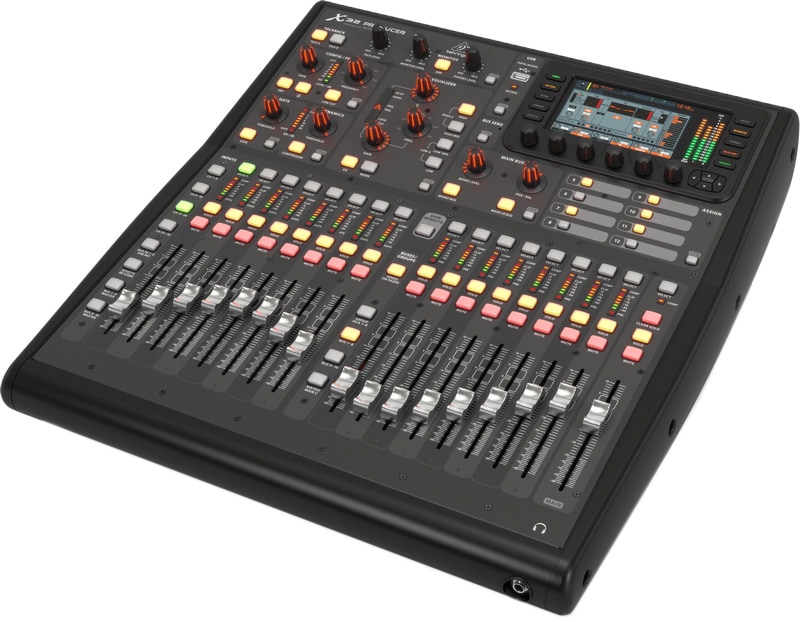

BEHRINGER / X32 Producer Digital Mixer

This mobile model houses the same engine as the X32 in a rack-mountable enclosure. Equipped with 16 mic inputs, 8 XLR outputs, and the same effects as the X32, it is capable of handling small-scale live performances on its own.

*When updating firmware, press and hold the VIEW button near the USB port while powering on.
■40-channel digital mixer, 16 mix buses, 6 mutes / 8 DCA groups
■Inputs: 16 XLR channels, 6 TRS phone channels, 1 RCA stereo channel

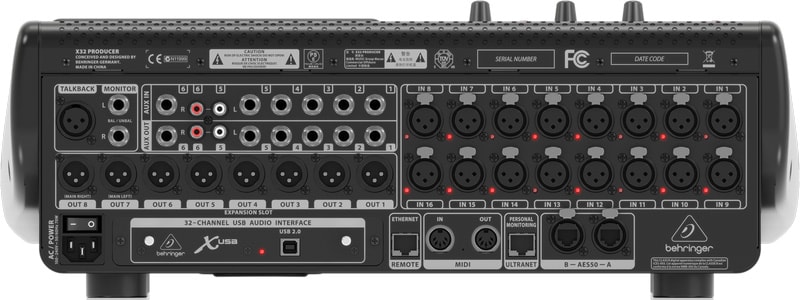

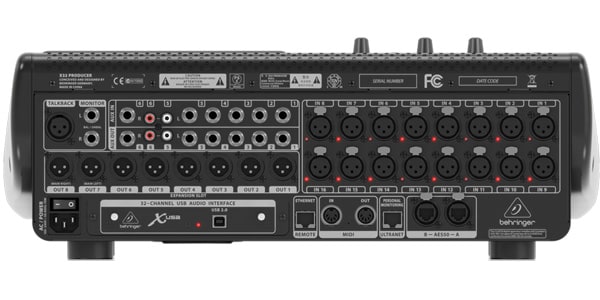

■Outputs: 8 XLR channels, 6 TRS phone channels, 1 RCA stereo channel
■EQ: 6-band
■Faders: 100mm motorized
■Groups: 8 channels
■Bus: 16 channels
■16 fully programmable MIDAS-designed mic preamps
■High-resolution 5-inch color TFT LCD main display
■8 digital effects channels
■Dimensions: 490 (w) x 506 (d) x 163 (h) mm
■Weight: 11.4 kg

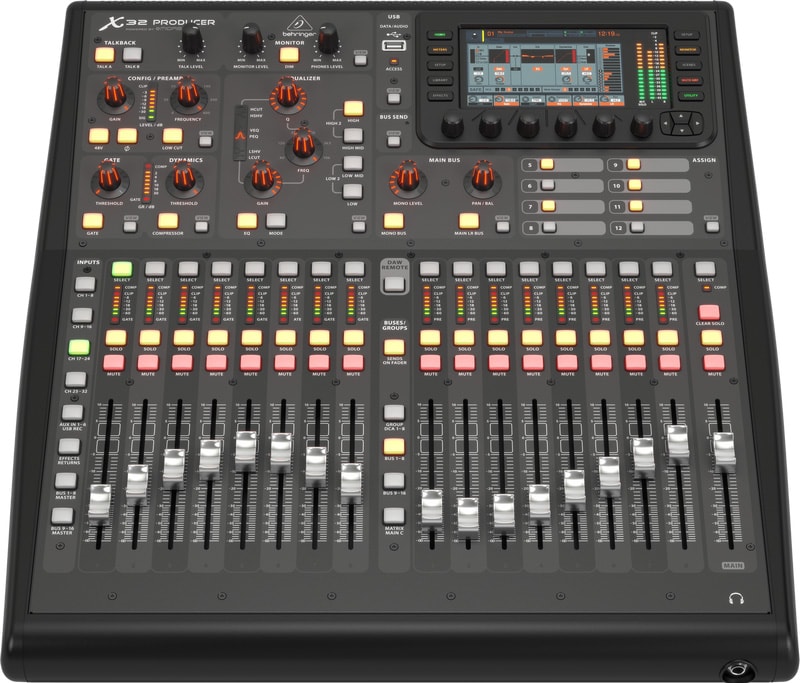

Unlike previous digital mixers requiring numerous knobs, buttons, and complex menus, the X32 Producer is intuitive to use. The channel strip section features nine rotary controllers with LEDs for precise adjustment of parameters such as the compressor and 4-band parametric EQ for each channel.

■Features
・Main Display
Equipped with a 10cm color TFT display. Information is displayed with vivid images and is clearly visible from any angle. The comprehensive information, organized in an excellent screen design, greatly simplifies on-site work.

・DCA Group
Control multiple signals without mixing them to subgroup buses. For example, you can adjust the drum mix with a single fader without affecting the individual buses, further expanding workflow versatility.

・Send-on Fader
Send the selected signal to any AUX or output bus, then use the faders to achieve the optimal mix. The X32 remembers these settings, and simply recalling the bus instantly restores the original fader settings. Submixes for monitor systems, etc., are also easily created.

・Assignment Function
Eight types of controls can be individually customized. Buttons can be used to turn parameters on/off or jump to screen views.

・Moving Faders
Equipped with 17 100mm moving faders. Separate input and group/bus sections make signal grouping and bus send assignments easy. Up to 100 scenes can be saved. The faders move simultaneously when recalled.

・Expandability
Equipped with a wide variety of I/O. Easily create a 32-channel DAW using USB 2.0 connectivity. Connect to the stage simply by connecting the S16 Digital Snake I/O with an LAN cable. Remote control is also possible via PC, iPad, or iPhone.

※Rack Mount Ears Included
When storing in a ROADREADY / RRM19R, the rack ears must be attached to the back of the unit. Additionally, the front headphone jack will be blocked and unusable.
When storing in the SKB/19-P12, the rack ears must be attached to the front of the unit.
They cannot be stored in the CLASSIC PRO/CMC11 series. Attaching them to the front of the unit allows it to be secured to the rack rail, but the top cover will interfere and cannot be closed, and the headphone jack at the front will be blocked and therefore unusable.
