RME / Fireface UC　USBオーディオインターフェイス

Audio interface with USB 2.0 high-speed bus optimized for uncompromising high performance on Windows and Mac OS!

■USB 2.0 audio interface

・Fireface UC (USB Compact) is equipped with a USB 2.0 high speed bus optimized for uncompromising high performance on Windows and Mac OS. Designed based on the RME Hammerfall core The newly developed proprietary transmission technology achieves ultra-low latency even on multi-channels, achieving professional specifications not possible with general USB audio interfaces.

Ultimate USB audio technology
• Latency on Windows and Mac OS X is revolutionary. The minimum latency on Windows Vista is 48 samples, and on Mac OS X it is up to 14 samples. This is comparable to the performance of the PCI Express interface.

Hammerfall DSP design
・The Hammerfall DSP series, which is used as a reference in various fields, has a good reputation for driver stability, accuracy, and sound quality. It's the only option for severe sites.

Flexible real-time mixer/Patchbay TotalMix
Equipped with a powerful digital real-time mixer "TotalMix" unique to RME that is DSP-based and does not overload the CPU of the computer. All 18 inputs and 18 playback channels can be freely routed/mixed to the 18 physical outputs, allowing up to 648 different routings.

Jitter suppression function SteadyClock
・SteadyClock provides amazing jitter suppression for all clocks. Perform AD/DA conversion with optimum quality.

Multi-analysis software DIGICheck
・RME's original utility developed to measure and analyze digital audio streams. It is equipped with a level meter, spectrum analyzer, oscilloscope, Bit Statistics & noise meter, and a multi-recording function for long-time recording with a minimum CPU load.

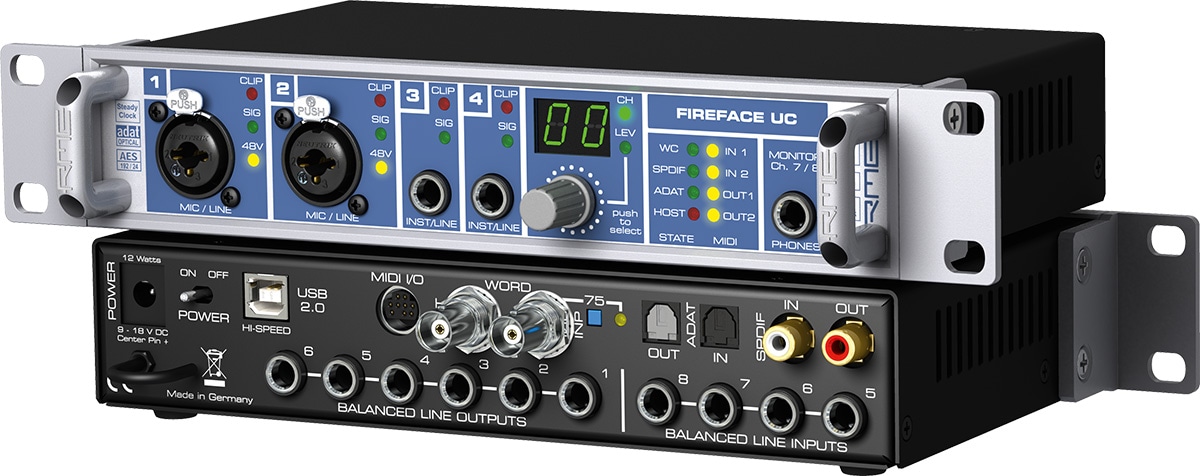

■ Input/output

・Analog line input (1/4"TRS) x 6 lines (line x 4, line/instrument x 2)
・High-end mic pre/line input (XLR, 1/4" TRS combined) x 2
・Analog line output x 8 (balanced x 6, unbalanced x 2)
・ADAT input/output x1 (or SPDIF optical)
・SPDIF coaxial I/O x 1 (AES/EBU compatible)
・16 ch high-speed MIDI input/output x 2
・Word clock input/output x1
・USB 2.0 terminal x 1

■ Operating environment

Windows
・Windows XP SP2 or later, XP 64 bit Edition, Vista Home/Premium/Ultimate, 7
・One USB 2.0 terminal
・Device driver: ASIO 2.0, WDM (all multi-client compatible)
・Computer with a Pentium Core 2 Duo or higher CPU

Mac
・Mac OS X 10.5 or later, IntelMac
・One USB 2.0 terminal
・Device driver: Core Audio, Core MIDI
*Fireface UC requires the Mac OS X 10.5 or higher to use the functions of the specific OS installed in Mac OS X 10.5 or later.
