KORG / OT-120

This orchestral chromatic tuner offers high performance and functionality in a vertical design that is easy to hold and operate. Its needle meter boasts enduring popularity due to its excellent visibility.

■ Chromatic Tuner
■ Needle Type
■ Temperament: 12-tone Equal Temperament, Pythagorean, Mean Tone D#, Mean Tone E♭, Werckmeister III, Kirnberger III, Kellner, Vallotti, Young
■ Transposition Range: C, C#, D, E♭, E, F, F#, G, G#, A, B♭, B
■ Tuning Range: A0 (27.50 Hz) - C8 (4186 Hz)
■ Reference Tone: C2 (65.41 Hz) - C7 (2093 Hz) 5 octaves, 2 volume levels
■ Tuning Modes: AUTO (SLOW, MEDIUM, FAST), MANUAL, SOUND, SOUND BACK
■Calibration Function: A4=349-499Hz (1Hz Steps)
■Measurement Accuracy: ±1 CENT
■Sound Accuracy: ±1.5 CENT
■Connection Terminals: INPUT (Standard Mono), OUTPUT (Standard Mono), DC IN (9V)
■Power Supply: 2 x AAA Batteries (3V) or AC Adapter (KA181)
■Battery Life: Approximately 100 hours (Alkaline batteries, Meter Mode (MEDIUM), No Backlight, Continuous A4 Input)
■Dimensions: 74 (W) x 120 (D) x 36 (H) mm
■Weight: 193g (including batteries)

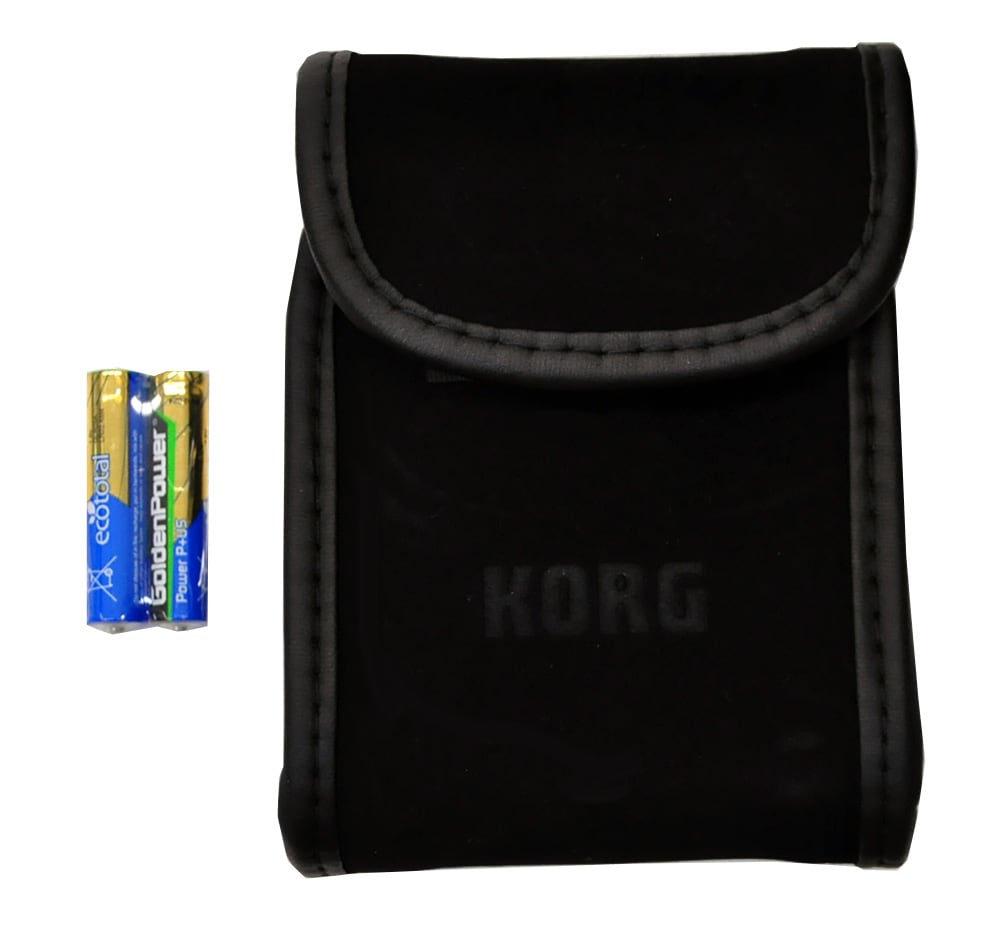

■Accessories: Suede-like Soft Case

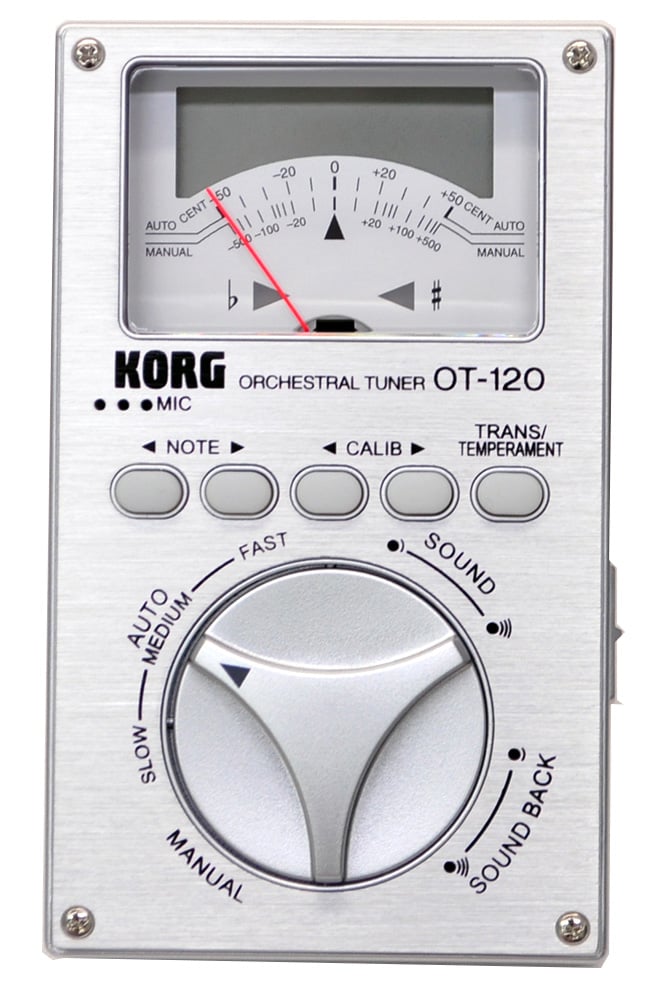

■The OT-120 is an orchestral chromatic tuner that combines high performance and functionality in a vertically oriented design that is easy to hold and operate. In addition to the ever-popular needle meter, known for its excellent visibility, the tuner features a dual display with a backlit LCD screen that clearly displays battery level, sound output level, calibration, key, temperament name, and more. The display, large dial for easy mode selection, and easy-to-press buttons are all conveniently arranged in a vertical orientation that's easy to hold, and a stand is included on the back to support the tuner's movement. This needle meter tuner boasts a stylish look with a luxurious silver aluminum panel and is packed with features to support orchestral tuning.
■ It can generate a reference tone over a wide five-octave range, from C2 (65.41 Hz) to C7 (2093 Hz). Two or more players can tune simultaneously while listening to the reference tone. When using the stand, the speaker opening is not blocked, allowing for louder sound when checking the reference tone. It also features Sound Back Mode, a feature based on KORG's proprietary technology. By connecting an instrument to the input jack using a separately sold contact microphone such as the CM-100/CM-100L, the speaker will return a reference tone that is closest to the input instrument's pitch. The meter also operates simultaneously, allowing you to check the pitch both visually and aurally, resulting in more accurate tuning and ideal for training your sense of pitch. The built-in microphone also makes it easy to measure acoustic instruments.
■Long-life design with over 100 hours of battery life using two AAA batteries. It can also be used with an AC adapter (optional KA181).
