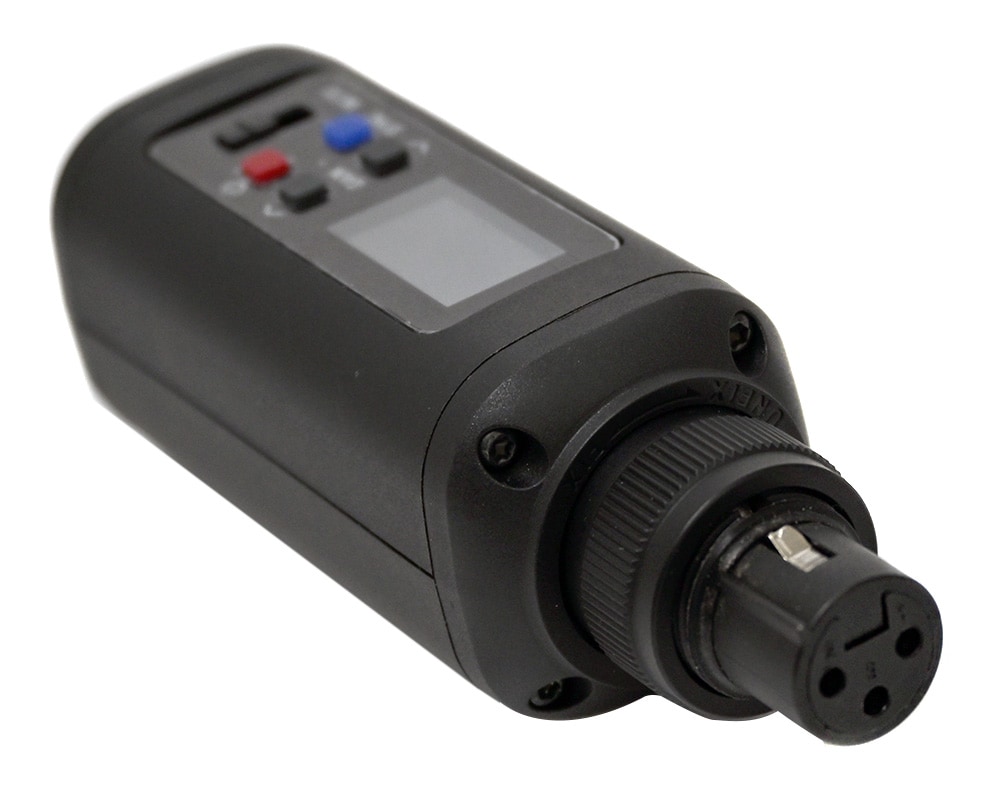

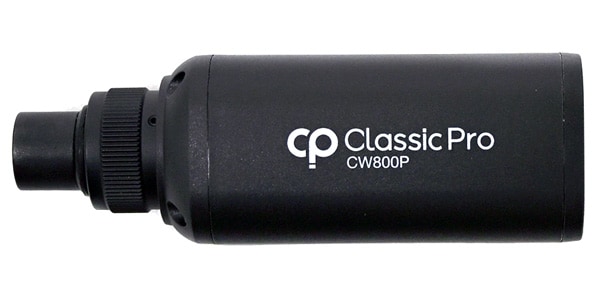

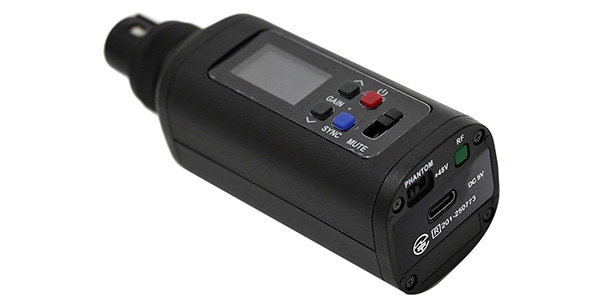

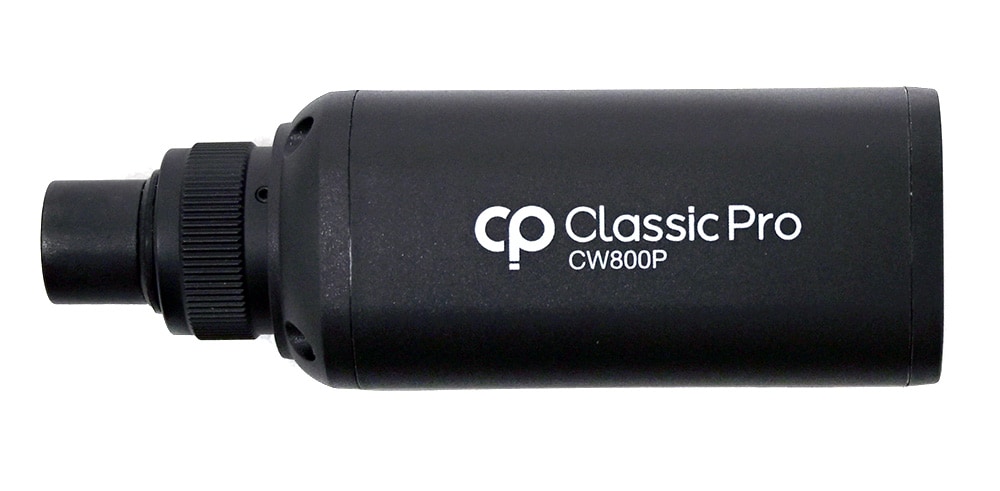

CLASSIC PRO / CW800P

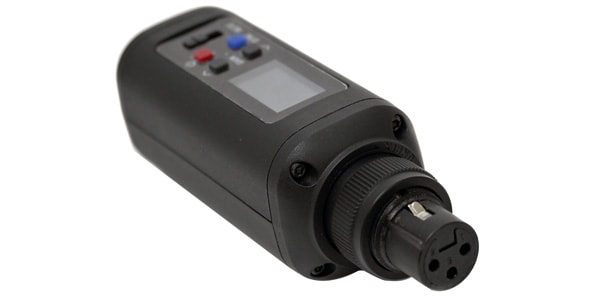

The plug-on transmitter for the CWS800 Series features a sync function that allows for quick and easy setup. By connecting your dynamic or condenser microphone and pairing it with a CWS800 Series receiver, you can turn your wired microphone into a wireless microphone.

Specifications

Transmission Frequency: B band

RF Output Power: 10 mW

Oscillation Method: PLL synthesizer

Frequency Stability: ±0.005%

Maximum Deviation: ±20 kHz

T.H.D.: < 1% (at 1 kHz)

Tone Frequency: 32.768 kHz

Gain Setting: -20 dB to +20 dB

Current Consumption: 155 ± 10 mA

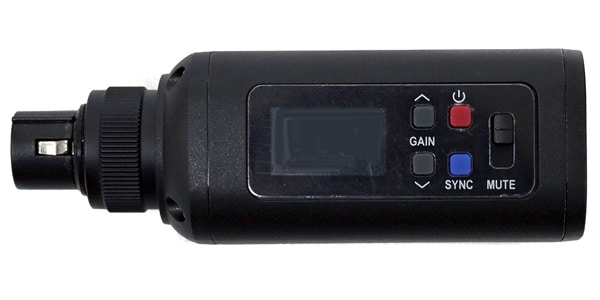

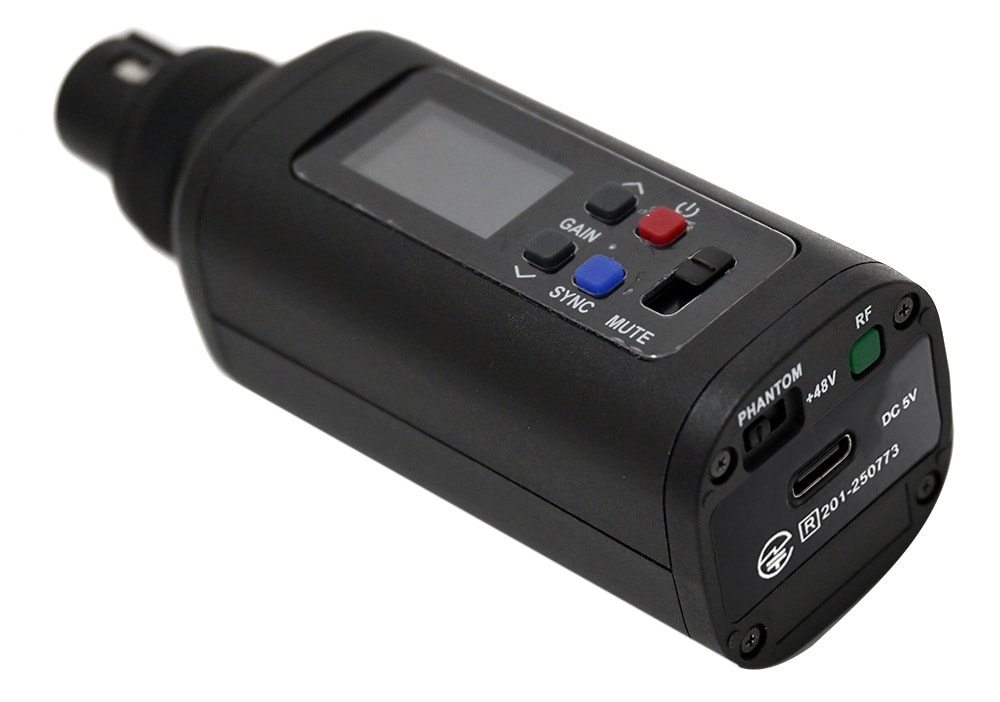

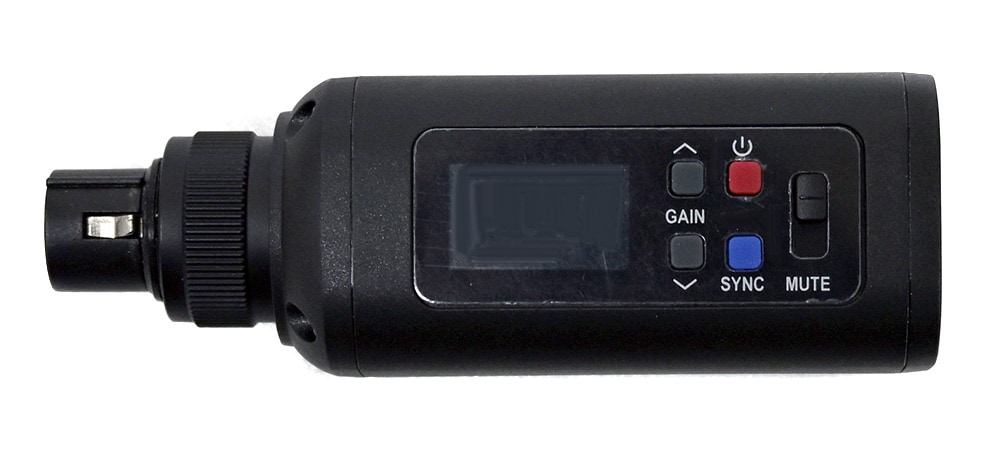

Display: LCD (displays group, channel, frequency value, RF level, gain, and battery status)

Channel Selection: Via sync with receiver

Compatible Receivers: CW801R, CW802R only

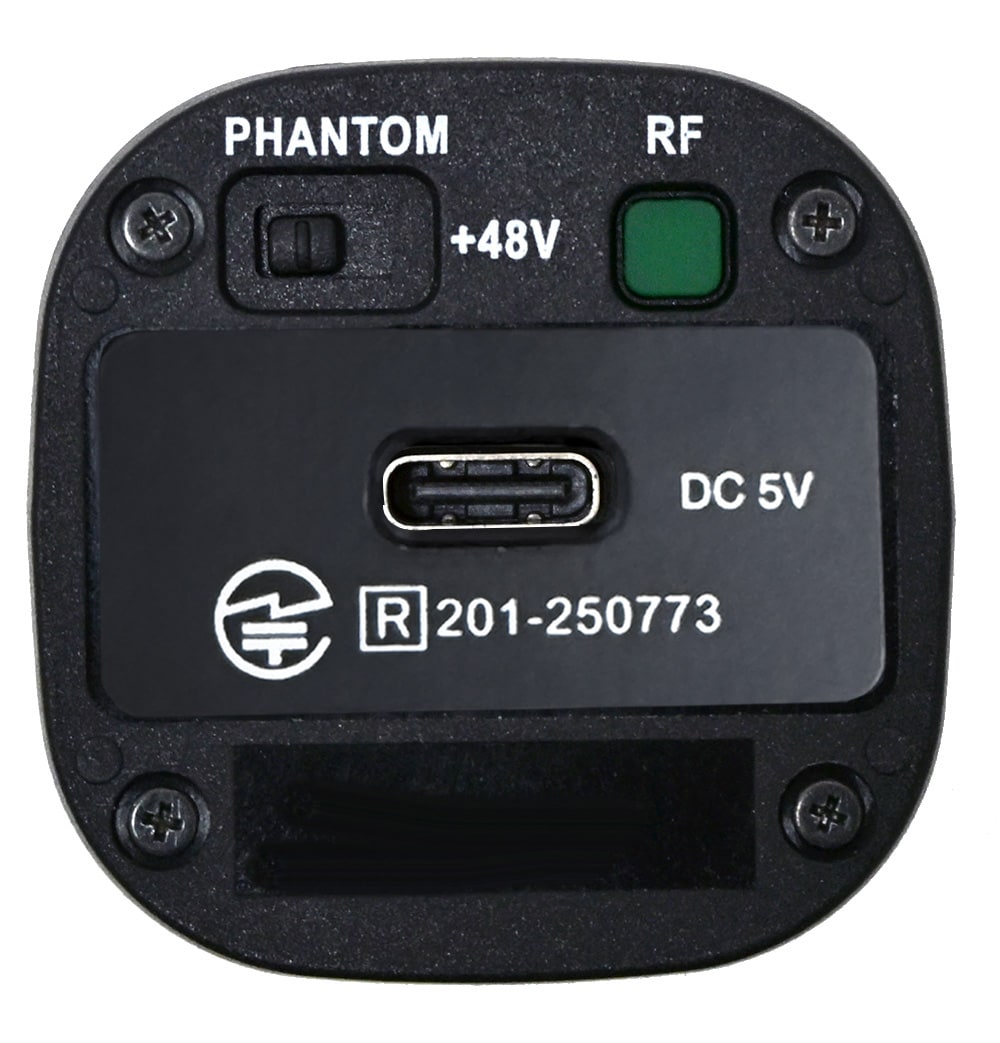

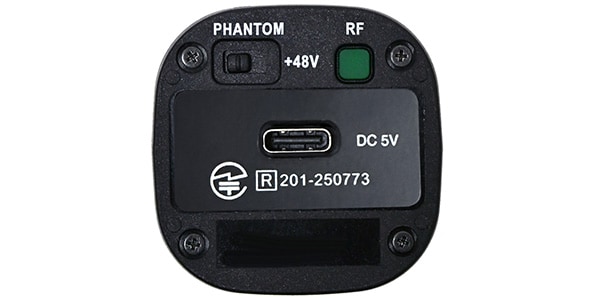

Phantom Power: 48 V

Dimensions & Weight: 38 × 111 × 38 mm (W × H × D), 134.1 g

Power Supply: Built-in lithium-ion battery (1200 mAh)

Operating Time: Up to 8 hours (depending on communication conditions)

Note: A receiver and either a dynamic or condenser microphone are required for operation.
