GENELEC / 8020DMM

Variations

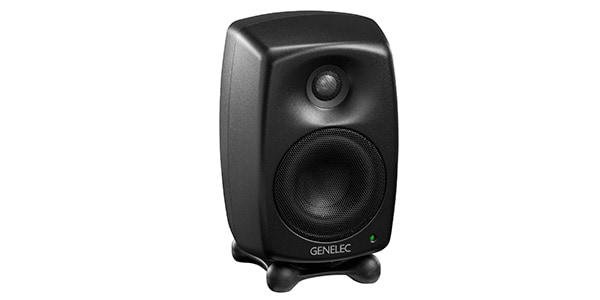

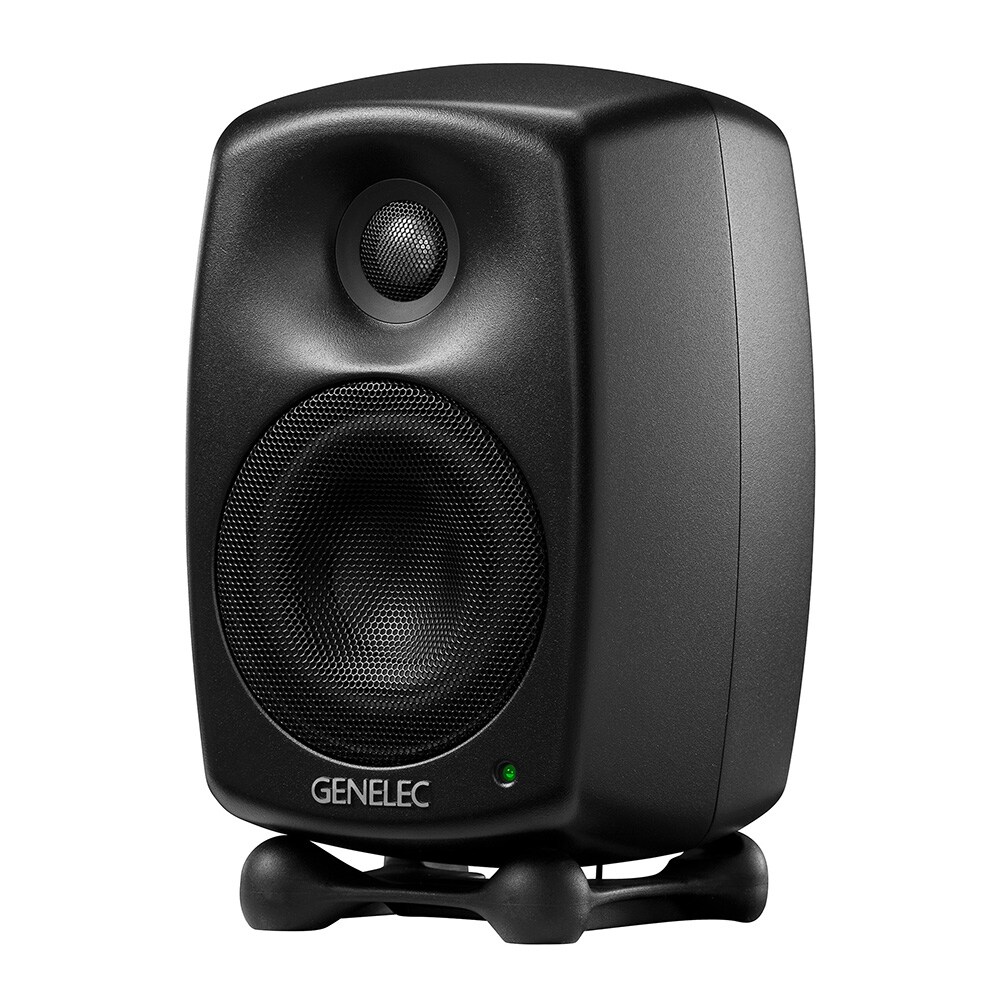

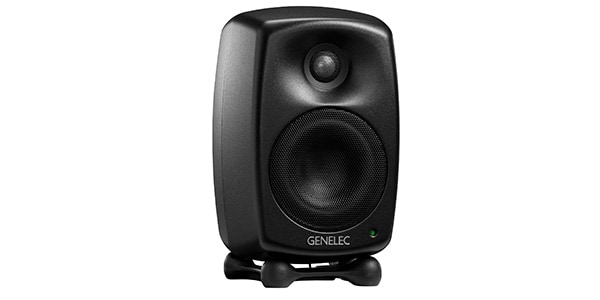

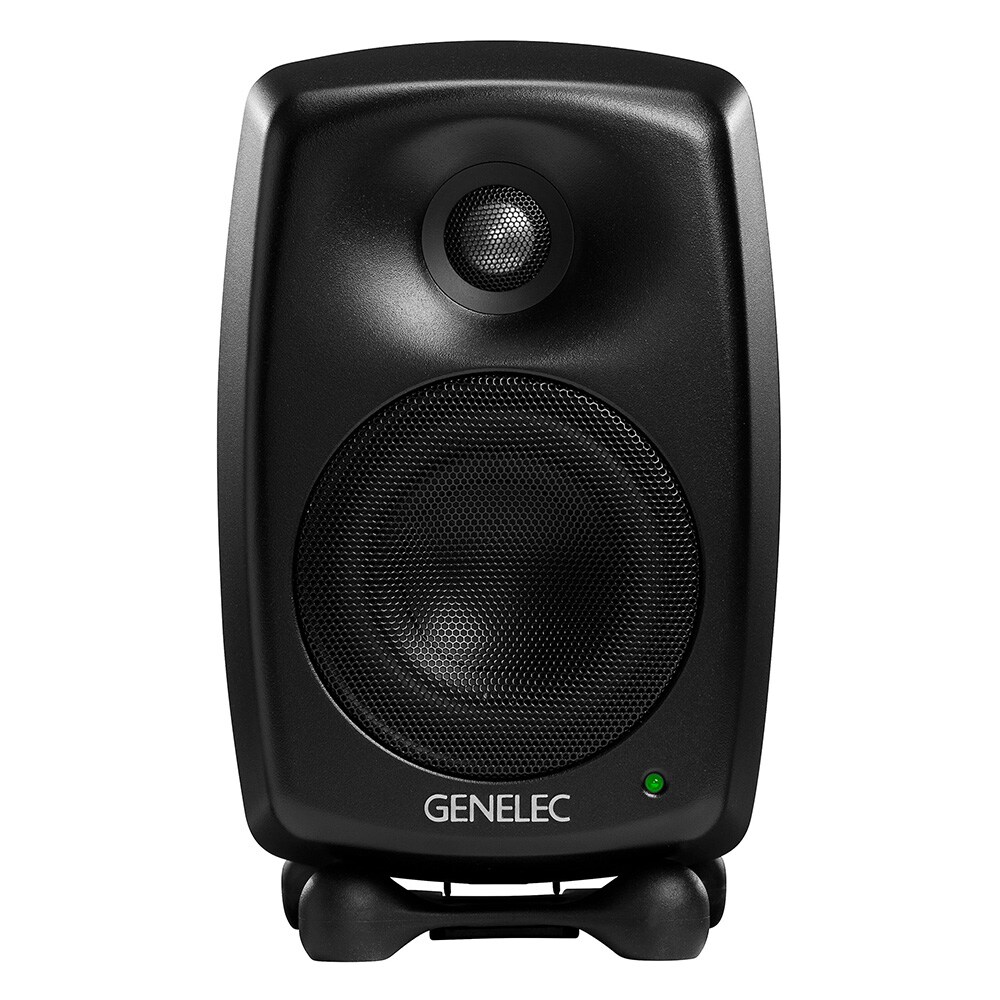

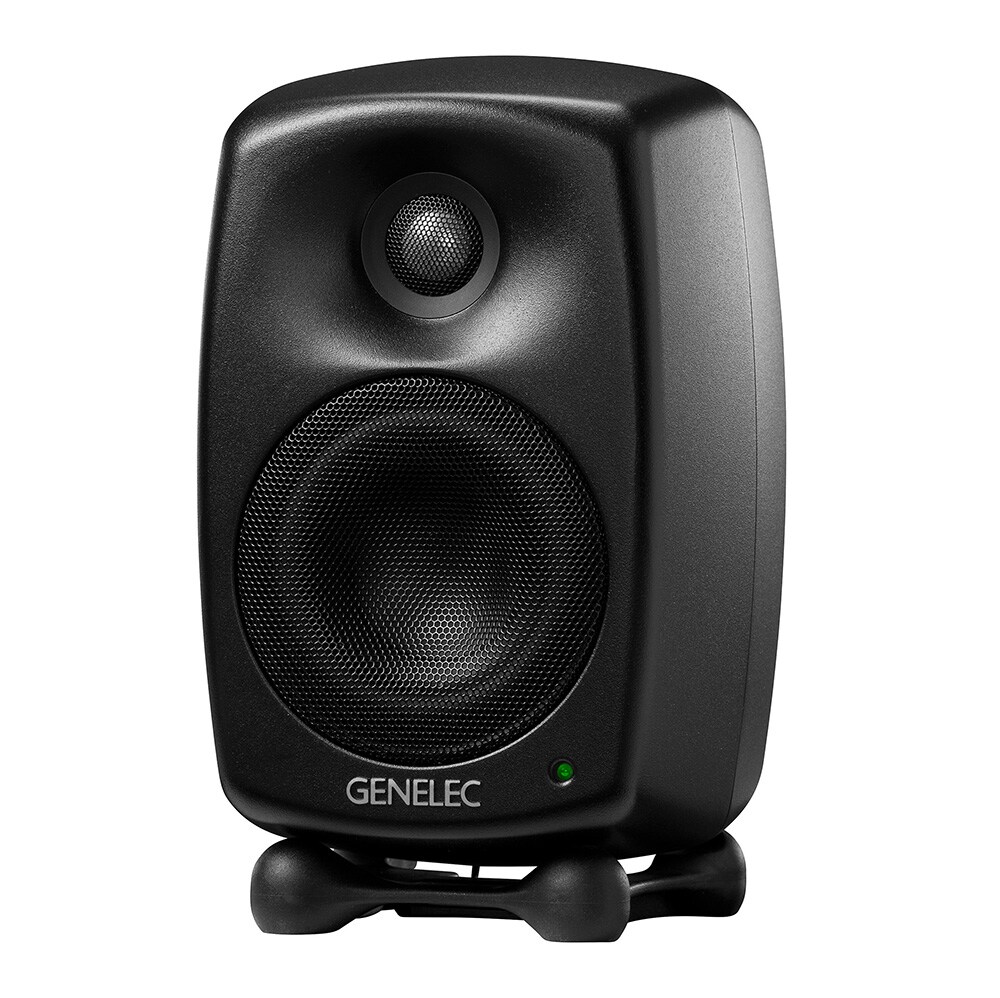

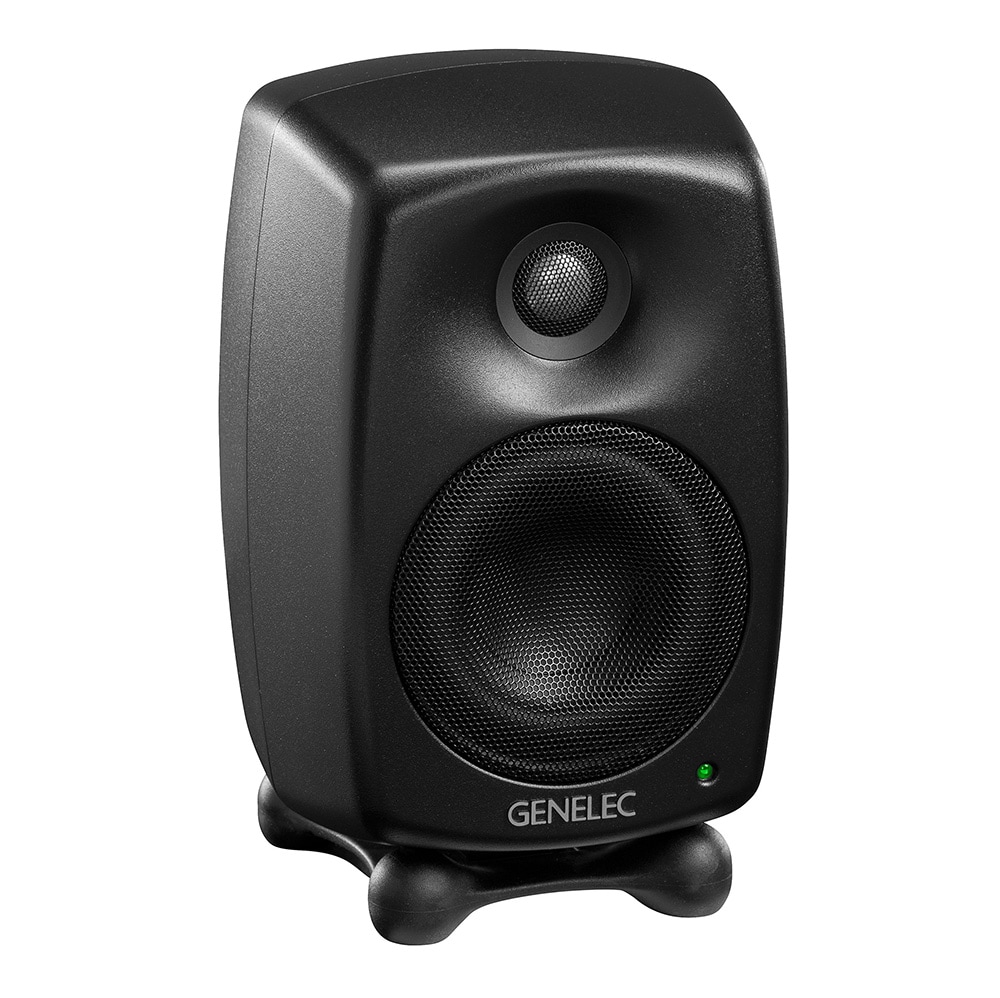

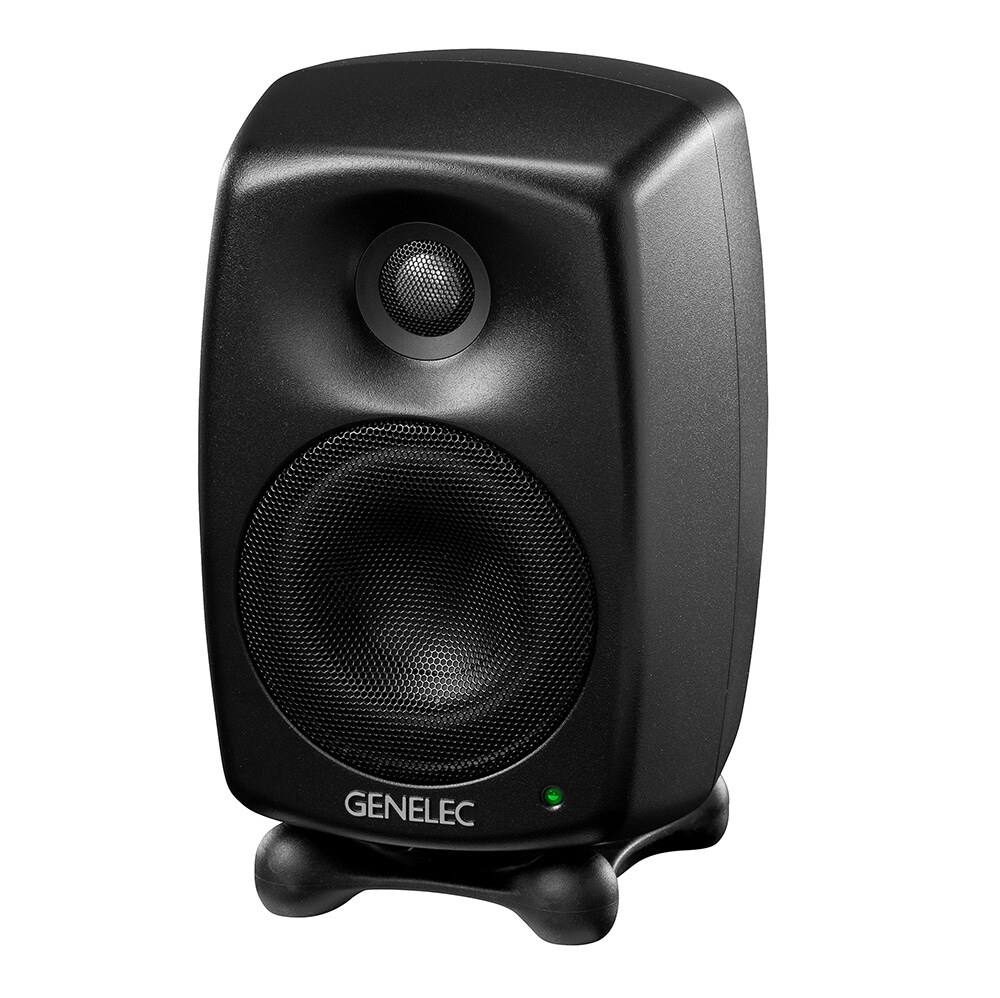

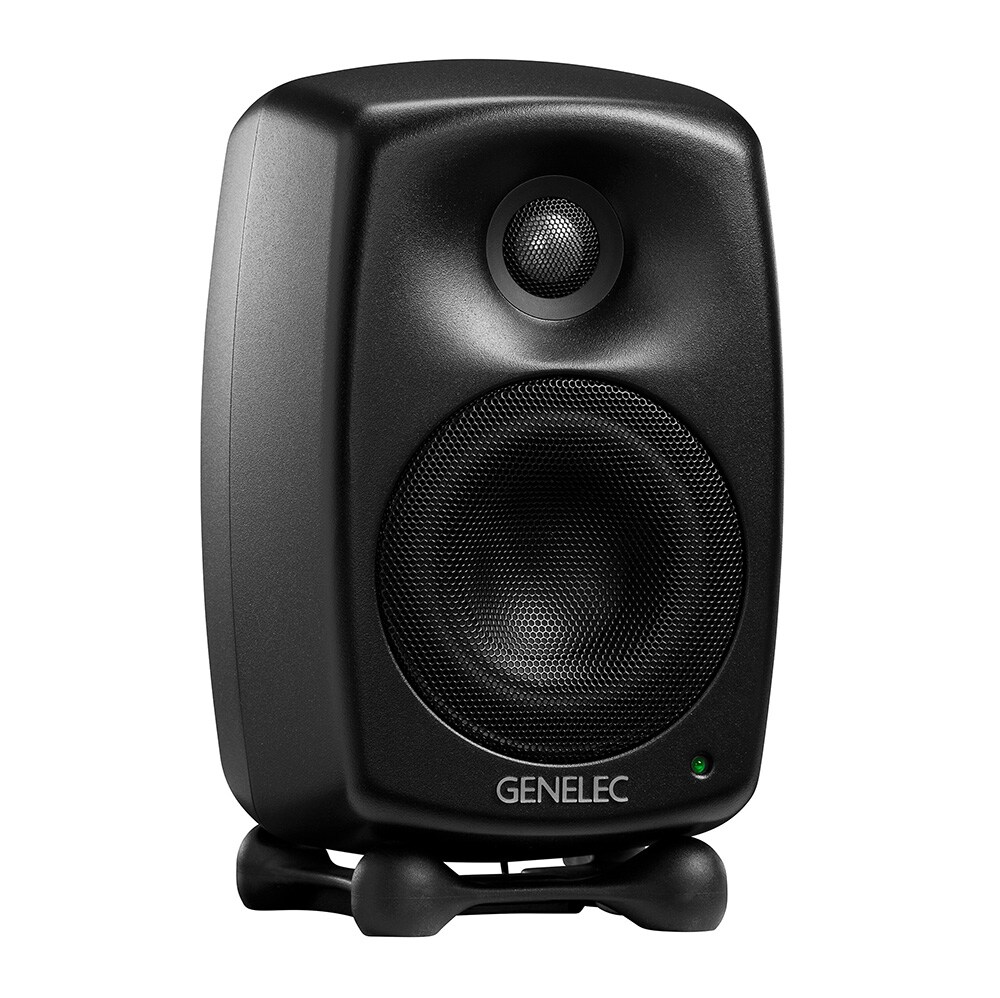

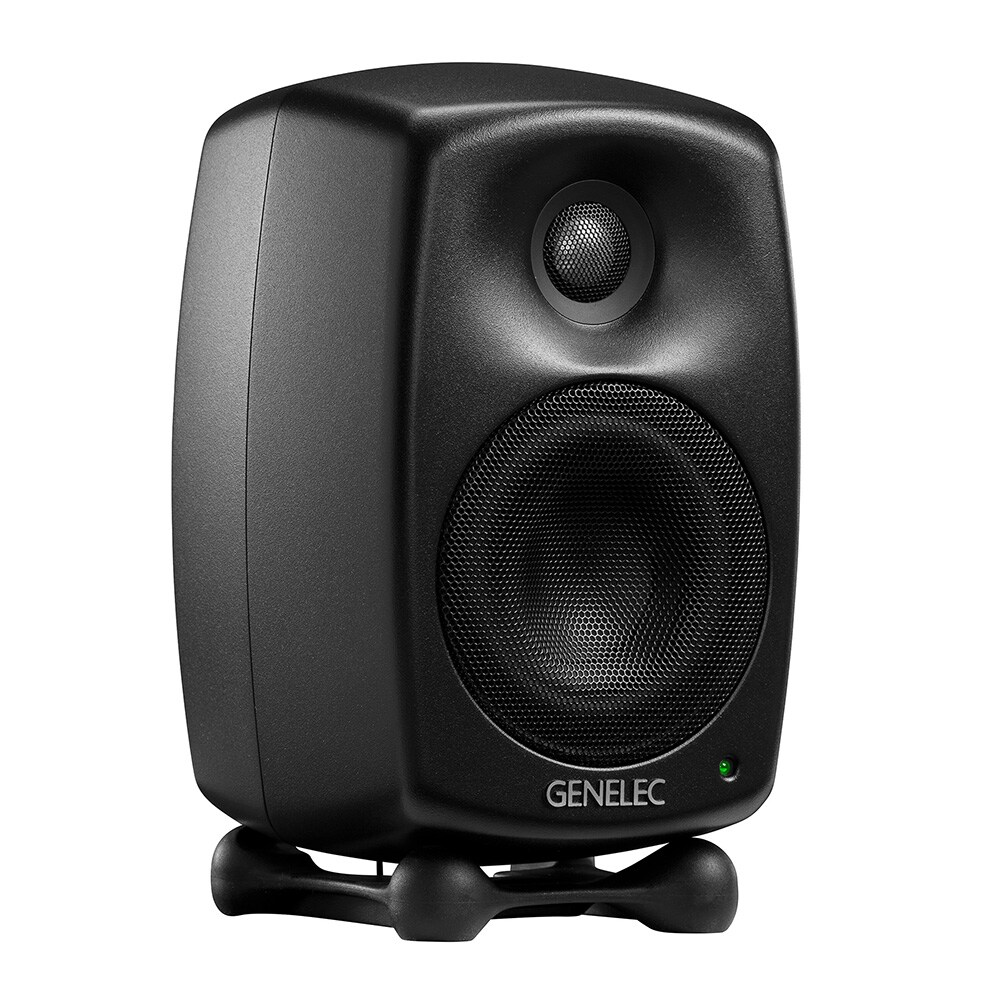

The 8020DPM is a Genelec powered monitor speaker. It uses a high-quality D-class amplifier. It achieves increased efficiency in the power supply circuit while reducing power consumption. The DESKTOP switch allows for improved near-field characteristics.

■Studio monitor, powered, 2-way, 4"" output, LF50W/HF50W, 1 unit

- High-quality built-in Class D amplifier
- Even higher output (50W high frequency + 50W mid-low frequency) for both models. This increases maximum sound pressure by 4dB.
- Improved power supply circuit efficiency while reducing power consumption.
- A DESKTOP switch has been added, improving near-field characteristics.

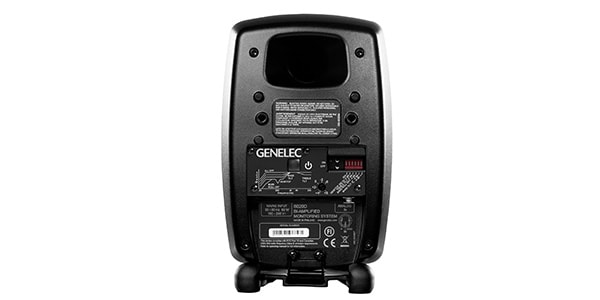

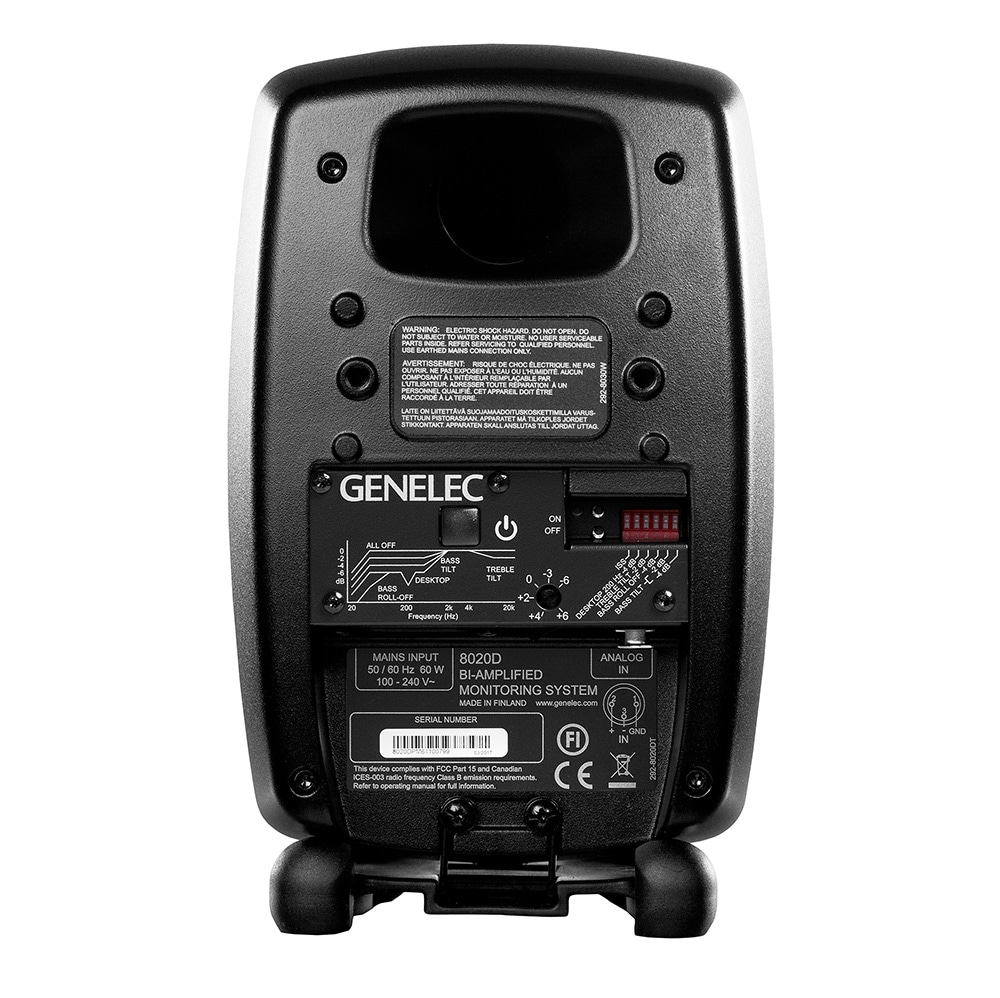

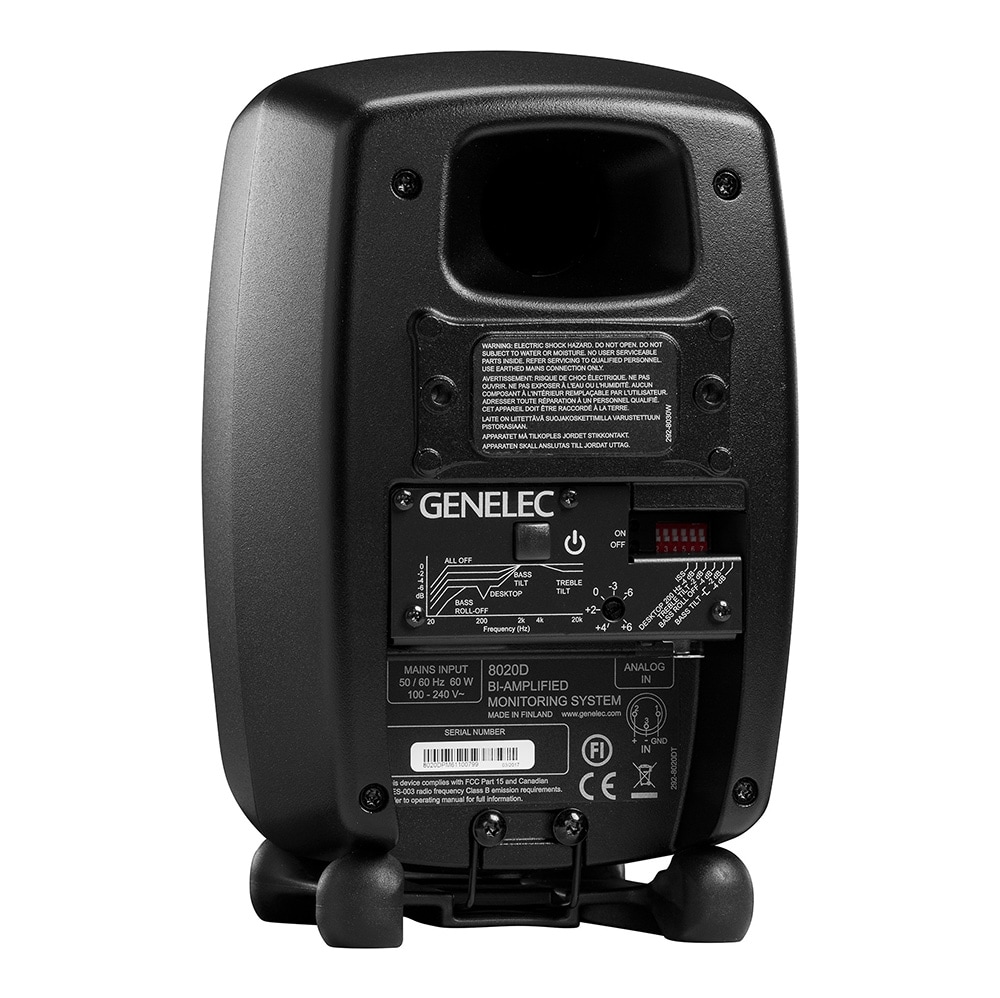

- The power switch on the rear has been changed to a push button.
(The power switch on the 8040C, which was previously located on the front, has been moved to the rear.)
- The front volume knob has been eliminated, replaced with a ±6dB fine-tuning trim on the rear.
- Acoustic characteristics and sound quality are virtually identical.

Even if your workspace is limited, there's no need to compromise on quality. With the 8020D, you can take advantage of Genelec's signature precision and reliability to suit any project and space.

Genelec The 8020D is compact yet highly ambitious. Launched in 2017, the 8020D delivers a 4 dB increase in SPL and even lower power consumption compared to its predecessor. Designed to accommodate the widest variety of listening environments, the 8020D leverages the innovations of the 8000 Series to deliver an unparalleled nearfield experience, excelling in space-constrained environments.

The Minimum Diffraction Enclosure (MDE) delivers accurate, uncolored sound reproduction, while the Directivity Control Waveguide (DCW) delivers precise on- and off-axis frequency reproduction. When the system is finished working, the Genelec Intelligent Signal Sensing (ISS) circuitry automatically detects system inactivity and switches to an environmentally friendly, power-saving standby mode. From post-production studios and broadcast trucks to DAW-based studios, the 8020D is the ideal choice for nearfield solutions.

Key Technologies:
■ DCW technology delivers flat on- and off-axis response
■ MDE delivers uncolored sound reproduction Technology
■Advanced reflex port design extends low-frequency frequency response
■Room response compensation. Accurate room response compensation optimizes in-room performance.
■Optimized amplifiers. Each transducer is driven by its own optimized amplifier.
■Active crossovers engage at low signal levels
■Sophisticated drive unit protection circuitry ensures safe operation
■ISS (Intelligent Signal Sensing) technology reduces power consumption in standby mode
■Iso-Pod stands provide vibration isolation for improved sound image resolution
■Versatile mounting options to suit any installation need

■SPL: 100dB
■Frequency Response: 56 Hz - 25 kHz (-6 dB)
■Frequency Response Accuracy: ±2.5 dB (62 Hz - 20 kHz)
■Drivers
Woofer: 4""
Tweeter: 3/4"" Metal Dome + DCW
■Amplifier Output
Woofer 50 W + Tweeter 50 W (both Class D)
■Connections: 1 x XLR analog input
■Dimensions: H 242 x W 151 x D 142 mm (including Iso-Pod™)
■Weight: 3.2 kg

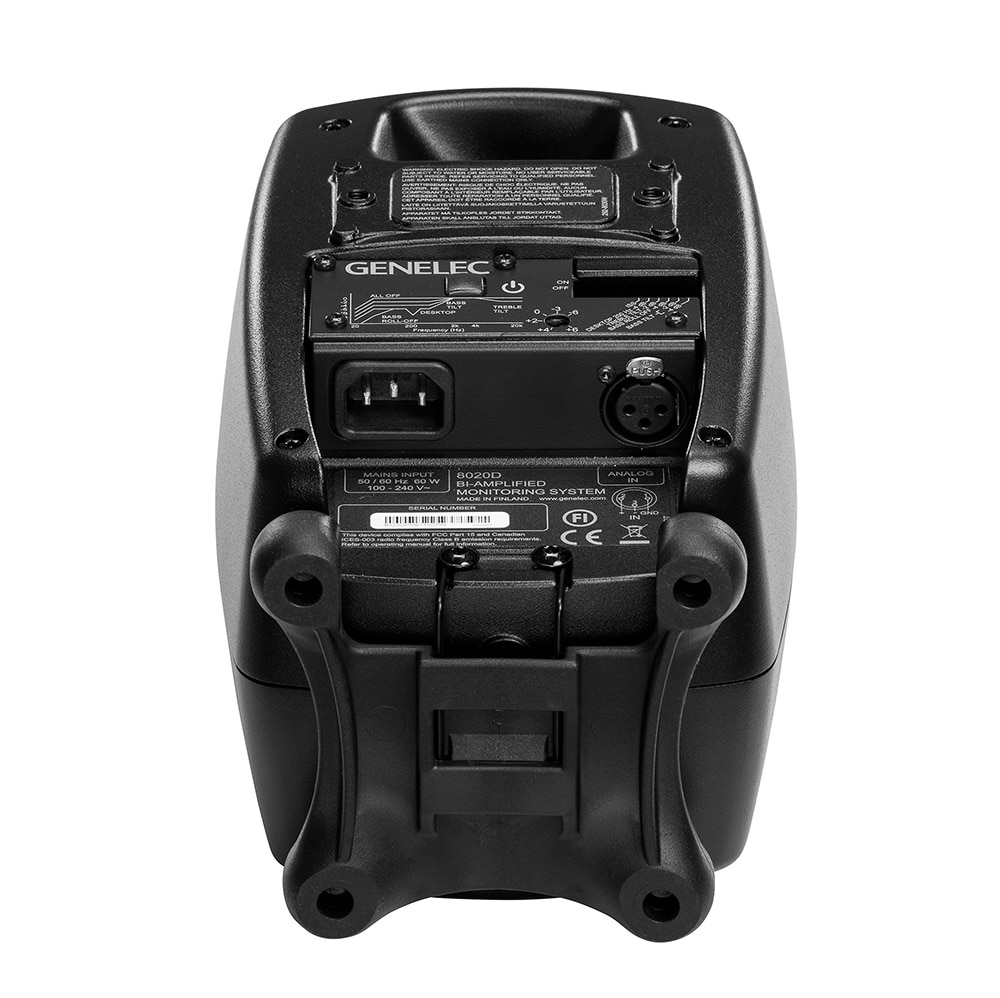

■3/8 inch threaded hole on the bottom

*Sold individually. Not as a pair.
*Images are for illustrative purposes only.
