SUHR / Eclipse BLK ED

From summer 2024, the housing color will be renewed to black (Black Edition)! Eclipse is a dual-channel overdrive/distortion that delivers tones that are lifelike and faithful to the nuances of your playing.

In order to realize the player's imagination, each channel is equipped with LEVEL, GAIN, and 3-band passive EQ, allowing extremely intuitive operation. For instant control in the field, it features a wide range of gain, naturally variable passive EQ, and a VOICE control for fine-tuning the top end. We have achieved versatility that allows it to be used regardless of the type of amplifier.

The ultimate drive pedal for all guitarists.

■SPECS
Input signal: monaural audio signal
Output signal: stereo audio signal
Power terminal: 9VDC, center negative, 2.1mm x 5.5mm (battery compatible)
Operating voltage: 4V to 18VDC (9VDC for normal use)
Maximum voltage: 20V DC
Current consumption: 12mA ~ 15.5mA
Estimated battery life: 25 to 32 hours

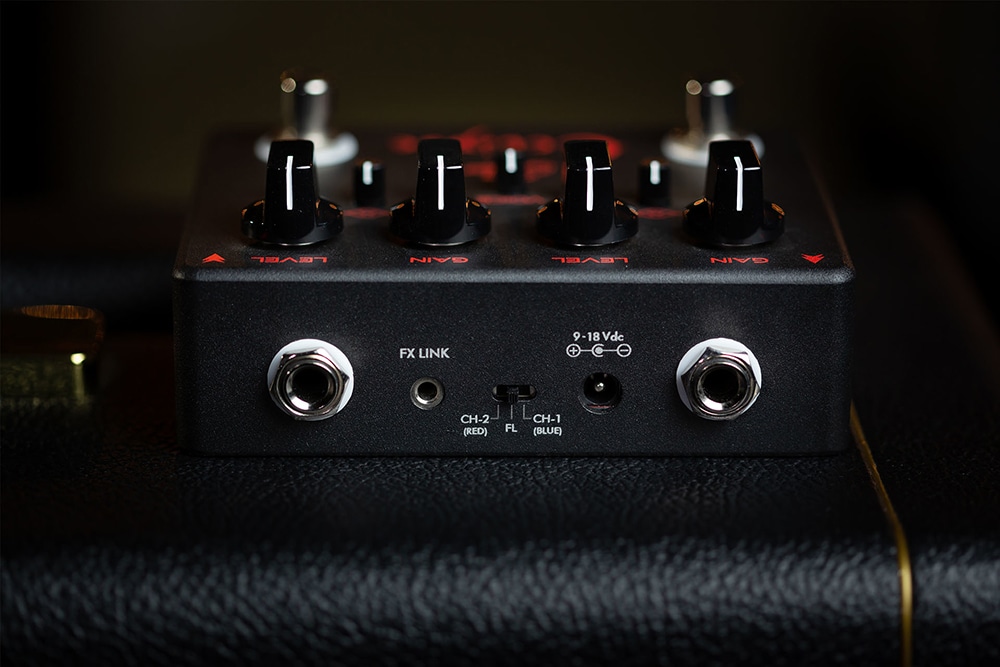

FX Link: 1/8″TRS
Shield -> Tip: Channel 2 active (red LED lit)
Shield -> Ring: Channel 1 active (blue LED lit)
Maximum voltage: 3.3VDC
Input impedance: 1MΩ
Output impedance: 100Ω
Reverse voltage protection circuit: equipped
Overvoltage protection circuit: Equipped
Compliance with RoHS Directive: Compliant
Dimensions: 12.4cm (width) x 9.8cm (depth) x 3.5cm (height/excluding knobs)
Weight: 513g
JAN code: 4571220047824
