SUHR / Koko Boost BLK ED

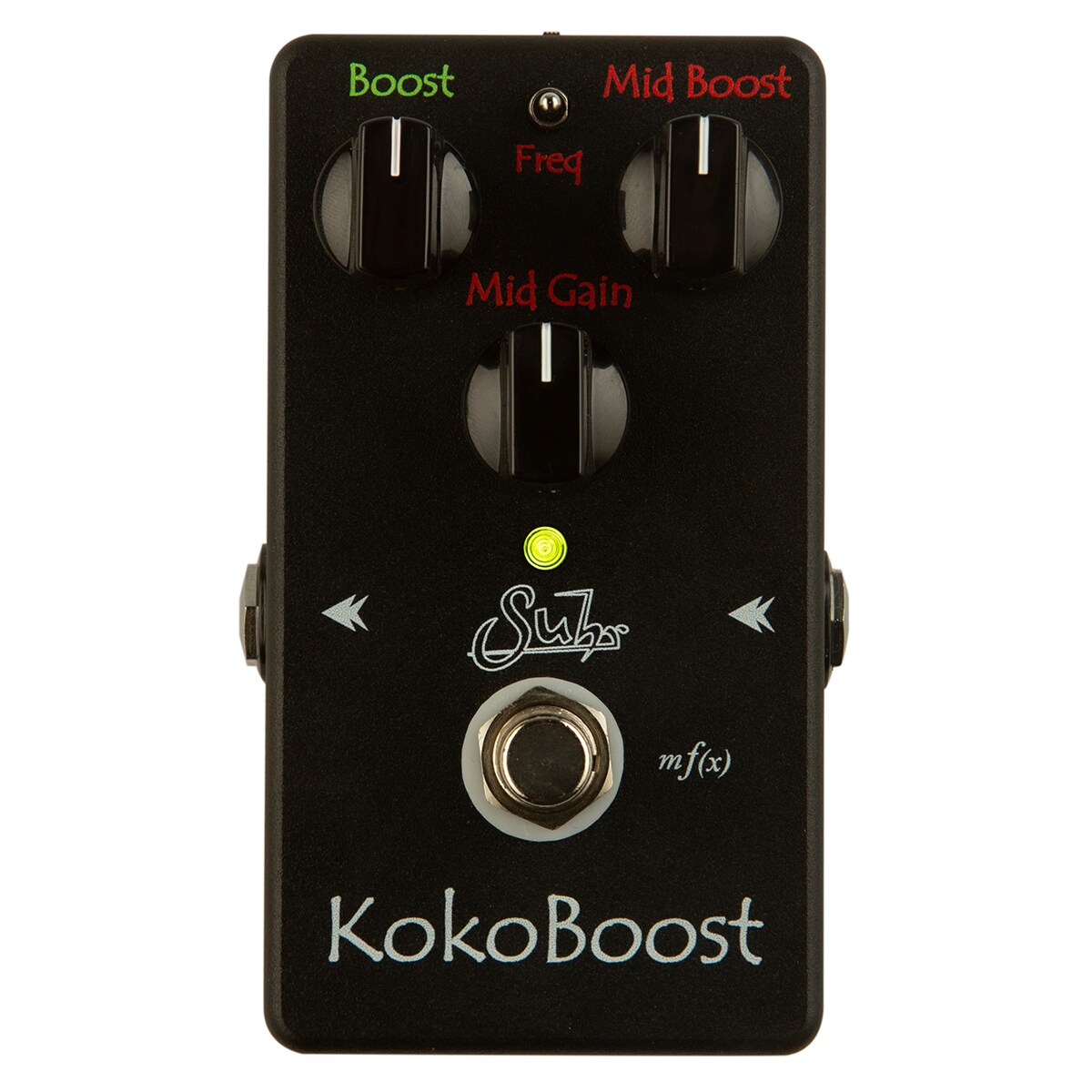

From summer 2024, the regular version's housing color will be renewed to black (Black Edition) and the size will be reduced! Koko Boost is a unique boost pedal that incorporates both a clean, transparent ""boost"" and a frequency-selectable ""midrange boost.""

It's the ideal solution for players looking for a pedalboard-friendly clean/mid boost pedal that extends the range of push tones and overdrive tones from their amp and pedal setup.

Suhr's exclusive ""mf(x)"" (Multi-Function Technology) makes it very easy to switch between the two boost modes. You can also switch between true bypass/buffered bypass using the internal DIP switch.

■SPECS
Input impedance: 1MΩ
Output impedance: 1KΩ
Power terminal: 9VDC, center negative, 2.1mm x 5.5mm (battery compatible)
Operating voltage: 4.5V to 9VDC (9VDC for normal use)
Maximum voltage: 10V DC
Current consumption: 21mA
Estimated battery life: Approximately 19 hours (for alkaline batteries)

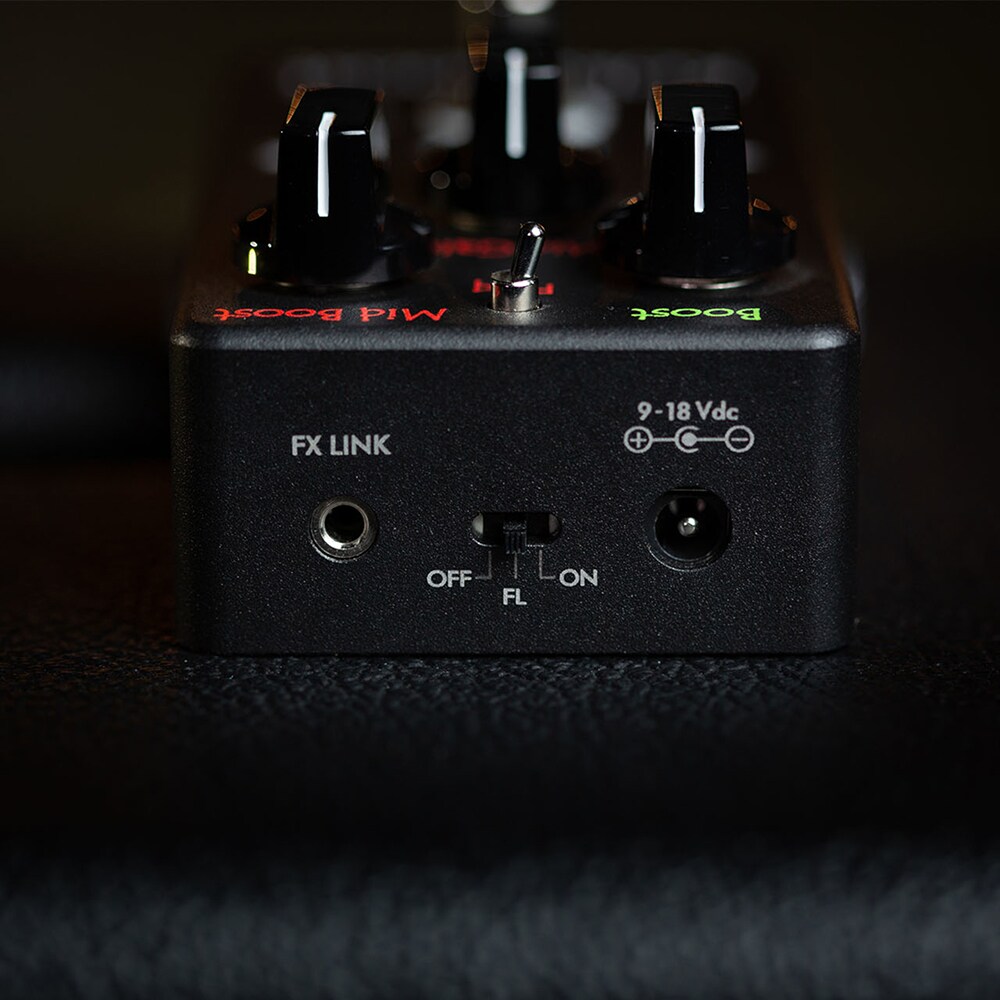

FX Link: 1/8″ Stereo
Shield → Tip: Activate Boost
Shield → Ring: Activate Mid Boost
Maximum voltage: 3.3VDC
Reverse voltage protection circuit: equipped
Overvoltage protection circuit: Equipped
Compliance with RoHS Directive: Compliant
Dimensions: 6.4cm (width) x 11.4cm (depth) x 3.2cm (height)
Weight: 340g
JAN code: 4571220047893
