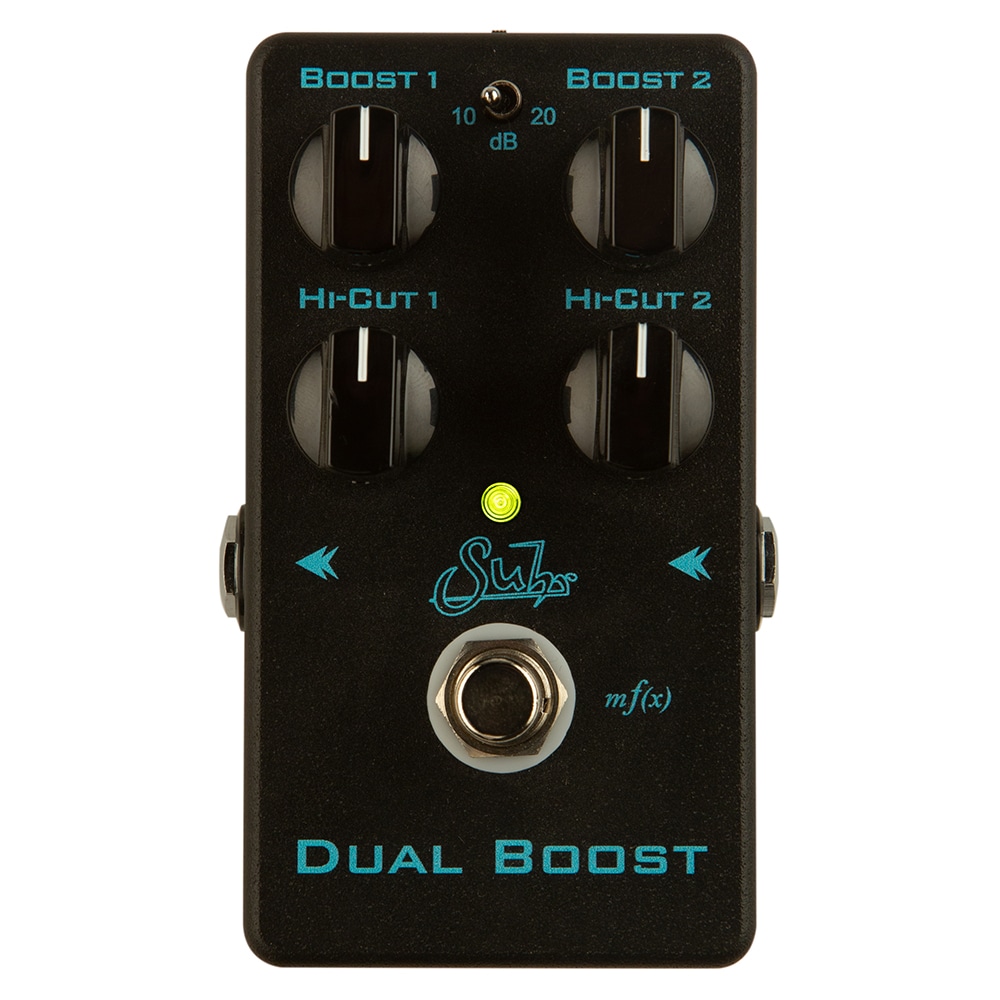

SUHR / Dual Boost BLK ED

From summer 2024, the housing color will be renewed to black (Black Edition)! Dual Boost is a versatile dual-mode transparent clean boost housed in a compact, pedalboard-friendly enclosure.

Built to deliver unparalleled sound quality in an easy-to-use package, it combines top-quality components and onboard charge pump circuitry for a pure audio path, superior dynamics, and wide dynamic range. It features two independent modes (each with its own boost and high-cut controls), a global boost range switch (+10dB/+20dB), and Suhr's proprietary ""mf(x)"" (Multi-Function Technology) switching.

■SPECS
Input impedance: 1MΩ
Output impedance: 1KΩ
Power terminal: 9VDC, center negative, 2.1mm x 5.5mm (battery compatible)
Operating voltage: 4.5V to 9VDC (9VDC for normal use)
Maximum voltage: 10V DC
Current consumption: 21mA
Estimated battery life: Approximately 19 hours (for alkaline batteries)

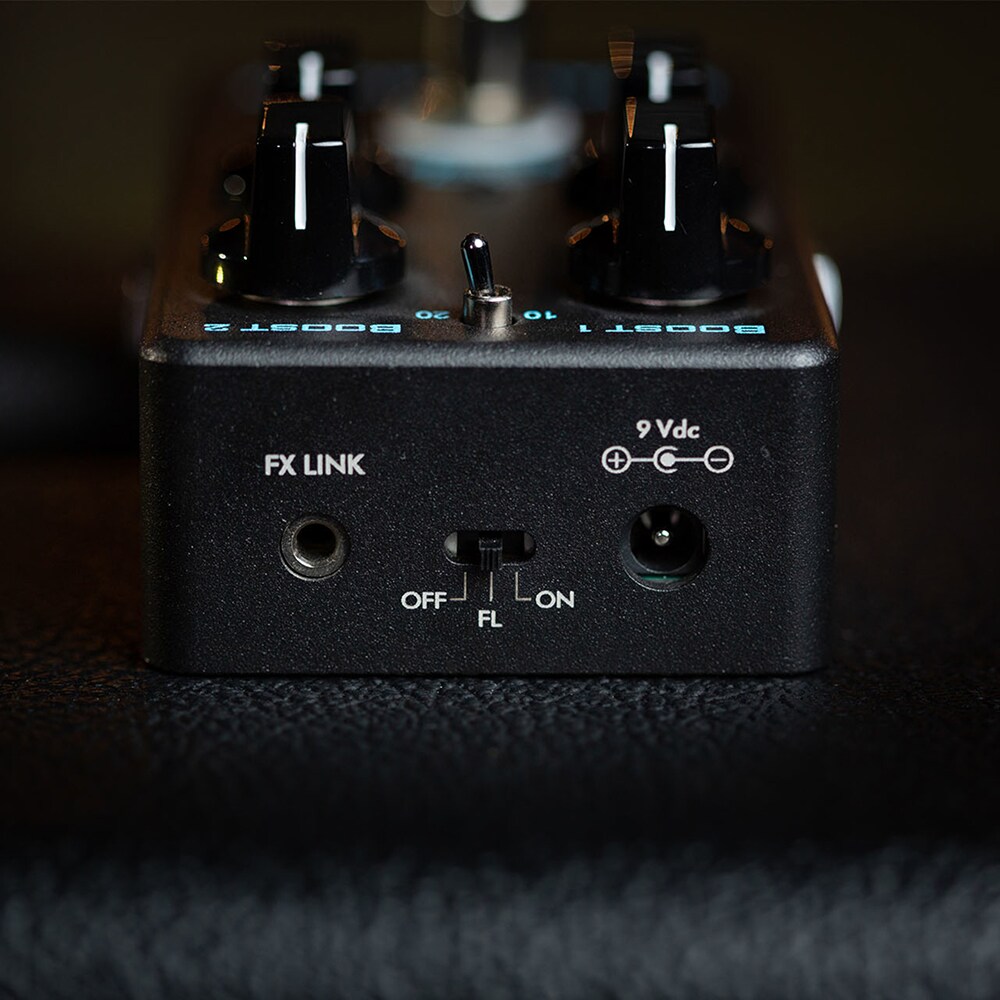

FX Link: 1/8″ Stereo
Shield → Tip: Activate Boost 1
Shield → Ring: Activate Boost 2
Maximum voltage: 3.3VDC
Reverse voltage protection circuit: equipped
Overvoltage protection circuit: Equipped
Compliance with RoHS Directive: Compliant
Dimensions: 6.4cm (width) x 11.4cm (depth) x 3.2cm (height)
Weight: 340g
JAN code: 4571220047886
