BEHRINGER / WING-BK

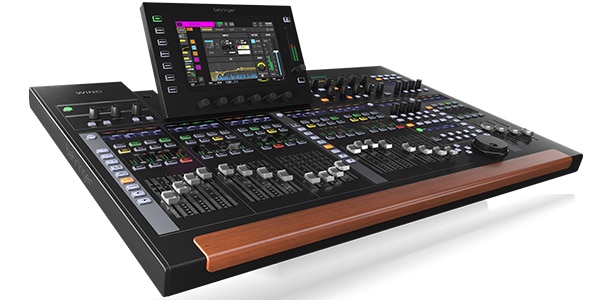

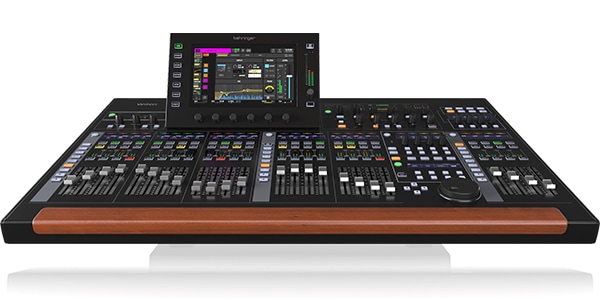

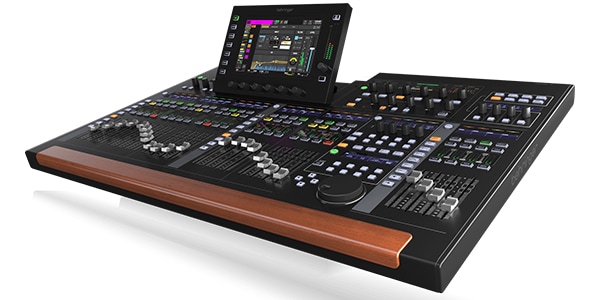

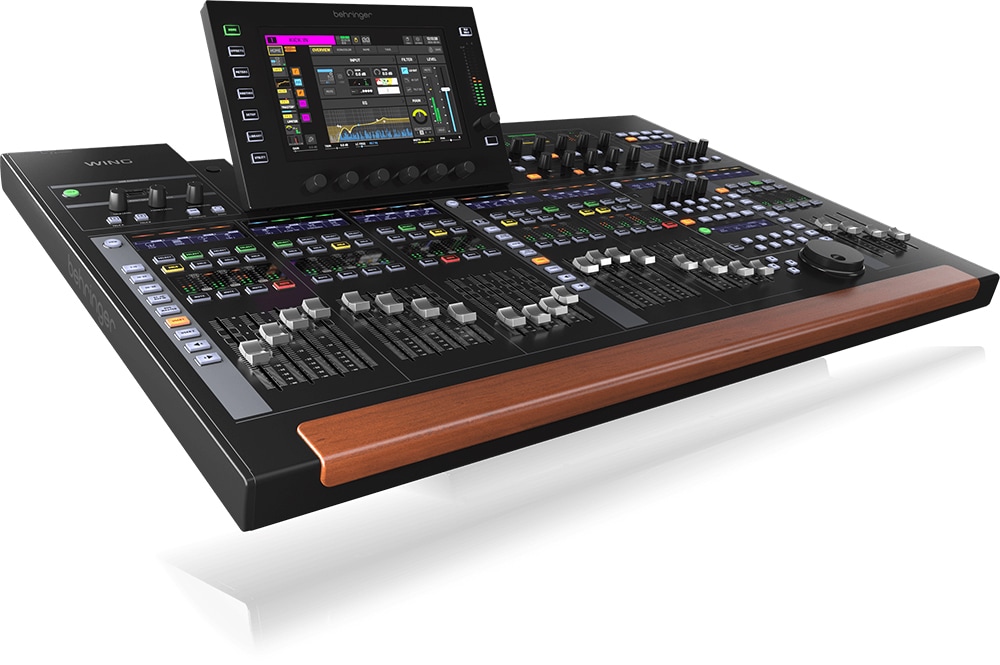

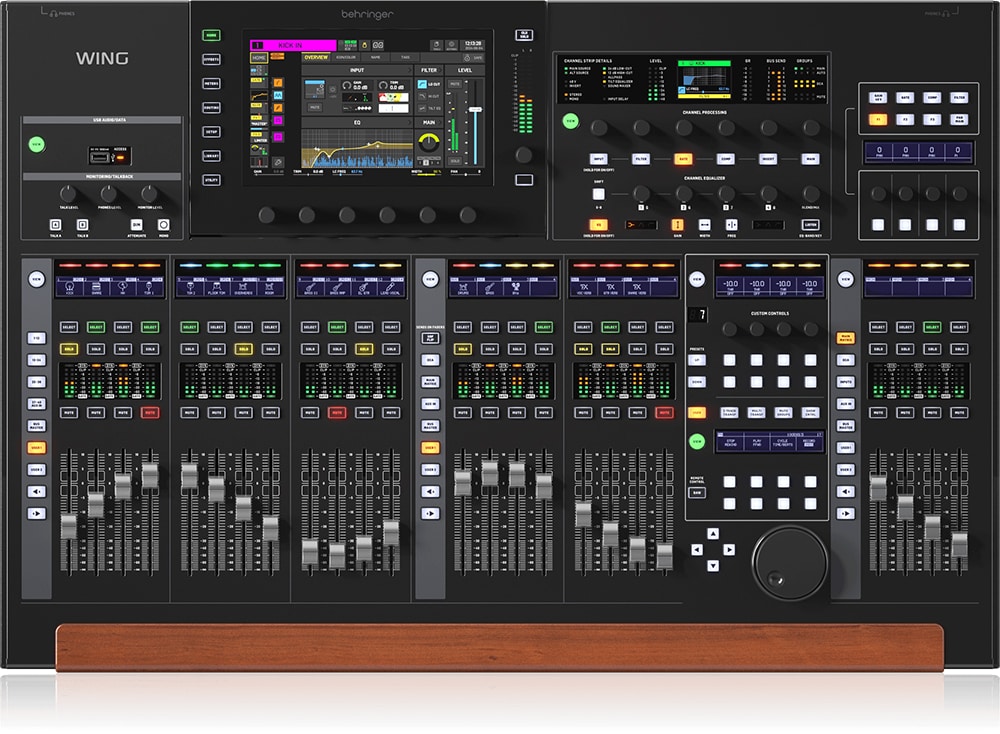

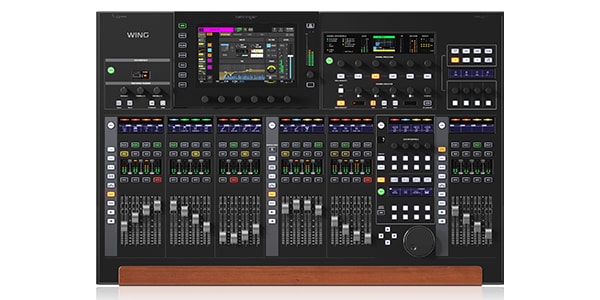

BEHRINGER WING is a next-generation digital mixer that supports 48 channels. Equipped with a touch screen that allows intuitive operation and customizable faders, it is compatible with a wide range of applications from live performances to studios. Flexible routing is also attractive.

48 stereo channels, 28 buses, full stereo digital mixing console
8 Midas PRO preamps, 8 Midas PRO outputs
10.1 inch touchscreen
24 fader control surface

■8 Midas PRO mic preamps and outputs deliver industry-standard sound quality
■24 motorized 100 mm faders in 3 independent fully configurable sections
■3 AES50 ports, SuperMac CAT5 connectivity with ultra-low jitter and 6 sample latency for a total of 144 input/output signals
■10.1-inch main display with multi-touch screen and adjustable rotation function
■Custom controls with 16 configurable buttons, 4 rotary controls, and 1 large control wheel for a smooth, personalized workflow.
■Integrated USB audio/MIDI interface with 48 audio channel inputs and outputs
■Dual SD card drive recorder/player with up to 64 tracks and markers to identify song positions
■Internal AoIP module can upgrade the Ethernet port with optional 64-channel audio input/output to Audinate Dante and Waves SoundGrid networks.
■16 true stereo effect processing engines, over 80 world-class algorithms
■Each channel has three plug-in slots for gate, dynamics, and EQ. 4 mains, 8 matrices, 16 auxiliary stereo busses, dual inserts, 8-band parametric EQ, stereo imager, and full dynamics processing all in one effects chain without sacrificing headroom for additional effects processing
■40 stereo input channels with 5 variable plug-in processing slots each
■8 stereo aux input channels, single FX insert slot, expander/limiter, 4-band parametric EQ
■8 mute groups and 8 DCAs for grouping and merging tracks
■Two Ethernet ports with integrated switch for network remote control and optional AoIP via Waves SoundGrid and DanteR

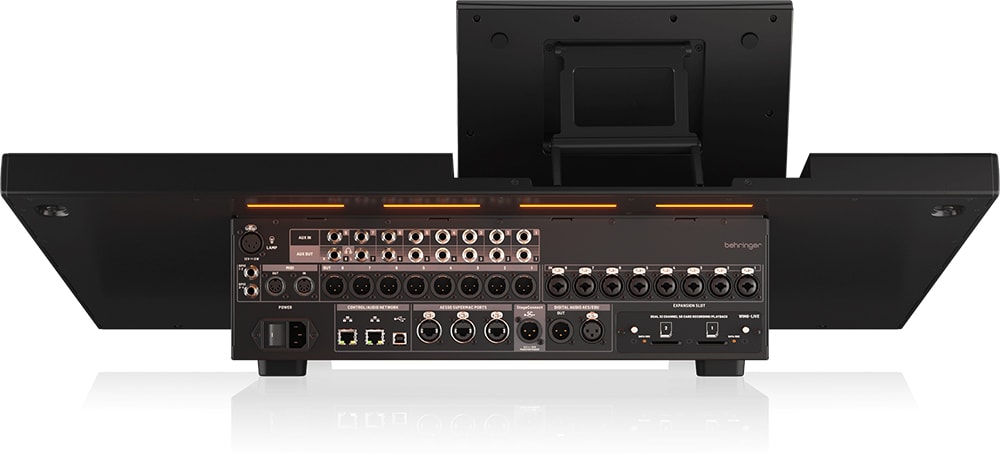

■The expansion slot on the back panel allows you to install an optional 64-channel audio interface and network expansion card (Dante, WSG, MADI, etc.).
■ StageConnect host interface for sharing up to 32 channels in both directions via a single XLR connection
■4-channel GPIO that allows you to control almost anything with WING
■5-pin MIDI input/output for control and synchronization with external devices
■DAW remote control is compatible with Mackie Control Universal (MCU) and includes presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, and Studio One.
■Offline editing and remote control with WING-CoPilot, WING-Q, and WING-Edit software for desktop and mobile
■Touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for individual channel identification
