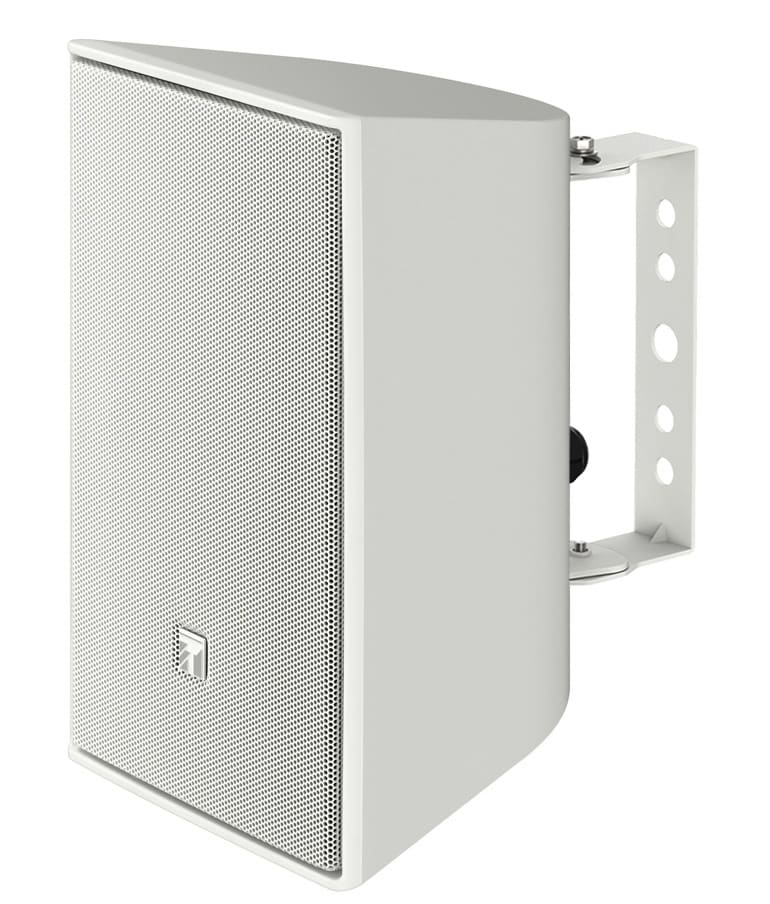

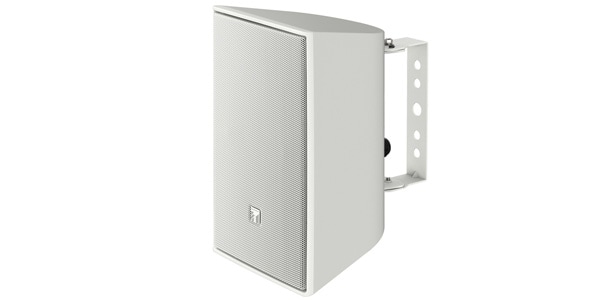

TOA / F-05WM-WP

TOA/F-05WM-WP is a compact 2-way speaker with high-quality sound, suitable for a wide range of situations such as background music and announcements. It supports both high impedance and low impedance.

Compact speaker, 8 ohm, 120W (PGM), 70/100V, drip-proof, white

Enclosure type
Sealed type
Allowable input (*1)
Rated noise: 60 W (8 ohms)
Continuous program: 120 W (8 ohms)
Rated Input
30 W (100 series)
Rated Impedance
8 Ω
330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
Output sound pressure level
89 dB (1 W, 1 m) in semi-free-field installation
Frequency response
80 Hz to 20 kHz -10 dB in semi-free-field installation
Crossover frequency
4.5 kHz
Directional Angle
Horizontal: 100°, Vertical: 100
Speakers
Low-frequency: 13 cm PP cone
High-frequency: 25 mm dome tweeter
Speaker type
At 10 W and 30 W: Class L (92 dB(A) or higher at the second signal of sound alarm in the Fire Service Law Enforcement Regulations)
At 3 W: Class M (87 dB (A) or more measured with the second signal of sound alarm in the enforcement regulations of the Fire Service Law)
At 1 W: Class S (84 dB (A) or more as measured by the second signal of the sound alarm in the Ordinance for Enforcement of the Fire Service Law)
Sound Power Level
90 dB
Directional Characteristic Classification
W (0° to less than 30° Q=5, 30° to less than 60° Q=3, 60° to less than 90° Q=0.8)
Input terminal
M4 screw terminal Barrier spacing 9 mm
Operating temperature range
-10 °C to +50 °C
Protection class
IPX4
Installation environment
Indoors, under eaves (*2) (*3)
Finish
Enclosure: HIPS white (Munsell N9.3 approximate color), painted
Grille: Aluminum White (Munsell N9.3 approximate color) Paint
U-shaped bracket, speaker bracket: Stainless steel t2 White (Munsell N9.3 approximate color) Paint
Dimensions
162 (W) × 274 (H) × 164 (D) mm
Weight
2.8 kg
Accessories
U-shaped bracket ...1, speaker bracket ...2, bracket assembly screws ...set, terminal cover ...1, terminal cover mounting screws ...4
