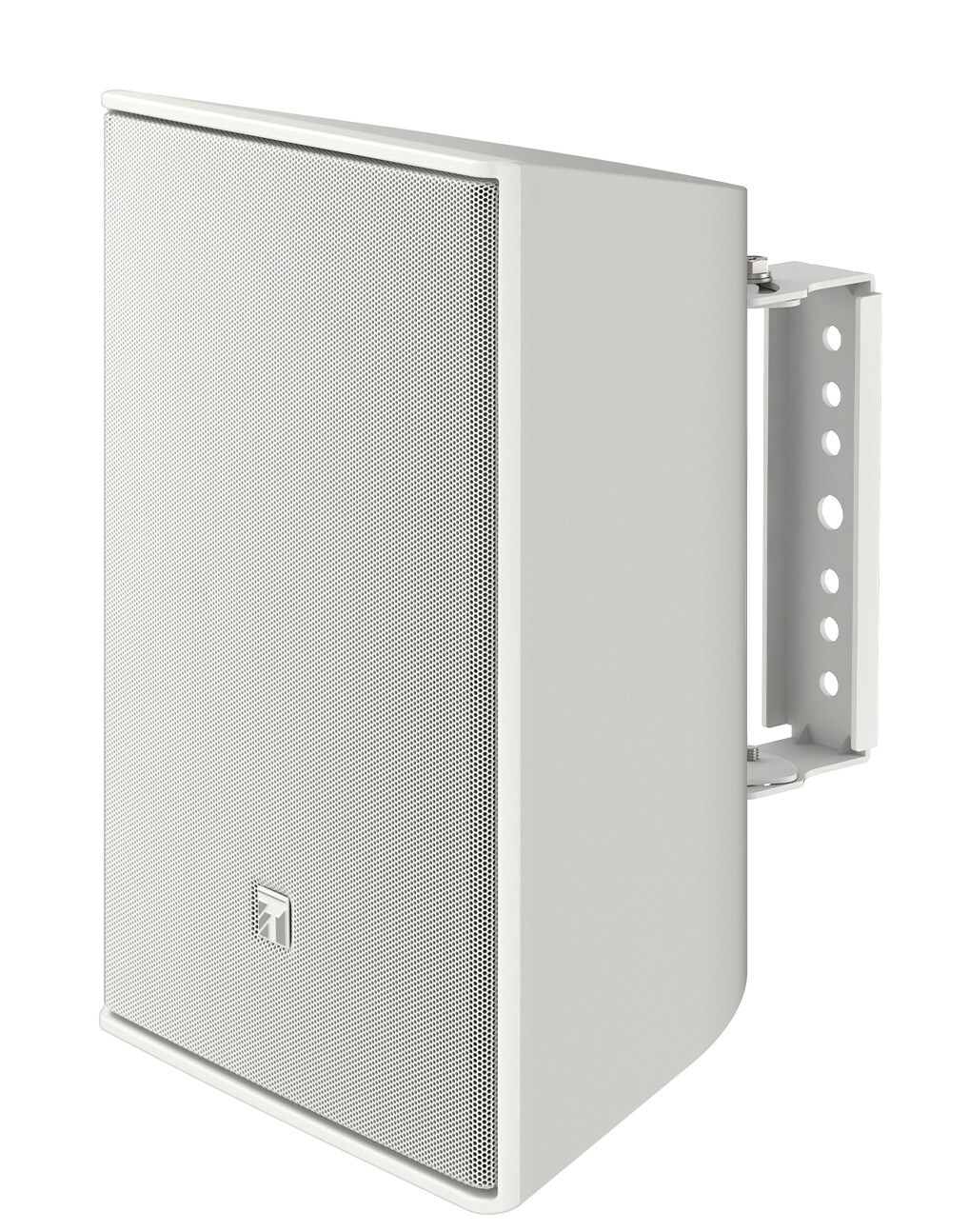

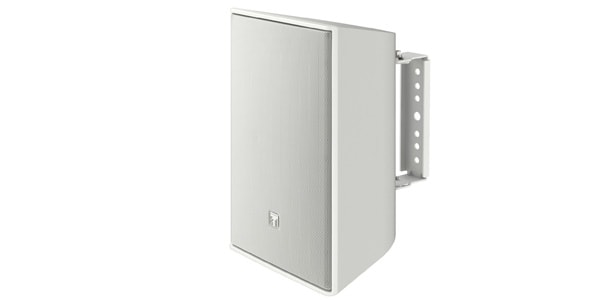

TOA / F-08WM-WP

The TOA/F-08WM-WP is a compact 2-way speaker that delivers high-quality sound and is suitable for a wide range of applications, including background music and announcements. It supports both high-impedance and low-impedance speakers.

■Compact Speaker, 8Ω, 180W (PGM), 70/100V Compatible, Splashproof, White

Enclosure Type

Sealed

Power Handling (*1)

Rated Noise: 90 W (8 Ω)

Continuous Program: 180 W (8 Ω)

Rated Input

60 W (100V)

Rated Impedance

8 Ω

170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)

Output Sound Pressure Level

90 dB (1 W, 1 m) Semi-Free Field Installation

Frequency Response

70 Hz to 20 kHz -10 dB Semi-Free Field Installation

Crossover Frequency

3 kHz

Directional Angle

Horizontal: 100°, Vertical: 100°

Speaker Type

Low Frequency: 20 cm PP Cone Type

High Frequency: 25 mm Dome Tweeter

Speaker Type

Class L (92 dB(A) or higher as measured by the second signal of the Fire Service Act Enforcement Regulations)

Acoustic Power Level

90 dB

Directional Characteristics Classification

W (Q=5 for 0° to less than 30°, Q=3 for 30° to less than 60°, Q=0.8 for 60° to 90°)

Input Terminal

M4 Screw Terminal, Barrier Spacing 9 mm

Operating Temperature Range

-10 ℃ to +50 ℃

Protection Rating

IPX4

Installation Environment

Indoor, Under Eaves (*2) (*3)

Finish

Enclosure: HIPS White (Munsell N9.3 Approximate Color) Painting

Grille: Aluminum, White (approximate Munsell N9.3 color)

U-shaped bracket, Speaker bracket: Stainless steel, t3, White (approximate Munsell N9.3 color)

Dimensions

251 (W) x 392 (H) x 216 (D) mm

Weight

5.5 kg

Accessories

U-shaped bracket…1, Speaker bracket…2, Bracket assembly screws…1 set, Terminal cover…1, Terminal cover mounting screws…4
