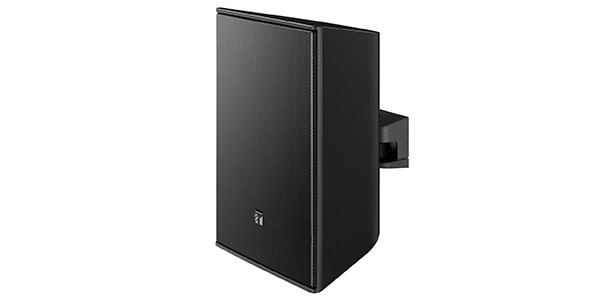

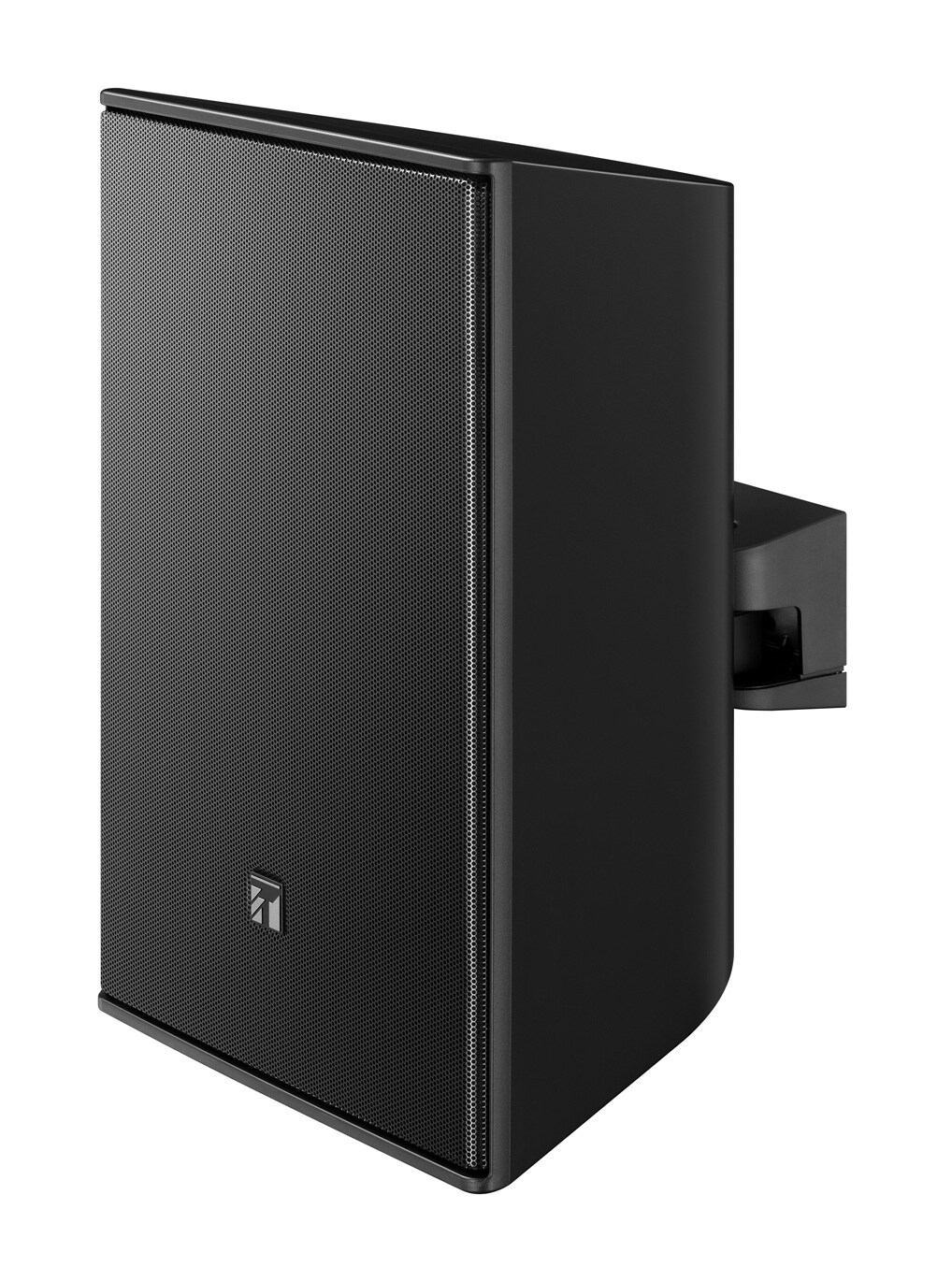

TOA / F-08BM

The TOA/F-08BM is a compact 2-way speaker that delivers high-quality sound and is suitable for a wide range of applications, including background music and announcements.

■Compact Speaker, 60W, 70/100V Compatible, Black

Enclosure Type

Bass Reflex

Rated Input

60 W

Rated Impedance

170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)

Output Sound Pressure Level

91 dB (1 W, 1 m) (Semi-Free Field Installation)

Frequency Response

50 Hz to 20 kHz -10 dB (Semi-Free Field Installation)

Crossover Frequency

3 kHz

Directional Angle

Horizontal: 100°, Vertical: 100°

Speaker Used

Low Frequency: 20 cm PP Cone

High Frequency: 25 mm Dome Tweeter

Speaker Class

Class L (Fire Service Act Enforcement Regulations) (Measured at 92 dB(A) or higher with the second audible alarm signal)

Acoustic Power Level

90 dB

Directional Characteristics Classification

W (0° to less than 30° Q=5, 30° to less than 60° Q=3, 60° to 90° Q=0.8)

Input Terminal

Push Terminal

Operating Temperature Range

-10°C to +50°C

Installation Environment

Indoor

Finish

Enclosure: HIPS Black (Munsell N1.0 approximate color) Painted

Grille: Aluminum Black (Munsell N1.0 approximate color) Painted

Speaker Mounting Bracket: Aluminum Die-cast Black (Munsell N1.0 approximate color) Painted

Base Mounting Bracket: Rolled Steel Plate t4.5 Black (Munsell N1.0 approximate color) Painted

Base Mounting Bracket Cover: HIPS Black (Munsell N1.0 approximate color)

Dimensions

251 (W) x 392 (H) x 216 (D) mm

Weight

5.2 kg

Accessories

Speaker bracket…1, Base bracket…1, Base bracket cover…1, Bracket assembly screws and nuts…1 set

Optional accessories

Adapter bracket: HY-F08B

Speaker stand: ST-34B *K&M adapter 19780 or 19610 is required for installation.

*Bolts and nuts for mounting the bracket to the wall or ceiling are not included. Please prepare appropriate ones separately.
