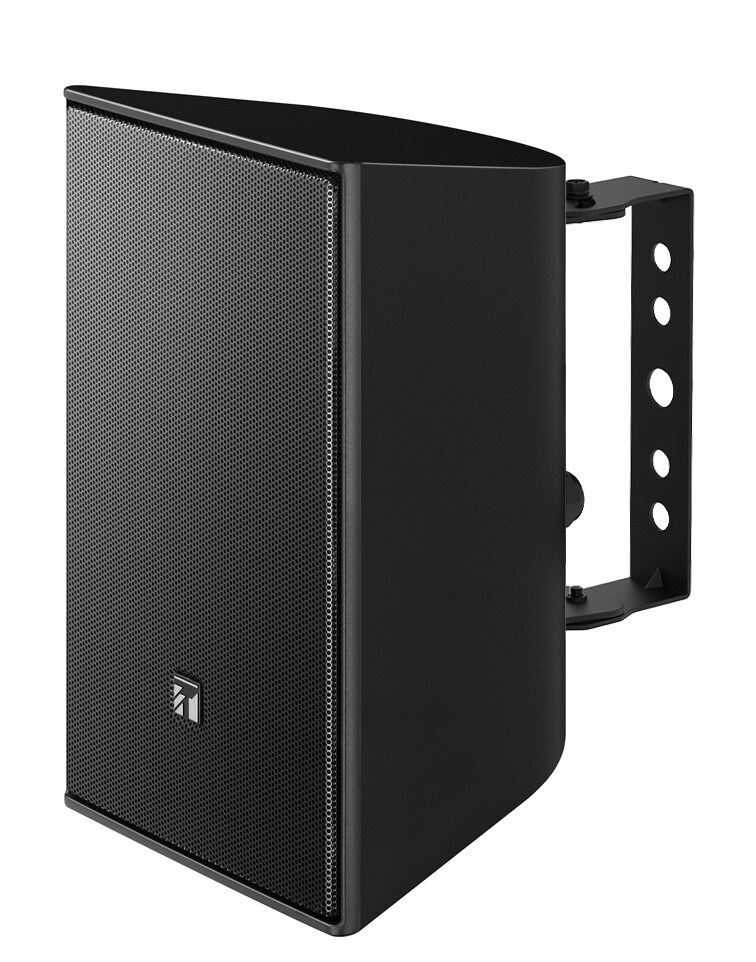

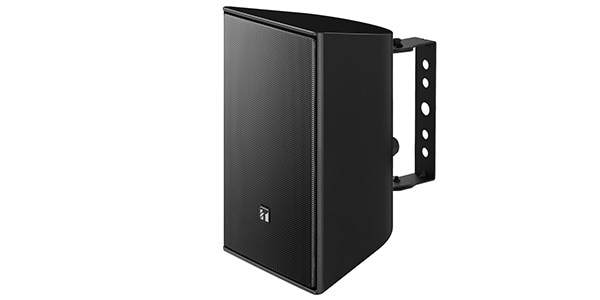

TOA / F-05BM-WP

The TOA/F-05BM-WP is a compact 2-way speaker that delivers high-quality sound and is suitable for a wide range of applications, including background music and announcements. It supports both high-impedance and low-impedance speakers.

■Compact Speaker, 8Ω, 120W (PGM), 70/100V Compatible, Splashproof, Black

Enclosure Type

Sealed

Power Handling (*1)

Rated Noise: 60 W (8 Ω)

Continuous Program: 120 W (8 Ω)

Rated Input

30 W (100V)

Rated Impedance

8 Ω

330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)

Output Sound Pressure Level

89 dB (1 W, 1 m) Semi-Free Field Installation

Frequency Response

80 Hz to 20 kHz -10 dB Semi-Free Field Installation

Crossover Frequency

4.5 kHz

Directional Angle

Horizontal: 100°, Vertical: 100°

Speaker Used

Low Frequency: 13 cm PP Cone Type

High Frequency: 25 mm Dome Tweeter

Speaker Type

10 W, 30 W: Class L (Measured at 92 dB(A) or higher using the second audio alarm signal according to the Fire Service Act Enforcement Regulations)

3 W: Class M (Measured at 87 dB(A) or higher using the second audio alarm signal according to the Fire Service Act Enforcement Regulations)

1 W: Class S (Measured at 84 dB(A) or higher using the second audio alarm signal according to the Fire Service Act Enforcement Regulations)

Acoustic Power Level

90 dB

Directional Characteristics Classification

W (0° to less than 30° Q=5, 30° to less than 60° Q=3, 60° to 90° Q=0.8)

Input Terminal

M4 Screw Terminal, Barrier Spacing 9 mm

Operating Temperature Range

-10 °C to +50 °C

Protection Rating

IPX4

Installation Environment

Indoor, Under Eaves (*2) (*3)

Finish

Enclosure: HIPS Black (Munsell N1.0 Approximate Color) Painted

Grille: Aluminum Black (Munsell N1.0 Approximate Color) Painted

U-Bracket, Speaker Bracket: Stainless Steel t2 Black (Munsell N1.0 Approximate Color) Painted

Dimensions

162 (W) × 274 (H) × 164 (D) mm

Weight

2.8 kg

Accessories

U-Bracket…1, Speaker Bracket…2, Bracket Assembly Screws…1 set, Terminal Cover…1, Terminal Cover Mounting Screws…4
