ART / MX622BT

The ART/MX622BT is a 6-channel stereo mixer equipped with Bluetooth and an effects loop.

■ 6-Channel Stereo Mixer with Bluetooth & Effects Loop

~Product Overview~

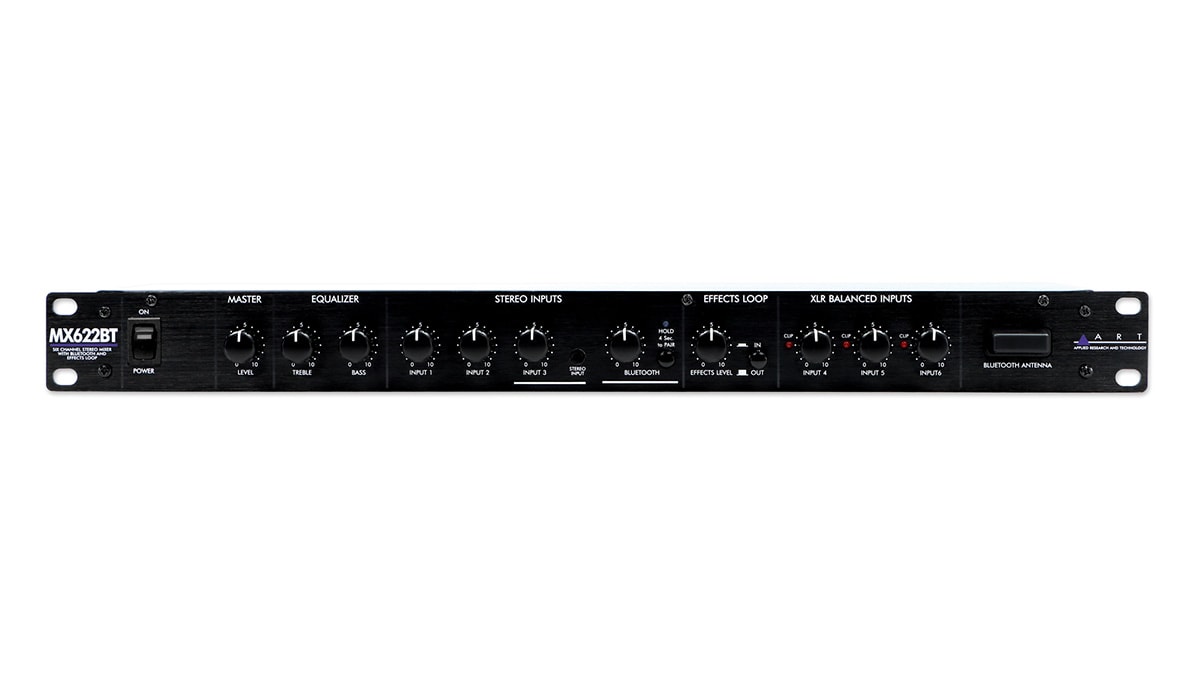

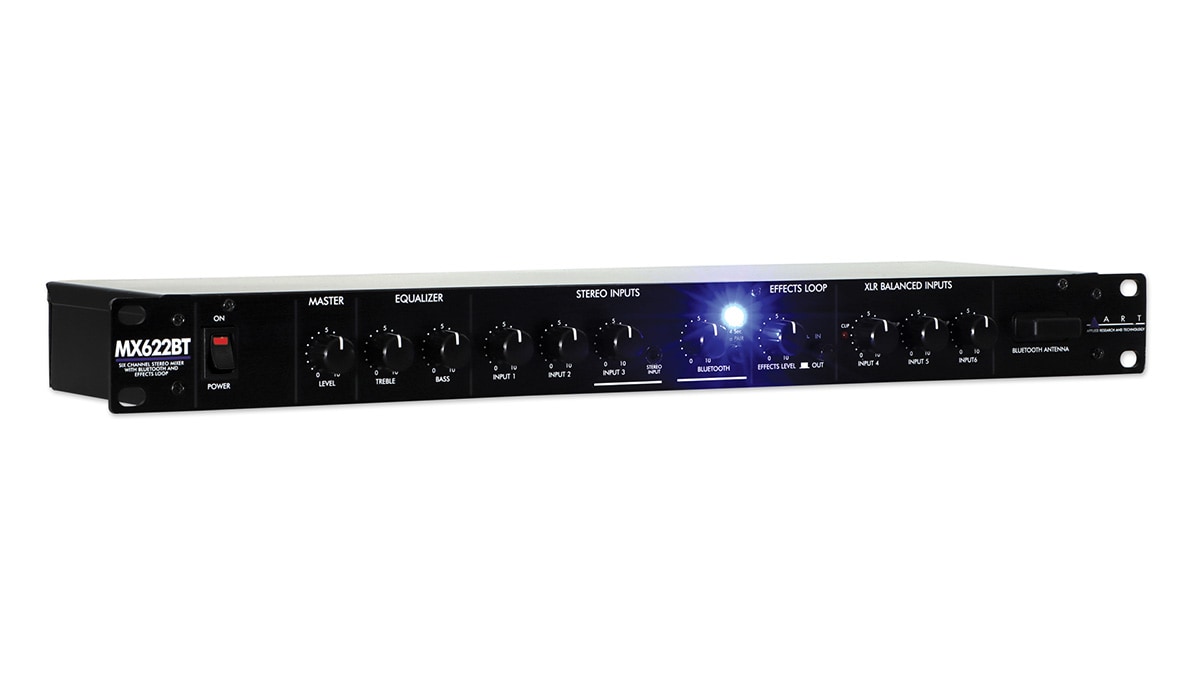

This unit is a 6-channel stereo mixer equipped with Bluetooth and an effects loop. Inputs include 3 x XLR, 3 x stereo RCA, and 1 x stereo Bluetooth. It's a multi-functional unit in a 1U rack size, allowing you to input and mix various devices. With a built-in power supply, its 1U rack size makes installation easy.

■ Inputs 1-3 (RCA Stereo Unbalanced)

Inputs 1-3 are RCA stereo unbalanced and equipped with level control. In addition, INPUT 3 has a 1/8″ stereo input jack on the front panel, allowing connection of portable audio devices, etc.

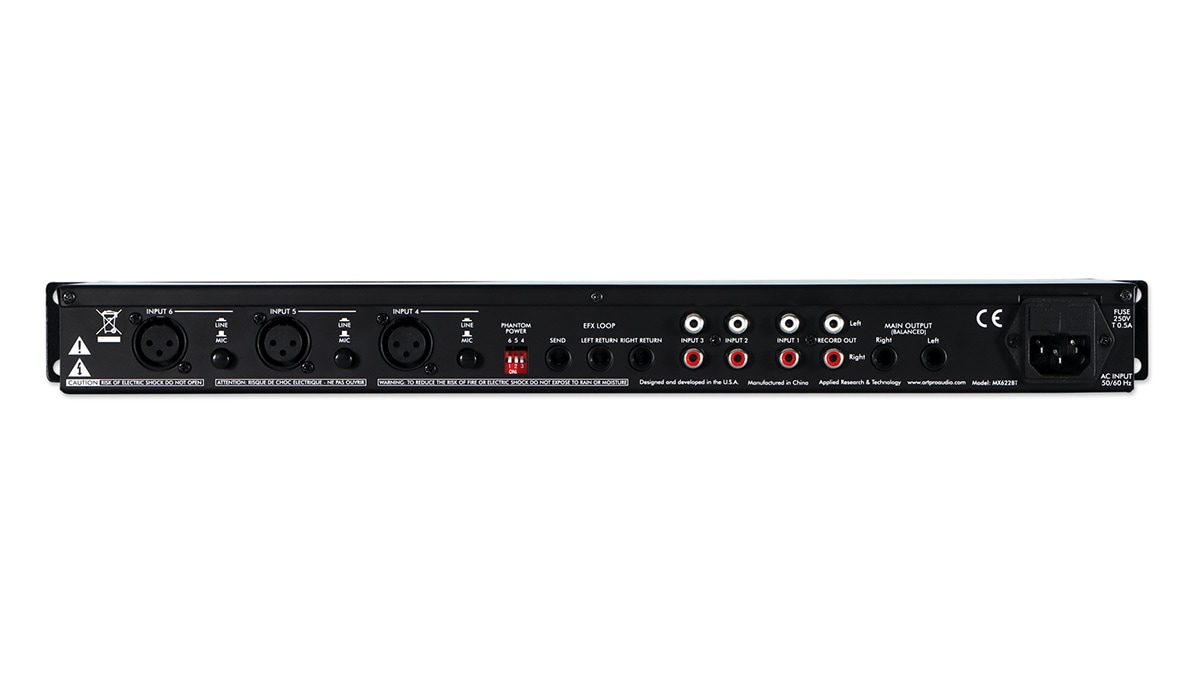

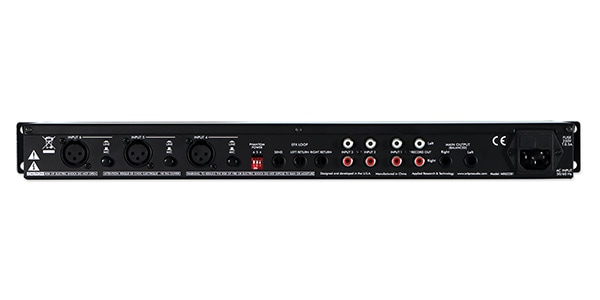

■ Inputs 4-6 (XLR Balanced)

INPUTs 4-6 are XLR mono balanced inputs with level control, level switch (microphone/line), clip LED, and 15V phantom power on/off.

■ Bluetooth Device Connection

The Bluetooth input supports Bluetooth 5.0 and has level control and a pairing & on/off switch.

■ Effects Loop

The effects loop has a mono send from the microphone/line channel to external devices and a stereo return, with effect level control and IN/OUT switches.

■ Outputs

The main output is a 1/4″ TRS stereo balanced output with master level control and EQ (treble/bass).

The stereo record output is an RCA jack and always outputs the full-level signal of the entire mix.

~Features~

■Bluetooth 5.0 Receiver

■Three balanced XLR inputs with microphone/line selector switch, level control, and clip LED

■Three RCA stereo inputs with level control for each channel

■Each microphone input has 15V phantom power ON/OFF switch

■Main output is a balanced '"" TRS with master level control

■Main output has EQ (treble/bass)

■Front panel has a '"" TRS stereo input jack

■RCA output jack for stereo recording

■Effects loop has effect level control and in/out switch

■Effects loop is a '"" mono send & stereo return

■Built-in power supply

~Specifications~

■Input Terminals

XLR-F Balanced (x 3)

1/4"" Unbalanced (x 2)

RCA Unbalanced (x 6)

1/8"" Balanced (x 1)

■Output Terminals

1/4″ Balanced (x 2)

1/4″ Unbalanced (x 1)

RCA (x 2)

■Phantom Power

+15V DC, Regulated Low Noise

■Maximum Gain

56dB/26dB (MIC/LINE)

26dB (RCA INPUT)

■S/N Ratio

>90dB typical

■THD

<1% typical

■EQ Range

+/-12dB @ 100Hz & 10kHz

■Bluetooth

v5.0, up to 30m range, Class 2

■Power Supply

100VAC/50-60Hz

■Dimensions

44H × 483W × 152D mm

■Weight

2.8kg
