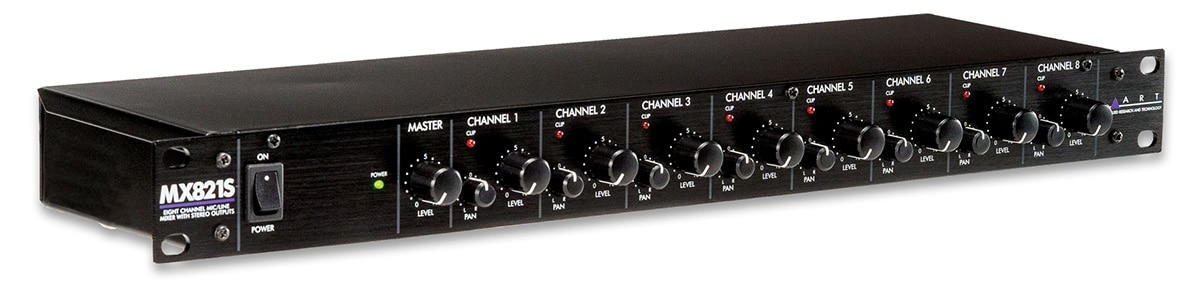

ART / MX821S 8-Channel Mic/Line Mixer

A 1U rackmount 8-channel mixer compatible with microphone/line level inputs. Each input is equipped with XLR and phone jacks, allowing for level and pan control. It also supports cascading multiple units, offering expandability to suit various situations.

[直輸入品][Direct Import]

The MX821S is a versatile 8-channel rackmount mixer. Each input channel, equipped with XLR and phone jacks, features individually configurable phantom power, as well as level and pan control. Stereo balanced phone outputs are adjustable via a master level knob. Pre-fade outputs and an AUX input bus, unaffected by the master level, are provided, allowing for cascading of multiple MX821S units when additional inputs are needed. Its compact 1U chassis makes it suitable for a variety of locations, including stages, studios, conference rooms, and clubs.

■ Microphone/Line Mixer

■ Equipped with XLR microphone input, phone/line input, and tone/level control for each channel

■ Independently selectable +48V phantom power for microphone inputs

■ Individual level and pan control for 8 input channels

■ Rack-mountable, robust 1U steel chassis with integrated power supply

■ Input Impedance: 2kΩ (Mic), 20kΩ (Line), 51kΩ (Aux Bus In)

■ Output Impedance: 200 Ω (Main Outputs, balanced), 100 Ω (Prefade Out)

■ Maximum Input Level: -4 dBu (Mic), +22 dBu (Line)

■ Maximum Output Level: +24 dBu (balanced), +18 dBu (unbalanced)

■ Dimensions: H4.5cm x W48.3cm x D15.2cm

■ Weight: 2.9 kg
