ELATION / PRE937

Variations

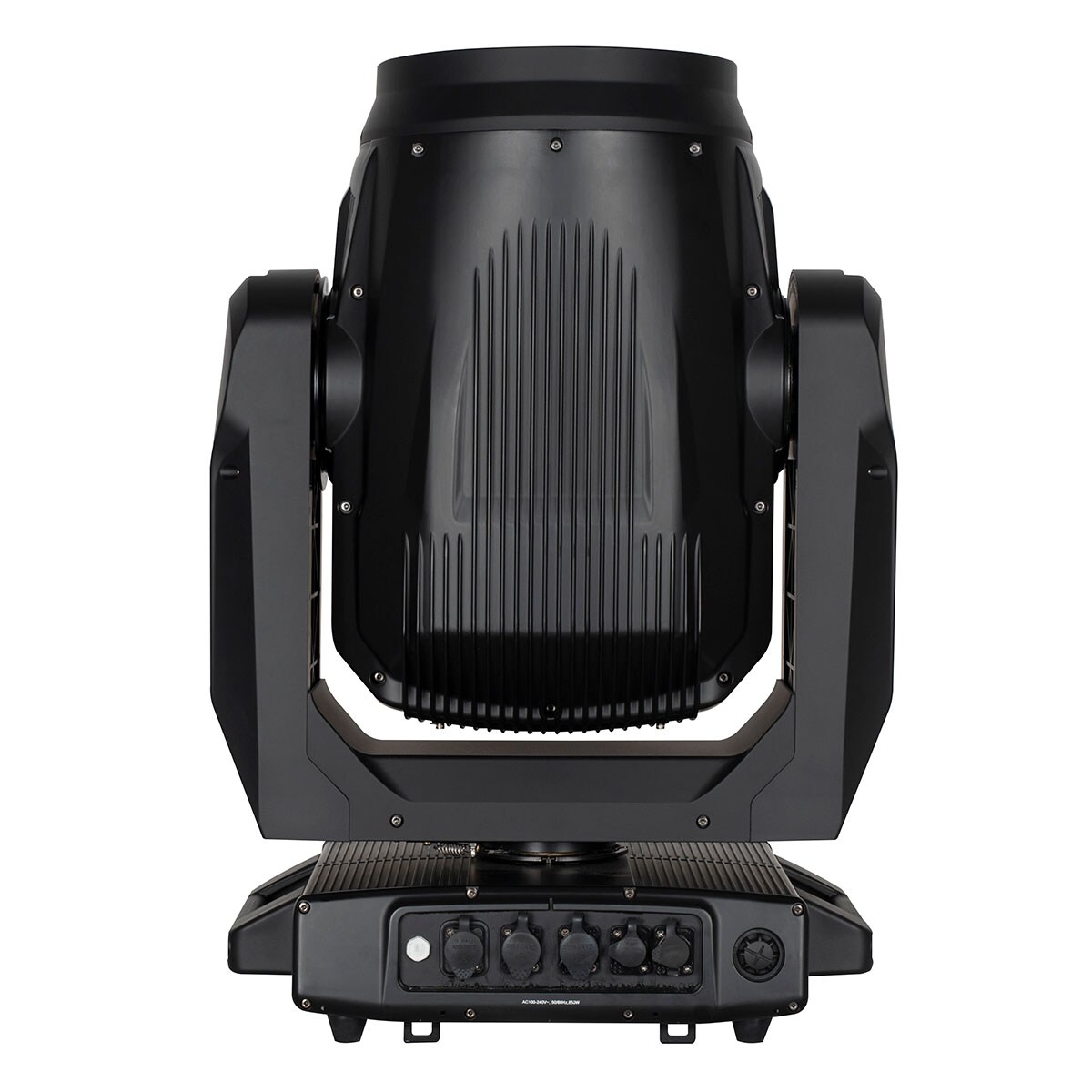

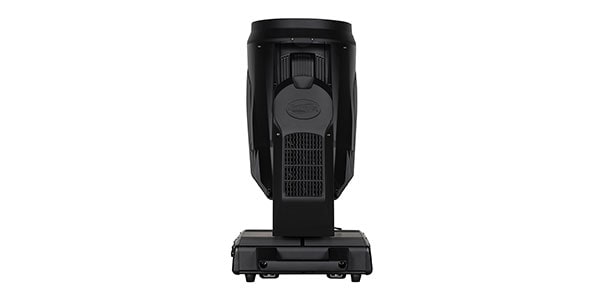

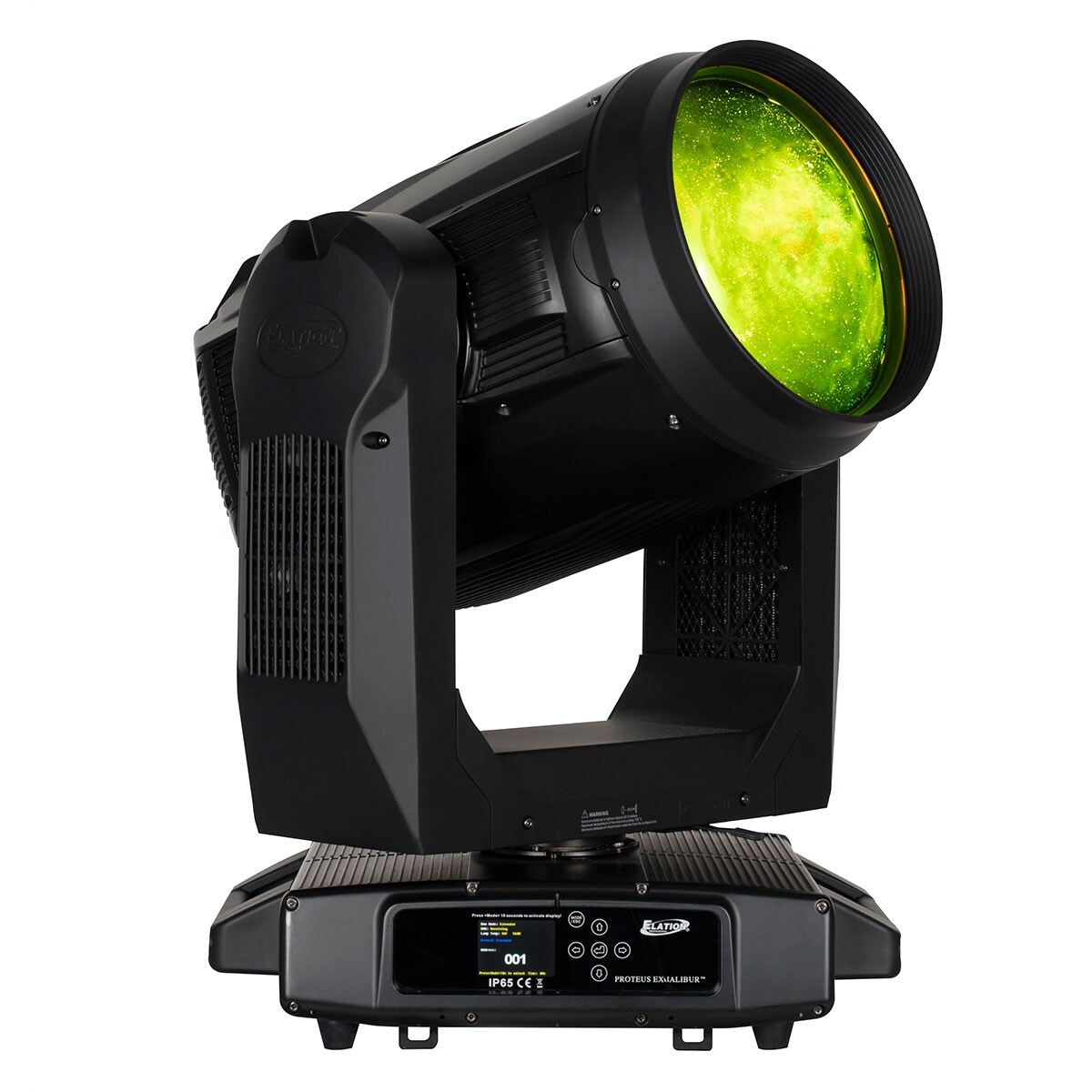

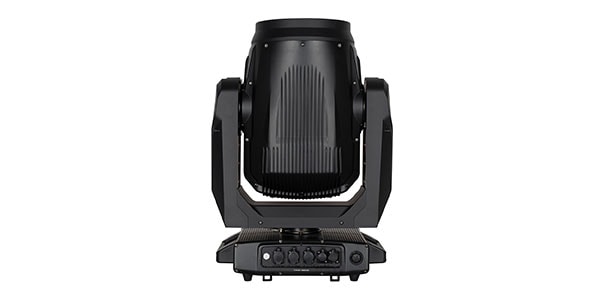

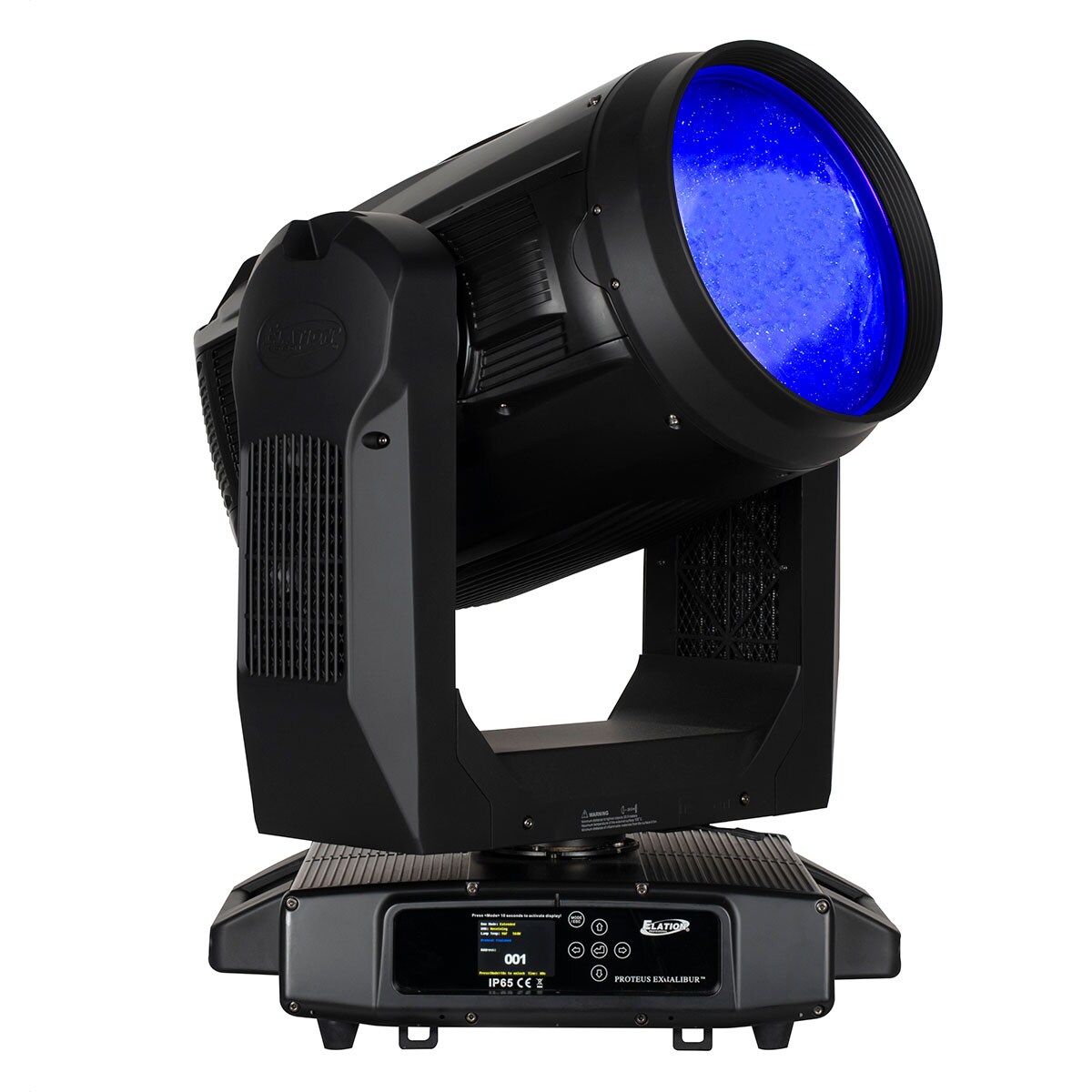

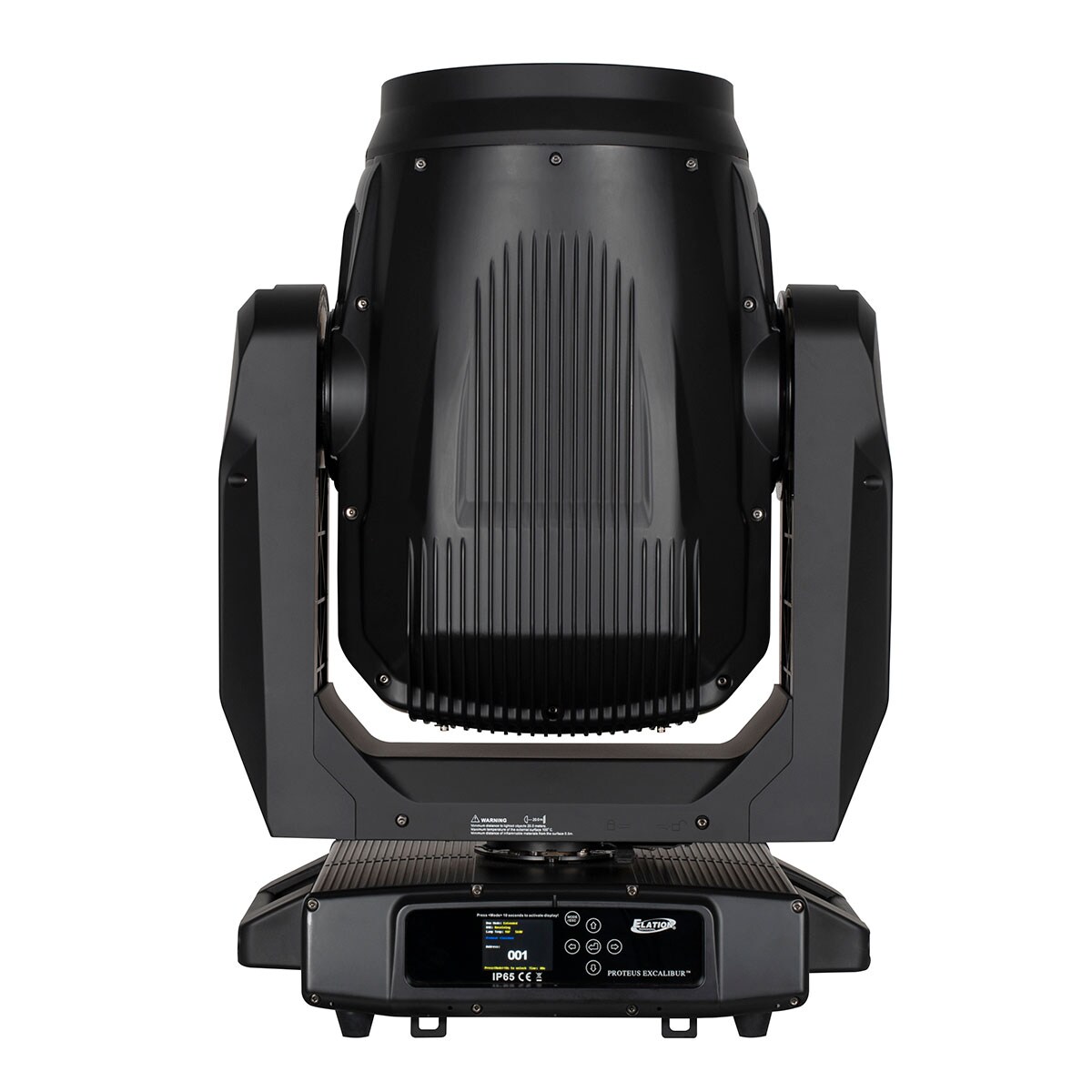

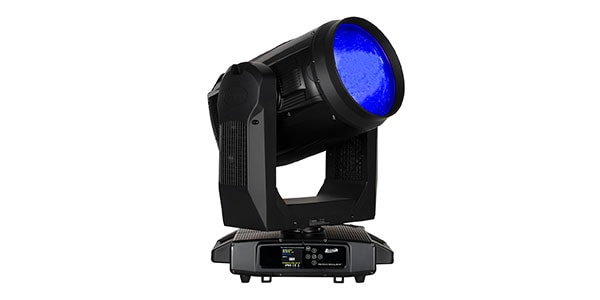

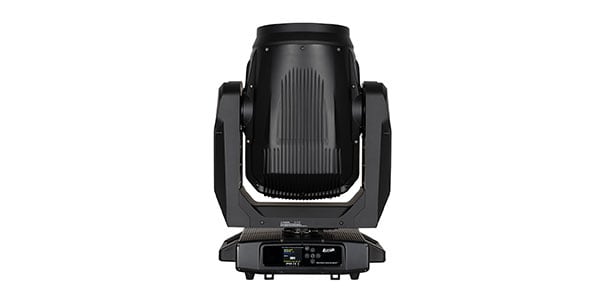

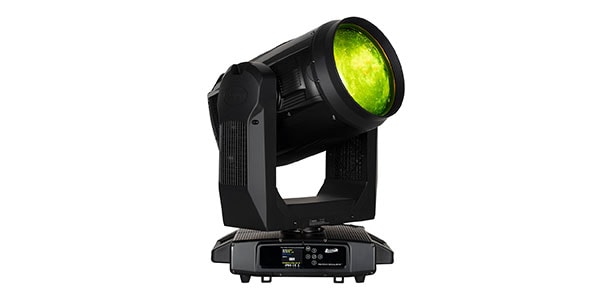

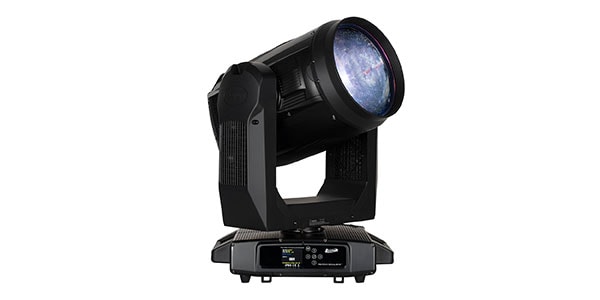

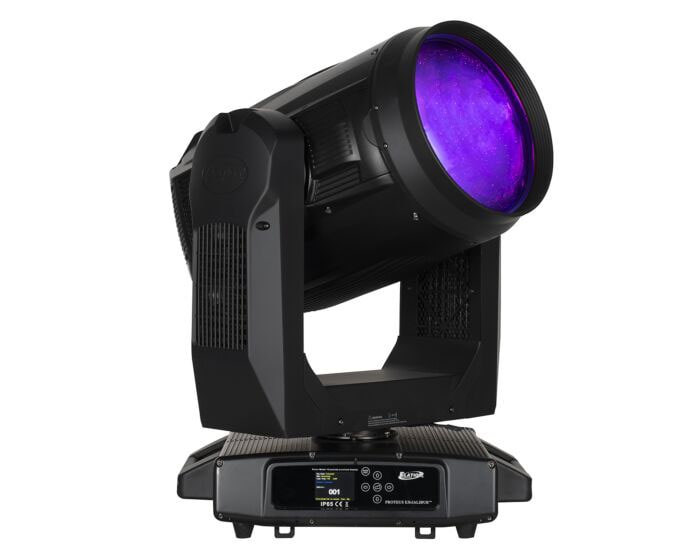

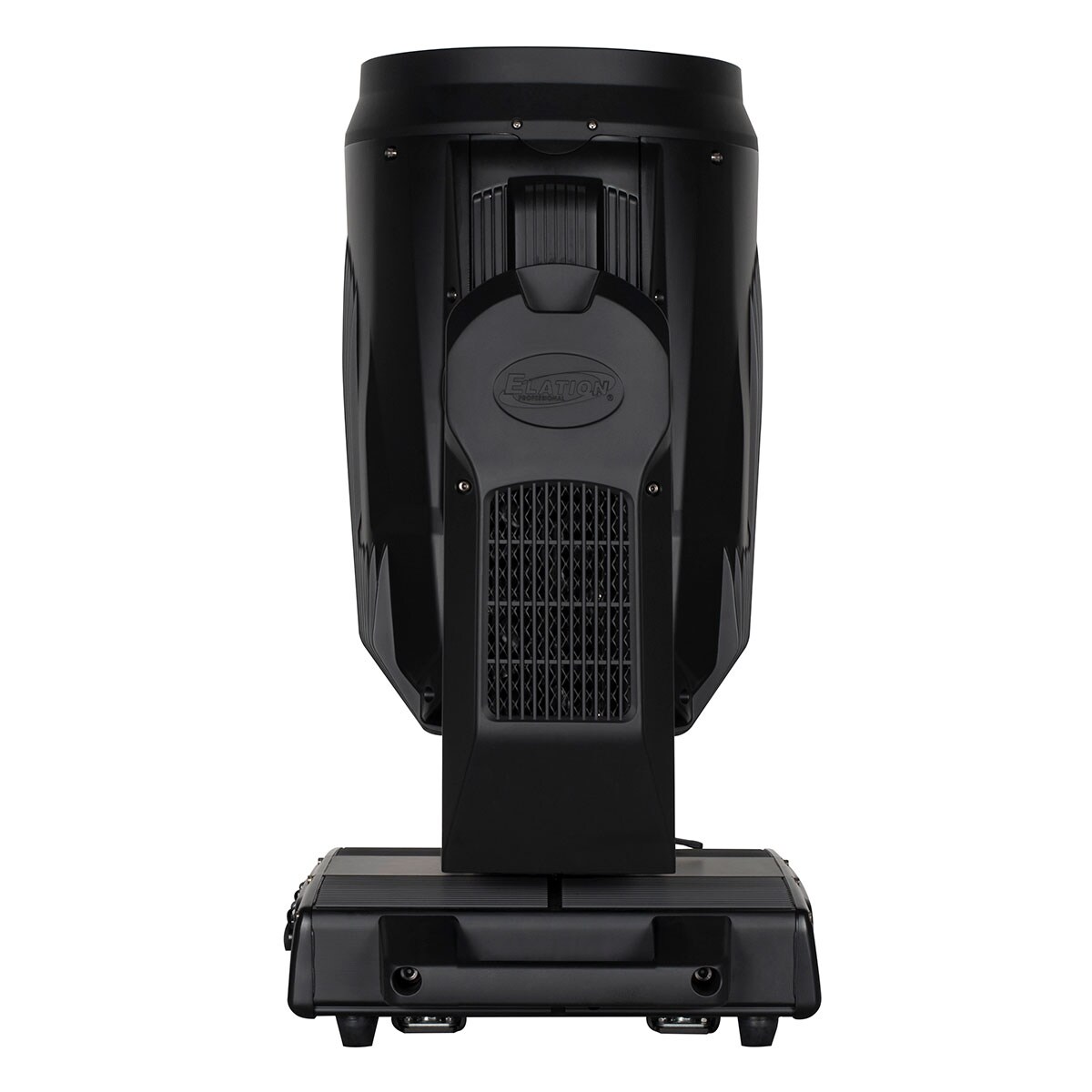

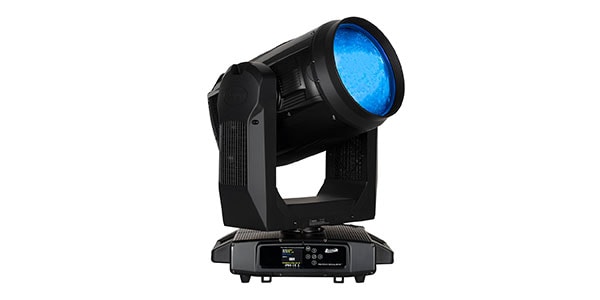

ELATION / PROTEUS series moving head with Philips MSD Platinum 500 Flex as a light source. With its dustproof and waterproof design, it is also recommended for lighting effects at theme parks, cruise ships, etc.

■ Light source
- Philips MSD Platinum 500L Flex 550W Lamp
- Variable lamp output
- Automatic lamp hibernation and instant wake up
- Up to 4,000 hours lamp life (*Note 1)

■ Photometric data
- Beam angle: 0.8°
- Field angle: 1.6°
- 3.5° beam expander lens
- Total lumen output: 20,000
- Color temperature: 7000K
- CRI: 77+
- Illuminance at 15m: 335,000 lux (31,100 fc at 49ft)
- Illuminance at 100m: 7,500 lux (700 fc at 330ft)

■ Effect
- beam expander
- focus
- Dual rotating prism and prism macro
- Dual frost filter hybrid wash effect
- High speed mechanical shutter and strobe
- Pan angle: 540°/630°
- Tilt angle: 250°

■ Color
- 14 dichroic colors including CTO and UV
- Full CMY color mixing

■ Gobo
- 8 interchangeable rotating/indexing glass gobos
- 17 static stamp metal gobos

■ Control/Connection
- Single DMX mode (26 channels)
- Sky Motion standalone mode for searchlight and sky tracker animations
- 16-bit pan, tilt and dimming control
- motor focus
- DMX, RDM, Art-NET, and sACN protocol support
- 6 button touch control panel
- Full color 180° reversible LCD menu display
- Power saving mode (hibernation)
- IP65 5 pin DMX input/output
- IP65 RJ45 etherCON input/output
- Locking IP65 power input

■ Size/Weight
- Length: 493mm
- Width: 383mm
- Height: 697mm
- Center distance: 592.8mm
- Weight: 49kg

■ Power supply
- AC 100V 50/60Hz
- Maximum power consumption: 800W
- Operating temperature range: -20°C to 45°C

■ Approval/Evaluation
- CE | cETLus | IP65 | FCC | UKCA

Note 1: Under test laboratory conditions. May vary due to factors including, but not limited to, environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.
