This moving head has three functions: beam, spot, and wash. The light source is a 350W Phillips MSD Platinum 17 RA. This is a high-spec model equipped with a motorized zoom function.

■ Light Source
- Philips MSD Platinum 17 RA 350W Lamp
- Total Lamp Lumens: 15,000
- Color Temperature: 6,900K
- Color Rendering Index (CRI): 85
- Average Lamp Life: 1,500 hours

■ Optical Data
- Beam Mode: 14,324 lumens / Spot Mode: 7,281 lumens
- 3° Beam Angle: 107,000 LUX (9,940 FC) @ 15m
- 5° Beam Angle: 5,133 LUX (477 FC) @ 15m

■ Effects
- 8-facet prism and 16 macro effects
- Frost filter
- Strobe: 1-18 fps
- Dimming: 0% - 100%

■ Color
- 10 dichroic colors including UV, CTB, and CTO + white

■ Gobos
- 2 gobo wheels
- 8 interchangeable rotating and indexing gobos
- 12 static stamp gobos (indexed)

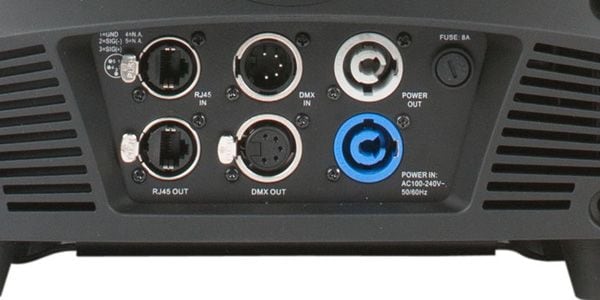

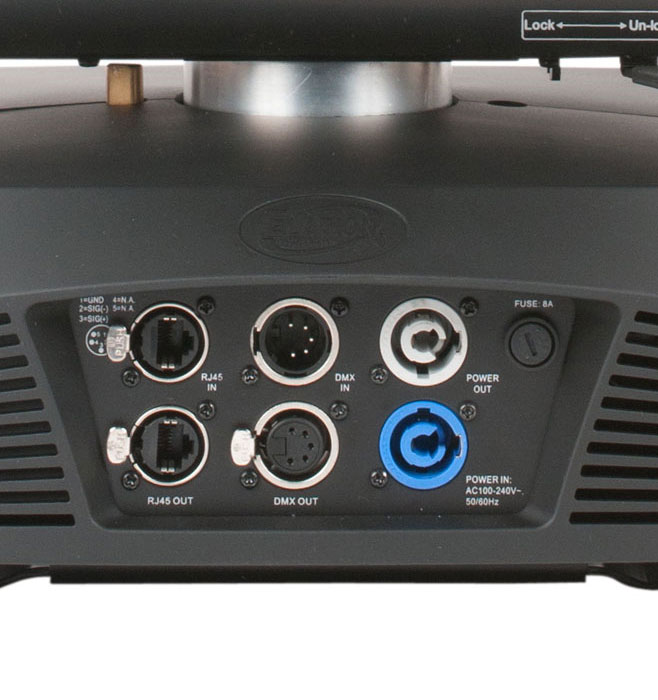

■ Control / Connections
- DMX channel mode (16/18/25)
- RDM (Remote Device Management)
- 6-pin touch control panel
- Full-color 180° reversible LCD menu display
- Adjustable 8/16-bit resolution operation
- 5-pin DMX input/output
- RJ45 Ethernet input/output (Art-NET compatible)
- Power cable input/output

■ Size / Weight
- Length: 359mm
- Width: 502mm
- Height: 730mm
- Weight: 33.1kg

■ Electrical / Thermal
- AC 100-240V 50/60Hz
- Maximum power consumption: 550W
- Operating temperature range: -10°C to 45°C

■ Certifications/Classifications
- CE | RoHs | IP20

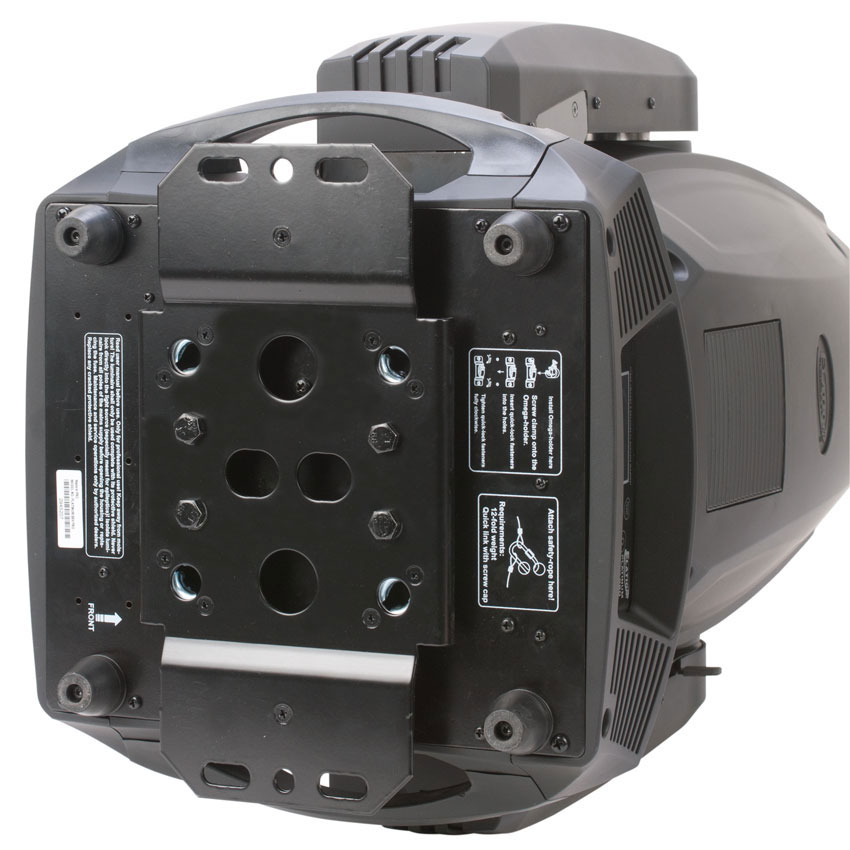

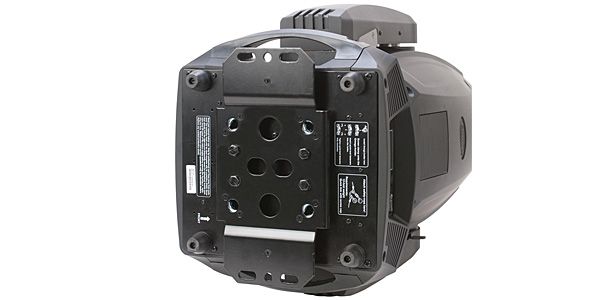

■ Installation Methods
- Rigging with clamps (sold separately)
- Working position: flat or 180° inverted

■ Included Items
- Two Omega Brackets
- One Safety Cable
- One PowerCON Cable

[LF]

ELATIONのムービングヘッドが「Carnaval Vegano」で活躍！

スタッフレビュー

350WのPhillips MSD Platinum 17 RAライトを採用し非常に明るく、大会場での使用に適したムービングヘッドです。おすすめポイントは、1台でビーム、スポット、ウォッシュの3種類の機能を兼ね備えている点です。ビームの照射角度は3度-18度、スポットの照射角度は 5度-30度。変更も1つのフェーダーでコントロールできるため、非常にスムーズ行えます。コンサートホールといった大きな会場などで威力を発揮するムービングヘッドです。

サウンドハウススタッフ
