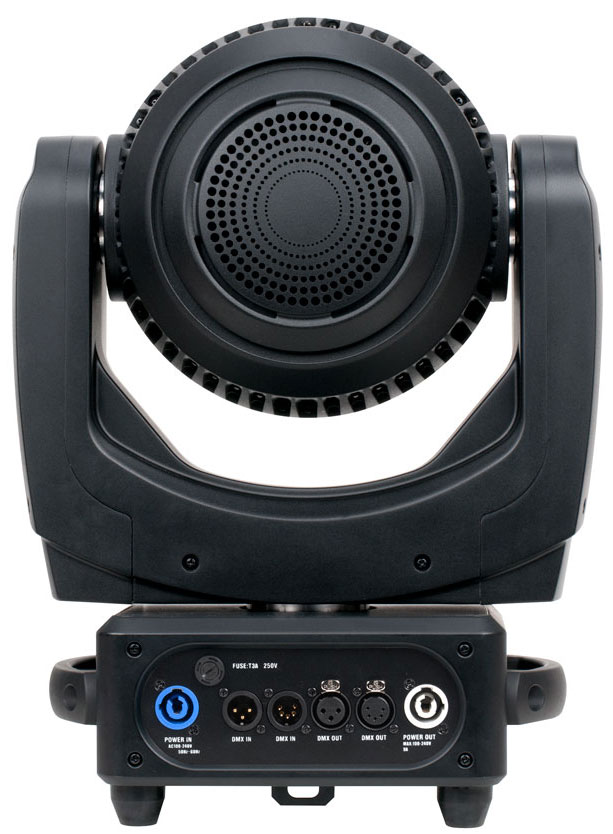

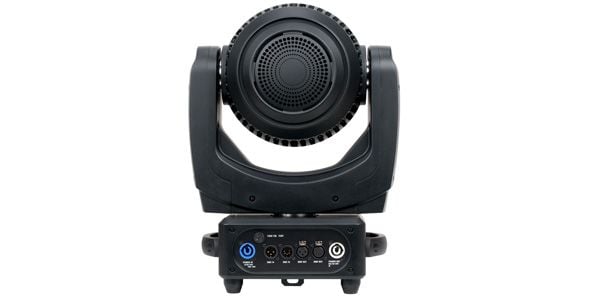

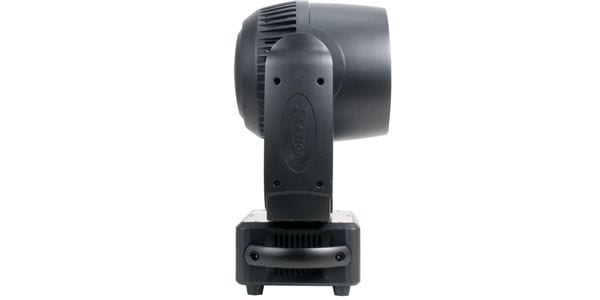

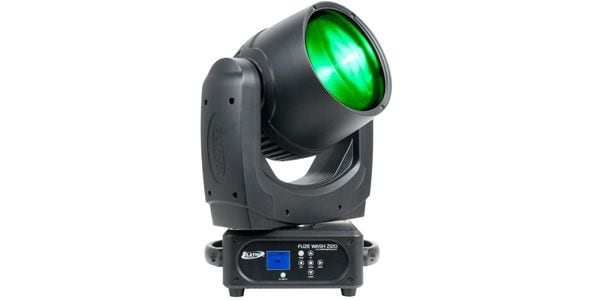

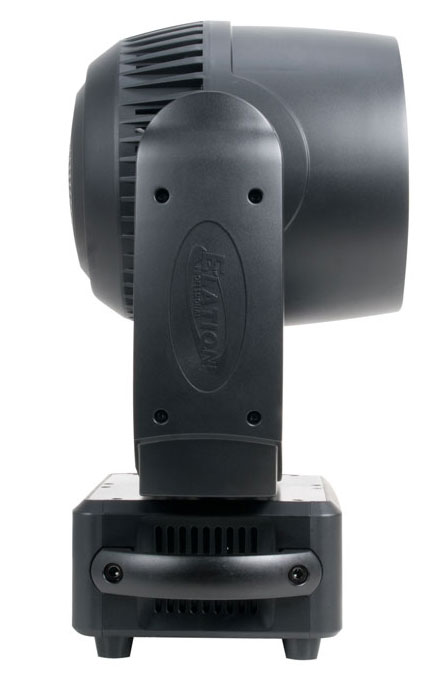

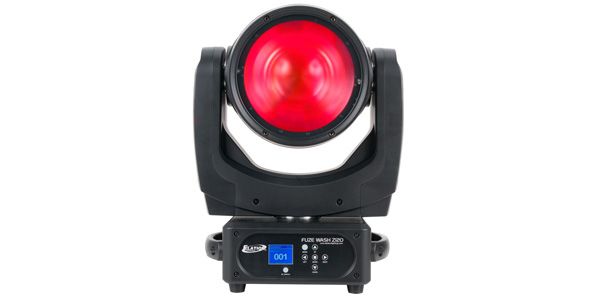

ELATION / FUZE WASH Z120

This moving head is equipped with a 120W Quad Color RGBW COB LED. It features 64 preset colors, a strobe effect, and five dimmer curves. It is ideal for coloring stage and other displays.

Light Source
- 120W RGBW COB LED
- Average LED Lifespan: 100,000 hours (Note 1)

Photometric Data
- 10,640 LUX 988 FC @ 3m (7° Full ON)
- 692 LUX 64 FC @ 3m (55° Full ON)

Color
- RGBW

Effects
- RGBW Color Mixing
- 7° - 55° Beam Zoom Range
- Electronic Strobe, Dimming, and Variable Dimming Curve
- 64 Color Presets and 14 Color Macros
- Pan Angle: 540°/630°
- Tilt Angle: 250°

Control/Connectivity
- 4 DMX Channel Modes (19 Channels Total)
- 7-button control panel and LCD menu display
- RDM (Remote Device Management)
- 3-pin/5-pin DMX and locking power cable input/output
- Wired digital communication network

■ Size/Weight
- Length: 338mm
- Width: 229mm
- Height: 466mm
- Weight: 10kg

■ Power Supply
- AC 100V 50/60Hz
- Maximum Power Consumption: 157W
- Supports power linking for multiple units
- Temperature Range: -15°C to 45°C
- BTU/hr (+/- 10%): 535.37

■ Certification/Classification
- CE | cETLus | IP30

Note 1: Under test lab conditions. May vary based on factors including, but not limited to, environmental conditions, power/voltage, usage patterns (on/off cycling), control and dimming.
