ELATION / Proteus Odeon

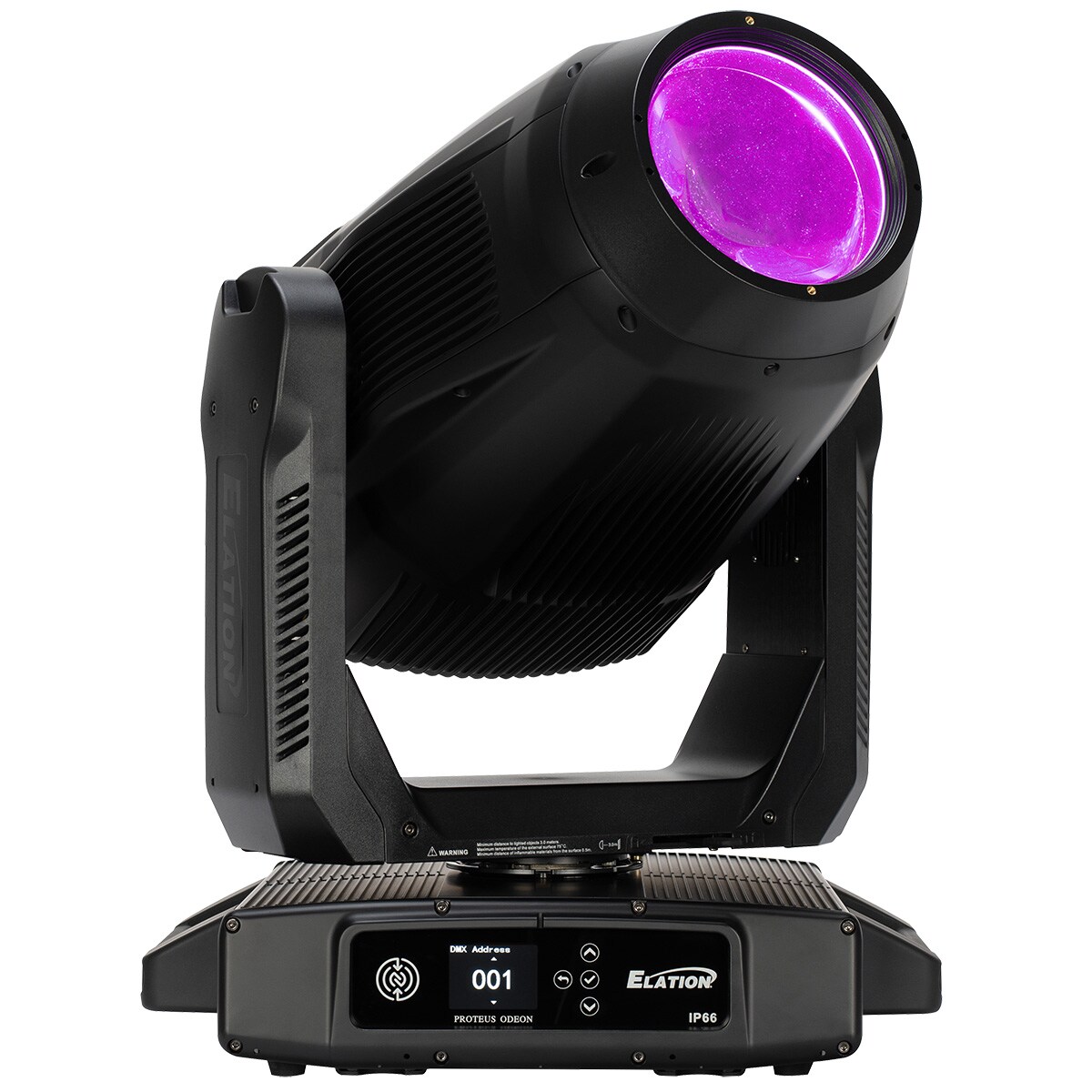

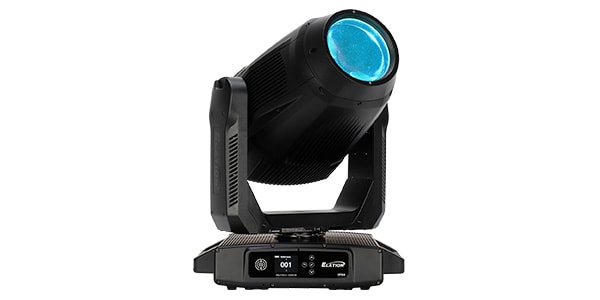

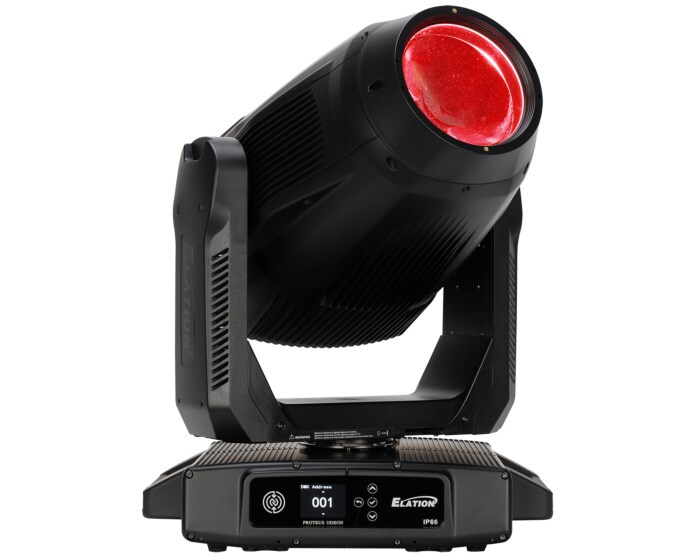

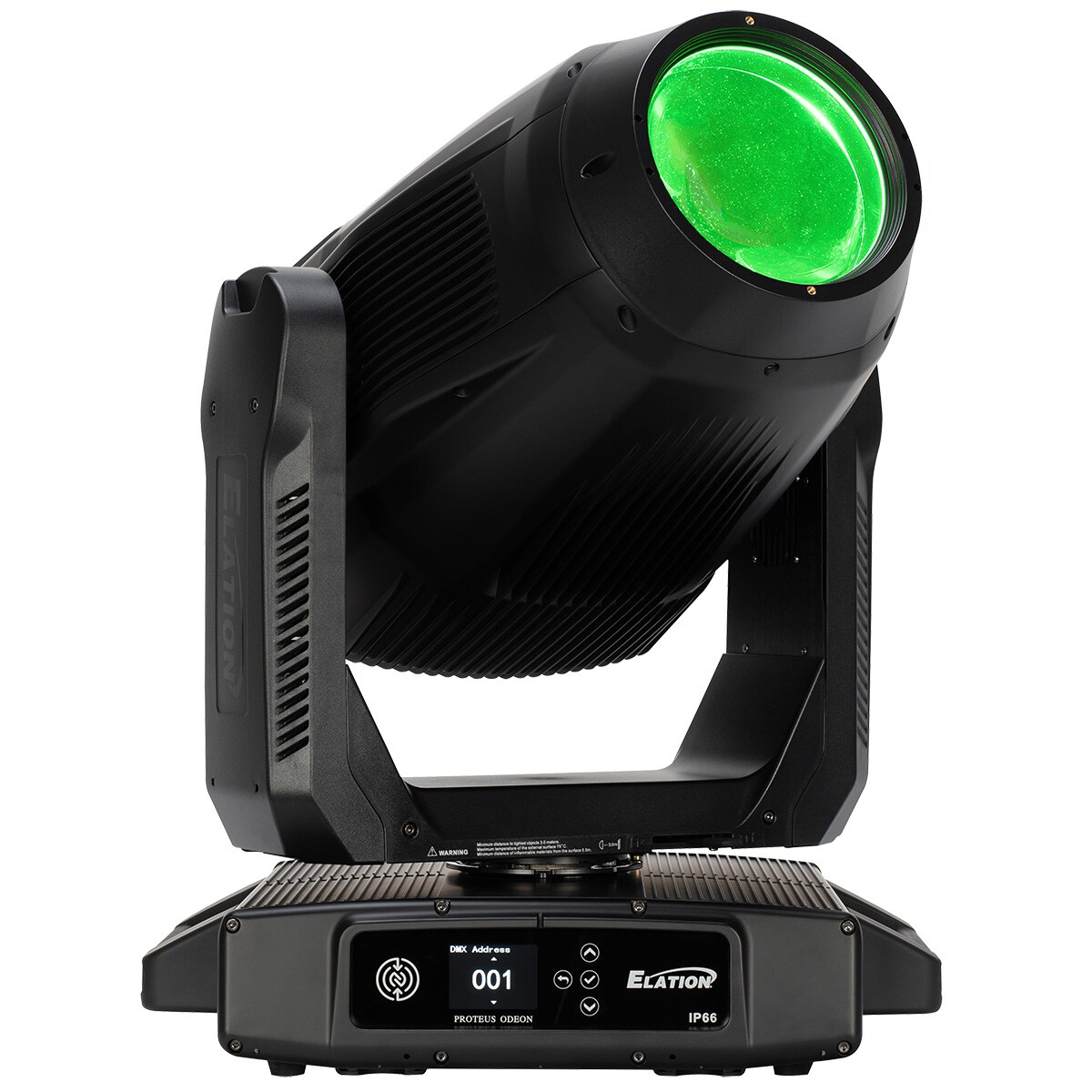

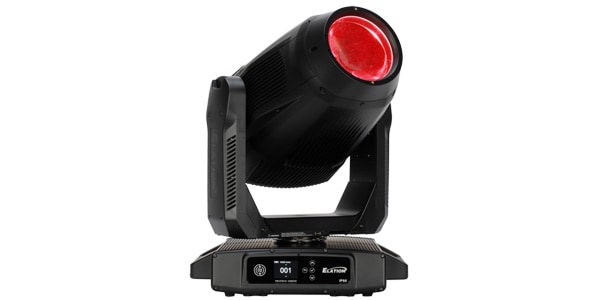

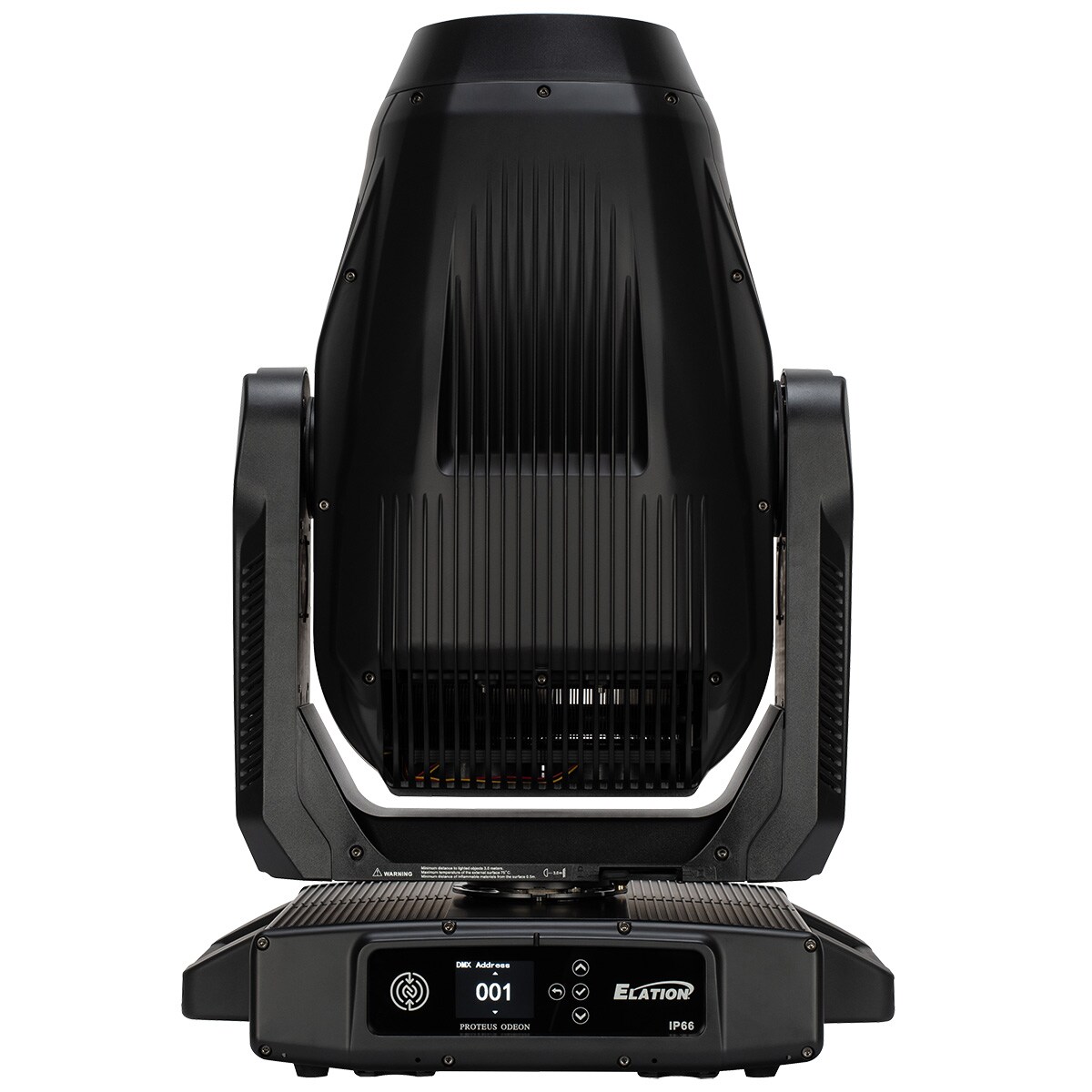

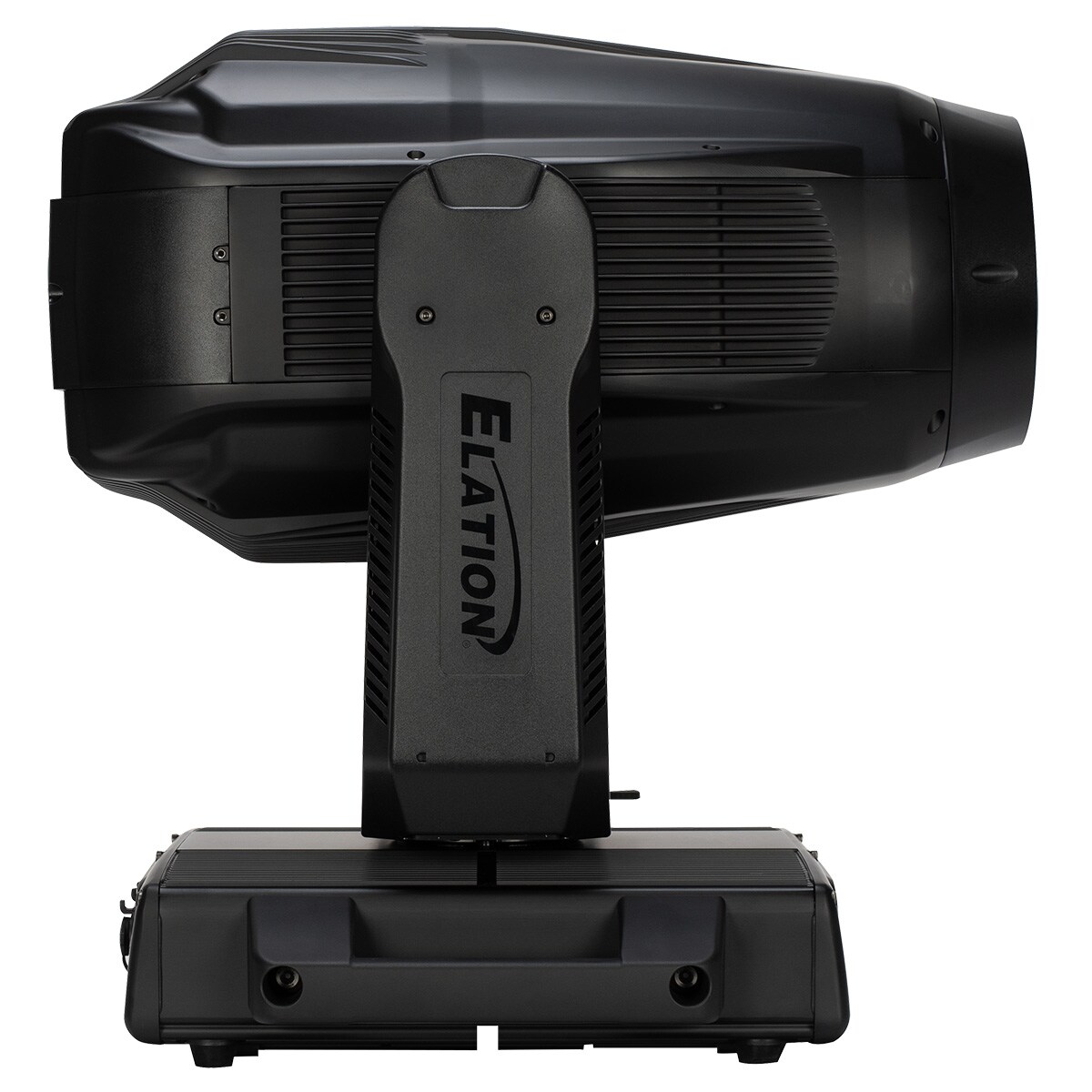

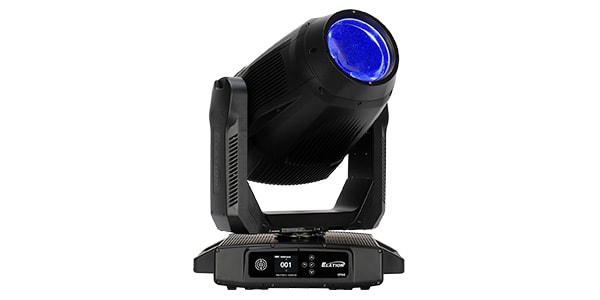

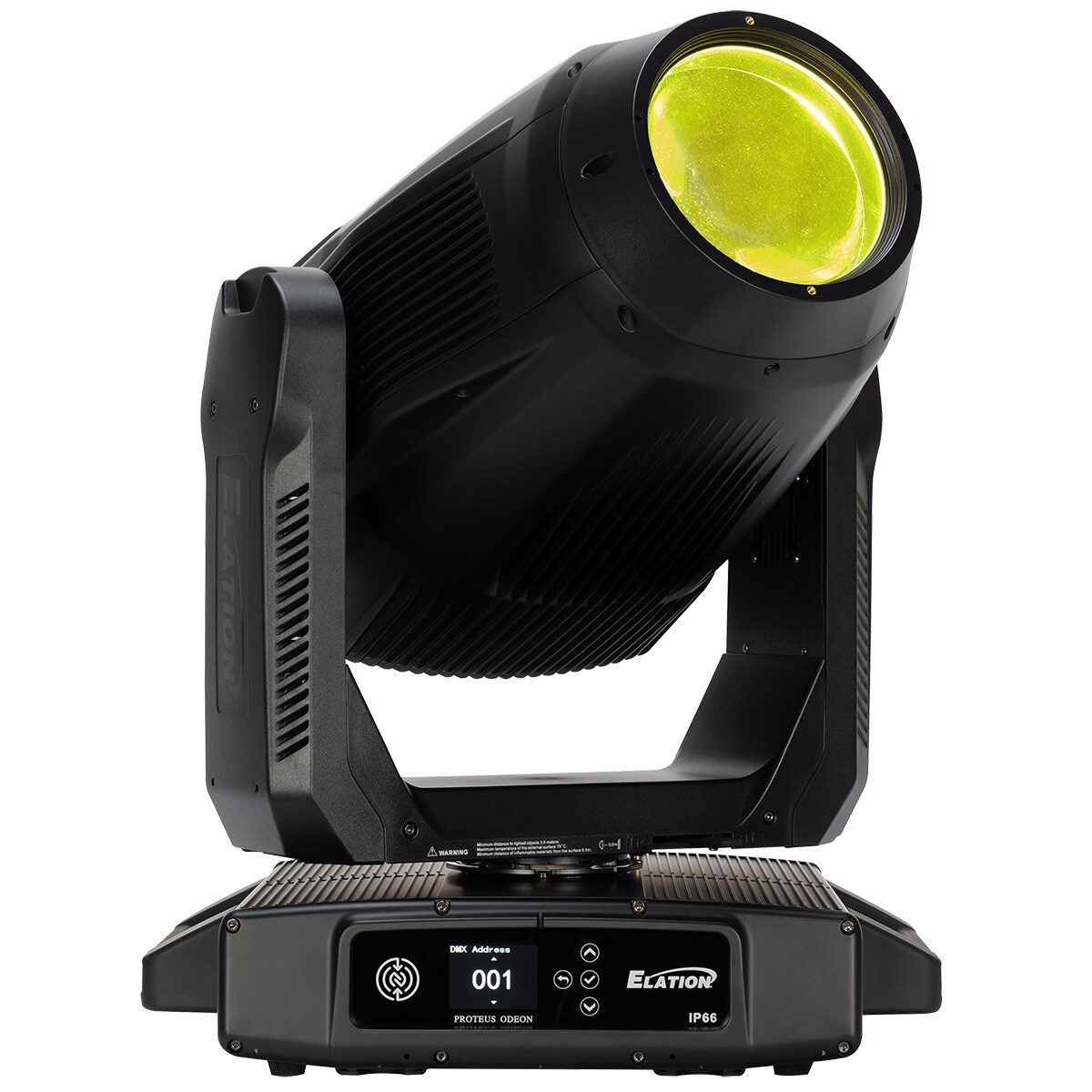

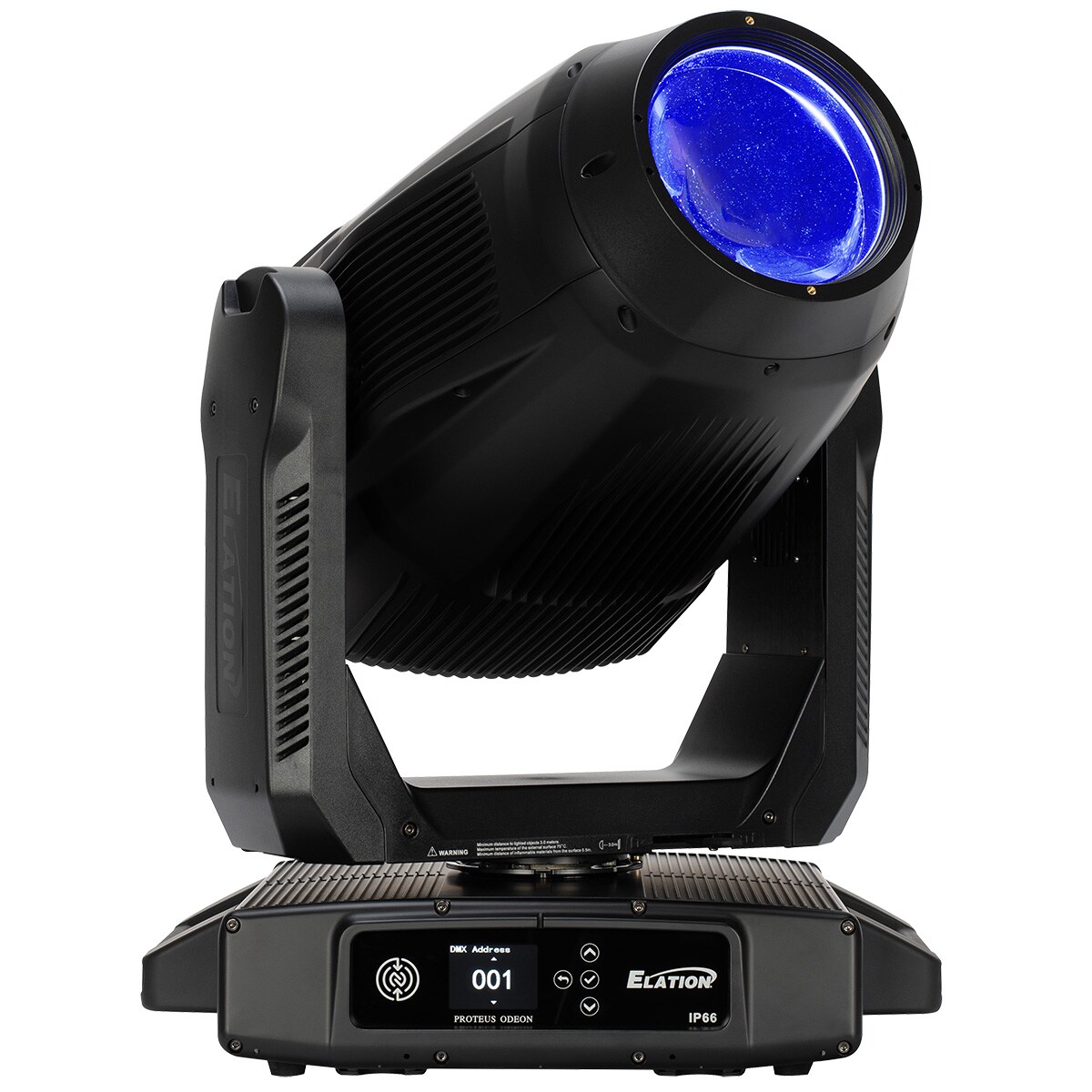

PROTEUS ODEON™ is a compact, robust LED profile fixture (IP66-rated) designed for excellent projection and beam quality in any setting. It features a Variable CRI LED engine providing up to 30800 lumens, making it suitable for both indoor and outdoor applications requiring high output and precise color control.

SOURCE

・High Efficiency 850W 6,500K Variable CRI White LED Engine
・30,000 Hour Average LED Life*
・*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

・30800 Total Lumen Fixture Output @ CRI 80
・TruTone variable CRI up to CRI 93
・Zoom Range 5.5° - 50°

EFFECTS

・Motorized Zoom
・4 Rotating Full Blackout Framing Blades
・+/-45° Framing Indexing
・Full 360° Bi-Directional Animation Wheel
・4-Facet and Linear Rotating Prisms
・2 Variable Frost Filters (Light and Wash)
・Internal Color, Framing, Prism, and Frost Macros
・Motorized Iris with Variable Pulse Effects
・Variable 16-bit Dimming Curve Modes
・High Speed Electronic Shutter and Strobe
・DMX Controllable LED Refresh Rate
・Pan Angle: 540°/630°
・Tilt Angle: 250°

COLOR
・
・CMY Color Mixing
・Linear CTO Color Correction
・5 Dichroic Colors including UV Filter

GOBOS
・
・3 Gobo Wheels
・6 Rotating Gobos (Wheel #1)
・7 Rotating Gobos (Wheel #2)
・7 Static Gobos (Wheel #3)
・
CONTROL / CONNECTIONS

・4 DMX Channel Modes
・16-bit Pan, Tilt and Dimming Control
・Motorized Focus and Auto-Focus Presets
・DMX, RDM, Art-NET, sACN Protocol Support
・(6) Button Touch Control Panel
・Full Color 180° Reversible LCD Menu Display
・Hibernation Mode (Power Save)

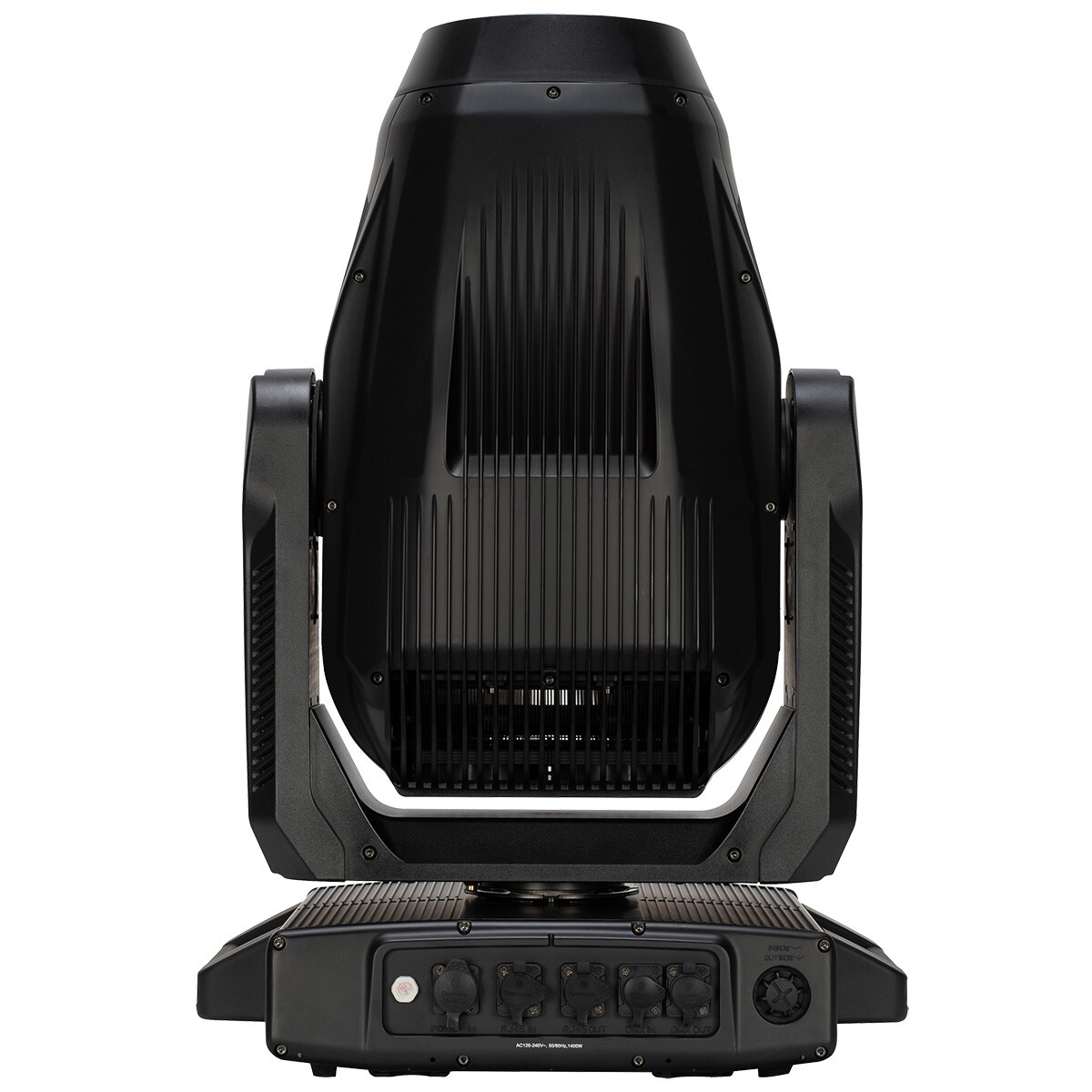

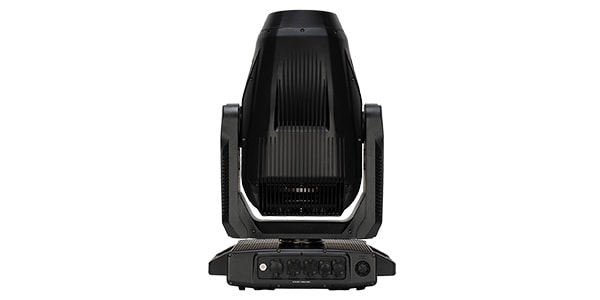

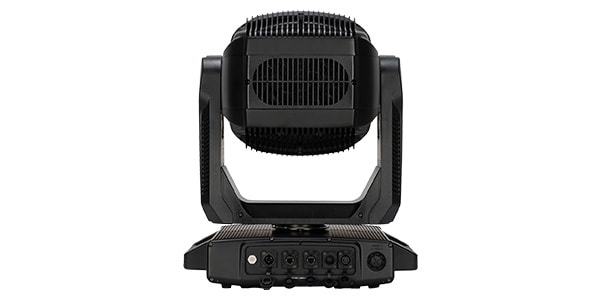

・IP65 Locking 5pin XLR In/Out
・IP65 Locking RJ45 Ethernet In/Out
・IP65 Locking Power In
・With Wired Digital Communication Network

SIZE / WEIGHT

・Length: 18.41 in (467.66mm)
・Width: 14.57 in (370mm)
・Height: 27.2 in (692mm)
・Weight: 97.7 lbs. (43.4 kg)

・ELECTRICAL

・AC 120-240V 50/60Hz
・Max Power Consumption 1500W
・-4°F to 113°F (-20°C to 45°C)
・BTU/hr (+/- 10%) 3239.5
