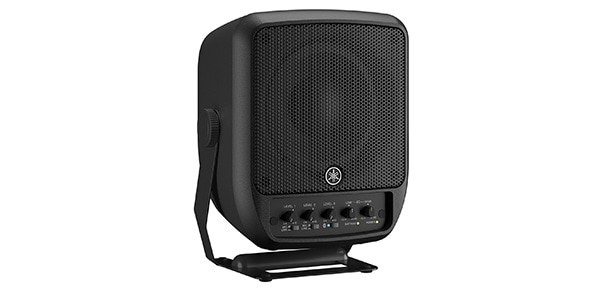

YAMAHA / STAGEPAS 100BTR

YAMAHA/STGAEPAS 100BTR combines a lightweight, ultra-compact, and stylish housing that is convenient to carry with high-quality sound. A model with a built-in lithium-ion battery. This is a reliable portable PA system that is sure to be useful anytime, anywhere, such as on-the-street live performances and speeches. Equipped with Bluetooth connectivity and a Hi-Z input terminal, it is also recommended for singer-songwriters who play and sing.

■Portable PA system
■Battery equipped model

A portable PA system equipped with a 100W power amplifier, a coaxial compression driver that combines a 1.4"" voice coil HF and a 6.5"" cone LF, a 3-channel digital mixer, and a built-in high-capacity lithium-ion battery.

～Main ​​features～

・100W Class-D amplifier
・1.4""HF + 6.5""LF high-quality coaxial compression driver, uses FIR filter for crossover
・3 systems 4 channel mixer (2 monaural mic/line + 1 stereo line)
・Equipped with 2Band master EQ
・Hi-Z input compatible (2ch only)
・Equipped with mixout

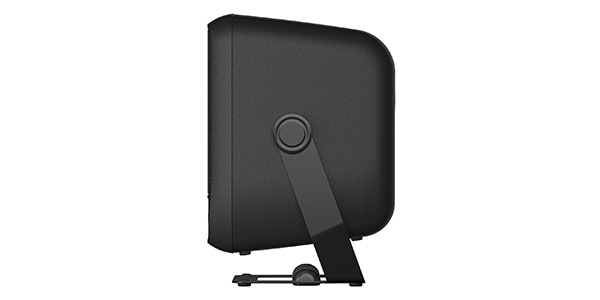

・You can freely set the tilt angle with the included stand/handle handle.
・Supports audio streaming via Bluetooth
・An optional carry bag (BAG-STP100) is available for easy carrying.
・Built-in lithium ion battery

■Main standards
Format: 2-way coaxial bi-amp powered speaker, bass reflex type
Playback frequency band (-10dB): 70Hz - 20kHz
Maximum output sound pressure (Peak, noise @1m): 120dB SPL
Power consumption: 10W (Idle), 30W (1/8 output)
Dimensions (W x H x D): 239 x 310 x 215 mm (including handle and rubber feet)
Mass (excluding power adapter): 5.5kg

speaker part
LF: 6.5 inch cone, 1.7 inch voice coil
HF: 1 inch compression driver, 1.4 diaphragm
Screw hole (bottom of handle): 1 x 3/8 inch depth 12 mm

Amplifier section
Power amplifier: Class-D
Rated output
Dynamic: 100W (LF: 93W, HF: 7W)
Continuous: 60W
terminal
input
INPUT1: Combo x 1
INPUT2: Combo x 1,
INPUT3: Stereo mini x 1 (unbalanced)
output
OUTPUT: XLR3-32 × 1 (CH1~CH3 Mix)
Bluetooth: A2DP

battery
Battery type: Rechargeable lithium-ion battery pack
Capacity/driving time/charging time: 60Wh/up to 6 hours, 1/16 power continuous 5 hours/approximately 2.5 hours
Accessories: Power cord, instruction manual, power adapter ""PA-500""
Optional item: Carry bag “BAG-STP100”
