JBL / 305PMKIILSR310S

This set includes a pair of JBL's popular studio monitors 305P MKII and a subwoofer LSR310S that adds powerful bass. It supports a wide range of uses, from everyday listening to full-scale music production. This set is recommended for users who are looking for a higher-grade monitoring environment.

■JBL studio monitor set
■305P MKII pair + LSR310S
*Connection cable is sold separately.

~JBL 305P MKII standard studio monitor~

・Image control waveguide that provides delicate imaging and a wide sweet spot
・Next generation JBL transducer for improved response and linearity
- Slip Stream low frequency port for superior bass performance at all playback levels
・82W dual integrated custom class D amplifier that provides high output and wide dynamic range
・New boundary EQ that compensates for changes in low frequencies according to the usage environment
・HF trim switch to adjust high frequency output to suit room acoustics or preference
Balanced XLR, 1/4"" TRS input, +4dBu/-10dBV input sensitivity switch, adjustable volume control
Designed with JBL Linear Spatial reference design standards for superior accuracy in any workspace.
- Powerful JBL 100 hour full power test ensures years of reliability.
- Sleek, modern design allows for a visual upgrade of your studio


■LF driver: 127mm (5"")
■HF driver: 25mm (1"")
■HF driver type: Soft dome
■Crossover: 1725Hz 4th order acoustic Linkwitz-Riley
■OK FOR USE NEAR
MAGNETICALLY SENSITIVE EQUIPMENT：Yes
■Input sensitivity: 92dB / 1m (-10dBV INPUT)
■Bi-amp
■Amplifier output
HF 41W, Class-D
LF 41W, Class-D
■Frequency response: (±3dB) 49Hz - 20kHz
■Frequency range: (-10dB) 43Hz - 24kHz
■Low frequency extension: (-10dB) 43Hz
■Maximum output sound pressure level: 94dB (continuous)
■Maximum output sound pressure level: 108dB (peak)
■Maximum peak input level: +6dBV / +20.3dBu (-10dBV / +4dBu)
■System distortion standard: <10% THD at maximum output with full compressor / limiter engagement
■Electrical distortion standard: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
■SN ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
■ Directional angle: 120° x 90° (HxV)
■Analog input: 1 x XLR, 1 x TRS phone
■HF trim control: -2dB, 0dB, +2dB
■BOUNDARY EQ LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
■Power supply: 100 - 240VAC (±10%), 50 / 60Hz
■Enclosure type: Ported
■Enclosure material: 15mm MDF
■Enclosure finish: Matte black PVC
■Baffle: Injection-molded structural ABS
■Cabinet dimensions WxHxD: 186 x 298 x 242mm
■Body weight: 4.73 kg

~JBL LSR310S Subwoofer that outputs rich and powerful low frequencies~

Equipped with a 10-inch driver, the LSR310S uses a unique design that outputs downward from the bottom. Equipped with an output terminal that can be connected to a full range system. Three types of crossover settings are available, including an XLF mode that emphasizes low frequencies.
Extends the low frequency components around 20Hz of LSR305 and LSR308.
A powered subwoofer that outputs rich and powerful low frequencies.

■Features
The LSR310S subwoofer outputs rich and powerful low frequencies. Music studios and post-production studios that produce sound in stereo or surround can take the quality of their productions to the next level.

・Subwoofer ideal for extending the low frequency components around 20Hz of LSR305 and LSR308.
-Equipped with a 10-inch driver that outputs rich and powerful low frequencies. It uses a unique design that outputs downward from the bottom.
- Equipped with a 200W class D power amplifier. Outputs powerful low range.

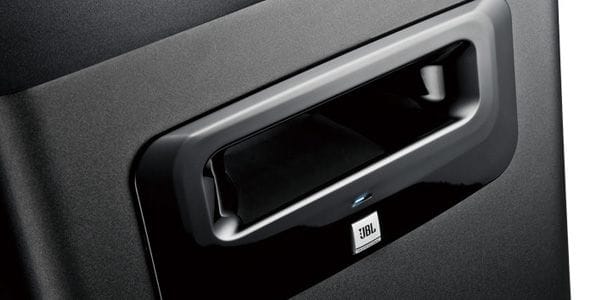

・The low-frequency port uses JBL's unique ""slipstream"" design. Suppresses turbulence and outputs extended and deep low frequencies.
-Equipped with an output terminal that can be connected to a full range system. Three types of crossover settings are available, including an XLF mode that can emphasize low frequencies.
- Electronically balanced input sensitivity can be switched between +4dBu and -10dBV, and XLR and standard phone jack (3P) input terminals can be used.

■Specifications
Format: Powered subwoofer
Can reproduce low frequencies up to 27Hz
Maximum sound pressure level (1m, C weight): 13dB SPL (half space)
Driver configuration: 10 inches (254mm)
Power amplifier output: 200W
Input terminal/format: XLR x 2, standard phone (3P) x 2, electronic balance
Power consumption:
Pink noise 20W at 1/8 output
20W according to the Electrical Appliance and Material Safety Law
Dimensions (W x H x D): 380 x 452 x 391 mm (removed protrusion)
Mass: 16kg
Accessories: Power cable

■About the output when CROSSOVER is selected
80Hz:
Outputs signals below 80Hz from the subwoofer
　Output a signal above 80Hz from OUTPUT
　XLF:
Outputs signals below 120Hz from the subwoofer
　　OUTPUT outputs a signal above 120Hz
　External:
Outputs the same signal as the input signal from the subwoofer
It is not output from OUTPUT.
*Please be sure to use an external channel divider.

The signal level output from OUTPUT is not affected by LSR310S VOLUME.
