YAMAHA / CK61 ステージキーボード

61-key stage keyboard succeeding the CP and YC series. Equipped with 363 high-quality tones for live performances, including the CFX and S700 grand pianos. Features "One-to-One" style UI for instant setup and operation.

■Product Features
1. Authentic sound for live performances

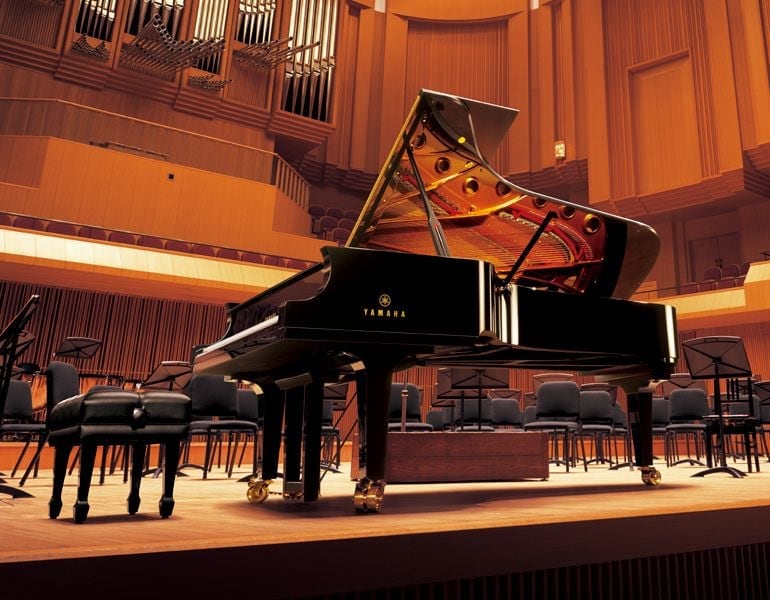

The CFX and S700 premium concert grand pianos and other acoustic pianos, as well as electric pianos such as the Vintage Elepi and FM Elepi, can be played on the CFX and S700. The CK series offers a total of 363 voices, including synths, strings, brass, guitars, and other essential band sounds.

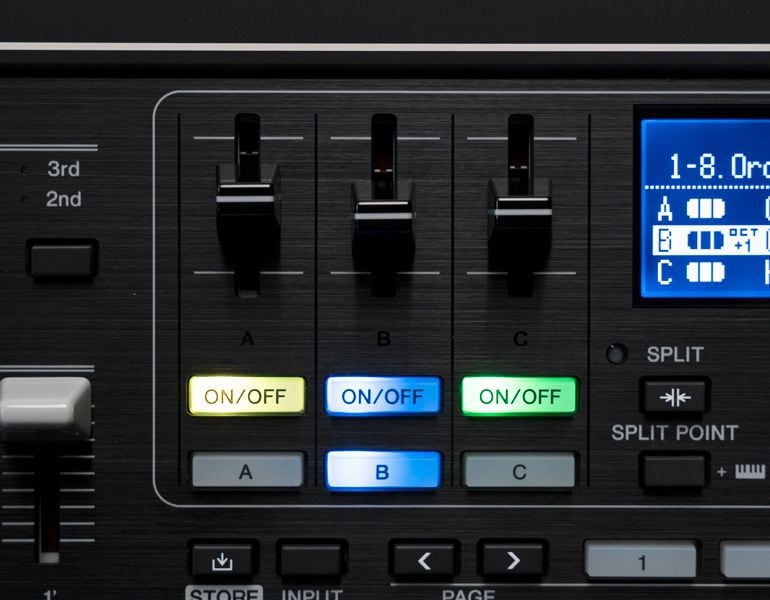

PARTS & VOICES

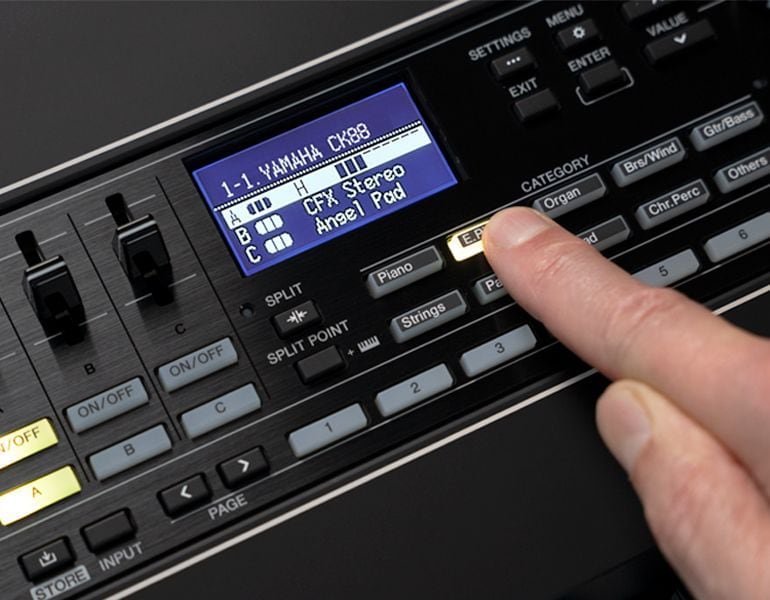

The CK series sound source consists of three parts (Part A, B, and C), and you can select the voice to play for each part. Each part has its own ON/OFF button and volume slider to turn the sound on or off and to adjust the volume balance between the parts. The voices are grouped by instrument category, making it easy to find the sound you are looking for.
LIVE SET
The CK series allows you to save your own edited voices (voices, effects, and various parameters) as "Live Set Sounds" in the main unit's memory. Live set sounds can be stored up to 8 types per page, up to 20 pages of 160 types*, and can be instantly recalled using the 8 buttons on the main unit panel. In addition, the CK series has 80 preset live set sounds, allowing users to instantly enjoy authentic sounds.

2. One-to-One Interface for Instant Setting Operation

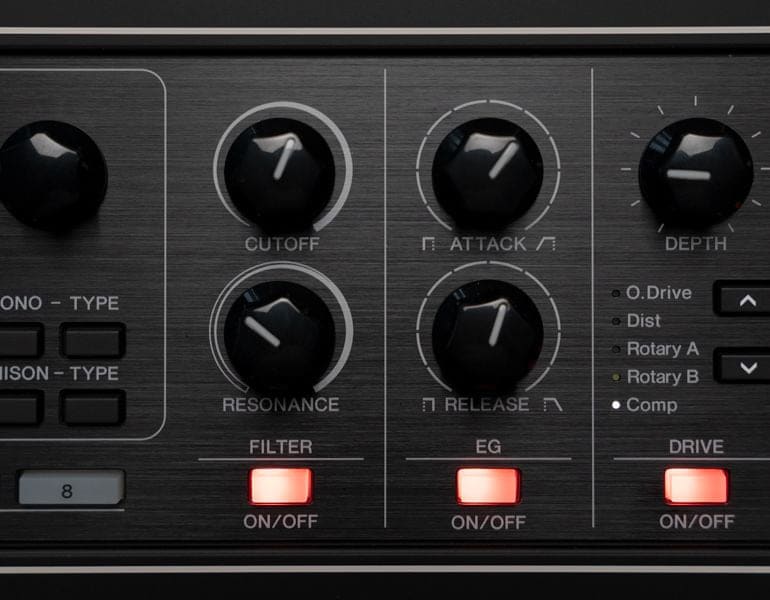

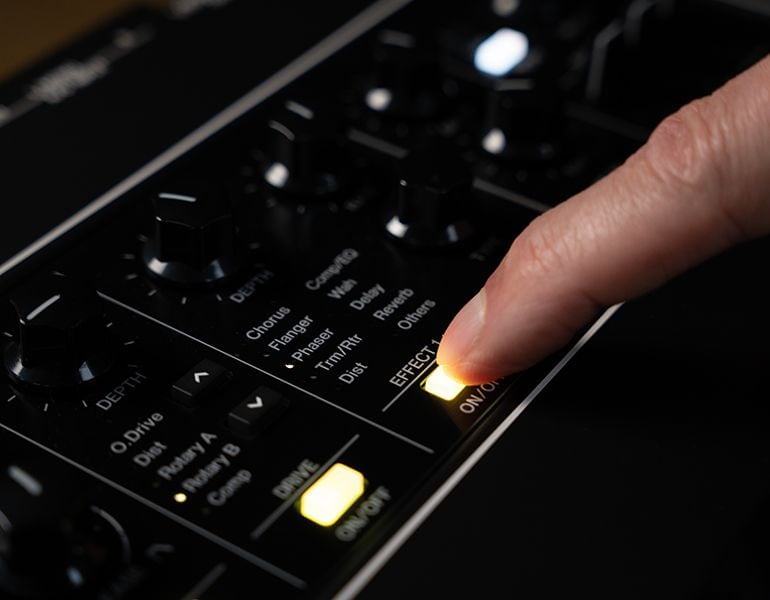

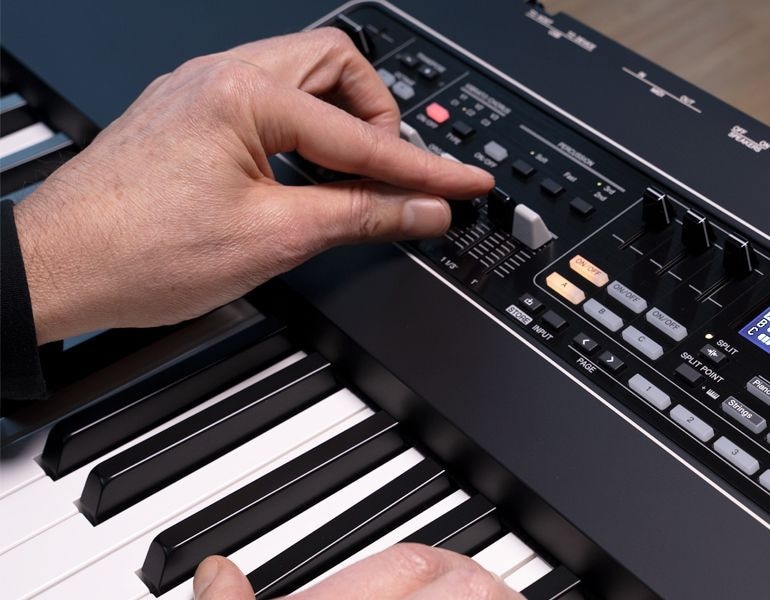

All frequently used functions and controllers for live performances are located on the front panel, and a "One-to-One" style user interface is adopted, in which one function is assigned to one controller. This allows instantaneous operation of the controller for switching tone settings (Live Set) as well as sound-making filters and effects, even while playing. Furthermore, a drawbar that allows players to create their favorite organ sounds with a vintage organ-like feel supports the expression of music as envisioned by the player. 3.

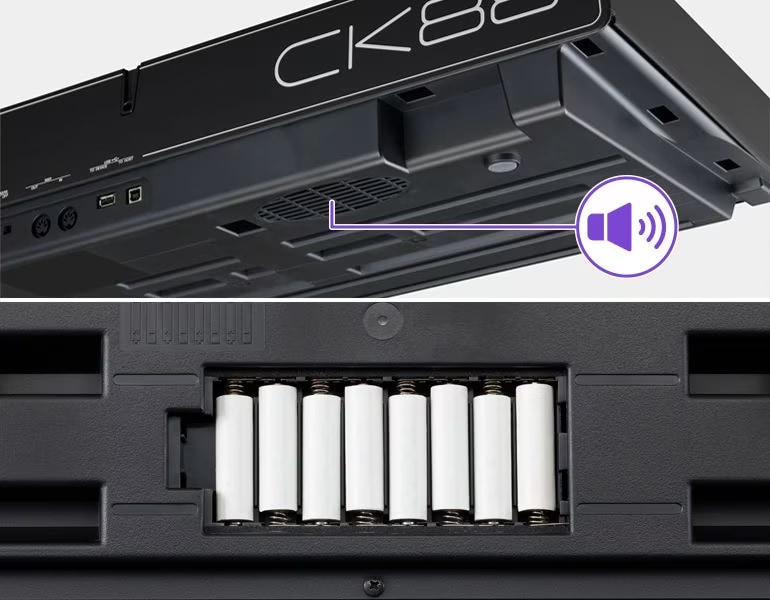

3. Built-in Speakers and Battery Operation Allow Playback Anywhere
Built-in stereo speakers (6W+6W) allow immediate performance without the need to connect external speakers. By connecting a microphone to the unit or connecting to a device such as a smartphone via Bluetooth, you can play along or play along with the sound even in places where sound equipment is not available. Furthermore, the device is battery-powered, making it easy to carry and use even in places without a power supply or PA system, which has been difficult in the past. 4.

4. linkage with external devices and services such as microphones and smart devices
Using the live set support function, effects can be applied to audio signals from microphones and external sound sources, and audio files can be played back during a performance. In addition, the LiveSet can be connected to and used with a variety of other external devices, such as Bluetooth audio playback, computers, MIDI keyboards, and more.
A/D Input
As a support function for live sets, a dedicated effector can be applied to the audio signal from the external input. By connecting a dynamic microphone and setting the effect for vocals, it is possible to perform as a duo with a vocalist and a keyboardist without the need for an external mixer.
Audio Trigger Function
The audio trigger function enables playback of audio files stored on USB flash memory by keyboard operation as a support function for live sets.

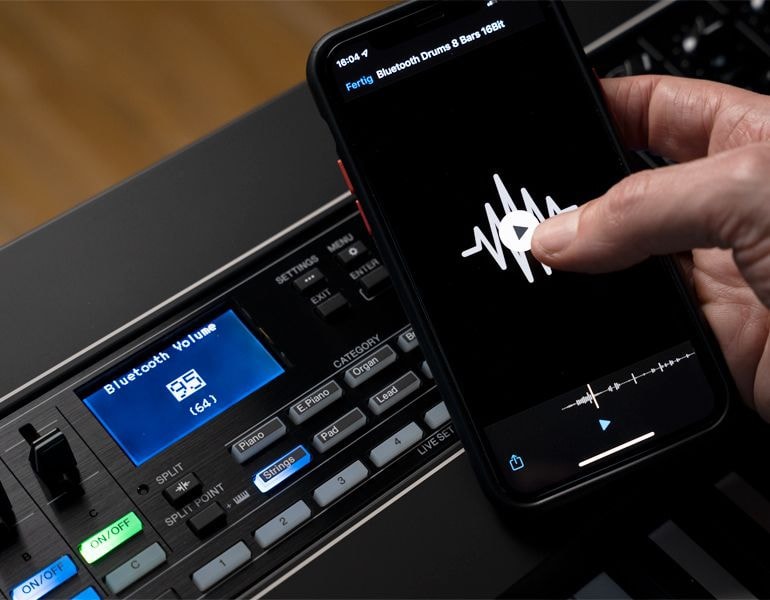

Bluetooth audio function
The Bluetooth audio function allows wireless connection to a Bluetooth-enabled device such as a smartphone or portable music player and playback audio played by that device. The playback sound is output from the built-in speaker and line output as well as the sound of the instrument being played, making it possible to use the device in various ways depending on your ideas, such as playing intro SE, background music, or rhythm track sound sources.

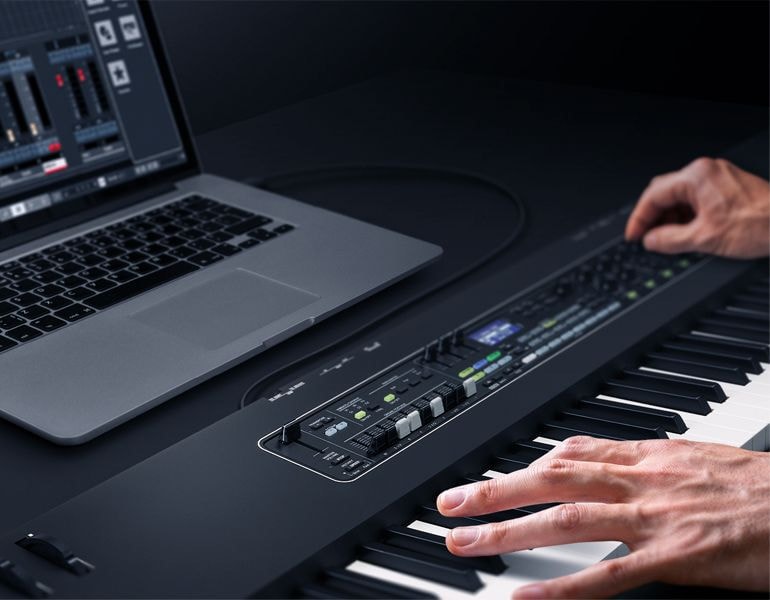

Connection to a computer or MIDI device
The Rec'n'Bass can be used as a MIDI/audio interface by connecting it to a computer or smart device via USB, or as a master keyboard by connecting it to an external sound source or MIDI keyboard.
Rec'n'Share/Soundmondo compatibility
The free "Rec'n'Share" application allows users to easily perform, record, capture, edit, and upload music videos, and the "Soundmondo" service allows users to share their tones with other users around the world. Expression, tone management, and sharing are possible via the Internet and SNS.

5. lightweight, compact and portable body
The compact size is designed to be carried frequently. The soft case (sold separately) makes it easy to take the instrument anywhere, from studios and live music clubs to parks and schools.
Soft Case
A backpack type with straps is available for the CK61, and a soft case with casters is available for the CK88.

・Keyboard

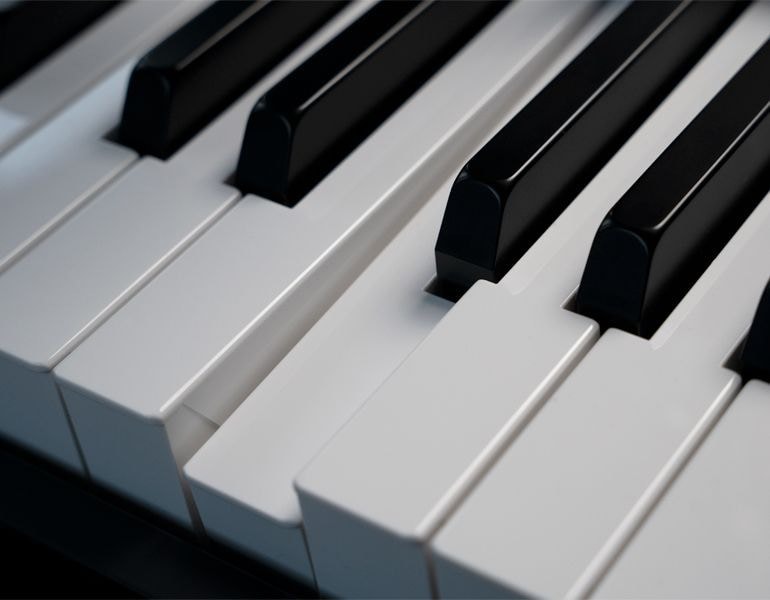

FSB keyboard (with initial touch)
・Sound Source
Sound source system: AWM2, AWM sound source (Organ Flutes)
Maximum number of simultaneous sounds: 128
・Tones
Number of live set sounds: 160 (Preset live set sounds: 80)
Number of voices: 363
Effects
Insertion: Drive (1 system): 5 types
Effects: Effects (2 systems): (1: 36 types, 2: 36 types)
Delay: 4 types
Reverb: 3 types
Master EQ: 3 bands
・Display
Type: Full-dot LCD (128 × 64 dots)

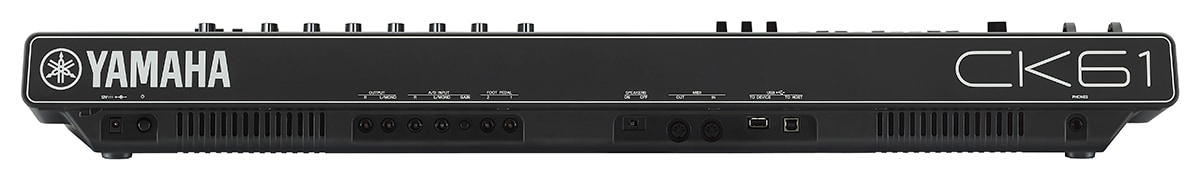

・Connections
OUTPUT [L/MONO]/[R] (standard phone jack, unbalanced), A/D INPUT [L/MONO]/[R] (standard phone jack), [PHONES] (stereo standard phone jack),
FOOT PEDAL [1]/[2], MIDI [IN]/[OUT], USB [TO HOST]/[TO DEVICE],
DC IN], USB [TO HOST]/[TO DEVICE], and
・Bluetooth connection
Bluetooth version: 4.1
Supported profile：A2DP
Supported codec: SBC
Wireless output: Bluetooth class 2
Maximum communication distance: Approx. 10 m
Radio frequency: 2401 to 2481 MHz
Maximum output power: 4 dBm
Modulation method: FHSS
・USB audio interface function
Sampling frequency: 44.1 kHz
Number of input/output channels
Input: 2 channels (1 stereo channel)
Output: 2 channels (1 stereo channel)
・Sound
Amplifier output: 6 W × 2
Speakers: (12 cm × 6 cm) × 2, switchable on/off
・Power Supply
Power adapter: PA-150B or Yamaha recommended equivalent (output: DC 12 V, 1.5 A)
Battery: AA batteries (alkaline/rechargeable nickel-hydrogen) x 8 (sold separately)
Power consumption: 11 W (with power adapter PA-150B)
Battery life: approx. 4.5 hours (with rechargeable batteries)
・Size and weight
Width × Depth × Height: 910 mm × 291 mm × 109 mm
Weight (main unit only): 5.6 kg
・Accessories
Operation manual (this manual) × 1, Warranty × 1, Power adapter (PA-150B) × 1
