One Control / BJF-S66

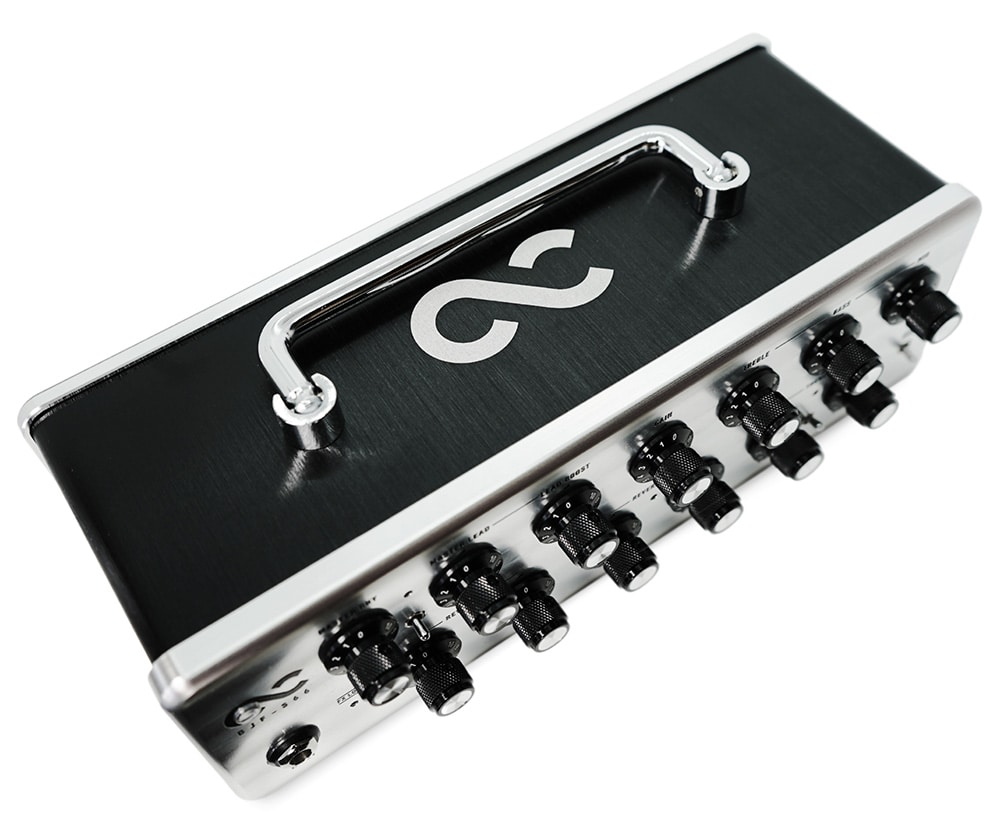

The BJF-S66 is a compact and lightweight amp head that can easily handle the best sound of the 1966 blackface American amps. Equipped with an analog solid-state preamplifier that can select 2 channels of Lead / Rhythm. It is possible to create a wide range of sounds.

■ Guitar amp head
■ Output: 66W (8Ω)
■ Control
・ MASTER RHY: Adjust the volume of the Rhythm channel
・ MASTER LEAD: Adjust the volume of the Lead channel
・ GAIN: Adjust the gain level. Set like the Volume control of a vintage amp
-LEAD DRIVE: Set the gain boost on the Lead channel.
When minimized, the gains of the Rhythm channel and Lead channel will be the same.
・ TREBLE: Adjusts the tone at ± 20 dB around 2 kHz. When set to the minimum, the sound is muted.
・ MID: Adjusts the tone by ± 10 dB around 450 Hz.
・ BASS: Adjusts the tone with ± 20 dB around 70 Hz.
・ BRIGHT switch: Boosts 4kHz by + 10dB.
-REVERB RHY: Adjust the reverb of the Rhythm channel. Use DECAY to adjust the length of the reverb, and LEVEL to adjust the volume of the reverb.
If you set LEVEL to the minimum, no reverb will be applied.
-REVERB LEAD: Adjust the reverb of the Lead channel. Use DECAY to adjust the length of the reverb, and LEVEL to adjust the volume of the reverb.
If you set LEVEL to the minimum, no reverb will be applied.
-TREMOLO: Set the tremolo effect.
Use the switch to turn the effect on and off, DEPTH to adjust the tremolo depth, and SPEED to adjust the tremolo speed.

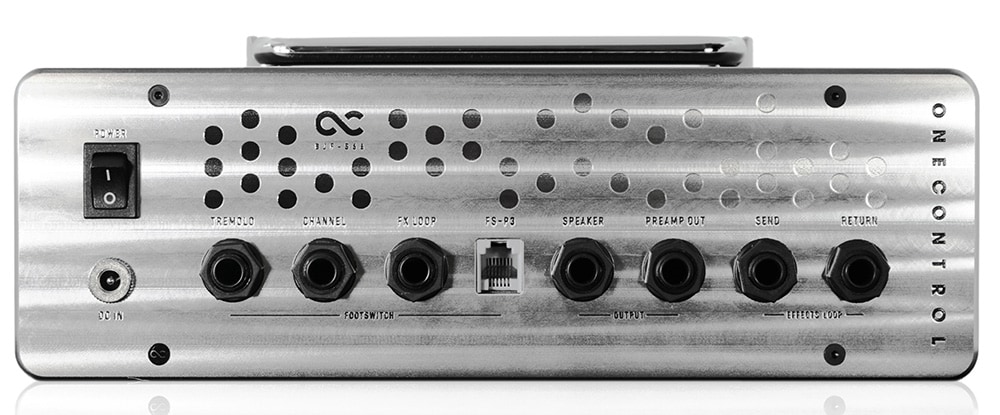

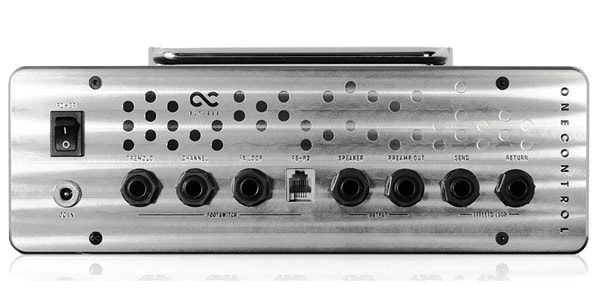

■ Input / output terminal
・ INPUT
・ EFFECTS LOOP
-PREAMP OUT: Outputs the signal from the preamplifier. If you connect here, there will be no output from SPEAKER.
・ SPEAKER: 30W / 16Ω, 66W / 8Ω, 100W / 4Ω
-FS P3: Connect the One Control FS-P3 foot switch.
-FOOTSWICH (CHANNEL): Connects a latch switch that controls channel switching.
-FOOTSWITCH (FDX LOOP): Connect a latch switch that switches the effect loop ON / OFF.
-FOOTSWITCH (TREMOLO): Connect a latch switch that switches the tremolo effect ON / OFF with a monaural cable.
・ DC IN
■ Compact and lightweight amp head that can easily handle the sound of American amps made in 1966 during the blackface period.
■ Analog solid-state preamplifier that can be selected from 2 channels of Lead / Rhythm
It is possible to create a wide range of sounds, from the rich and transparent sound that is typical of American amps to the tones of vintage amps that have deteriorated over time.
■ Equipped with digital reverb and tremolo effect
A classical sound reminiscent of the "bias tremolo" sound found in vintage American amps.
■ Class D digital power amplifier section
Line output is also possible without connecting to a speaker cabinet
■ Dimensions: 26.5 (W) x 9.5 (D) x 8.5 (H) cm (excluding protrusions)
26.5 (W) x 11.8 (D) x 10.3 (H) cm (when the handle is folded)
■ Weight: 1.62 kg
* The old model was designed as an effect loop after the internal reverb effect, but this model is designed so that the reverb tremolo effect is applied after the send / return of the effect loop.
