Soundcraft / Notepad-12FX Dynamic Microphone Monitor Headphone Set

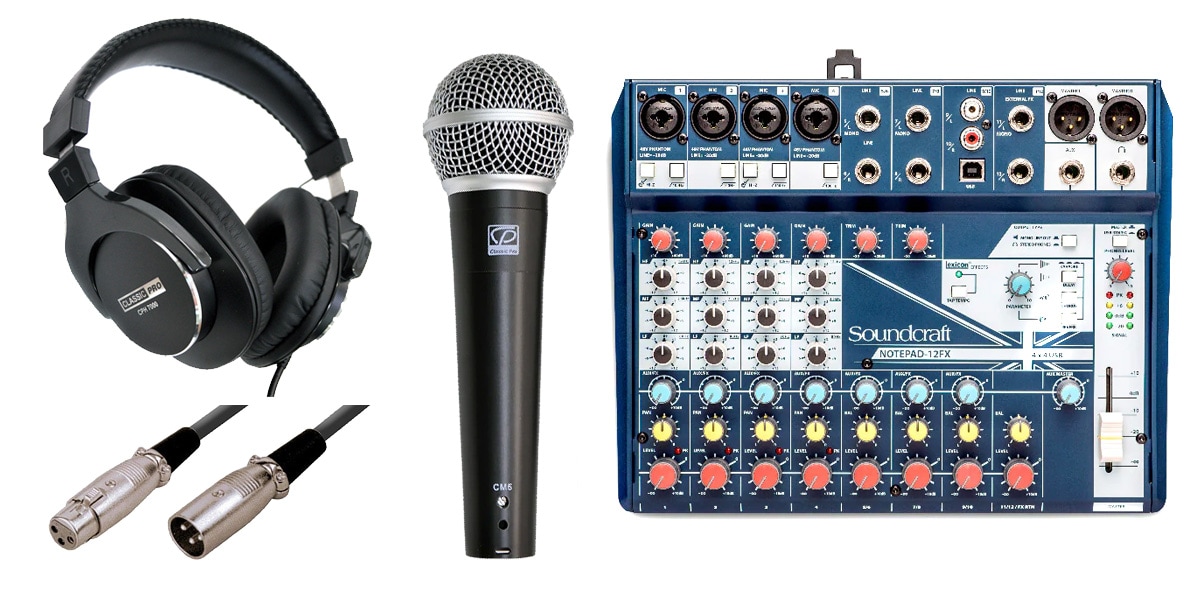

The Notepad-12FX is a professional-grade analog component and USB audio interface with Lexicon effects. It is a desktop-sized analog mixer that is perfect for use with Mac or PC editing software, and comes with a dynamic microphone, microphone cable, and monitor headphones.

CM5
■Dynamic microphone
■Output impedance: 600Ω±30% @1kHz
■Sensitivity: -73dB±3dB
■Frequency response: 80Hz-15kHz
■Directivity: Unidirectional
■Output connector: XLR 3-pin (male)
■This model does not have an ON/OFF switch.
■Accessories: Microphone holder (compatible with 3/8-5/8 inch screw conversion screws), hard case

MIX010
■Type: Microphone cable
■Plug shape: XLR (male)-XLR (female)
■Length: 1m
■Color: Black

CPH7000
■ Professional monitor headphones
■ Format: Dynamic closed type
■ Driver unit: 40mm neodymium magnet
■ Impedance: 64Ω
■ Frequency response: 10-30,000 Hz
■ Sensitivity: 108 dB/mW @1kHz
■ Maximum allowable input: 1,000mW
■ Cord length: Approximately 2.2m (OFC)
■ Plug shape: 3.5mm/6.3mm stereo (gold-plated)
■ Weight: Approx. 240g (without cord)

Notepad-12FX
■Type: Analog mixer
■Number of mono channels: 4
■Number of stereo channels: 4
■EQ: 3-band (mono ch only)
■AUX: 1 (shared with built-in FX)
■Group (bus): -
■Digital effects: 1
■Dimensions (W x H x D): 255 x 76 x 230 mm
■Weight: 1.6 kg
■Details: About USB audio interface function
・ USB audio input/output: 16-bit, 24-bit
・ Sampling frequency: 44.1/48 kHz

■If Soundcraft/Notepad-12FX is not recognized by the PC
1. Right-click on the Windows start icon and select ""Settings""
2. Click "update and Security""
3. Click ""Recovery""
4. Click ""Restart Now"" under Customize PC Startup
5. Click ""Troubleshoot""
6. Click ""Advanced Options""
7. Click ""Startup Settings""
8. Click ""Restart""
9. On the ""Startup Settings"" screen, click F7
10. Completed. Check if the mixer is displayed on the PC's sound settings screen

*USB cable is not included, so please prepare one separately.
This product does not have a power switch, and the power is turned on/off by plugging and unplugging the power outlet. Do not remove the adapter plug inserted into the main unit while the power is on.
