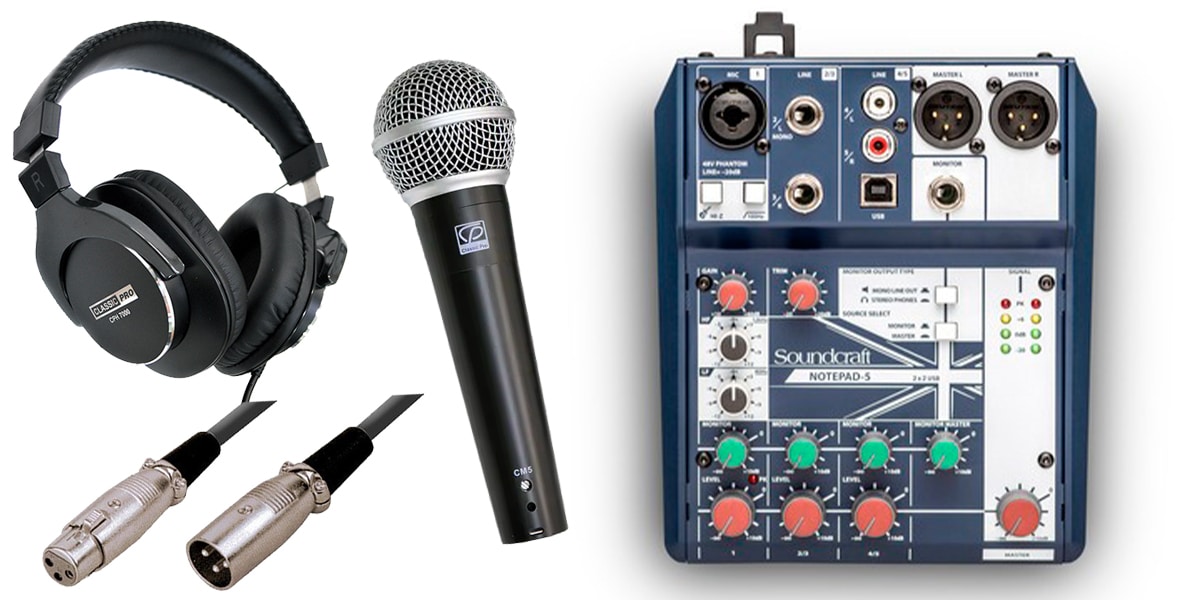

SH / Notepad-5 Dynamic Microphone Monitor Headphone Set

The Soundcraft Notepad-5 is equipped with professional-grade analog components and a USB audio interface. This set includes a desktop-sized analog mixer that is ideal for use in conjunction with a DAW, a dynamic microphone, a microphone cable, and monitor headphones.

CM5
■Dynamic microphone
■Output impedance: 600Ω±30% @1kHz
■Sensitivity: -73dB±3dB
■Frequency response: 80Hz-15kHz
■Directivity: Unidirectional
■Output connector: XLR 3-pin (male)
■This model does not have an ON/OFF switch.
■Accessories: Microphone holder (compatible with 3/8-5/8 inch screw conversion screws), hard case

MIX010
■Type: Microphone cable
■Plug shape: XLR (male)-XLR (female)
■Length: 1m
■Color: Black

CPH7000
■Professional monitor headphones
■Format: Dynamic closed type
■Driver unit: 40mm neodymium magnet
■Impedance: 64Ω
■Frequency response: 10-30,000 Hz
■Sensitivity: 108 dB/mW @1kHz
■Maximum allowable input: 1,000mW
■Cable length: Approx. 2.2m (OFC)
■Plug shape: 3.5mm/6.3mm stereo (gold-plated)
■Weight: Approx. 240g (excluding cord)

Notepad-5
■Type: Analog mixer
■Number of mono channels: 1
■Number of stereo channels: 2
■EQ: 2-band (Mono ch only)

■AUX: -

■Group (bus): -

■Digital effects: -

■Dimensions (W x H x D): 203 x 82 x 230 mm

■Weight: 0.9 kg

■USB audio interface
・USB audio input/output: 16-bit, 24-bit
・Sampling frequency: 44.1/48 kHz

■Seamless integration with Mac and PC
The built-in USB audio interface allows you to easily record, edit, and play projects using audio software.

■Comfortable operation
Equipped with 2-band EQ on mono channels. Listening levels can be comfortably adjusted with a rotary type headphone control. Master level with LED meter provides precise control of the master output signal. Designed for home studios, rehearsals, live performances, and podcast production, the Notepad series is easy to use even for first-time mixers.

■Ideal for rehearsals and gigs
The compact Notepad-5 fits easily into a gig bag and is perfect for taking to sessions and rehearsals. Designed to connect your favorite instruments and equipment, including microphones, guitars, and keyboards. Three models (Notepad-5, 8FX, and 12FX) are available, and they are suitable for everything from playing and singing to small rock ensembles.

■All-in-one podcasting
The combination of high-quality Soundcraft components and a built-in USB audio interface provides an ideal podcasting workflow. Of course, there is no compromise on sound quality.

■Seamlessly works with Mac and PC
Notepad's built-in USB audio interface allows you to easily record, edit, and play back projects using your favorite audio software. High-dimensional fusion of analog and digital.
* PC requires installation of Soundcraft driver.

■Features
-Equipped with one professional-level Soundcraft microphone preamp
-USB audio interface
-Metal enclosure
-XLR main out terminal
-4-segment LED meter
-2-band EQ (mono channel)
-Compact enough to fit in a gig bag

■If Soundcraft/Notepad-12FX is not recognized by your PC
1. Right-click on the Windows start icon and select ""Settings""
2. Click "update and Security""
3. Click ""Recovery""
4. Click ""Restart now"" under ""Customize PC startup""
5. Click ""Troubleshoot""
6. Click ""Advanced Options""
7. Click ""Startup Settings""
8. Click ""Restart""
9. On the ""Startup Settings"" screen, click F7
10. Done. Check if the mixer appears in the PC's sound settings screen
