AUDIENT / EVO 8 USB Audio Interface

EVO 8 is an audio interface that incorporates Audient's audio design technology into a compact and simple body. The AD/DA converter boasts accurate sound quality, a high gain range of 58dB, and a high dynamic range of 113dB. It also has a full range of functions for streaming, such as loopback function, easy mute for headphone output, and Skype compatibility. Comes with a 3-year Sound House warranty for peace of mind!

■Audio interface
■USB

Made for you
Why not have more fun while working on your projects?
Our mission is to provide creators with innovative, simple and stylish products that make recording easy and fun. Regardless of the art form, the EVO 8 delivers instant, high-quality sound.

Podcasters, musicians, producers and content creators can easily capture high-quality audio with the Audient EVO 8: 4x4 USB audio interface. Four EVO mic pres, Hi-Z instrument inputs and Smartgain automatic gain control provide a pleasant sound. In addition, 4 x 1/4"" line outputs and 2 x headphones allow you to connect multiple monitor speakers and headphones.

The large knob in the center of the EVO 8, combined with the monitor, headphone and multi-function buttons, also allows you to ""easy mute"" the inputs and headphone outputs. The EVO 8's audio loopback function allows you to record the input signal and computer audio simultaneously. This function makes it easy to capture audio from remote guests on Skype or video apps, which is necessary for podcasters and business meetings.

We have also prepared the software and plug-ins necessary for production. In addition, the power supply can be started with bus power, so it is safe to use in live performances and on-site. No more worries about power supplies.

Switchable +48v
You can turn phantom power on/off for each input channel.
* When connected to USB C - C, phantom power is supplied to all 4 channels. When connected to USB A - C, only 2 channels are supplied.
* The connector of the EVO8 main unit is USB Type-C, and the included cable is 1m USB 2.0 Type-C to USB Type-A.

■ Main functions and features
Sound & Design
A minimalist layout is adopted while maintaining modern beauty. The electronics part that achieves high quality is finished with advanced engineering. The elegant look that you can enjoy for a long time will match your desktop.

EVO is a new brand created by Audient, a British audio brand with a rich history of providing professional audio products for over 20 years. We will continue to deliver products that make it easy to enjoy audio from our UK HQ.

Don't miss that moment
Whether it's the last track of a recording session, producing a beat, podcasting... the versatile and flexible functions of the EVO 8 will not miss those important moments.

Work anywhere
EVO 8 is bus-powered via the computer's USB. Why not enjoy EVO recording anytime, anywhere, without missing inspiration?

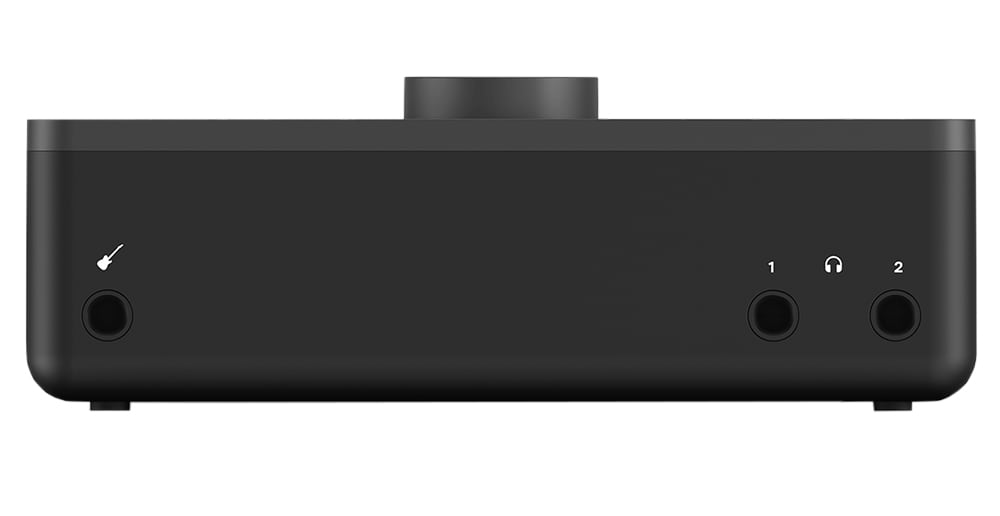

Instrument input
It has a JFET instrument input that allows you to directly connect a guitar or bass.

Audio loopback
The audio loopback function allows you to record computer audio and microphone input signals simultaneously. Perfect for podcasts and streaming.

Record computer audio.
Record Skype and video calls.
Record game audio.

Customizable software mixer: EVO Mixer
The EVO Mixer is designed to be simple to use in your workflow. Input/output routing, smooth setup, ultra-low latency monitoring, balance and set levels, turn on phantom power, mix headphones, and more.

ARC CREATIVE HUB Free Software
EVO 8 comes bundled with the software and plug-ins you need for recording. Levels and operation functions can be controlled from compatible software.

Click here for details on ARC CREATIVE HUB
http://allaccess.co.jp/audient/campaign/arc/

■Specifications

Supported OS
Mac, Windows

Microphone preamp

Microphone gain range: 58dB
Line input gain: 58dB w/-10dB Pad
Phantom power: 48v +/-4v @ 10mA/Channel (USB-A = 2CH)
CMRR: >85dB @ 1kHz
Maximum input level: +16dBu
Input impedance (Mic): >3kΩ balanced
Input impedance (Line): >10kΩ balanced
Frequency response: +/-0.5dB 10Hz - 40kHz
Channel crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
Microphone Input EIN: <-128dBu
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4"" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I

D.I Gain: 58dB
Maximum Input Level: +10dBu
Input Impedance: 1MegΩ Unbalanced
Frequency Response: +/-0.5dB 10Hz - 50kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4"" Jack: TIP (Hot) & SLEEVE (Shield)
DAC Output

Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output impedance: <100Ω Balanced
Frequency response: +/-0.5dB 10Hz - Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic range: 113dB A-weighted
1/4"" jack: 113dB A-weighted
Headphone output
Maximum output level: -8 - +50 dB
Digital reference level: -18 - +40 dB
Output impedance: <50Ω
Crosstalk: -110dBu@1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic range: 113dB
Maximum level → 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Maximum level → 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Maximum level → 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW 1/4 inch jack: TRS
DSP mixer latency (IN → OUT)

44.1 kHz: 0.594ms
48.0 kHz: 0.552ms
88.2 kHz: 0.302ms
96.0 kHz: 0.281ms
DAW playback latency (soft instrument playback @ 32 sample buffer)

44.1 kHz: ?2.5ms
96.0 kHz: ?2ms
DAW software monitor latencyLatency @ 32 sample buffer (IN → OUT)

44.1 kHz: 5ms
96.0 kHz: 4.1ms
USB 2.0 High Speed

Input Channels: 2 Analogue
Output Channels: 2 Digital
Connector: USB Type-C
Size, Weight

W190mm x H70mm x D70mm
360g
*Latency performance varies depending on buffer size, CPU load, and OS.
