AUDIENT / EVO Starting Recording Bundle

A bundle that includes a condenser microphone and headphones in the audio interface.

■ Audio interface set

Dive into the world of sound recording with the EVO Starter Bundle.
With this, you can start home recording with professional quality right away.
With the high technology and performance that Audient has cultivated, you can enjoy a higher-grade audio experience.

■ Set contents

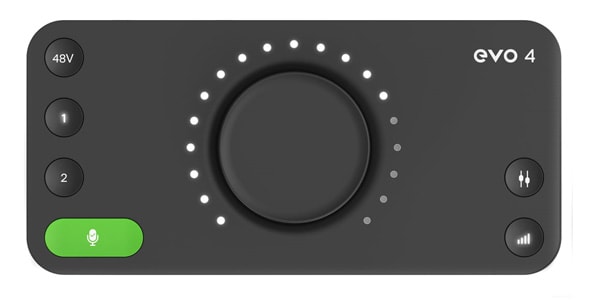

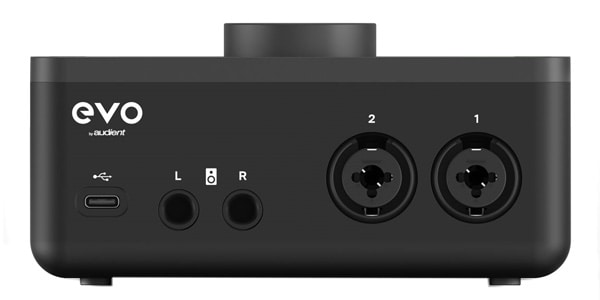

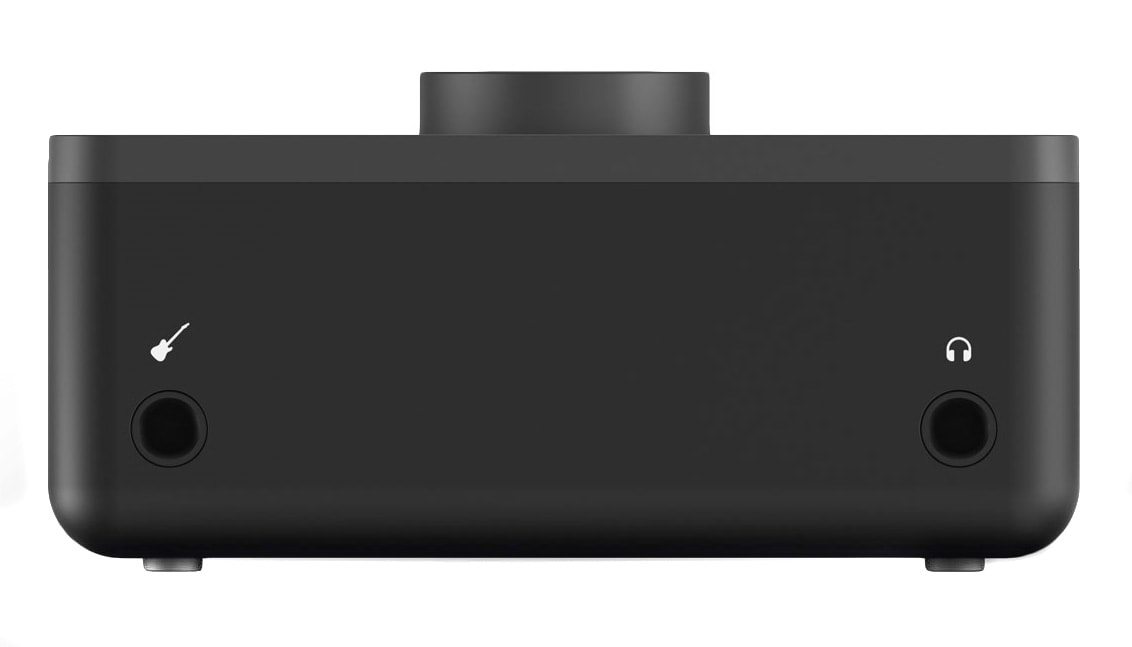

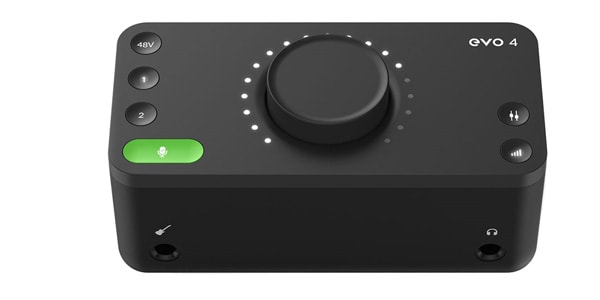

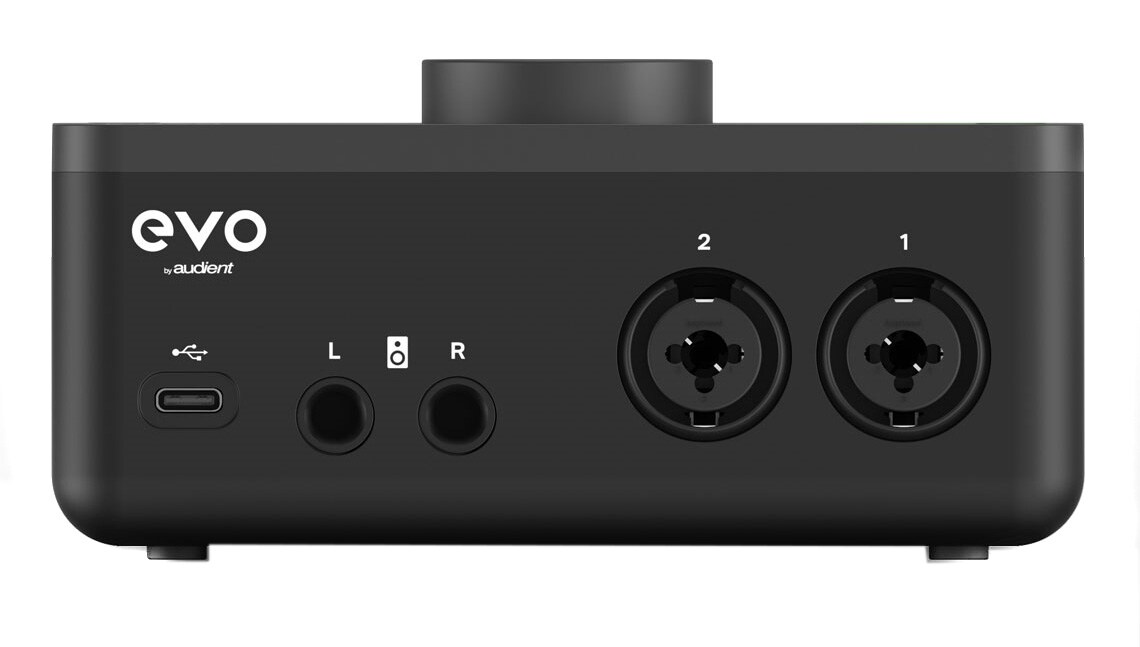

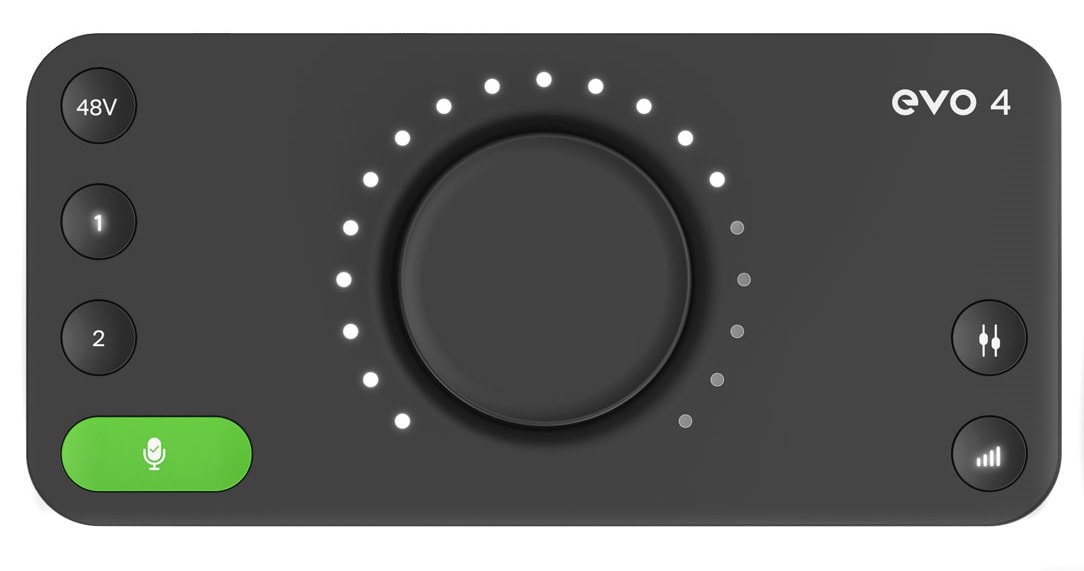

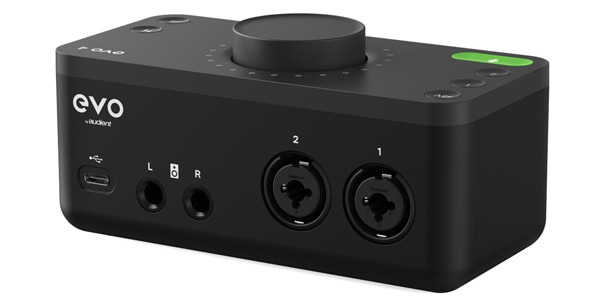

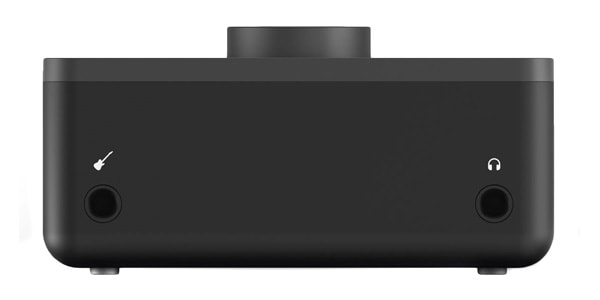

· Evo 4 audio interface

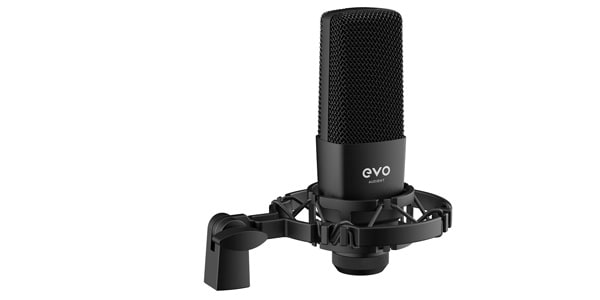

・ Evo SR1 condenser microphone
・ Shock mount for evo SR1
・ Evo SR2000 monitoring headphones
・ XLR microphone cable

What's Included
With the evo Starter Bundle, you can start recording immediately after purchase
A microphone and monitoring headphones are included in the set.

· 1 x EVO 4 audio interface
・ Condenser microphone evo sr2000
・ EVO SR2000 monitoring headphones
・ Shock mount for EVO microphone
・ XLR microphone cable
spec

■ Supported OS
Mac, Windows, iOS (with powered USB hub)

■ Microphone preamplifier
Microphone gain: -8? + 50dB
Line input gain: -18? + 40dB
Phantom power: 48v +/- 4v @ 10mA / Channel
Microphone input EIN: <-128dBu
CMRR:> 85dB @ 1kHz
Maximum input level: + 16dBu
Input impedance (Mic):> 3kΩ balance
Input impedance (Line):> 10kΩ balance
Frequency characteristics: +/- 0.5dB 10Hz? 40kHz
Interchannel crosstalk: <-105dBu @ 1kHz & 10kHz
THD + N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin3 (Cold) & Pin1 (Shield)
1/4 inch jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

■ D.I
D.I gain: -14? + 44dB
Maximum input level: + 10dBu
Input impedance: 1MegΩ Unbalanced
Frequency characteristics: +/- 0.5dB 10Hz? 50kHz
THD + N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4 inch jack: TIP (Hot) & SLEEVE (Shield)
■ ADC input
Digital reference level: +8 dBu = 0 dBFS
Frequency characteristics: -105dBu @ 1kHz & 10kHz
THD + N @ -1dBFS (1kHz): <0.001%
Dynamic range: 113dB (A-weighted)

■ DAC output
Maximum output level: + 11dBu
Digital reference level: 0dBFS = + 11dBu
Output impedance: <100Ω Balanced
Frequency characteristics: +/- 0.5dB 10Hz? Fs / 2
Crosstalk: <-110dBu @ 1kHz
THD + N @ -1dBFS (1kHz): <0.0015%
Dynamic range: 113dB A-weighted
1/4 inch jack: 113dB A-weighted

■ Headphone output (measured based on AES-17)
Maximum output level: -8? +50 dB
Digital reference level: -18? +40 dB
Output impedance: <50Ω
Crosstalk: -110dBu @ 1kHz
THD + N @ -1dBFS (1kHz): <0.0015%
Dynamic range: 113dB
Maximum level → 30ohms: + 0.5dBu, 0.0025% THD + N, 1.16Vpk Power: 45mW
Maximum level → 60ohms: + 4.22dBu, 0.0015% THD + N, 1.78Vpk Power: 52mW
Maximum level → 600ohms: + 10.1dBu, 0.0018% THD + N, 3.52Vpk Power: 20mW 1/4 inch jack: TRS
■ DSP mixer latency (IN → OUT)
44.1 kHz: 0.594 ms
48.0 kHz: 0.552 ms
88.2 kHz: 0.302 ms
96.0 kHz: 0.281ms

■ DAW playback latency (@ 32 soft instrument playback with sample buffer)
44.1 kHz: ~ 2.5 ms
96.0 kHz: ~ 2ms
DAW Software Monitor Latency Latency @ 32 Sample Buffer (IN → OUT)

44.1 kHz: 5 ms
96.0 kHz: 4.1ms
USB 2.0 High Speed

Input channel: 2 Analogue
Output channel: 2 Digital
Connector: USB Type-C
Included cable: 1m USB 2.0 Type-C? USB Type-A
Size, weight

W140mm x H67mm x D67mm
360g
* Latency performance depends on the buffer size, CPU load, and OS.

■ EVO SR1 condenser microphone
Diaphragm: 14mm back electric condenser capsule
Directivity: Super Cardioid
Frequency characteristics: 20Hz-18kHz
Sensitivity: 30dB ± 3dB (0dB = 1V / Pa at 1kHz)
Output impedance: 150Ω ± 30% (at 1kHz)
Load impedance:? 1kΩ
Self-noise: 16dB A-weighted
Maximum input SPL: 134dB (at 1kHz? 1% T.H.D)
S / N ratio: 78dB
Phantom power: 48V (± 4V)
Phantom current consumption: 3mA

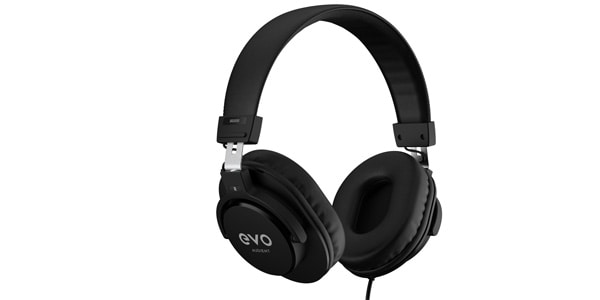

■ EVO SR2000 Monitoring Headphones
Headphone style: Ear headphones
Driver type: Dynamic
Driver diameter: 40mm
Impedance: 32Ω
Sensitivity / Maximum Sensitivity: SPL: 95 ± 3dB / 105 ± 3dB
THD: <0.3%
Frequency characteristics: 15Hz-22kHz
Maximum output: 400mW
Standard output: 250mW
Cable length: 3m
Plug: 3.5mm
Weight (with cable): 233g
