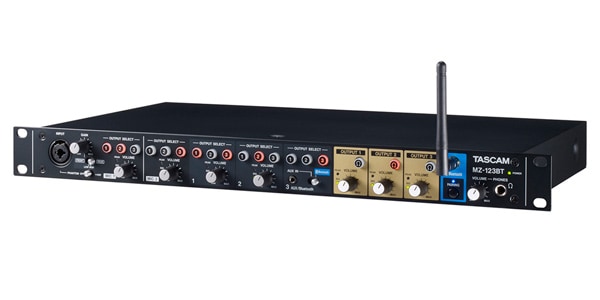

TASCAM / MZ-123BT 3-Zone Mixer

The MZ-123BT is a Bluetooth-enabled, 3-zone professional mixer with flexible routing. You can assign background music and announcements to three separate zones, making it ideal for small-scale sound systems such as stores, restaurants, hotels, and supermarkets, where independent audio routing and announcement functions are required. It also supports Bluetooth connectivity, allowing for easy music playback.

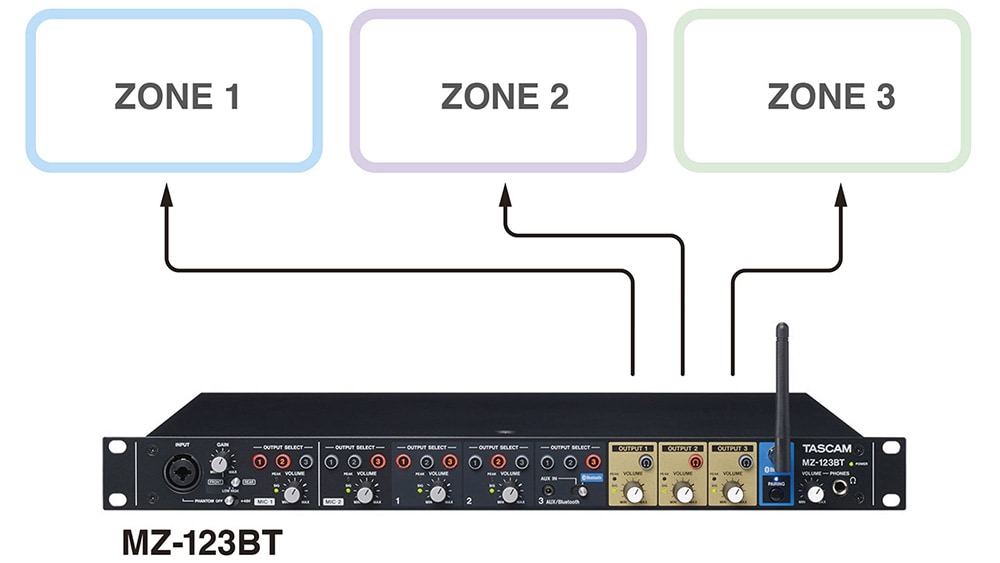

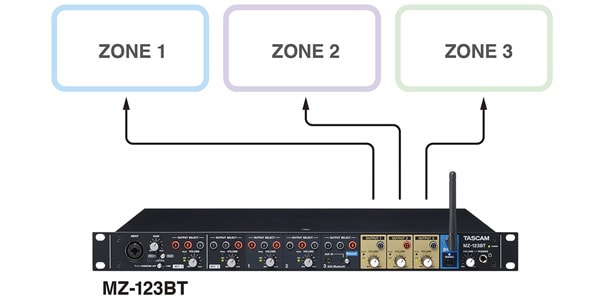

■Independent Zones and Routing
Equipped with three independent output channels with volume control. Flexible audio routing allows for output area assignment in commercial environments such as restaurants, hotels, and retail stores.

■Equipped with Euroblock Output Terminals

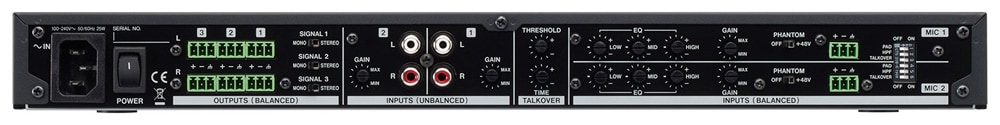

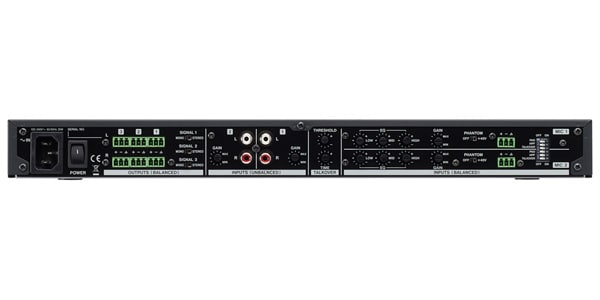

Equipped with three pairs of Euroblock stereo terminals on the rear, ideal for permanent installation. Each output is equipped with a mono/stereo switch that can be set according to the output device.

■Three Input Channels
Input channels 1 and 2 are equipped with RCA inputs (stereo), ideal for connecting to playback devices such as CD players. Channel 3 supports AUX/Bluetooth input, allowing wireless playback or wired playback via a 3.5mm mini jack. Each input is equipped with a volume control and an output button for one-touch output selection.

■Bluetooth Antenna for Stable Pairing

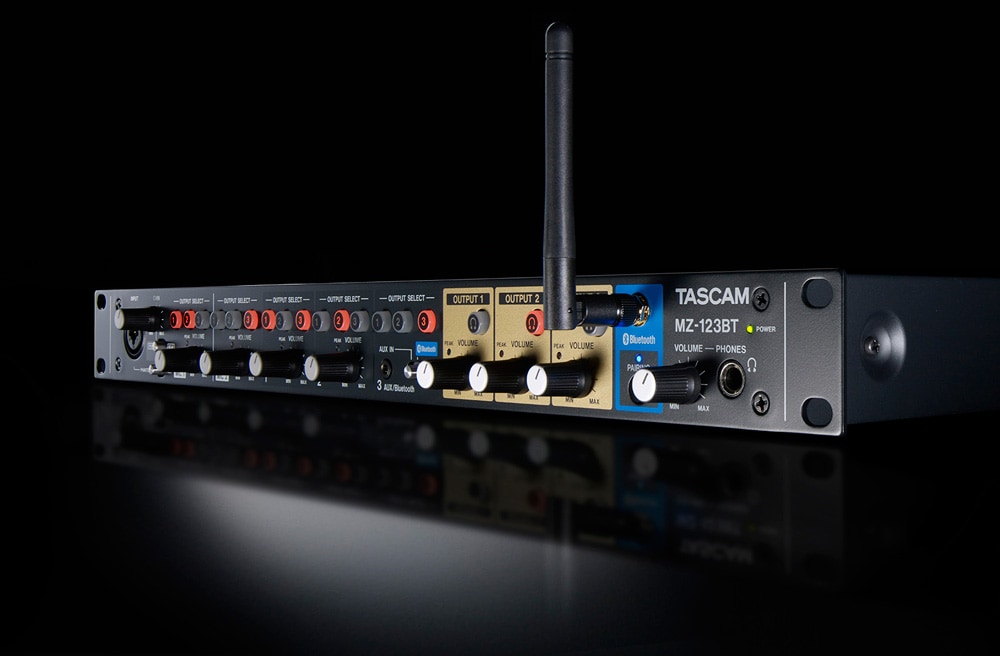

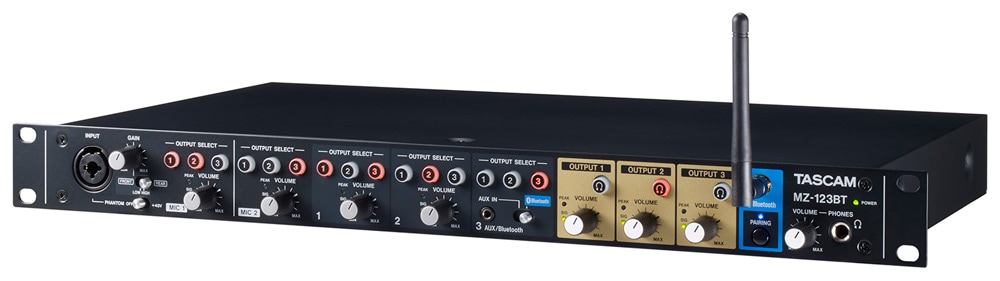

The front panel is equipped with an angle-adjustable Bluetooth antenna. Equipping the antenna on the front panel improves reception sensitivity, ensuring stable wireless playback with less interruption.

■Two Euroblock Microphone Inputs
Two microphone inputs, each equipped with +48V phantom power, can be selected with a single push of the front output button, making them ideal for creating an announcement environment. Microphone 1 can be input via the rear Euroblock terminal or the XLR/TRS combo jack using a front-panel switch.

■3-Band EQ, Gain Control, and High-Pass Filter Switch
The rear-panel balanced input features independent 3-band EQ (low, mid, high), gain control, and high-pass filter, allowing you to adjust the input level and sound quality of each microphone channel to suit your environment.

■Clear Announcements with Talkover Function
The unit detects audio input from the microphone and automatically attenuates the background music volume for clear announcements. The rear-panel knobs allow you to set the microphone level (THRESHOLD) that activates the talkover function and the recovery time until the background music returns to its original volume.

■Simple Layout

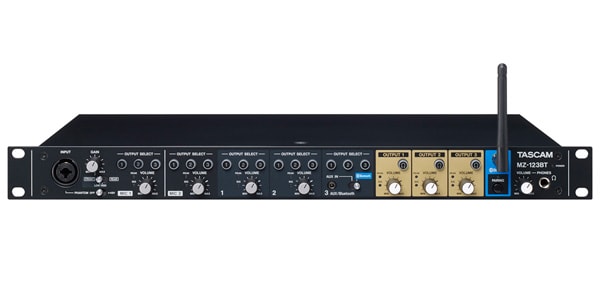

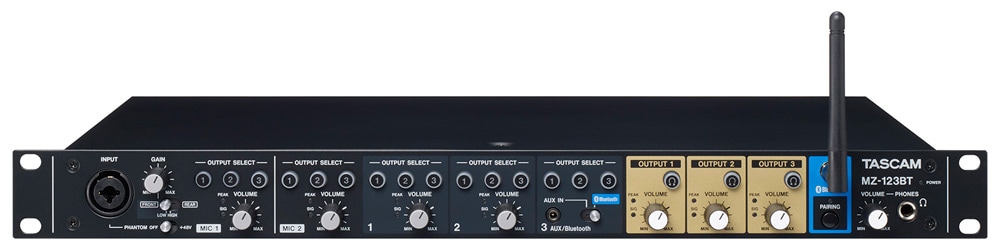

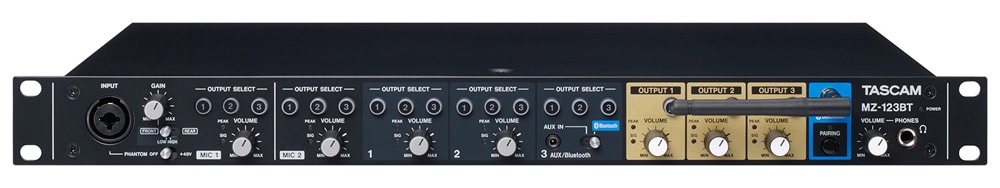

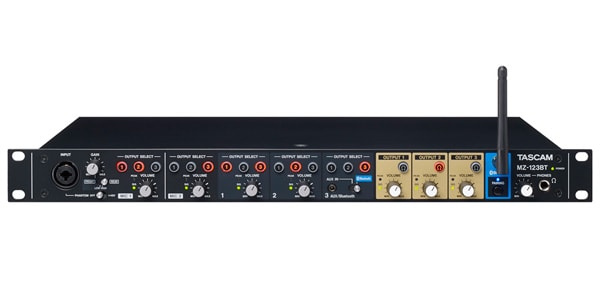

Functions essential for daily operation, such as the volume knob, output selection switch, and Bluetooth pairing switch, are located on the front panel, providing simple operation. Settings such as EQ, gain, and threshold, which only require adjustment during installation, can be adjusted on the rear panel. Locating these functions on the rear panel prevents end-user operation errors.

■Compact 1U rack-mount size
Designed to fit seamlessly into a 19-inch rack, the compact chassis provides ample space for connecting AV equipment such as CD players.

■Key Features
- Input sources can be flexibly assigned to three independent output zones.
- Each output channel is equipped with a MONO/STEREO selector switch (*1).
- Euroblock connectors are optimal for permanent installations.

- Three input channels
- Channel 1: LINE input (RCA, unbalanced)
- Channel 2: LINE input (RCA, unbalanced)
- Channel 3: Bluetooth® / 3.5mm (1/8"") stereo mini AUX input (*2)

- Equipped with two microphone inputs suitable for announcements
- Equipped with independent +48V phantom power for each input
- Sound quality can be adjusted using a 3-band equalizer and high-pass filter
- Microphone 1 can be connected via the front panel XLR/TRS combo jack or the rear panel permanent Euroblock terminal

- Equipped with a talkover function that automatically attenuates background music volume in line with microphone input
- Equipped with a headphone jack for monitoring each output
- Compact 1U rack-mount size

(*1) When mono output is selected, stereo input sources are output as a mono mix.
(*2) Select either the AUX input or Bluetooth™ source during operation.

■ Power consumption: 25W
■ Size (WxHxD): 483 x 46.5 x 274.8mm (including protrusions, excluding Bluetooth antenna)
■ Weight: 3.0kg
