TASCAM / MZ-372 Rackmount Mixer

The MZ-372 is a rack-mount mixer manufactured by TASCAM. It can connect to 6 microphone/mono line inputs and 12 stereo line inputs. It also features a separate microphone input convenient for announcements. It has two main outputs that can be selected from XLR balanced and RCA unbalanced terminals. It flexibly handles complex sound systems that manage numerous microphones and playback devices with a single unit.

■ Six control channels switchable between microphone/mono line input and stereo line input.

This unit allows for centralized management of up to six microphone/mono line inputs and twelve stereo line inputs. Channels 2-4 support PHONO input, allowing connection of a record player.

■ Channel configuration with excellent operability

Each channel is equipped with a level meter and slide fader. Excellent operability and visibility. Input source selection is done with simple button operation. Other features include gain adjustment for channel input sources, 3-band EQ, and pre-fader monitoring.

■ Microphone input ideal for announcements

The front panel features one independent microphone input. Equipped with a 'TALKOVER' function that automatically attenuates the volume of other channels (such as background music) when microphone audio is input. This makes microphone audio easier to hear when making announcements in stores or facilities. Sound quality can also be adjusted with a 2-band EQ.

■ Two main outputs

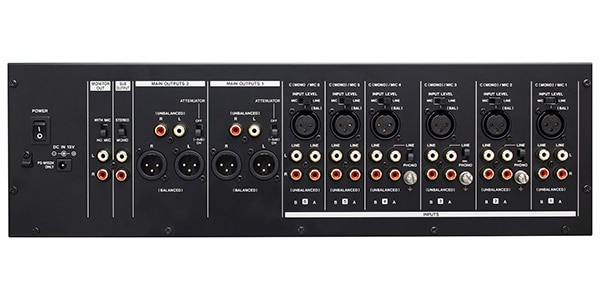

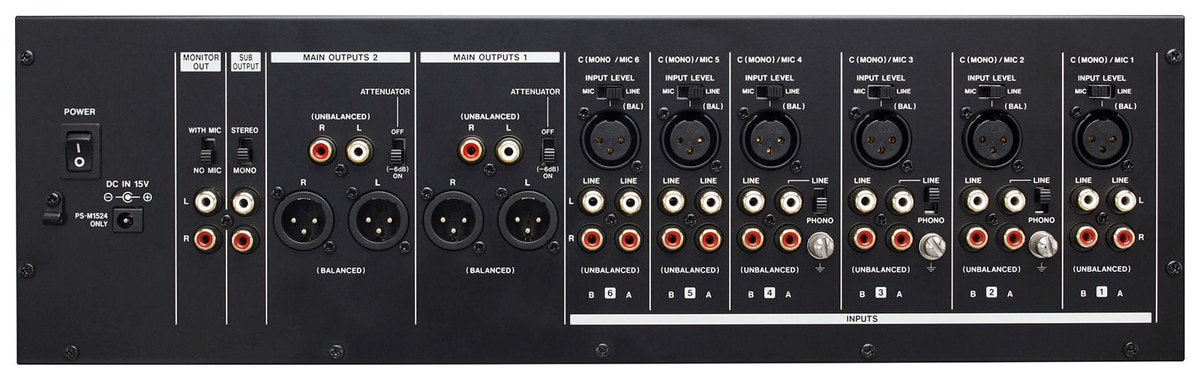

Two main outputs are provided. You can choose between XLR balanced and RCA unbalanced terminals. Features a highly visible stereo level meter. Also equipped with RCA unbalanced sub-outputs and monitor speaker outputs.

* The same audio is output from the main output.

■Features

3U rackmount size

Connects 6 microphone/mono line inputs and 12 stereo line inputs

6 input channels equipped with slide faders, level meters, and 3-band EQ

Up to 3 input sources can be connected to each channel. Switchable via buttons on the front panel

Equipped with a microphone input on the front panel, ideal for announcements

Features a TALKOVER function that automatically attenuates background music to match the microphone volume

Two main outputs with stereo level meters and individually adjustable audio output levels

Equipped with an RCA terminal as a sub-output

Equipped with an unbalanced terminal for monitor speaker output

Headphone output for pre-fader monitoring of each channel and monitoring of the main output

■Dimensions (WxHxD): 482 x 132 x 93.2 mm (including protrusions)

■Weight: 3.2 kg

■Accessories: AC adapter (TASCAM PS-M1524), AC adapter cord, rack mount screw kit
