CLASSIC PRO / CPASET2

A great value set that combines CLASSIC PRO's recommended PA speaker CSP12 and stereo power amplifier CPX1500! The clear, vibrant sound with good skipping is perfect for a variety of uses, including talk events, festivals, sports days, school events, singing and playing, and live band performances.

■CLASSIC PRO PA set
■PA speaker: 2 CLASSIC PRO CSP12
■Power amplifier: CLASSIC PRO CPX1500

＜CSP12＞
Clear, smooth sound quality with excellent skipping! This is a best-selling model that can now be seen on street corners all over Japan. The lightweight resin cabinet is easy to carry and highly portable. Stand mounting is also possible.

■Type: 2-way full range
■Frequency response: 50Hz-18kHz (-3dB)
40Hz-20kHz (-10dB)
■Maximum input power: 600W
■Impedance: 8ohms
■Output sound pressure level: 97dB
■Maximum output sound pressure level: 120dB+3dB
■Woofer unit: 12""
■Driver: 1.7""
■Connector: Speakon x 2 (1+, 1-)
■Stand mount: Yes
■Size: Width 42 x Height 62 x Depth 37 cm
■Weight: 19.6kg
■Included: CSP12STAND (for floor monitoring) x 1, Speakon connector x 1
■CSP series speakers, three points that create excellent sound!
1. High-frequency driver
A high-grade high-frequency driver that produces a clear sound by combining it with an original design horn. Achieves clear and stable mid-high range.
2. Network
A network that produces excellent frequency characteristics and maximizes the characteristics of the unit. The input terminal uses the standard Speakon. It is also compatible with existing speaker cables.

3. Cabinet
A high-tech cabinet made of lightweight polypropylene that boasts outstanding durability and acoustic properties. Because it is made of polypropylene, it can be used toughly even in light rain. (Note: It is not waterproof)

＜CPX1500＞
The latest 500W model of the CPX series, which has the best cost performance. Although it has a lighter body than conventional models, it is equipped with uncompromising parts to achieve top-class powerful sound. In addition to a large toroidal transformer, a large heat sink, and a variable cooling fan, it uses the latest SMD technology that has achieved higher stability and reliability. It features clear sound with minimal distortion.

■Type: 2-channel
■Stereo output (4ohms): 750W
■Stereo output (8ohms): 500W
■Bridge output (8ohms): 1500W
■Frequency response: 20Hz-20kHz, +0-1dB
■Damping factor: >200
■Input terminal: XLR
■Output terminal: Speakon
■Power consumption: 317W (1/8POWER)
■Dimensions: W48.2xD22.7xH8.8 cm
■Weight: 13.5kg
■Other:
■Total harmonic distortion: <0.5%, 20Hz-20kHz
■Slew rate: >20V/us
■Voltage gain: 33dB
■Signal-to-noise ratio: >100dB, 20Hz-20kHz A-weighted
■Crosstalk: -75dB@1kHz, -58dB@20kHz
■Input sensitivity: 0.775V or 1.4V
■Protection circuitry: limiter, ON/OFF mute protection, output short circuit protection, DC protection, overheat protection, RF (radio frequency) interference protection
■Ventilation: front to rear
■Cooling: built-in heat sink, variable speed fan, thermal protection
■Amplification circuitry: Class H
■Power cable: approx. 1.6m, 2-pin

■Features
・Sophisticated black panel, 2U rack mount design
・Prevents amplifier temperature rise Highly efficient heat sink and variable speed cooling fan

Large toroidal transformer that supplies high current

Excellent signal conversion circuit for clear sound with minimal distortion

Supports stereo, bridge and parallel modes

Each channel has independent signal and clip indicators

Built-in limiter to protect speakers, ON/OFF mute protection, DC protection, output, short circuit protection, overheat protection, RF (radio frequency) interference protection

Output mute to protect equipment when protection circuit is activated.

Simple front panel design with only gain control

Uses the latest SMD technology for higher stability and reliability

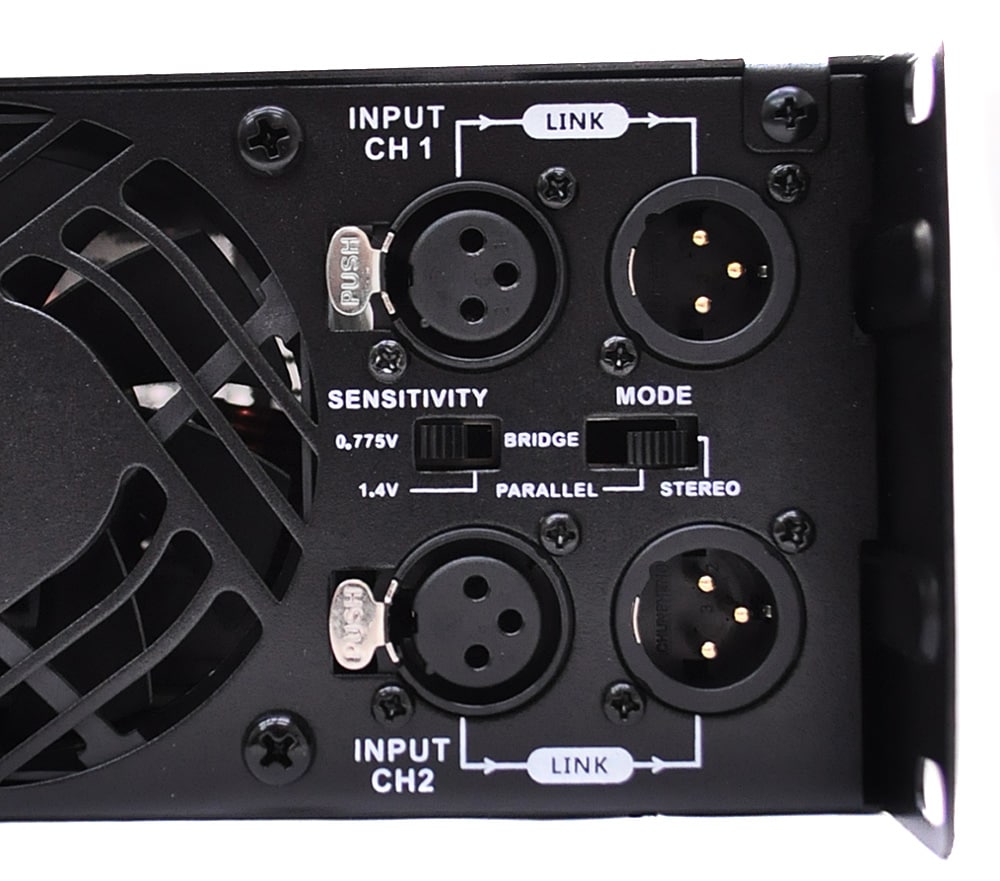

Balanced XLR input/output, Speakon output

22.7cm depth that can be stored in an effects rack

*Cables are sold separately. Please choose the length that suits your environment.
