One Control / BJFS66

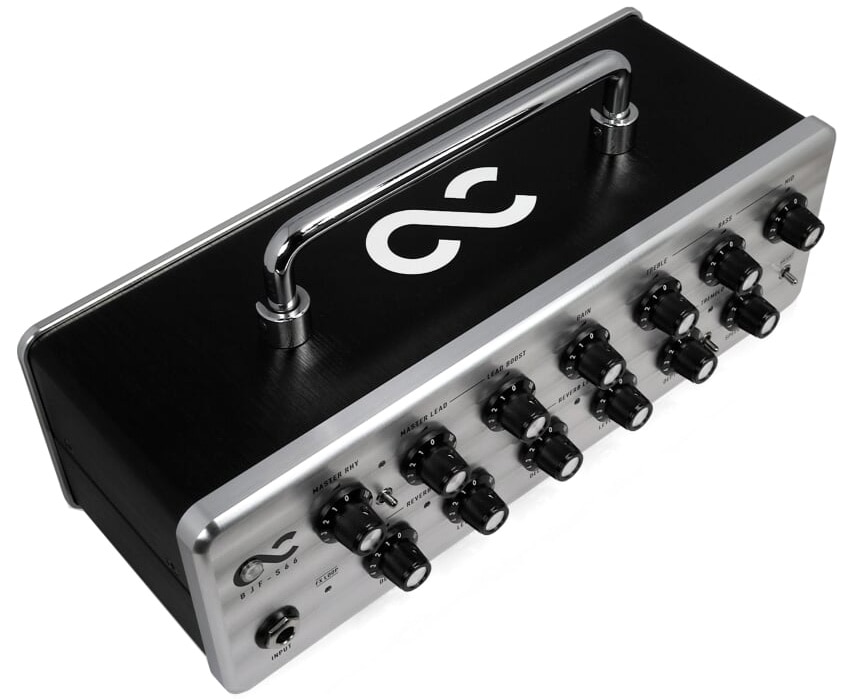

The BJF-S66 is a small, lightweight amp head that allows you to easily handle the best sound of the 1966 blackface era American amps. It is equipped with an analog solid-state preamp that allows you to select between two channels: Lead and Rhythm. It allows you to create a wide range of sounds, from the clear, overtone-rich sound of American amps to the tone of vintage amps with aged components.

■Guitar amp head
■Output: 66W (8Ω)

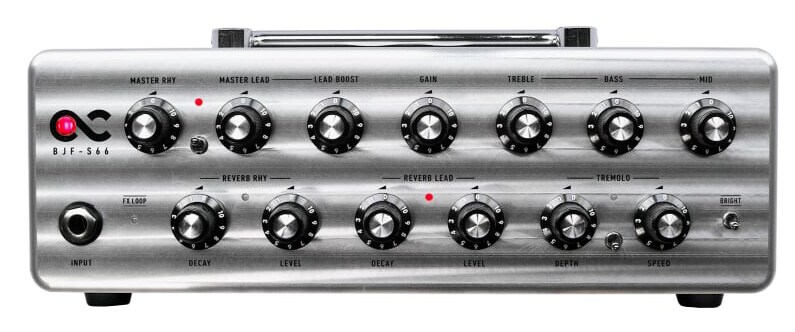

■Controls
・MASTER RHY: Adjusts the volume of the Rhythm channel
・MASTER LEAD: Adjusts the volume of the Lead channel
・GAIN: Adjusts the gain level. Set it like the Volume control of a vintage amplifier
・LEAD DRIVE: Sets the gain boost on the Lead channel.
When set to minimum, the gain of the Rhythm channel and Lead channel will be set to the same.
・TREBLE: Adjusts the tone by ±20dB, centered around 2kHz. When set to minimum, the sound is muted.
・MID: Adjusts the tone by ±10dB, centered around 450Hz.
・BASS: Adjusts the tone by ±20dB, centered around 70Hz.
・BRIGHT switch: Boosts 4kHz by +10dB.
・REVERB RHY: Adjusts the reverb of the Rhythm channel. DECAY adjusts the length of the reverb, LEVEL adjusts the volume of the reverb.
No reverb is applied when LEVEL is set to minimum.
・REVERB LEAD: Adjusts the reverb of the Lead channel. DECAY adjusts the length of the reverb, LEVEL adjusts the volume of the reverb.
No reverb is applied when LEVEL is set to minimum.
・TREMOLO: Sets the tremolo effect.
Use the switch to turn the effect ON/OFF, DEPTH to adjust the tremolo depth, and SPEED to adjust the tremolo speed.

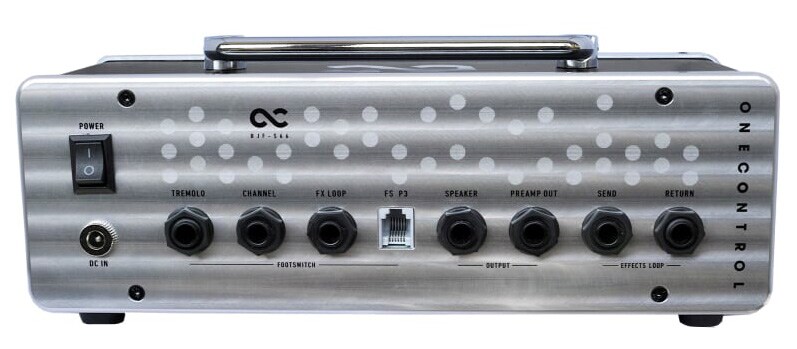

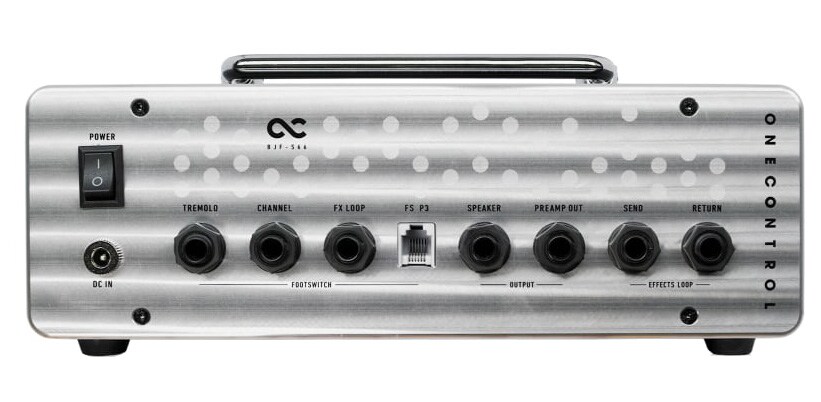

■Input/Output Terminals
・INPUT
・EFFECTS LOOP
・PREAMP OUT: Outputs the signal from the preamp. If connected here, it will not be output from SPEAKER.
・SPEAKER: 30W/16Ω, 66W/8Ω, 100W/4Ω
・FS P3: Connect a One Control FS-P3 foot switch.
・FOOTSWICH (CHANNEL): Connect a latch switch that controls channel switching.
・FOOTSWITCH (FDX LOOP): Connect a latch switch that switches the effect loop ON/OFF.
・FOOTSWITCH (TREMOLO): Connect a latch switch that switches the tremolo effect ON/OFF with a mono cable.
・DC IN
■A small and lightweight amp head that allows you to easily handle the sound of 1966 blackface American amps.
■Analog solid-state preamp with two selectable channels: Lead/Rhythm.
A wide range of sounds can be created, from the clear, harmonic sound typical of American amps to the tone of vintage amps that have deteriorated over time.
■Digital reverb and tremolo effects installed
Classical sound reminiscent of the ""bias tremolo"" sound installed in vintage American amplifiers
■Class D digital power amplifier section
Can also be used for line output without connecting to a speaker cabinet
■Dimensions: 26.5 (W) x 9.5 (D) x 8.5 (H) cm (excluding protrusions)
26.5 (W) x 11.8 (D) x 10.3 (H) cm (when handle is folded)
■Weight: 1.62 kg
