STEINBERG / AXR4T audio interface

STEINBERG's flagship audio interface with Thunderbolt 2 specifications. Comes with a reassuring 3-year Sound House warranty!

■Audio Interface
■Thunderbolt 2

Delivers the functionality, inputs/outputs, and expandability required for professional recording, while achieving a new level of sound quality with 32-bit integer/384 kHz. Hybrid mic preamps featuring Rupert Neve Designs' SILK emulation enable unrestricted sonic expression, from crystal clear tones to musical saturation. With ultra-low jitter SSPLL and DSP-based monitoring and effects, the AXR4 is an audio interface that ushered in a new era of music production.

■32-bit Integer/384 kHz
The AXR4's cutting-edge converters deliver unprecedented sound quality for multi-channel audio I/O, with a sampling rate of 384 kHz and 32-bit integer format.

■AXR Hybrid Mic Preamp
This mic preamp shares the same format as Yamaha's latest digital mixer, the RIVAGE PM10. The combination of clean, natural analog sound and Rupert Neve Designs' SILK emulation enables a wide range of tracking possibilities.

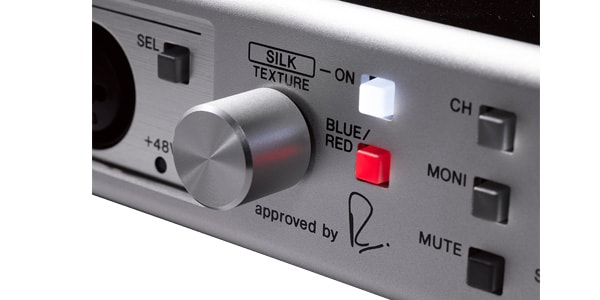

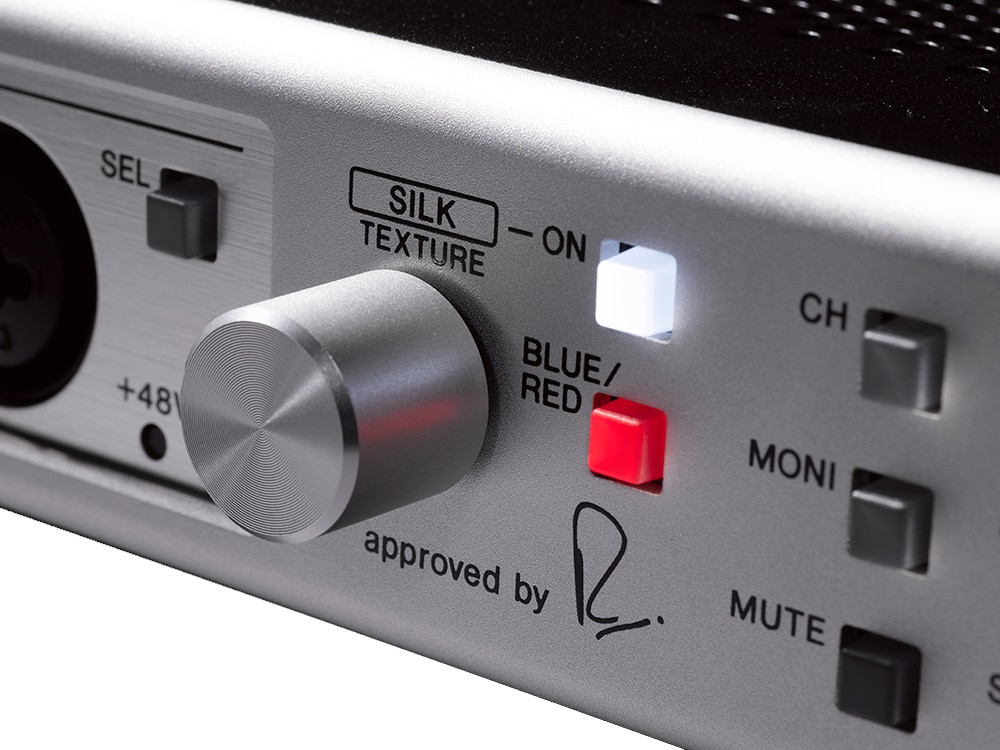

■Rupert Neve Designs SILK
Yamaha's VCM technology accurately models the SILK processing found in Rupert Neve Designs' high-end analog gear. Features Red and Blue modes with distinct characteristics.

■SSPLL Jitter Reduction
Cutting-edge technology minimizes jitter, a key issue in building professional audio systems.

■dspMixFx AXR Mixing Software
The built-in DSP and dspMixFx AXR matrix mixer application enable latency-free monitoring and effects, as well as flexible routing, regardless of the DAW used.

■Thunderbolt 2
Thunderbolt 2 connectivity provides extremely low latency, high CPU efficiency, extensive inputs and outputs, and the ability to expand the system to up to three units.

■Compatible with Major DAW Software
Compatible with many music production, editing, and mastering software that supports Core Audio. Additionally, dspMixFx AXR enables latency-free monitoring and DSP effects with any DAW.
* 32-bit integer recording and playback is supported with Cubase 9.5.40 / Nuendo 8.3 / WaveLab 9.5.40 or later.
* Supported DAWs: Cubase, Nuendo, Pro Tools, Studio One, Logic Pro, Ableton Live, Reaper

■ Integration with Cubase
The AXR4's true potential is further enhanced when used with Steinberg Cubase*. In addition to supporting 32-bit integer recording and playback as a DAW, you can control the AXR directly from Cubase, from input and output to DSP settings.
* Cubase 9.5.40 / Nuendo 8.3 or later

■ Cubase AI Bundle
The AXR4 comes with a downloadable version of Cubase AI. With a free DAW featuring the same audio engine as the cutting-edge Cubase Pro, you can start recording studio-quality audio right out of the box.

■DSPMIXFX AXR DAW Integration
AXR4 provides latency-free monitoring regardless of the DAW you use. The dspMixFx AXR application controls the built-in DSP mixer and DSP effects, allowing you to create a comprehensive recording environment by combining a professional-grade mixer with a DAW.

■28 x 24 Matrix Mixer
The custom-designed DSPX chip delivers powerful monitoring, including a 28 x 24 matrix mixer. The dspMixFx AXR's Matrix Mixer window allows you to freely configure routing from inputs to the mix bus, and from DAW or computer system audio to the mix bus in a vertical and horizontal grid. Five additional windows—Mixer, Matrix Mixer, Meter, Show/Hide Channels, and Settings—keep track of all input and output levels and routing. These settings can be saved as scenes and recalled to suit your workflow. Next-generation professional sound
The AXR4 was born from a thorough pursuit of the ultimate audio interface for studios, producers, and professional musicians.

It offers the diverse connections and high-speed data throughput required for high-end setups. Four hybrid mic preamps, selectable for each channel, range from pure, clean input to rich, musical coloration with SILK.

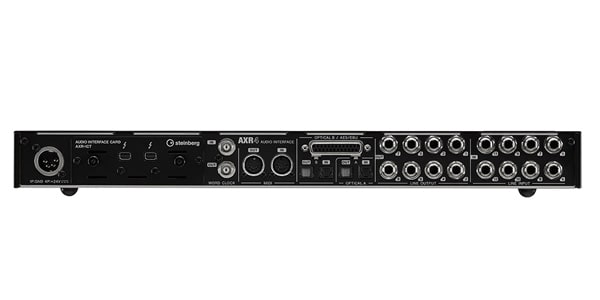

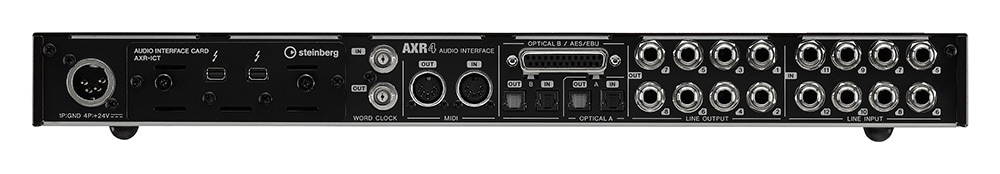

8 TRS line inputs/outputs, 2 x 8-channel ADAT/S/PIDF (or 8-channel ADAT + 8-channel AES/EBU) for a total of 28 inputs and 24 outputs, word clock, MIDI input/output, and 2 independent headphone outputs.

And it far exceeds existing audio interfaces, allowing recording and playback up to 32-bit integer and 384 kHz.

Specifications
Connection Method: Thunderbolt 2
AD/DA: 32-bit
Maximum Sampling Rate: 384 kHz
Input Dynamic Range: 119 dB
Jitter Reduction: SSPLL

Number of Inputs: 28
Number of Individual Outputs: 24
Number of Outputs: 24
Microphone Preamplifier: AXR Hybrid Pre with RND Silk
Microphone Inputs: 4
Line Inputs: 10
Hi-Z Inputs: 2
Analog Inputs: TRS: 8
Analog Inputs: Combo: 4
Analog Outputs: TRS: 8
Phantom Power: 4
Headphones: Independent Volume
Headphone Outputs: 2
ADAT Optical Digital Inputs: 2
ADAT Optical Digital Outputs: 2
S/PDIF Optical Digital Inputs: 2
AES/EBU RS422 Digital Inputs: 1
S/PDIF Optical Digital Outputs: 2
AES/EBU RS422 Digital Outputs: 1
Word Clock Input/Output: Yes
MIDI Input/Output: Yes

Monitoring: Latency-Free Monitoring + Effects
Built-in DSP: DSPX
True Integrated Monitoring + FX (when using Cubase): Yes
High-Pass Filter: Yes
REV-X Reverb: Yes
Sweet Spot Morphing Channel Strip: Yes
Yamaha Compressor 276: Yes
Yamaha EQ601: Yes

Weight: 4600 g
Width: 480 mm
Height: 45 mm
Length: 378 mm

■System Requirements
OS (Mac)
macOS Sierra, macOS High Sierra, macOS Mojave
CPU (Required): 64-bit Intel
CPU (Recommended): Intel i5
RAM (Required): 4 GB
Free Disk Space: 15 GB
Display Resolution (Required): 1440 x 900
Internet Connection (Includes software download, license activation, (Required for user registration, etc.)
