RADIAL / ProMS2

The RADIAL/ProMS2 is a microphone splitter that handles balanced signals. It is equipped with a high-quality Eclipse ET-MS10 transformer, which processes signals without distortion at any frequency.

[直輸入品][Direct Import]

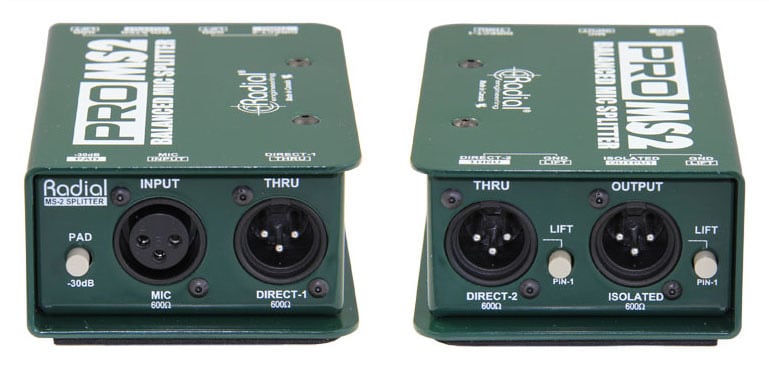

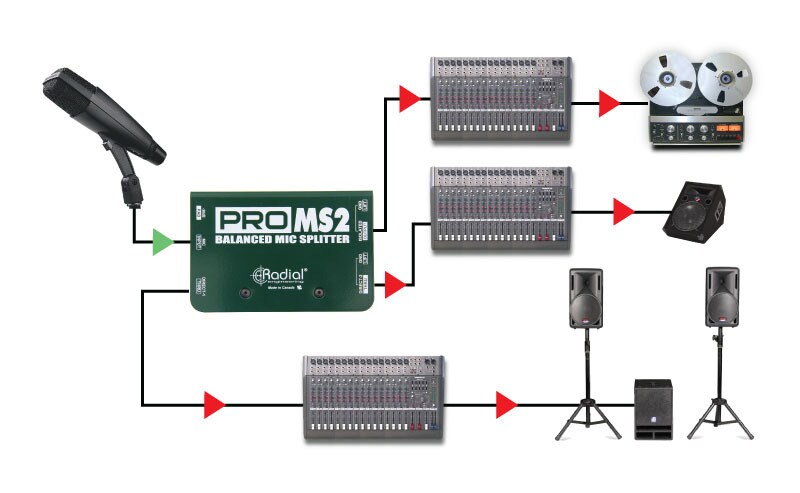

This is a microphone splitter that handles balanced signals. It has 1 in and 3 out, and is equipped with 1 isolated output and 2 direct outputs (1 & 2). The isolated output and direct output 2 are equipped with ground lift, so buzz and hum caused by ground loops can be eliminated. This unit uses a passive design that does not require power. It splits signals from microphones and DI boxes with high quality, uncolored sound. You can also input +4dB line level signals using the -30dB pad switch.

■ Equipped with high-quality transformer
This unit is equipped with a high-quality Eclipse ET-MS10 transformer. It has a wide frequency response and processes signals at any frequency without distortion. This transformer eliminates hum and buzz caused by ground loops and minimizes DC current leakage. The transformer is doubly protected by a mu-metal can and a steel case to prevent magnetism generated by stage amplifiers.

■ Tough design for peace of mind in the field
This unit is extremely tough and can withstand the harsh use in professional fields. The 14-gauge steel case protects the transformer from external magnetic fields. The circuit board is resistant to impacts and twisting, and is designed to prevent solder peeling. The unique bookend-style case with protruding edges around the switches also provides solid protection for the controls and switches.

■Main features
- High quality Eclipse transformer
- 1 isolated output, 2 direct outputs
- 30dB pad switch
- Ground lift switch
- Made in Canada

■Specifications
Audio circuit type: Passive
Input impedance: 2.5K Ohms, unbalanced
Output impedance: 140K Ohms, balanced
Frequency response: 20Hz ~ 20KHz (+0dB -1dB)
Gain: -0.5dB
Dynamic range: >140dB
Total harmonic distortion: 0.001%
Noise floor: -140dB
Maximum input: +26dBu
Phase deviation: 1° @ 20Hz
Intermodulation distortion: 0.003%
Common mode rejection ratio: -115dB at 60Hz

■Features
Transformer: Eclipse ET-MS10
Pad -30dB
Ground lift: Disconnects pin-1 at both XLR outputs
XLR configuration: AES standard Pin-1 ground, Pin-2(+), Pin-3(-)
Connectors: XLR-F in, XLR-M direct; direct-2; isolated outputs

■General
Construction: 14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size: (W x H x D) 84 x 127 x 48mm (3.3"" x 5.0"" x 2"")
Weight: 0.70 kg (1.55 lbs)
Shipping size: W x H x D: 102 x 76 x 165mm (4"" x 3"" x 6.5"")
Shipping weight: .87 kg (1.92 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
