CLASSIC PRO / PM08 Powered Mixer

The CLASSIC PRO PM08 is a lightweight, compact, high-output powered mixer. Equipped with four mic inputs, a line input, and effects, it's ideal for small live performances, karaoke, and store PA systems.

■Number of Mono Channels: 4
　MIC (XLR)
　LINE (TRS phone)
■Number of Stereo Channels: 2
　IN5: L/MONO, IN6: R
　IN7: L, IN8: R
■Phantom Power: 10V
■EQ: 2-band
■EQ (Main): NORMAL/SPEECH switchable
■Digital Effects: 1 (Delay Reverb)
■Monitor Output: TS phone x 2 (line level)
■Speaker Output: Phone x 2
■Stereo Output (4ohms): 200W x 2
■Stereo Output (8ohms): 120W x 2
■Cooling: Variable fan *Controlled by temperature sensor. Does not operate continuously.
■Power Consumption: 400W (Max), 70W (1/8 POWER)
■Dimensions (W x H x D): 280 x 105 x 146 mm
■Weight: 1.9 kg
■Power Supply: AC 100V, 50/60Hz

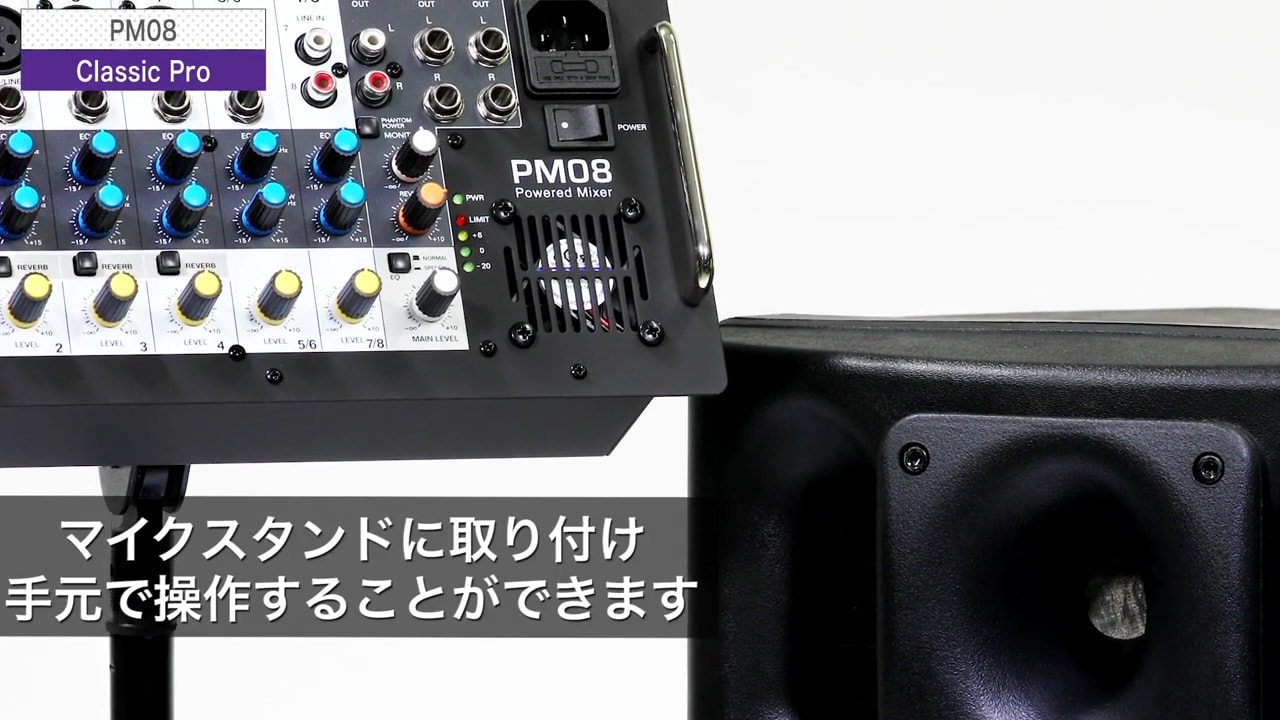

■Stand adapter included (5/8)
*5/8-3/8 conversion screw not included
■About MONITOR OUT and REC OUT
Both are affected by the LEVEL knobs of each channel.
They are not affected by the MAIN LEVEL knob.
■MONITOR OUT is a line-level output terminal before power amplifier amplification.
