BEHRINGER / NX3000D Stereo Power Amplifier

The NX3000D is a stereo power amplifier equipped with a cooling system that generates minimal heat. Its high-performance DSP and 24-bit/96kHz converters deliver superior signal processing and a wide dynamic range.

■Type: 2-Channel
■Stereo Output (2ohms): 1500W x 2 (Max)
■Stereo Output (4ohms): 900W x 2 (Max)
■Stereo Output (8ohms): 440W x 2 (Max)
■Bridged Output (4ohms): 3000W x 1 (Max)
■Bridged Output (8ohms): 1500W x 1 (Max)

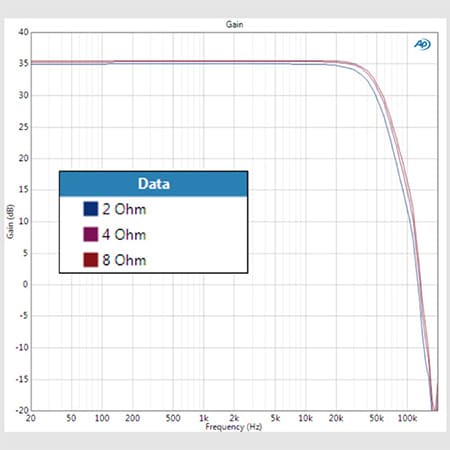

■Frequency Response: 20Hz - 20kHz, +0/-1dB
■Input Terminals: 2 Combo Jacks
■Output Terminals: 2 Speakon Jacks
■Power Consumption: 350W @ 2Ω, 1/8 POWER
■Dimensions: W483xH94xD231mm
■Weight: 3.6kg
■Other:
Smart balanced design for linear response with any speaker load impedance 1500W x 2 (peak) Class D power amplifier with Smart Sense Impedance Compensation and high-performance DSP.

Features:
■ Weighing just 3.6kg, it delivers 1500W x 2 (2Ω) and 900W x 2 (4Ω). In bridged mono mode, it operates at 3000W (4Ω).
■ High reliability thanks to Class D technology with a heat-reducing cooling system.
■ High-performance DSP and 24-bit/96kHz converters deliver superior signal processing and a wide dynamic range.
■ The DSP section features advanced delay, crossover (3 filter types, up to 48dB/oct), EQ (8P EQ, 2 dynamic), dynamics, and security settings.
■ An LCD display allows for complete setup and adjustment, or the unit can be controlled via USB from a PC using the free Remote software.
■ Smart Sense Speaker Impedance Compensation ensures linear frequency response with any speaker impedance.
■A zero-attack limiter that combines high reliability against overloads with powerful output.
■A built-in subwoofer/satellite crossover allows for excellent management of subwoofer systems.
■An illuminated gain switch and 4-segment LED meter enable accurate level setting and monitoring.
■The input uses an XLR/standard phone combo terminal, and the speaker output uses a reliable twist-lock Speakon.
■Each channel is equipped with DC, LF, and thermal overload protection circuits to protect the amplifier and speakers.
■A back-to-front ventilation system.


◆2ch Power Amplifier
■Number of Channels: 2
■Channel Output (Maximum Output):
(2Ω) 1,500W + 1,500W
(4Ω) 900W + 900W
(8Ω) 440W + 440W
■Bridged Mono Output (Maximum Output):
(4Ω) 3,000W
(8Ω) 1,500W
■Frequency Response: 20Hz - 20kHz, +0/-1dB
■Input Sensitivity (4Ω): 0.775V (0dBu)
■Input Impedance: 20kΩ (Balanced), 10kΩ (Unbalanced)
■Input Connectors: XLR and Standard Focal Length 3-pin jack combination connector
■Output Connector: 4-pin Speakon
■DSP: Delay/Crossover/EQ
■Presets: 20 total (19 user-configurable)
■USB Connector: Type B (for control)
■Power Supply: AC 100V, 50/60Hz
■Power Consumption (1/8 output, 2Ω): 350W
■Dimensions (W x H x D): 483 x 94 x 231mm
■Weight: 3.6kg
■Accessories: Power cord

*We generally do not provide loaners for repairs or support. In the event of a malfunction, please return the unit to us, and we or the manufacturer will handle the issue in accordance with our support policy.
