MOOER / Black Truck

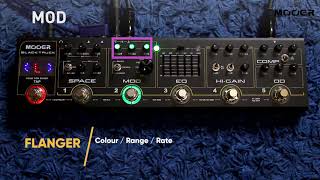

A multi-effector that allows intuitive sound creation with analog-like operation

The Mooer Black Truck is a multi-effect pedal that combines six types of effects, a high-precision tuner, and an effect loop. These are all packed into a compact unit that is easy to carry around.

The Black Truck can be used for a variety of music genres, but it is equipped with modules created by selecting compressors, overdrives, and equalizers from the popular analog effects of the Mooer Micro Series, especially for hard rock and heavy metal.
A completely new, amp-like analog high-gain distortion was developed for the Black Truck. It can create a wide range of tones with an overwhelming gain range.

In addition to these analog modules, it is equipped with multi-modulation and a digital ambience engine named SPACE. SPACE consists of digital delay and stereo reverb.
Both modulation and SPACE can be controlled individually or simultaneously with tap tempo.

You can freely combine these modules to create presets.
It also has a cabinet simulated out with an independent volume control, which can be output simultaneously with the main out.
The Black Truck also comes with its own carry case. The compact case is easy to carry, so you can have a full-fledged system at your feet whenever you want.

●Features
- Compressor, overdrive, distortion, EQ, modulation, delay/reverb, 6 sections are integrated into one simple unit
- Each effect can be controlled individually
- High-precision guitar tuner built-in
- Tap tempo synchronization and effect ON/OFF presets are also possible
- Built-in effect loop supports external pedal connection and 4-cable method
- Stereo output
- Built-in speaker simulator with volume adjustment, direct output to mixer, headphones, etc. is also possible
- Dedicated carry case Included

●Specifications
Input: 1/4 inch mono audio jack (impedance: 2MΩ)
Output: 1/4 inch mono audio jack x 2 (impedance: 100Ω)
Power supply: Regulated center negative DC9V adapter (batteries cannot be used)
Current consumption: 1A
Size: 370mm (D) x 96mm (W) x 51mm (H)
Weight: 1.23kg

Type: Multi-effector
Adapter: 9V center negative *sold separately
Battery powered: -
Controls: COMP, EQ, VOL, COMP ON/OFF, GAIN, TONE, VOL, OD switch, VOL, TONE, TWEAK, GAIN, MID switch, GATE switch, HI-GAIN switch, 100Hz, 250Hz, 630Hz, 1.4kHz, 4kHz, LEVEL slider, PRE/POST switch, EQ switch, RATE, RANGE, COLOUR, PHASER/TREMOLO/FLANGER switch, subdivision switch, MOD switch, LEVEL, FEEDBACK, TIME, DECAY, MIX, DLY/REV/DLY+REV switch, SPACE switch, TAP switch
