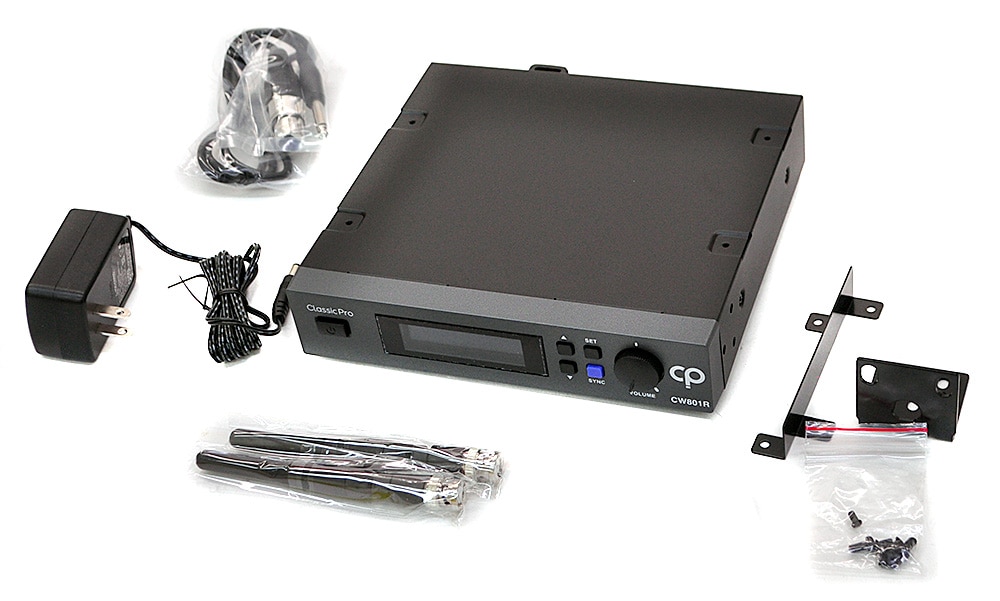

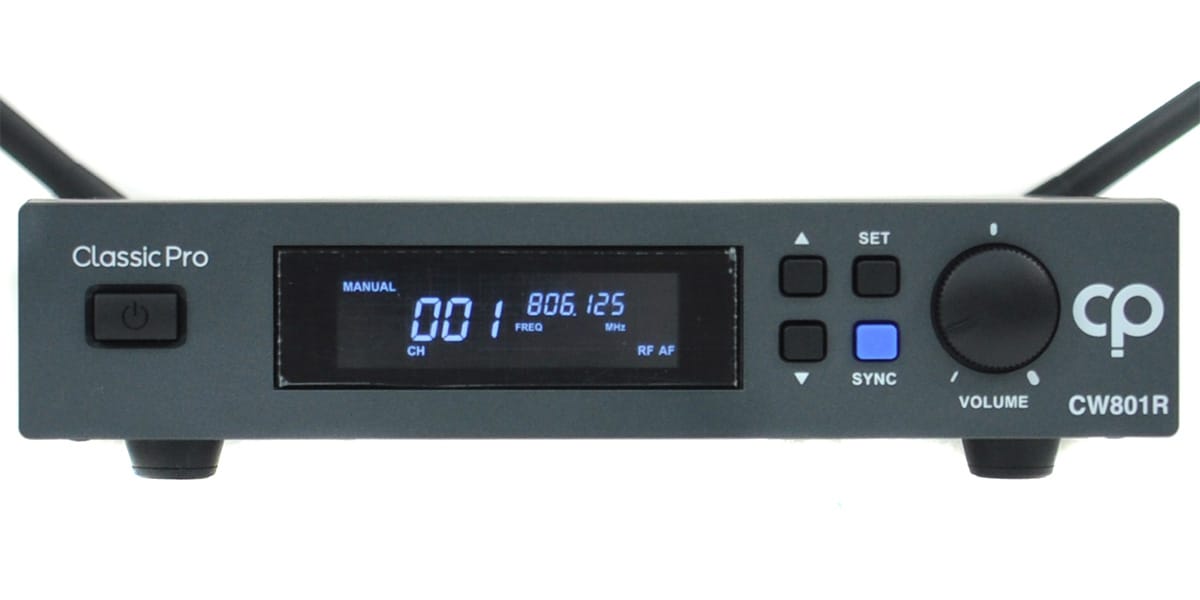

CLASSIC PRO / CW801R

CWS800 series single channel receiver. Equipped with an auto scan function that automatically searches for channels without interference, a handheld microphone, and a sync function that transfers settings to a belt pack transmitter. By using a transmitter that suits your purposes, this can be used for a variety of applications.

■ Reception frequency: UHF806.125-809.750MHz
■ Case: 19 inch EIA standard rack mount compatible (metal enclosure)
■ Transmission method: PLL synthesizer method
■ S / N ratio:> 100dB
■ Spurious response: 70dB (minimum value)
■ Reception sensitivity: 52dB
■ AF response: 80Hz-18kHz
■ T.H.D: <1% (at1kHz)
■ Dynamic range:> 100dB
■ Tone signal: 32.768kHz

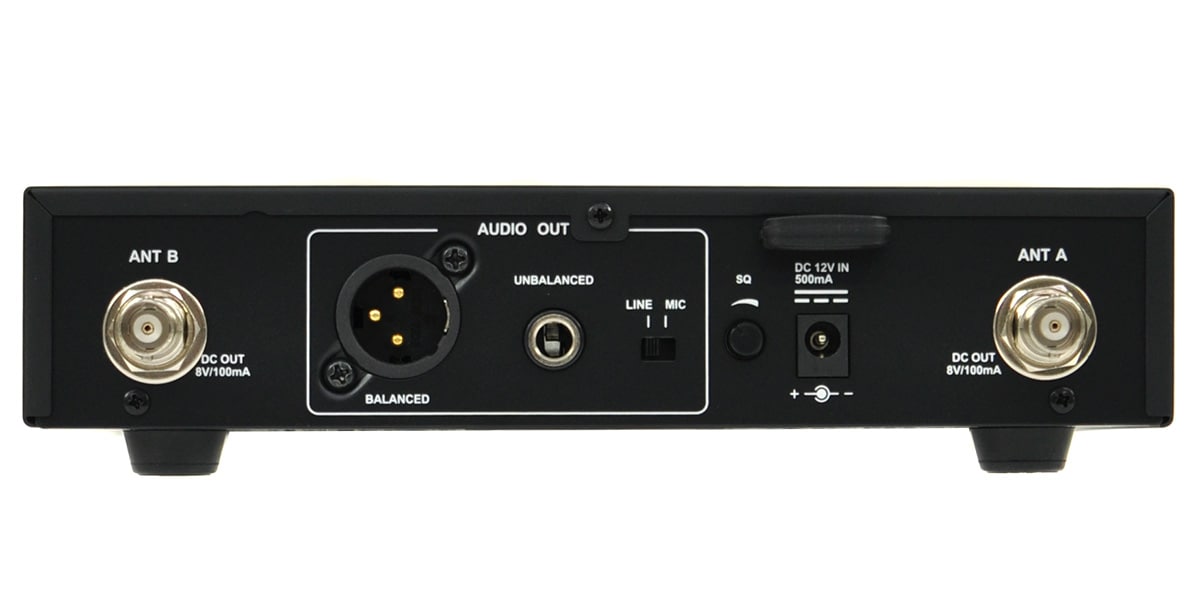

■ Audio output: balanced XLR, unbalanced phone
■ Power supply: DC12V
■ Current consumption: 260 ± 10mA
■ Dimensions: 200x42x183mm
■ Weight: 930g
■ Ambient operating temperature: 5 ° C to 45 ° C
