CLASSIC PRO / DM20

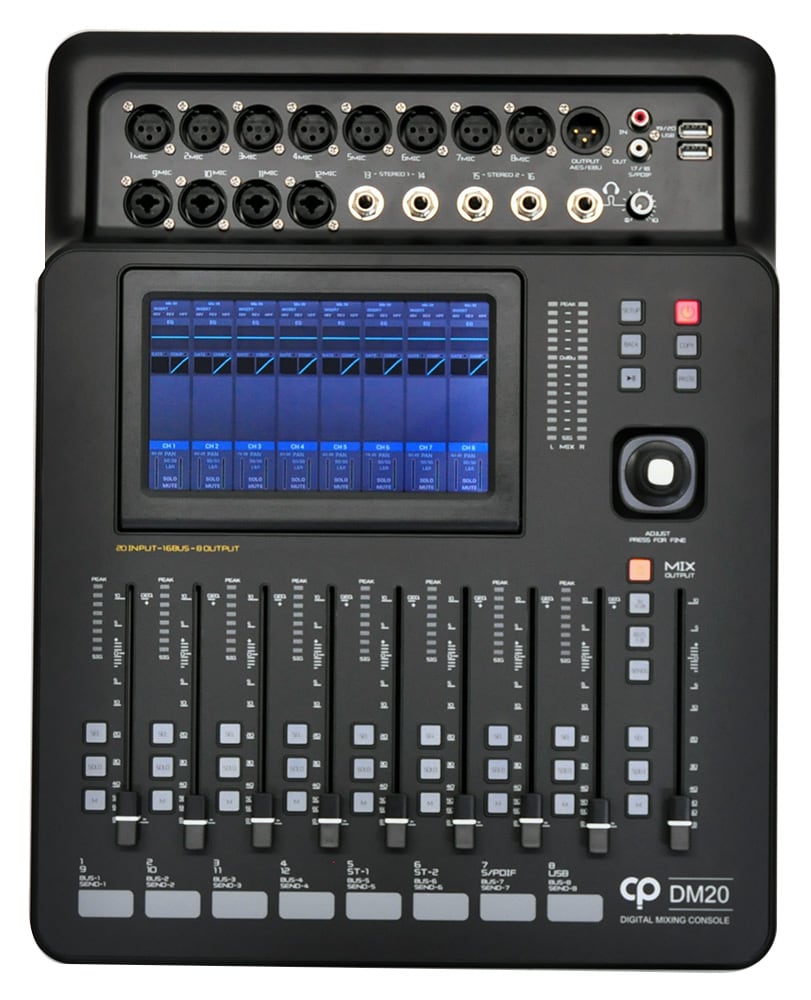

The CLASSIC PRO DM20 is a lightweight, compact digital mixer packed with the latest features, including a large touch panel and motorized faders. The powerful DSP and iPad remote control provide a comfortable mixing environment. This is also a recommended unit for those switching from an analog mixer.

The DM20 is equipped with everything you need for live mixing, including 20 channel inputs, moving faders, a large touch screen, and a USB port. It is a digital mixer born from the results of the latest signal processing technology.

■Features
A digital mixer that can be carried with one hand, condensing the latest functions into a lightweight and compact body weighing 3.2 kg. Equipped with a large touch panel and 9 motorized faders, it also supports remote operation with an iPad. At the heart of the mixer is a powerful DSP that smoothly processes complex mixes that make full use of high-quality effects. It is equipped with all the functions necessary for live mixing, such as 4-band parametric EQ, channel strips equipped with dynamics, studio-grade spatial effects, and two stereo graphic EQs equipped with RTA. It is a cost-effective digital mixer that realizes a comfortable mixing environment without preparing outboard equipment.

All settings, including fader settings, can be saved and recalled. In addition, full remote control can be performed from anywhere in the venue via Wi-Fi, regardless of location. It can route 12 mic/line inputs and 2 stereo inputs to 8 balanced outputs via a 16-channel bus. In addition, it is equipped with two AES/EBU, SPDIF, and USB ports as digital interfaces.

The intuitive and easy-to-understand 1024x600 touch screen allows you to use it immediately without reading the details of the manual. This is a cost-effective digital mixer that allows you to easily mix with studio-grade sound, various effects, and full dynamic processing.

■Powerful DSP, high-quality sound
It uses the 4th generation SHARC floating-point processor used in high-end devices. It enables more powerful processing than a typical digital mixer. The intuitive and easy-to-understand 1024x600 touch screen allows you to use it immediately without reading the details of the manual. This is a cost-effective digital mixer that allows you to easily mix with studio-grade sound, various effects, and full dynamic processing.

・9 motorized faders
Uses reliable ALPS faders. Achieves smooth and stable mixing.

・Large screen
The 7-inch touch panel displays information for each of the 8 channels. Simply switch between two pages to get an overall picture of the mix.

・Control pot
You can fine-tune the parameters on all pages. Press and hold to make even finer adjustments.

・USB recording/scene storage
Equipped with two USB terminals. You can record and play back, save/load scenes to a USB memory stick, etc. Used for firmware updates.

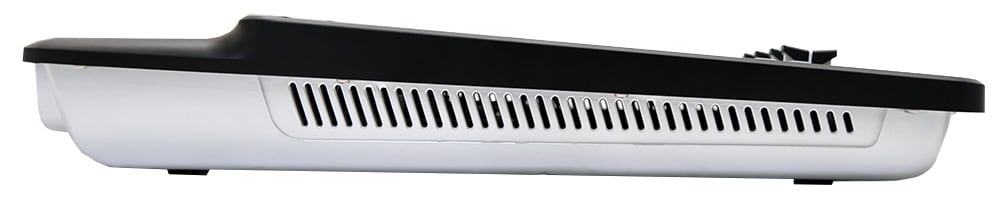

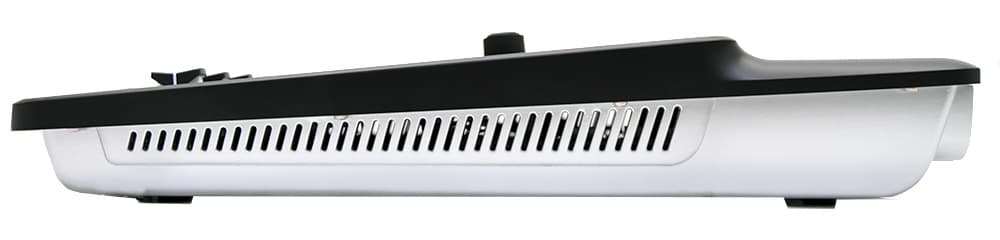

・Compact design
A housing weighing approximately 3.2 kg achieves ultimate portability.

・Scene
Equipped with a powerful scene memory function. Saved scenes can be quickly imported.

・iPad remote control
By connecting to Wi-Fi, full remote control is possible from a dedicated app.

■Specifications
MIC inputs: 12 (XLR x 8, combo jack x 4)
LINE inputs: Stereo x 2
Outputs: 8 (XLR)
Internal buses: 16
Stereo monitor: 1 (TRS)
Headphone output: 1 (TRS)
Screen: High-resolution 7-inch touchscreen
Faders: 9 (100mm motorized)
Sample rate: 48kHz
AD/DA: 192kHz, 24-bit
DSP: 40-bit float point, SHARC processor
Remote control: iPad (via Wi-Fi)
Effects: Up to 8 modules can be assigned (reverb, modulation, delay, 31 bands stereo GEQ)
Digital inputs/outputs: AES/EBU Output (XLR), S/PDIF Input / Output (RCA)
USB ports: 2 (for recording/playback, scene storage, firmware updates)

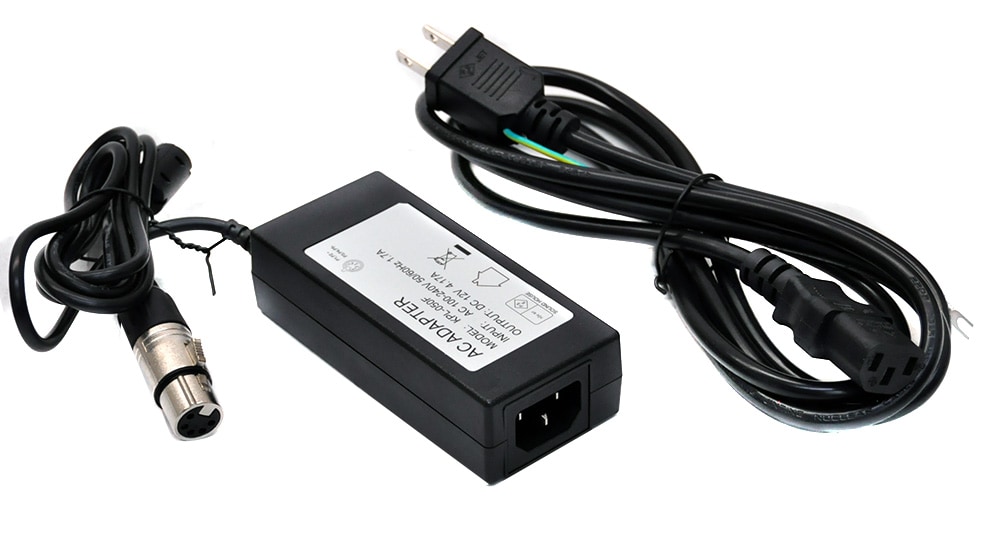

Power supply: Included power adapter
Dimensions: Width 429mm x Depth 335mm x Height 83mm
Weight: 3.2kg (body only)
