CLASSIC PRO / CPX500 Stereo Power Amplifier

This latest 150W model from the CPX series offers the best value for money. Despite its lighter body than previous models, it features uncompromising components to deliver top-class, powerful sound. It features a large toroidal transformer, large heat sink, and variable cooling fan, as well as the latest SMD technology for greater stability and reliability. It features clear sound with minimal distortion.

■Type: 2 channels
■Stereo output (4ohms): 200Wx2
■Stereo output (8ohms): 150Wx2
■Bridge output (8ohms): 400Wx1
■Frequency response: 20Hz-20kHz, +0-1dB
■Damping factor: >200
■Input terminal: XLR

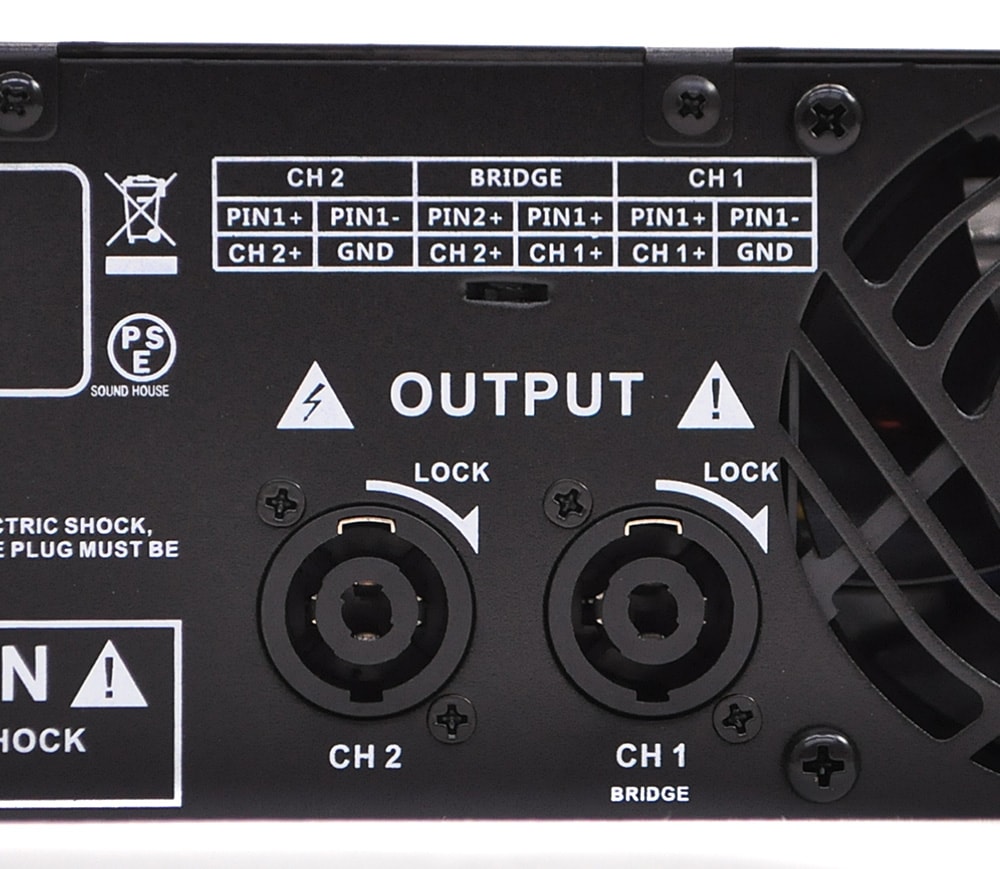

■Output terminal: Speakon
■Power consumption: 207W (1/8POWER)
■Dimensions: W48.2 x H8.8 x D25.3 cm (excluding handle 3cm, rear rack ear 2.8cm)
■Weight: 11.9kg
■Other:
■Input impedance: 20kΩ (balanced), 10kΩ (unbalanced)
■Total harmonic distortion: <0.5%, 20Hz-20kHz
■Slew rate: >20V/us
■Voltage gain: 29dB
■Signal-to-noise ratio: >100dB, 20Hz-20kHz A-weighted
■Crosstalk: -75dB@1kHz, -58dB@20kHz

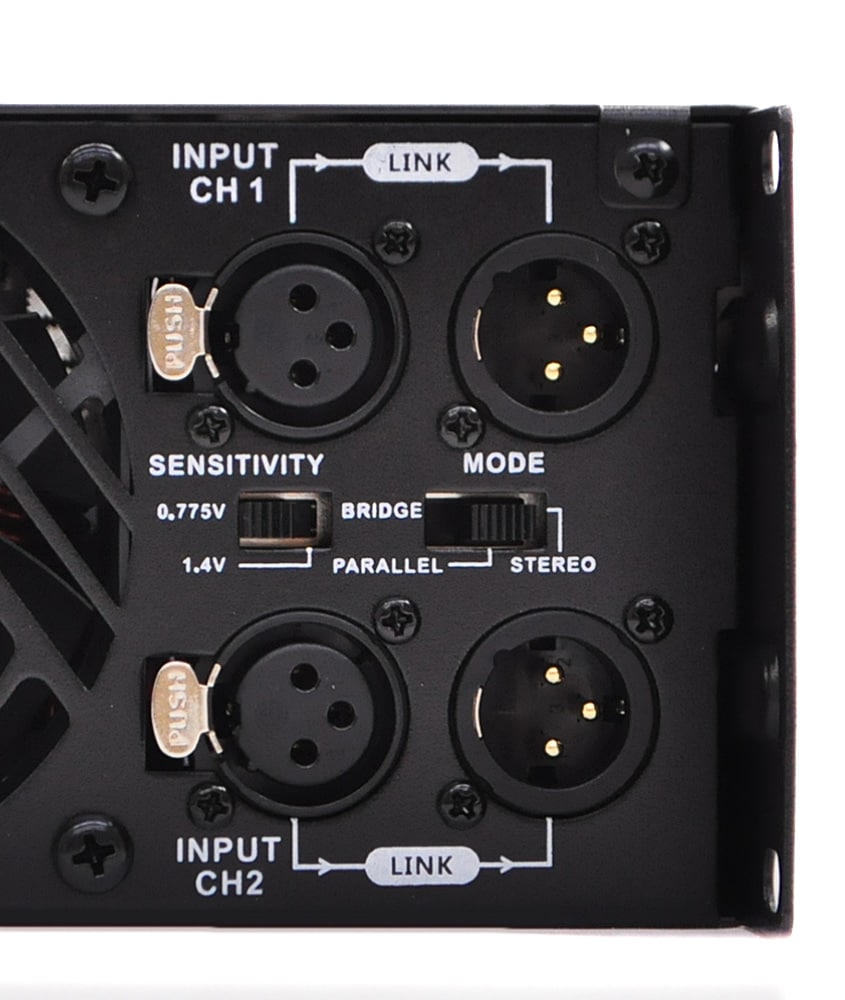

■Input sensitivity: 0.775V or 1.4V
■Protection circuits: limiter, ON/OFF mute protection, output short circuit protection, DC protection, overheat protection, RF (radio frequency) interference protection
■Ventilation: front to rear
■Cooling: built-in heat sink, variable speed fan, thermal protection
■Amplification circuit: Class AB
■Power cable: approx. 1.6m, 2 pin

■Features
・Sleek black panel, 2U rack mount design
・Amplifier temperature rise Highly efficient heat sink and variable speed cooling fan to reduce noise

-Large toroidal transformer that supplies large current

-Excellent signal conversion circuit for clear sound with minimal distortion

-Supports stereo, bridge and parallel modes

-Each channel has independent signal and clip indicators

-Built-in limiter to protect speakers, ON/OFF mute protection, DC protection, output, short circuit protection, overheat protection, RF (radio frequency) interference protection

-Output mute to protect equipment when protection circuit is activated.

-Simple front panel design with only gain control

-Uses the latest SMD technology for higher stability and reliability

-Balanced XLR input/output, Speakon output

-25.3cm depth that can be stored in an effects rack

*When we repair/support, we do not generally provide replacement units. In the event of a malfunction, please return the unit to us, and we or the manufacturer will handle the issue according to our support regulations.
