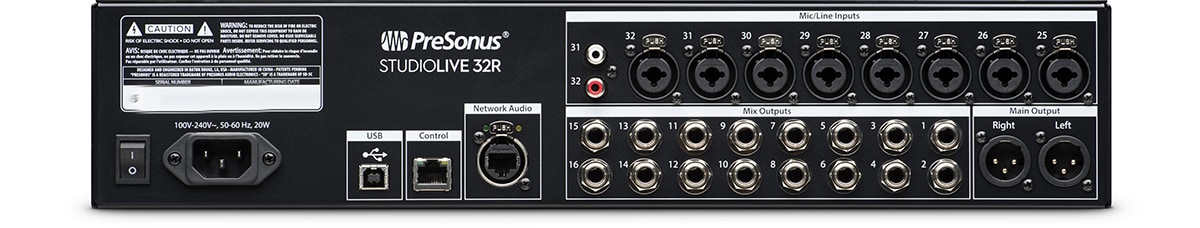

PRESONUS / StudioLive 32R Digital Mixer

The most powerful rack-mount digital mixer in its class. It's also the perfect combination for a simple stage box or monitor mixer for StudioLive Series III consoles.

■ Local input / output
Total 34 inputs
Microphone / line channel input x32 + 2 RCA input
1/4 inch TRS FlexMix output x16
XLR (L / R) main output x2
Stereo headphone output

■ Channels and buses
Input channel x32
Stereo Aux input (AVB or USB) x2
Stereo digital return (SD card, AVB, or USB) x1
Bus: 26
FlexMix (as Aux mix, subgroup mix, matrix mix) x16
Dedicated subgroup x4
Internal effect send x4
Stereo main bus
Filter DCA x24, easy and flexible control of channel groups

■ Network connection
Ethernet control network port x1
Dynamic, self-assigned, manual IP address modes
XLR Ethernet AVB audio network port with locking mechanism x1

■ Recording
Built-in stereo SD recorder
40x40 USB recording interface
55x55 AVB recording interface

■ Signal processing
Intuitive Fat Channel signal processing on all channels:
31 band graphic EQ x8
Internal effect bus: Reverb and delay combination with modern and vintage options (4 lines)
Built-in real-time analyzer

■ Scenes and presets
Create, save and edit up to 100 scenes
Quick scene x8
Mute group x8

■ Digital
Studio quality converter (dynamic range: 115dB)
24-bit resolution, 48 kHz operation

■ Actively integrated software
UC Surface Touch Control Software for Mac, Windows, iPad, Android
Studio One Artist Digital Audio Workstation Software (for Mac / Windows)
Capture multitrack recording software for Mac and Windows
QMix-UC Aux Control Software for iOS and Android
