PRESONUS / StudioLive SE 24R

メーカーサイト商品ページ

Variations

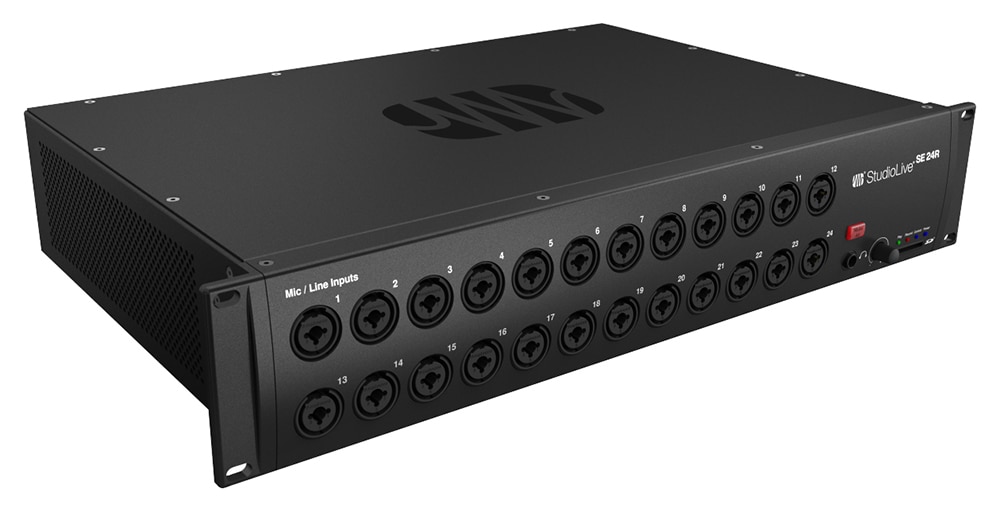

<> PRESONUS/ The StudioLive SE 24R is a touring-ready digital rack mixer that functions as a standalone mixer, monitor mixer, or stage box for StudioLive Series III consoles.

大規模混合パワー

多彩な FlexMix、サブグループ、FX、DCA ルーティングを備えた 40 チャンネル。
高度なルーティングの柔軟性

モニター、ブロードキャスト、インストールのワークフローに最適です。
シームレスレコーディング

64x64 USB オーディオインターフェイス、ステレオ SD 録音、Virtual Soundcheck とのシームレスな Capture 統合により、制作のあらゆる段階が効率化されます。
ネットワークとワイヤレス対応

最新のワークフロー統合を実現する、Milan 認定の AVB、ユニバーサルコントロール、QMix-UC。
FENDER STUDIO PROとの連携

Fender Studio Pro との緊密な統合により、プリアンプの直接制御と、Fat Channel XT によるオンボードとプラグイン処理間のシームレスな切り替えにより、録音が簡素化されます。

■ Digital Mixer

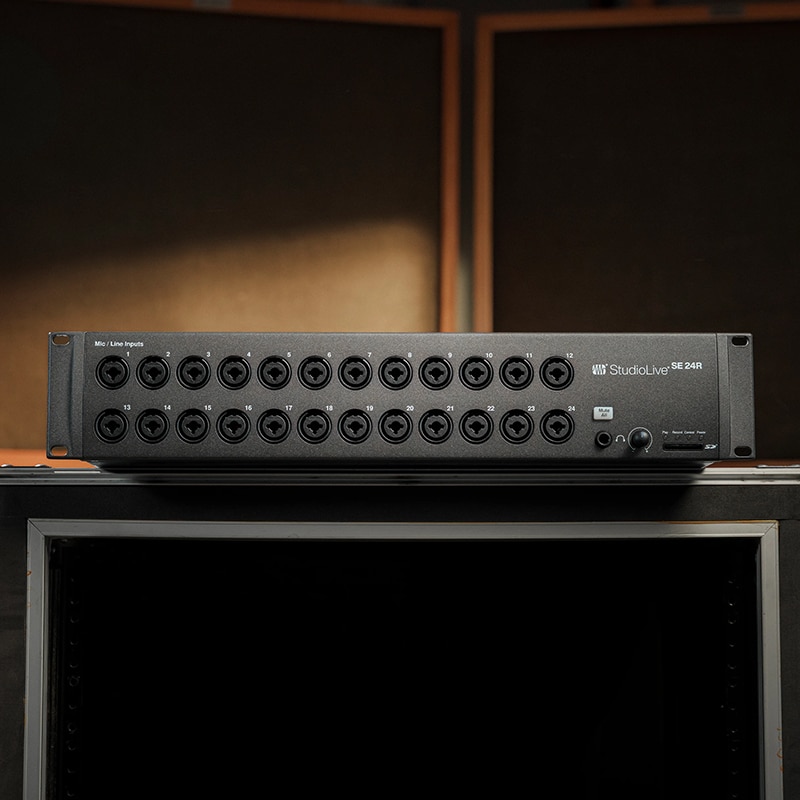

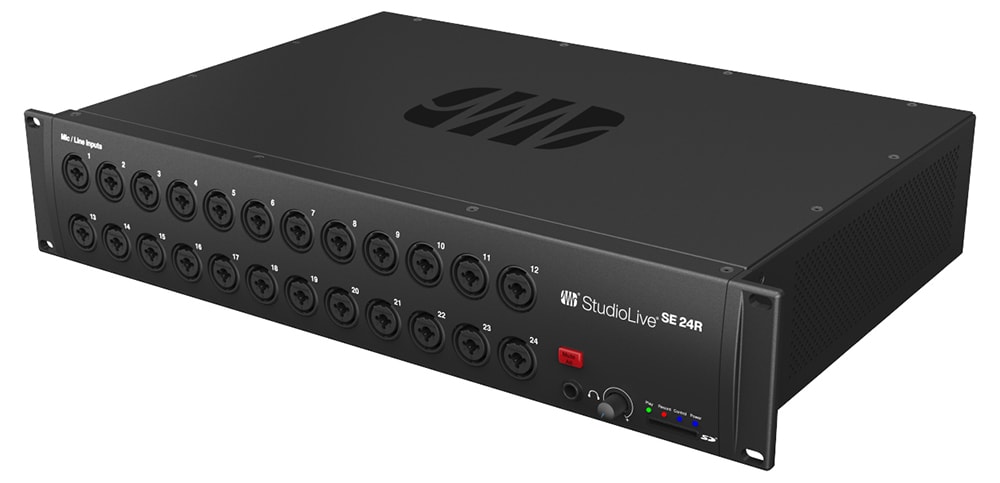

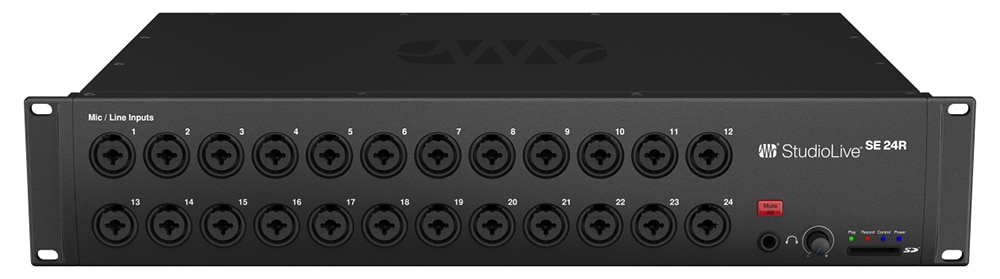

The 40-channel StudioLive SE 24R condenses the power and flexibility of a large digital console into a robust rack-mount mixer. Featuring 24 recallable XMAX-R microphone preamps and advanced DSP powered by the PreSonus FLEX DSP engine, it includes vintage-style EQ and compression on all inputs and buses, delivering a sophisticated and musical sound.

With 16 FlexMix units that can be configured as Aux, subgroups, or matrix mixes, providing access to all 24 inputs and buses, the SE 24R is ideal for complex monitor, broadcast, and installation workflows. Four dedicated FX mixes with stereo returns and 24 DCA groups allow for precise control of multiple channels.

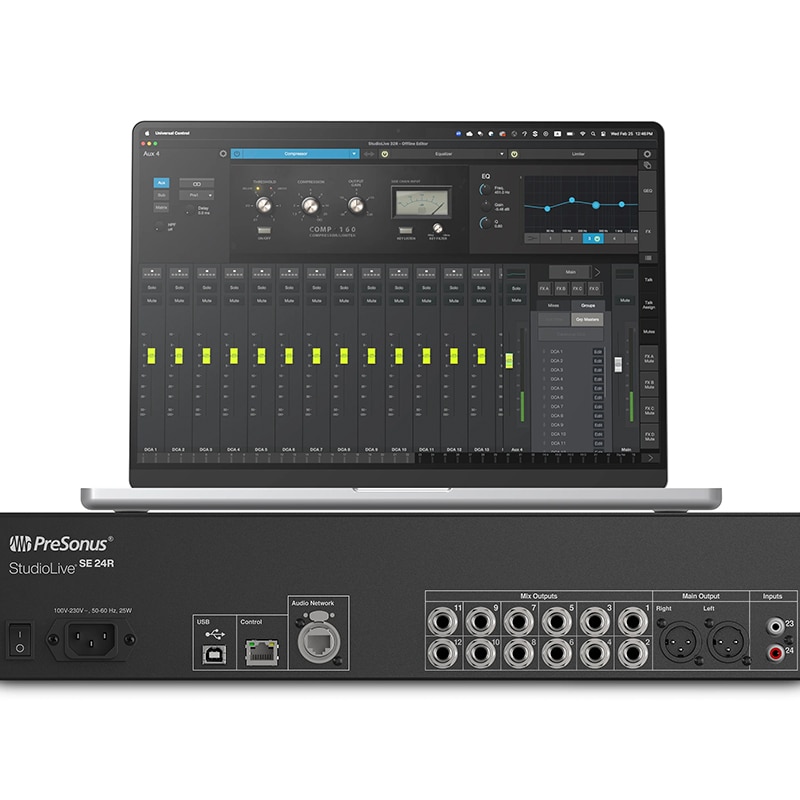

Recording is fully integrated with Capture multitrack software featuring a 64x64 bidirectional USB 2.0 audio interface, built-in stereo SD card recording, and Virtual Soundcheck functionality. Each channel can switch between analog, USB, SD, and AVB sources, enabling seamless integration with analog and digital systems. With Milan-certified AVB networking, it can be plug-and-play used as a stage box or monitor mixer for StudioLive Series III consoles. Optional AVB-D16 support allows for Dante connectivity as needed. Universal Control remote mixing software with an offline editor provides complete control from anywhere.

■Features

40-channel digital rack mixer with 26 mix buses

24 fully recallable XMAX-R analog microphone preamps

16 FlexMixes configurable as AUX, subgroups, or matrix mixes

4 dedicated subgroups

4 dedicated FX mixes with stereo returns

24 DCA groups for advanced mix control

9 state-space model EQ options on all inputs and buses

10 vintage-style compressor models on all inputs and buses

Continuous bidirectional 64x64 USB 2.0 audio interface

Onboard stereo SD card recording

Integrated capture multitrack recording with virtual sound check

Milan-certified AVB network ecosystem

Standalone, monitor mixer, and stagebox operating modes

Channel source switching between analog, USB, SD, and AVB

Universal control remote mixing using offline editor

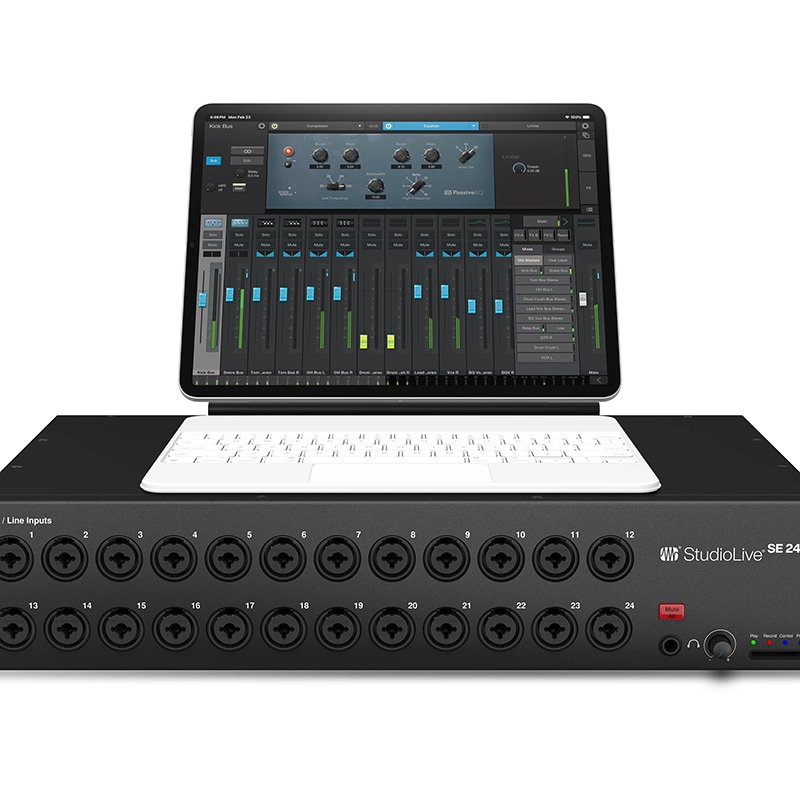

QMix-UC personal monitor control for iOS and Android

Optional Dante networking (via AVB-D16)

Fender Studio Includes a perpetual license for Pro.

3-year warranty
