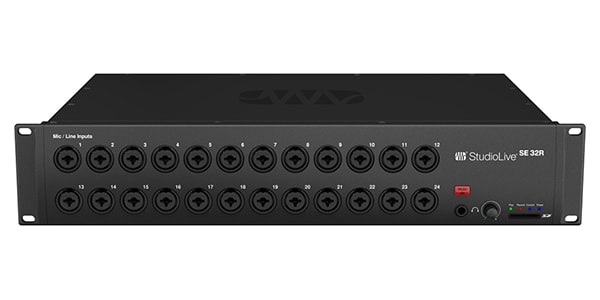

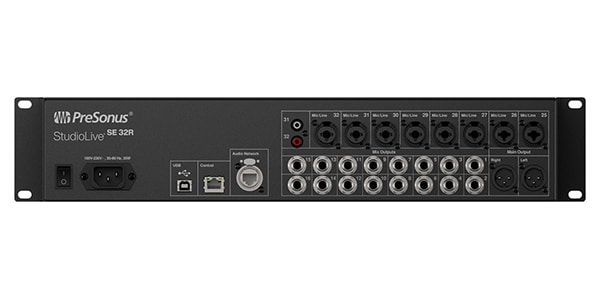

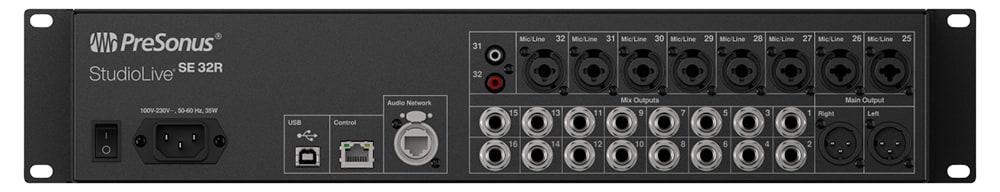

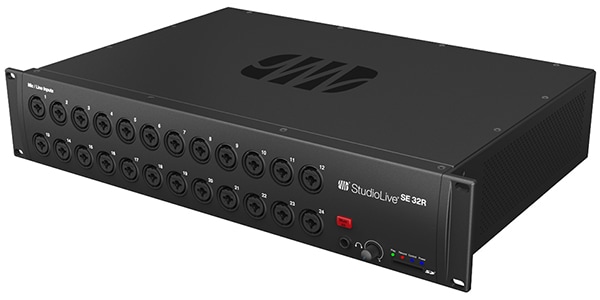

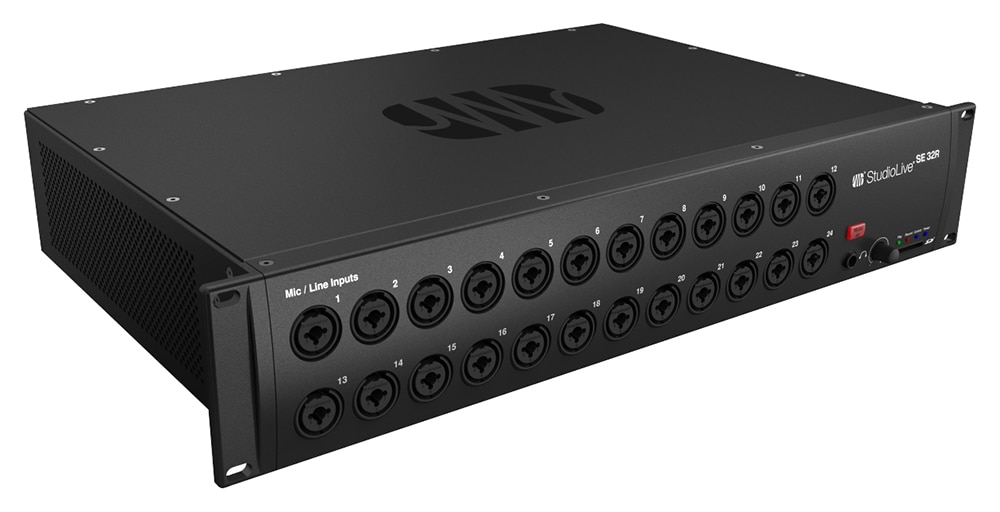

PRESONUS / StudioLive SE 32R

メーカーサイト商品ページ

Variations

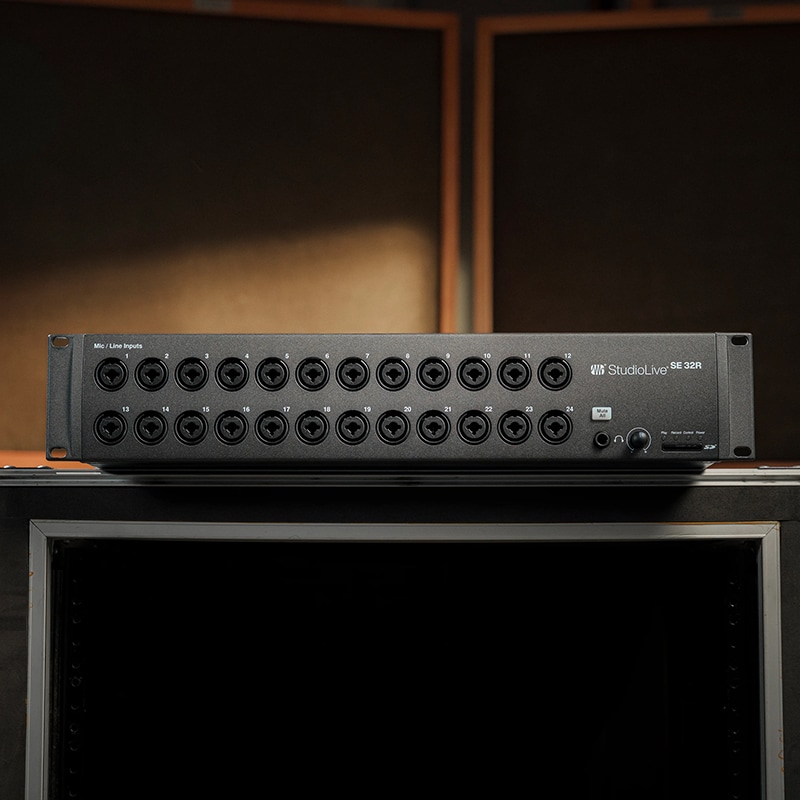

<> The PRESONUS/StudioLive SE 32R is a high-channel digital rack mixer suitable for professional touring, installation, and studio use.

高いチャネル柔軟性

多機能な FlexMix、サブグループ、FX、DCA ルーティングを備えた 32 個のオンボード XMAX-R プリアンプ。
プロフェッショナルルーティングとモニタリング

移動中、ステージ上、スタジオでのモビリティ、汎用性、柔軟性を考慮して設計されています。
録音が簡単

64x64 USB 録音、オンボードステレオ SD、Capture と Fender Studio Pro ソフトウェア統合による仮想サウンドチェック。

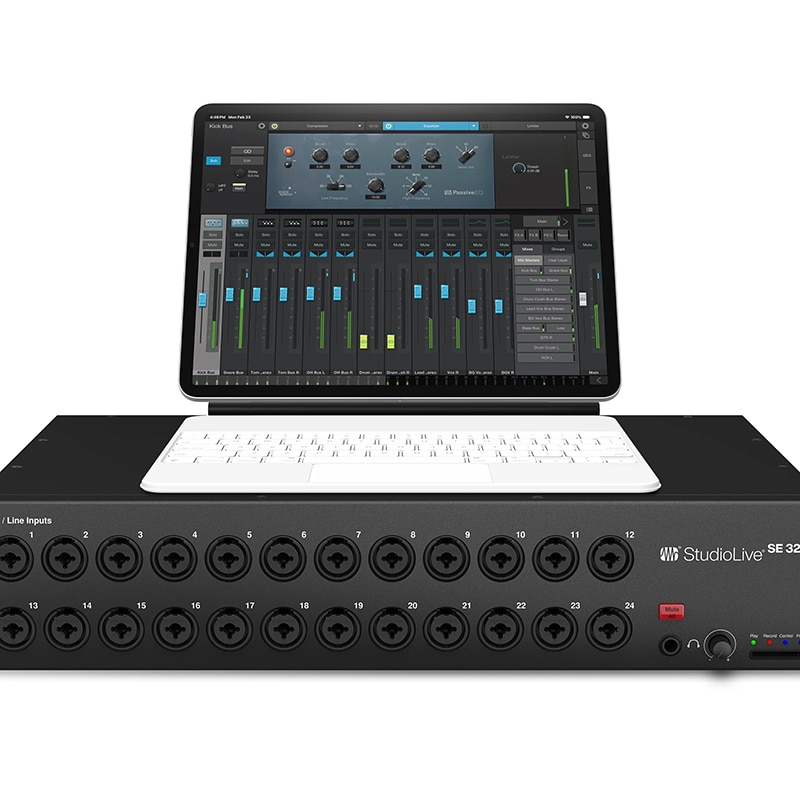

ワイヤレスとネットワーク対応

Universal Control と QMix-UC によりミキシングが簡単になり、Milan 認定のオーディオネットワーキングによりシステムの拡張が容易になります。
FENDER STUDIO PROとの連携

Fender Studio Pro との緊密な統合により、プリアンプの直接制御と、Fat Channel XT によるオンボードとプラグイン処理間のシームレスな切り替えにより、録音が簡素化されます。

■ Digital Mixer

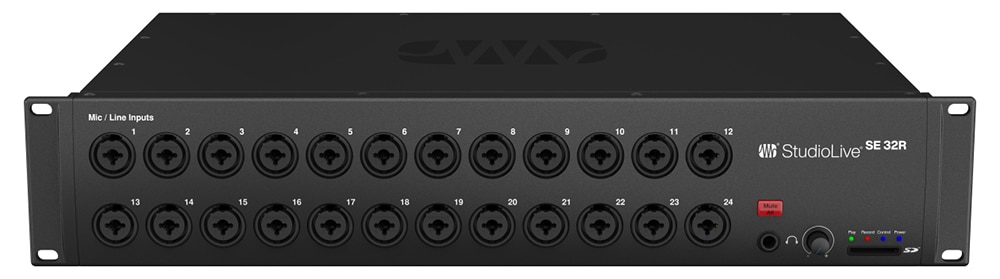

Designed for large-scale productions, the StudioLive SE 32R integrates a 40-channel processing engine and 32 recallable XMAX-R microphone preamps into a compact rackmount mixer. Featuring a PreSonus FLEX DSP engine, it includes vintage-style EQ and compression on every channel and bus for consistent, high-quality sound.

The 16 FlexMix units can be configured as Aux, subgroups, or matrix mixes, offering flexibility for complex monitoring and routing scenarios. Four dedicated FX mixes with stereo returns and 24 DCA groups allow for precise management of multiple channels.

With a bidirectional 64x64 USB 2.0 audio interface, recording to a built-in stereo SD card, and Capture multitrack software with Virtual Soundcheck support, the SE 32R is a powerful core component for live and studio recording. Channels can switch between analog, USB, SD, and AVB sources for a seamless hybrid workflow.

Featuring built-in Milan-certified AVB networking capabilities, it easily integrates as a stage box or monitor mixer with StudioLive Series III consoles. Optional AVB-D16 support enables Dante connectivity. Universal Control remote mixing software allows for complete wireless control and offline mix-ready operation.

■Features

40-channel digital rack mixer with 26 mix buses

32 fully recallable XMAX-R analog microphone preamps

16 FlexMixes configurable as AUX, subgroups, or matrix mixes

4 dedicated subgroups

4 dedicated FX mixes with stereo returns

24 DCA groups

9 state-space model EQ options on all inputs and buses

10 vintage-style compressor models on all inputs and buses

Continuous bidirectional 64x64 USB 2.0 audio interface

Onboard stereo SD card recording

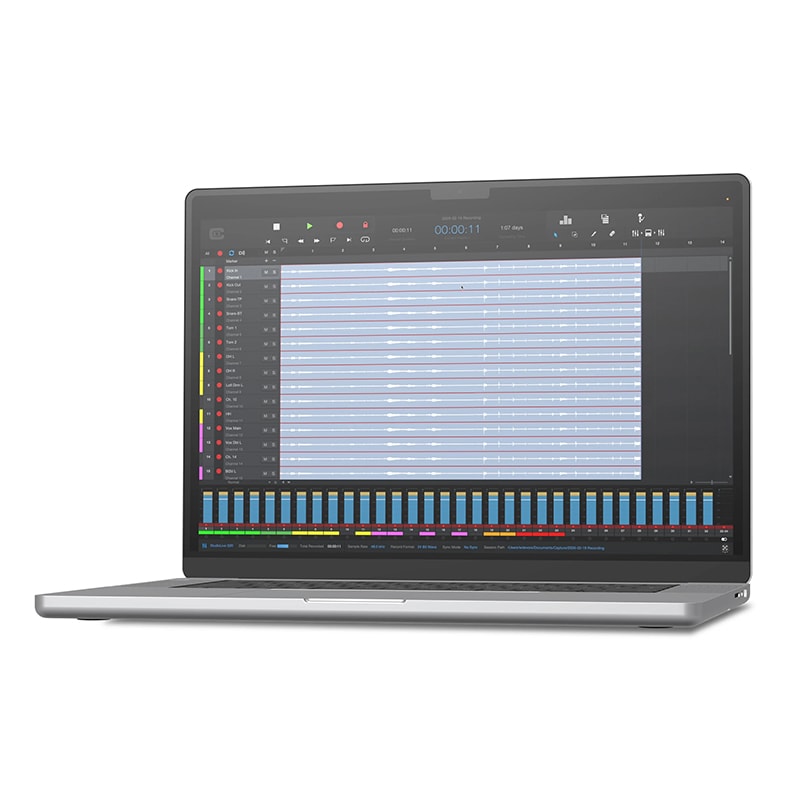

Integrated capture multitrack recording with virtual sound check

Milan-certified AVB network ecosystem

Standalone, monitor mixer, and stagebox operating modes

Channel source switching between analog, USB, SD, and AVB

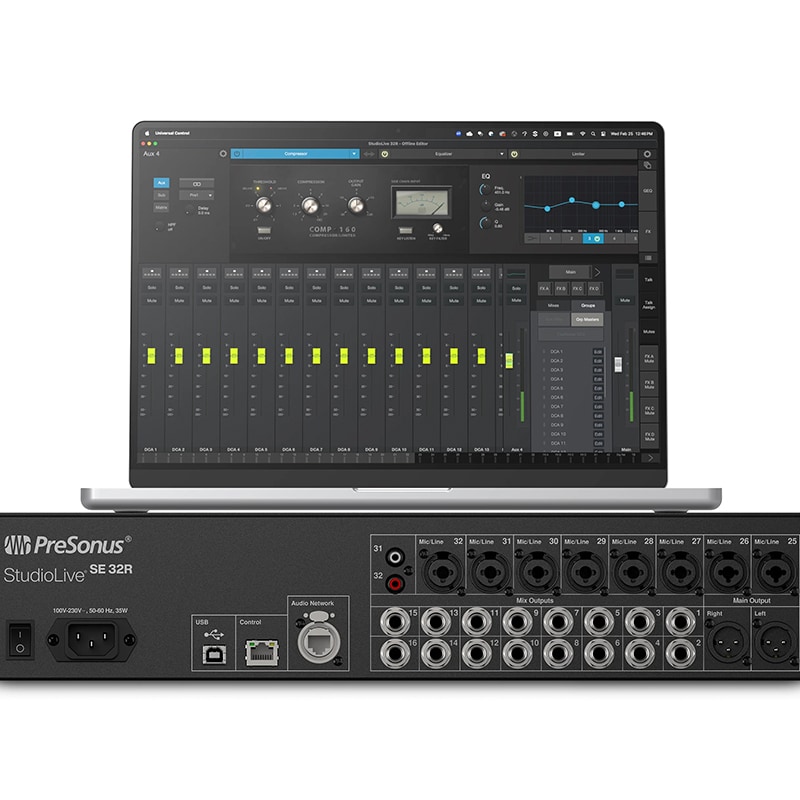

Universal control remote mixing using offline editor

QMix-UC personal monitor control for iOS and Android

Optional Dante networking (via AVB-D16)

Fender Studio Includes a perpetual license for Pro.

3-year warranty
