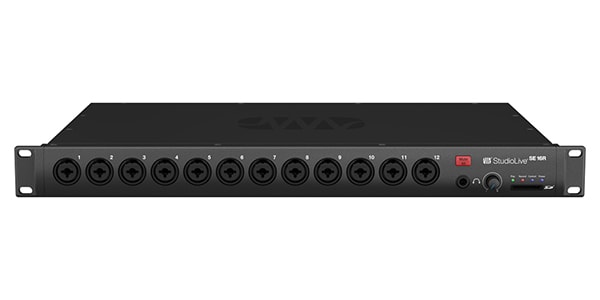

PRESONUS / StudioLive SE 16R

メーカーサイト商品ページ

Variations

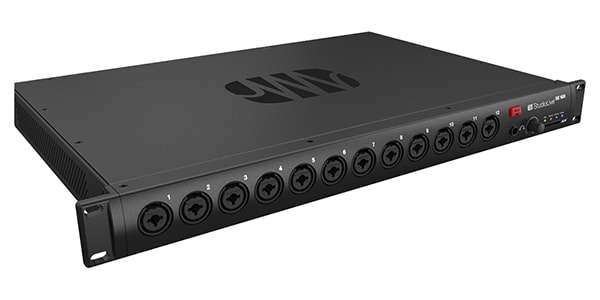

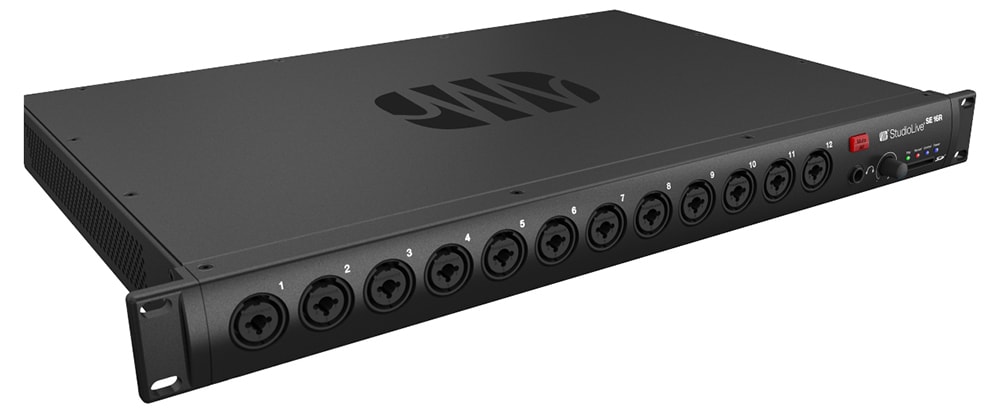

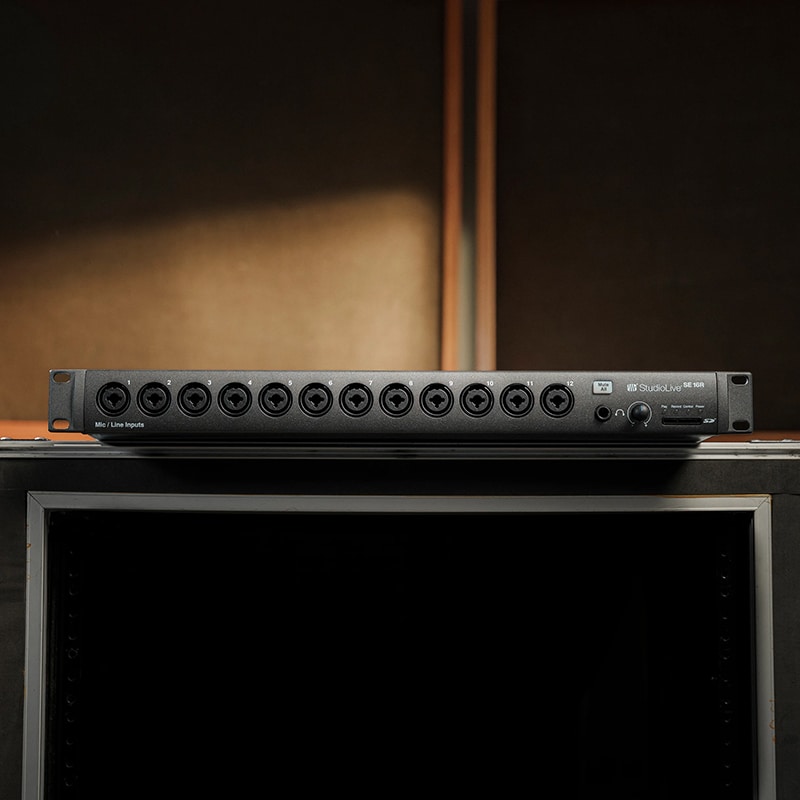

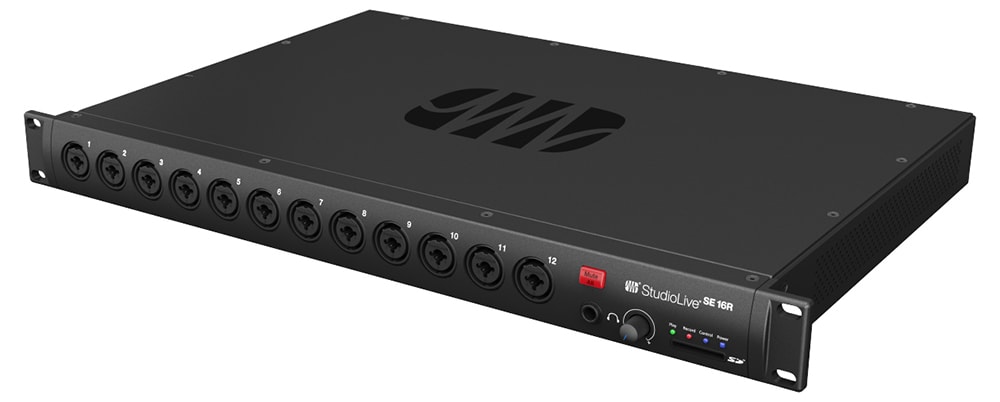

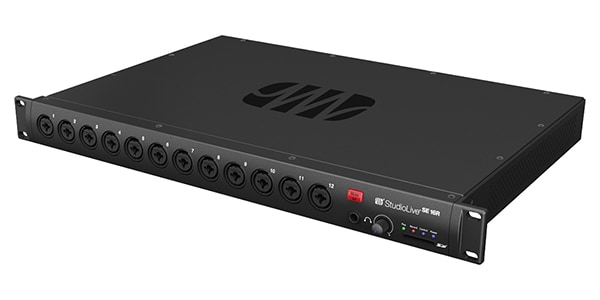

<> The PRESONUS/StudioLive SE 16R is a compact digital rack mixer that functions as a standalone mixer, monitor mixer, or stage box for the StudioLive Series III console.

コンパクトでツアーに最適なミキシング

1U ラックに、フルリコール可能なプリアンプと DSP パワーを備えた 18 チャンネルを搭載。
柔軟なルーティング

設定可能な FlexMix、FX バス、DCA により、スタジオ品質のミックスを迅速かつ簡単に作成できます。
シームレスレコーディング

キャプチャ統合、仮想サウンドチェック、オンボードのステレオ SD 録音機能を備えたマルチトラック USB。
ワイヤレスとネットワーク対応

完全なワークフローの自由度を実現する、ミラノ認定の AVB ネットワーキング、ユニバーサルコントロール、QMix-UC。
FENDER STUDIO PROとの連携

Fender Studio Pro との緊密な統合により、プリアンプの直接制御と、Fat Channel XT によるオンボードとプラグイン処理間のシームレスな切り替えにより、録音が簡素化されます。

■ Digital Mixer

The 18-channel StudioLive SE 16R condenses the power of a large digital mixer into a sophisticated rackmount design. Featuring 16 fully recallable XMAX-R microphone preamps and a PreSonus FLEX DSP engine, it offers vintage-style EQ and compression options on every channel and bus, delivering musical, studio-quality sound.

The six FlexMix channels can be individually configured as Aux mixes, subgroups, or matrix mixes, giving the SE 16R exceptional flexibility for live sound, broadcast, and installed sound applications. Two dedicated FX mixes with stereo returns provide rich reverb and delay without consuming valuable buses.

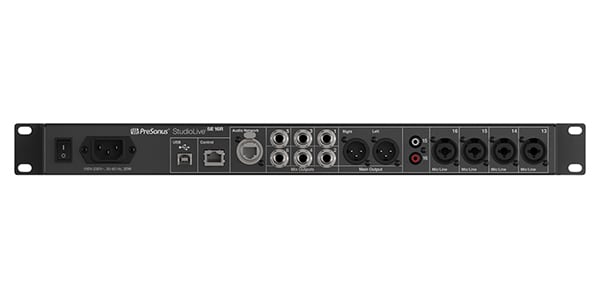

For recording and playback, the StudioLive SE 16R features an 18-input/18-output USB 2.0 audio interface, onboard stereo SD recording, and seamless integration with the included Capture multitrack recording software with Virtual Soundcheck functionality. Each channel can switch between analog, USB, SD, and AVB sources, easily enabling hybrid workflows.

With built-in MILAN-certified AVB networking capabilities, the SE 16R can be used as a plug-and-play stage box or monitor mixer for StudioLive Series III consoles. Optional AVB-D16 support allows for Dante connectivity as needed. Universal Control remote mixing software provides complete wireless control and supports offline editing, allowing you to prepare mixes anywhere.

■Features

18-channel digital rack mixer with 10 mix buses

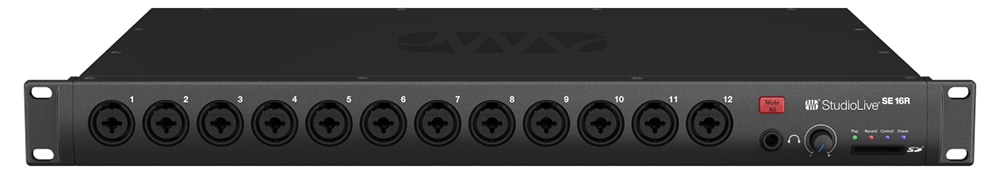

16 fully recallable XMAX-R analog microphone preamps

6 FlexMixes configurable as Aux, subgroup, or matrix mixes

Two dedicated FX mixes with stereo return and processing

9 state-space model EQ options on all inputs and buses

10 vintage-style compressor models on all inputs and buses

Continuous bidirectional 18x18 USB 2.0 audio interface

Onboard stereo SD card recording

Integrated capture multitrack recording with virtual sound check

Milan certified AVB network for Series III ecosystem

Standalone, monitor mixer, and stagebox operating modes

Channel source switching between analog, USB, SD, and AVB

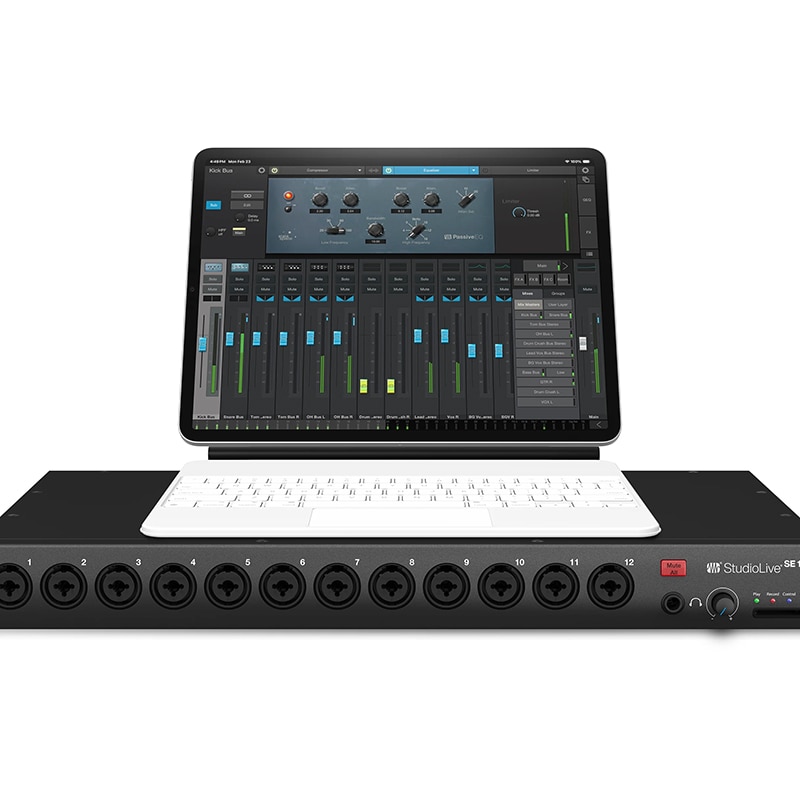

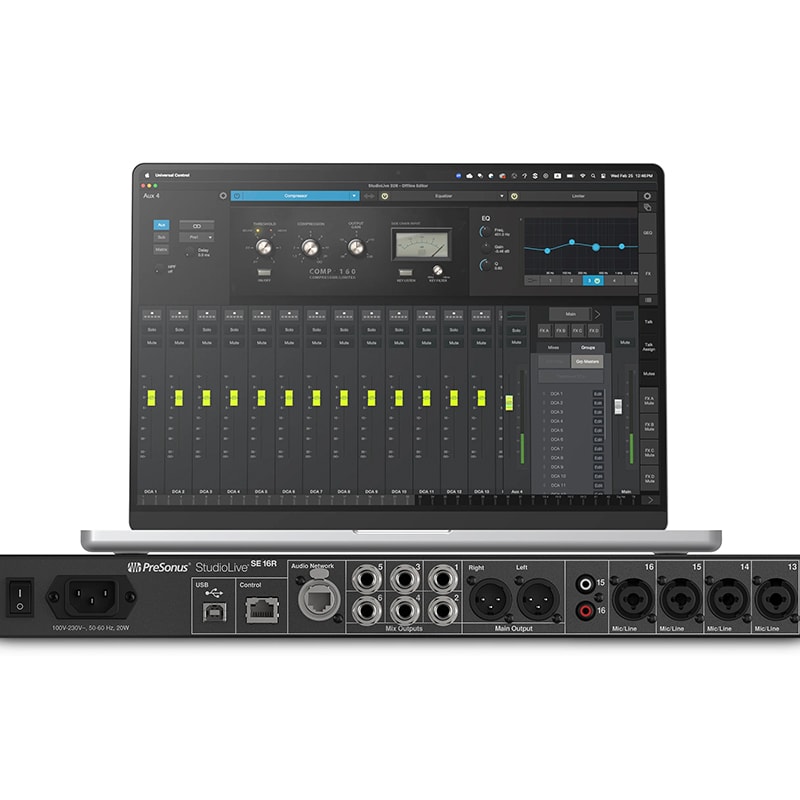

Universal control remote mixing with offline editor

QMix-UC personal monitor control for iOS and Android

Optional Dante network (via AVB-D16)

Includes a perpetual license for Fender Studio Pro

3-year warranty
