BOSE / F1 model 812

The Bose F1 Model 812 is a portable powered speaker with adjustable vertical sound coverage. Flexible array technology allows you to adjust the angle to suit the venue. Pair it with a Bose F1 subwoofer for powerful sound.

""The world's first powered portable speaker with variable vertical coverage!""

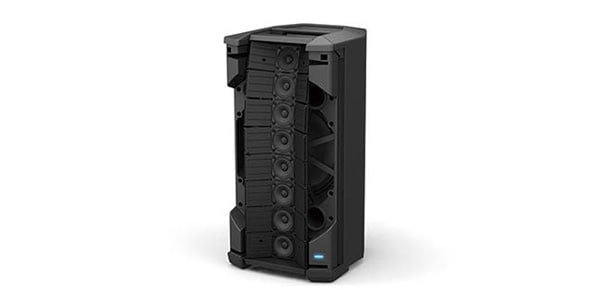

The Bose® F1 Model 812 Flexible Array Loudspeaker is the industry's first powered portable sound reinforcement speaker with adjustable vertical coverage. Flexible array technology allows you to reshape the speaker array, achieving optimal coverage for any venue, whether you're performing on the floor, on stage, facing angled seating, or balcony seating. This avoids dead zones and unwanted sound reflections, ensuring precise sound reaches only where you want it.

Shape your sound. Create live sound that captivates every audience.

● High-power design for band PA and DJ applications
● Flexible array of eight 2.25-inch mid-high drivers allows for four selectable vertical coverage patterns
● One 12-inch woofer
● 1000-W Class D power amplifier
● Maximum SPL of 132 dB
● Frequency range: 43 Hz - 20 kHz (-10 dB)
● Versatile 35 mm pole mount

[System Performance]
■ Type: 2-way full-range powered speaker
■ Frequency response (-3 dB): 52 Hz - 15.5 kHz
■ Frequency range (-10 dB): 43 Hz - 20 kHz
■ Directivity: 100° horizontal x 40° vertical (C position)
■ Maximum SPL (@1 m): 132 dB SPL (peak)
■ Crossover frequency: 600 Hz (Butterworth 24)

[Power Amplifier Section]
■Rated Output: 1000 W
■Total Harmonic Distortion: Less than 0.1% (30 Hz - 15kHz, rated output)

[Speaker Section]
■Driver Configuration: Mid-High: 8 x 2.25"" Drivers, Low-Frequency: 1 x 12"" Woofer

[Input/Output Terminals]
■Input Terminals
　ch 1: 1 x XLR/Standard Phone Combo Jack (Balanced)
　ch 2: 1 x Standard Phone Jack (Balanced/Unbalanced), 1 x ST RCA Pin
■Terminals: 1 x XLR (Balanced)

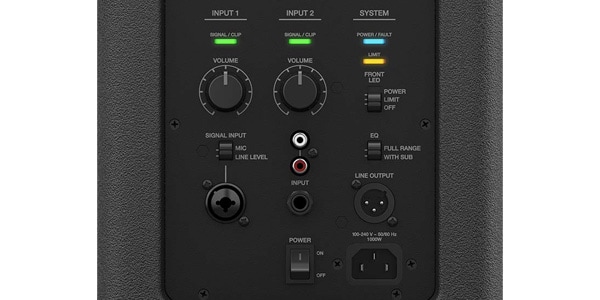

■Controls: Volume, Audio Input Switch, Front LED Function Switch, EQ Switch, Power Switch

[Other]
■Dimensions: 664.7H x 334.3W x 372.5D mm
■Weight: 20.2kg
■Power Supply Voltage: 100- 240 V 50/60 Hz ±20%, 200W or less
