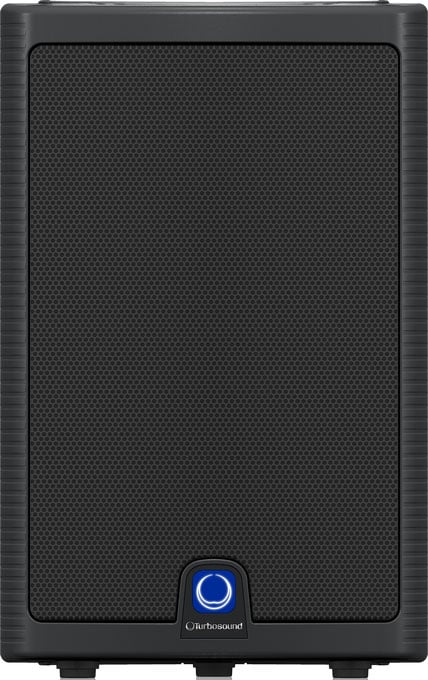

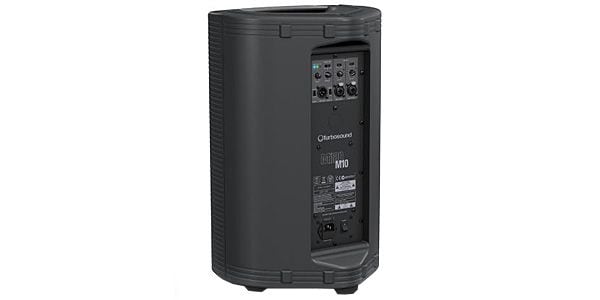

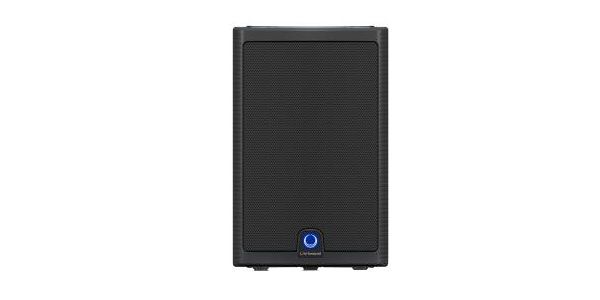

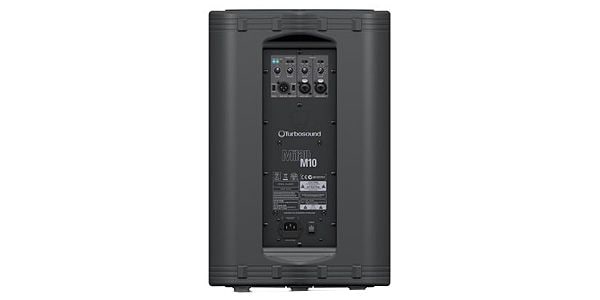

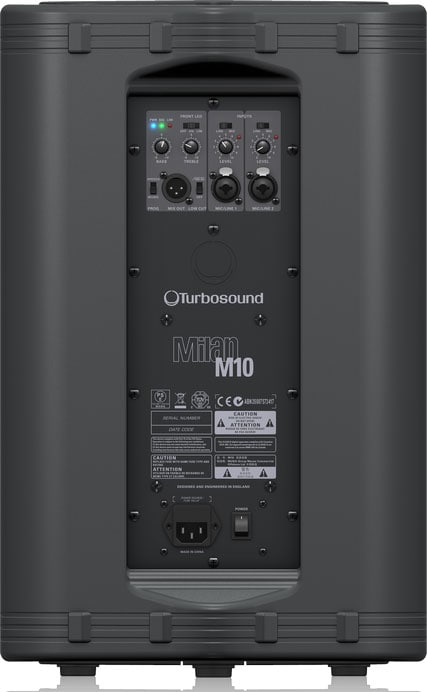

Turbosound / MILAN M10

This 600W, 10-inch powered speaker from KLARKTEKNIK features a Class D amplifier and signal processor. It includes speech and music mode switching, and a low-cut filter for convenient use with a subwoofer. In addition to 35mm stand mounting, it also supports M10 rigging, offering high installation flexibility and suitability for various applications.

? 600W, 10"""", 2-way

? KLARKTEKNIK high-efficiency Class D circuitry

? KLARK TEKNIK signal processor

? Speech/music contour switch

? 100Hz high-pass filter

? Lightweight enclosure made of black-finish polypropylene

? Powder-coated steel mesh grille

? Two microphone/line inputs

? MIX OUT

? Converging Elliptical Waveguide

? Dual-angle pole mount

? Built-in M10 rigging points

? Front logo illumination

? Designed and engineered in England

■ Woofer: 1 x 10"" (254 mm) LF driver

■ Driver: 1 x 1"" (25 mm) HF compression driver

■ Maximum amplifier output: LF: 500 W; HF: 100 W

■ Frequency response: 55 Hz - 18 kHz ±3 dB

■Directional Pattern: 90°H x 60°V @ -6dB points

■Maximum Sound Pressure Level: 126dB peak

■Input Terminals: 2 x Microphone/Line Combo Jacks

■MIX Output Terminal: XLR

■Equalizer: Bass: ±6 dB @ 80 Hz; Treble: ±6 dB @ 12 kHz

■Controls: Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off

■Indicators: Power LED (blue), SIG LED (green), LIMIT LED (red), CLIP LED (red)

■Power Consumption: 80 W @ 1/8 max power

■Dimensions: 32.9cm (W) x 52.2cm (H) x 29.4cm (D)

■Weight: 13.3kg
