CLASSIC PRO / CSR10P

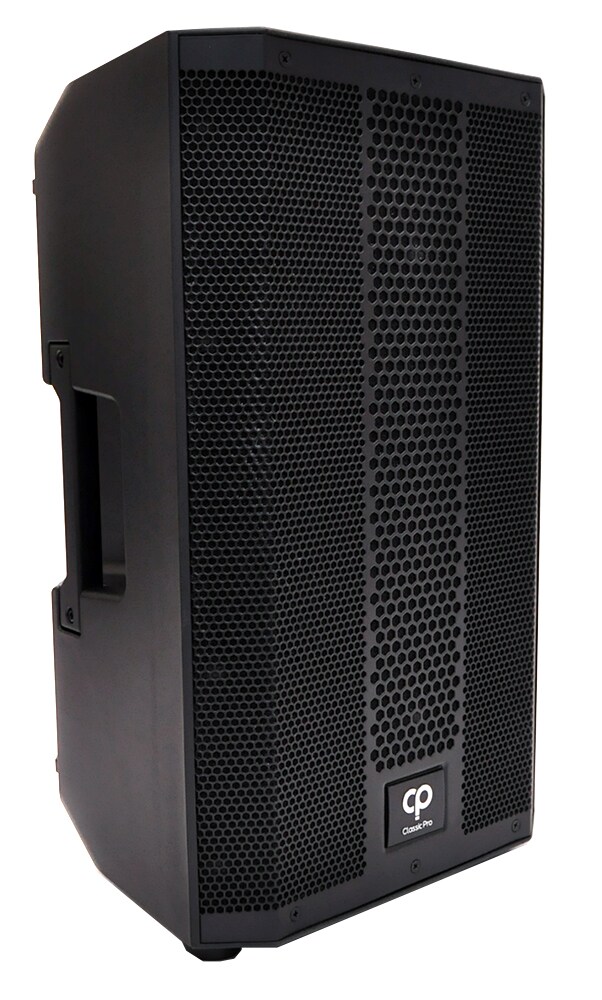

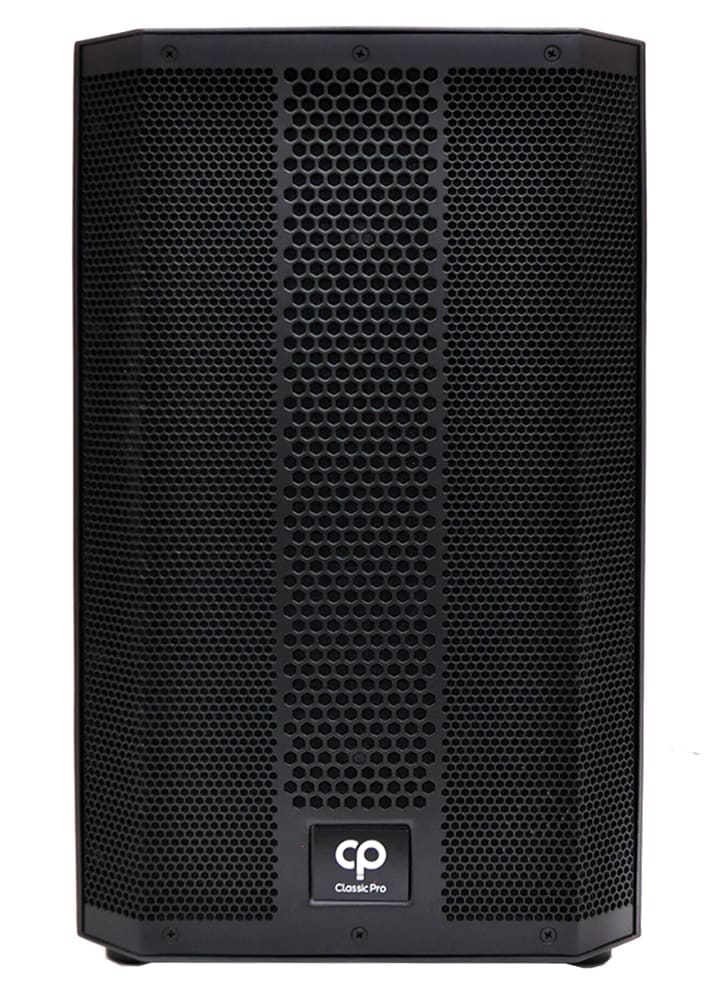

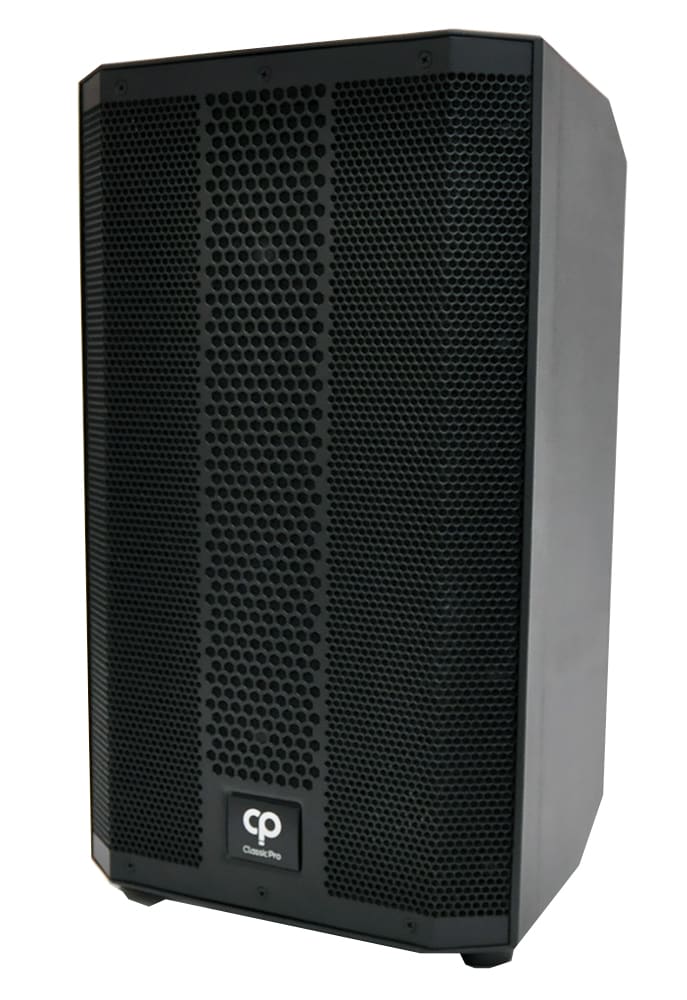

The CLASSIC PRO/CSR10P is a 10-inch full-range powered speaker that uses the latest coaxial driver technology to deliver clarity, precision of the sound image, and uniform directional characteristics.

■Type: 2-way full range
■Frequency response: 60Hz-20kHz (-10dB)
■Amplifier output: Maximum 1400W (LF/MF: 1200W, HF: 200W)
■Maximum output sound pressure level: 124.5dB
■Woofer unit: 10 inches
■Driver: 1 inch

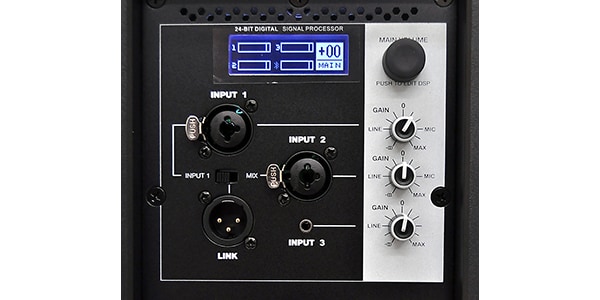

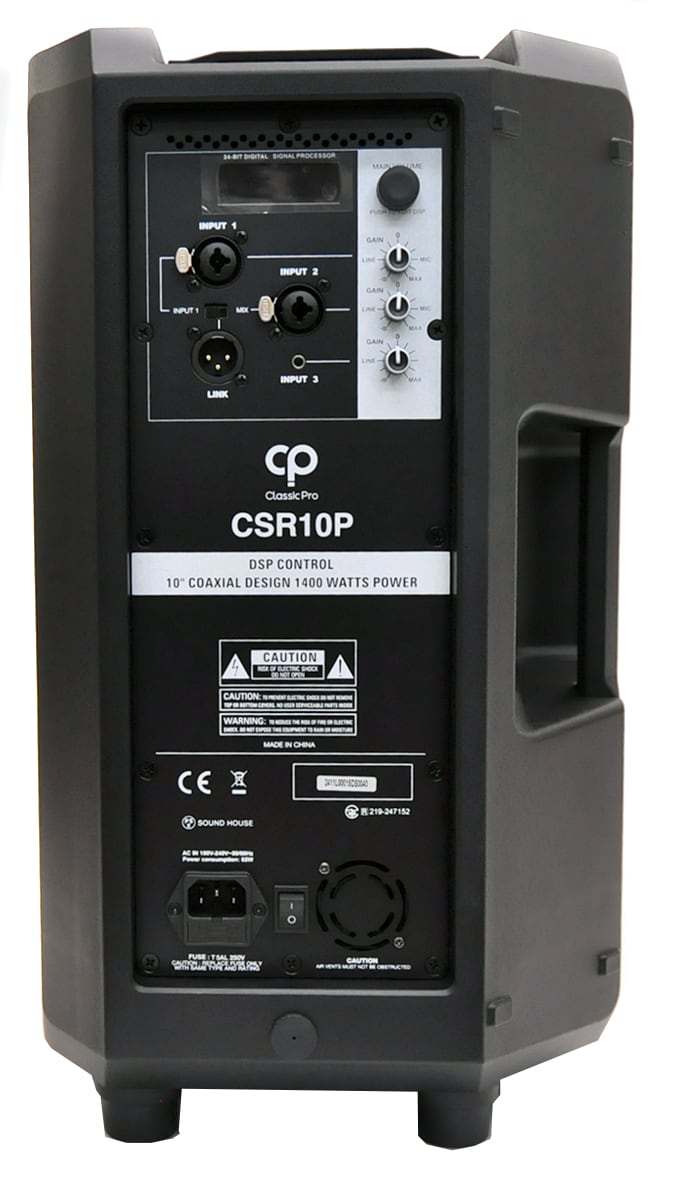

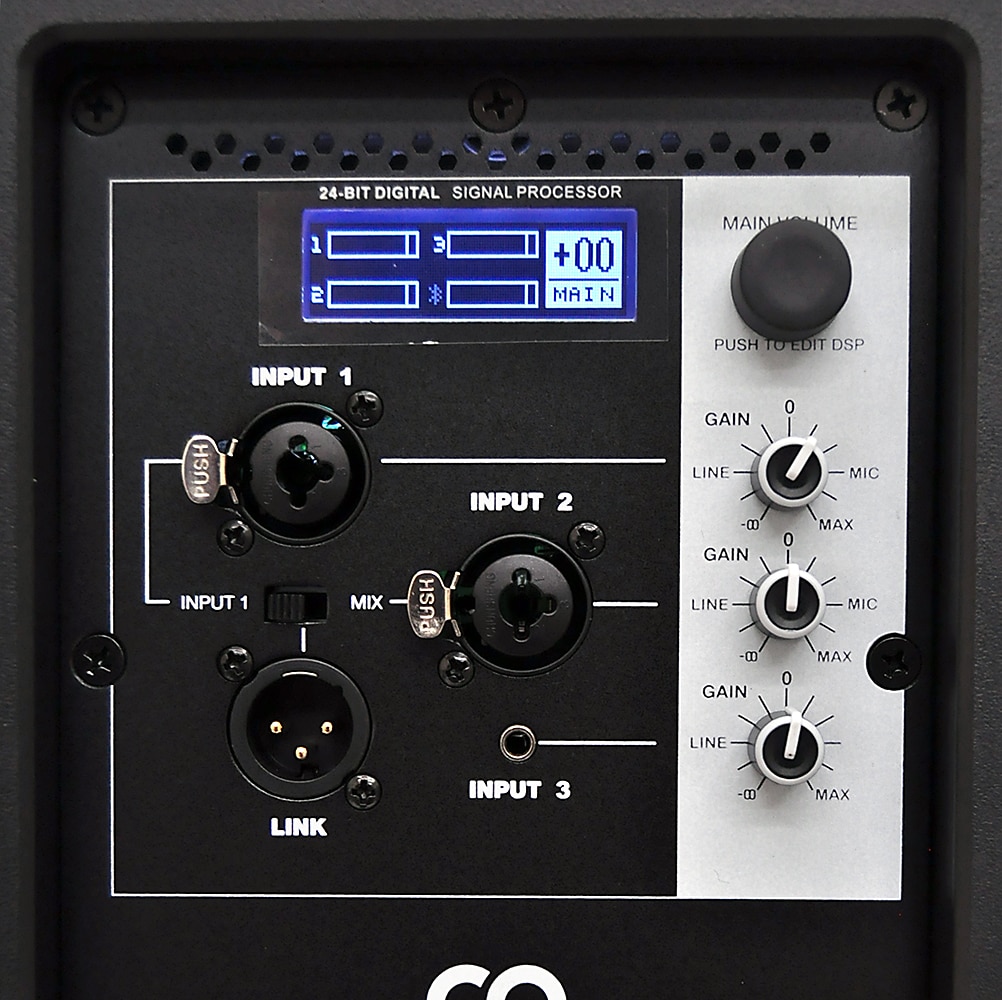

■Input terminal: XLR/TRS phone x 2, 3.5mm stereo mini x 1
■Output terminal: XLR x 1

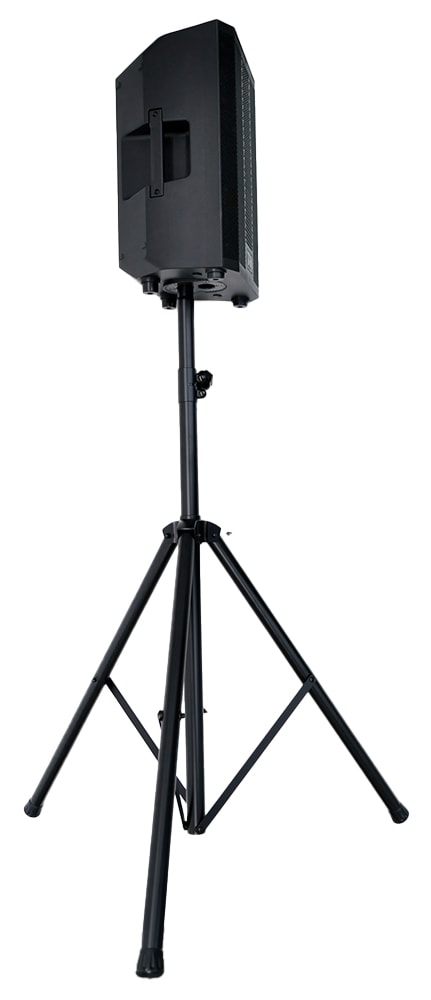

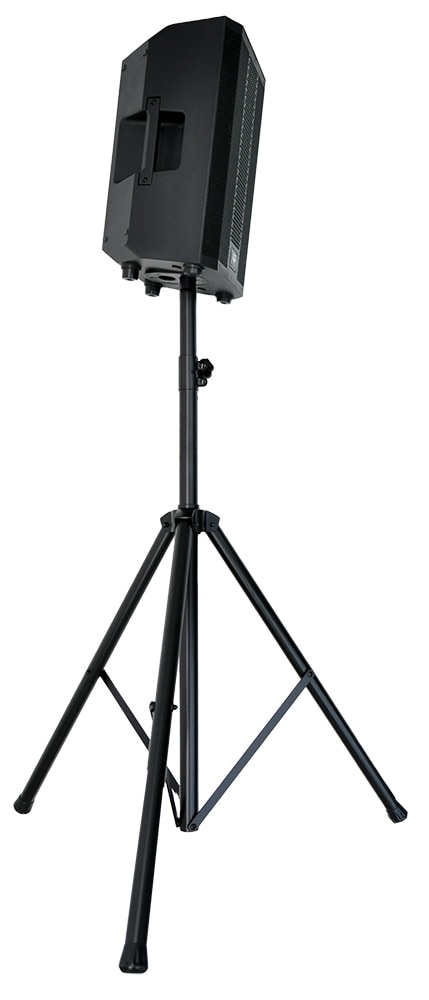

■Stand mount: Yes (35mm)
■Flying: M10x5
■Size: W310 x H515 x D280 mm
■Weight: 12.8kg
■Notes:
■Type: 10-inch 2-way active coaxial speaker
■Line input sensitivity: 0 dBu
■Microphone input sensitivity: -32 dBu
■Directivity angle (vertical x horizontal): 80 degrees x 80 degrees
■Crossover frequency: 2.2 kHz

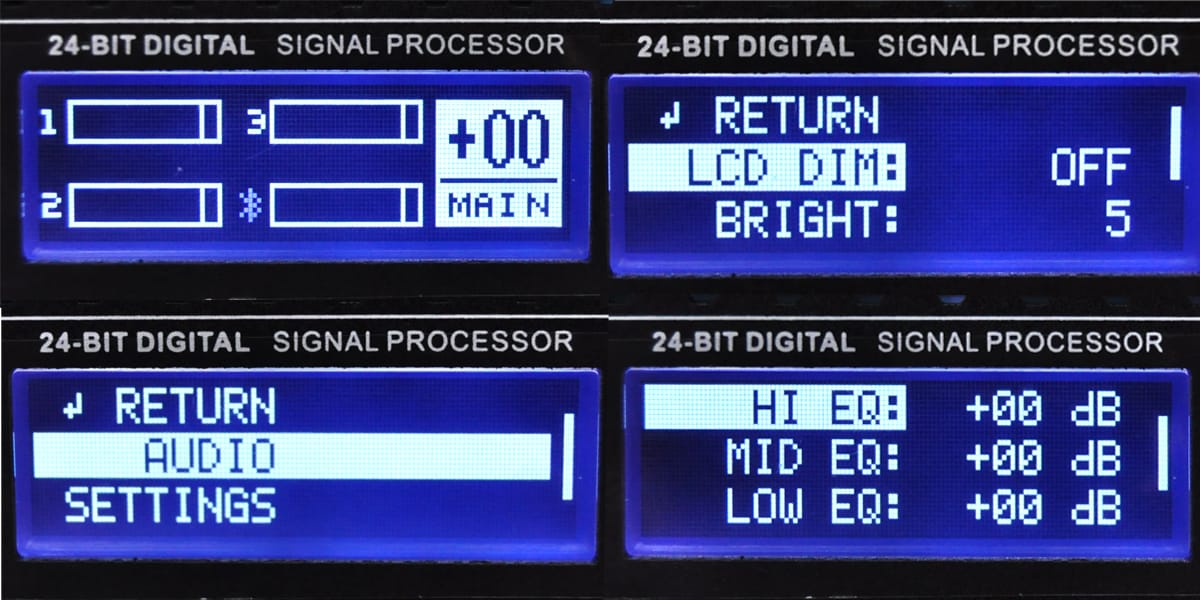

■DSP function: Preset (MUSIC, SPEECH, LIVE, DJ, MONITOR), 3-band EQ (HI: 12KHz, MID: 1KHz, LOW: 100Hz ± 12dB, Q: 0.7), Low cut (80/100/120/150Hz), Delay, Volume control
■Bluetooth: 5.0, SBC, TWS (True Wireless Stereo) compatible

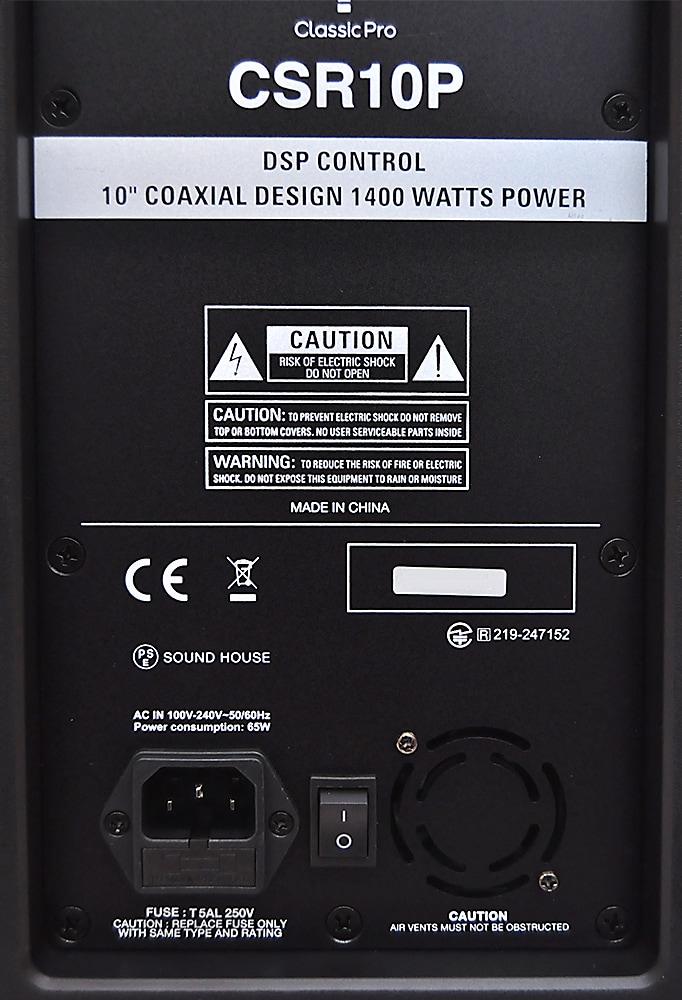

■Input voltage: 100V - 240V
■Power consumption: 65W (1/8POWER)

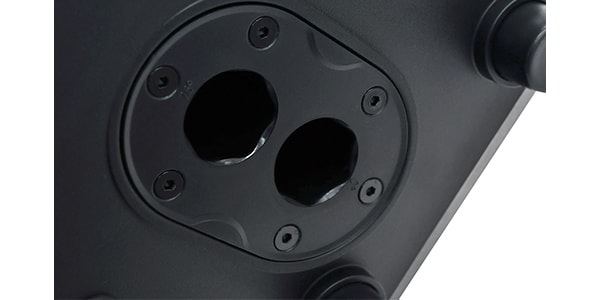

■Pole mount: 35mm socket (0°, -7.5°)

■About the CSR series
The CSR10P (10 inch) and CSR12P (12 inch) full-range speakers of the CSR series, DSP-equipped powered speakers ideal for music events, use the latest coaxial driver technology to achieve clarity of sound, precision of sound image, and uniform directional characteristics. The high and low frequency transducers use highly efficient ferrite magnetic circuits with high sensitivity, low distortion, and high output. The full-range 1,400W and subwoofer 2,400W high-output digital amplifiers and an LCD screen that allows detailed DSP control of presets, EQ, filters, delays, etc. can be used. By combining with the subwoofer CSR15SP (15 inch) or CSR18SP (18 inch), you can build a full-range system that can be used for a wider range of applications.

*When we repair/support, we do not generally provide replacement units. In the event of a malfunction, please return the product to us and we or the manufacturer will handle the issue according to the support regulations.
