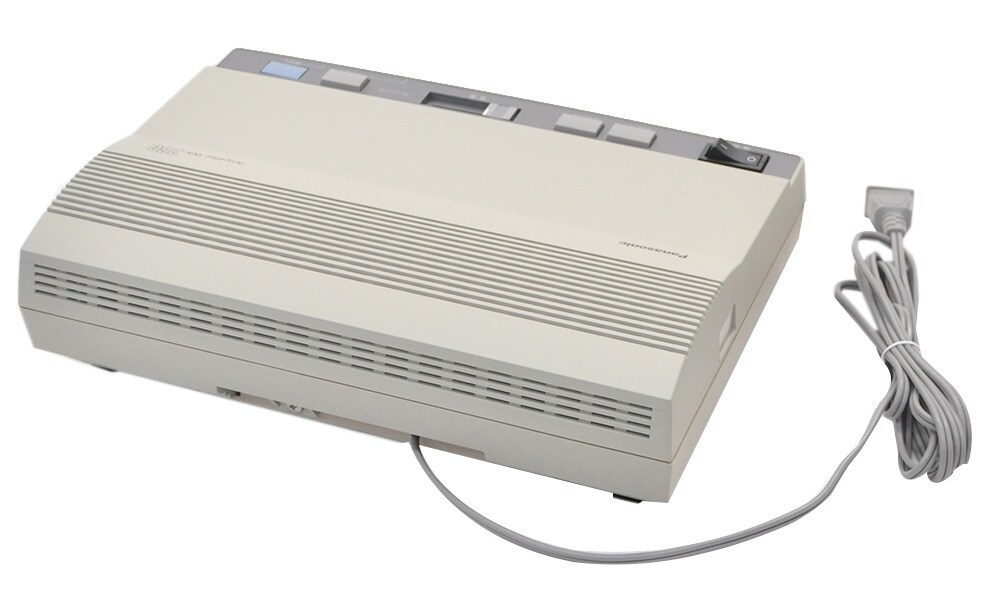

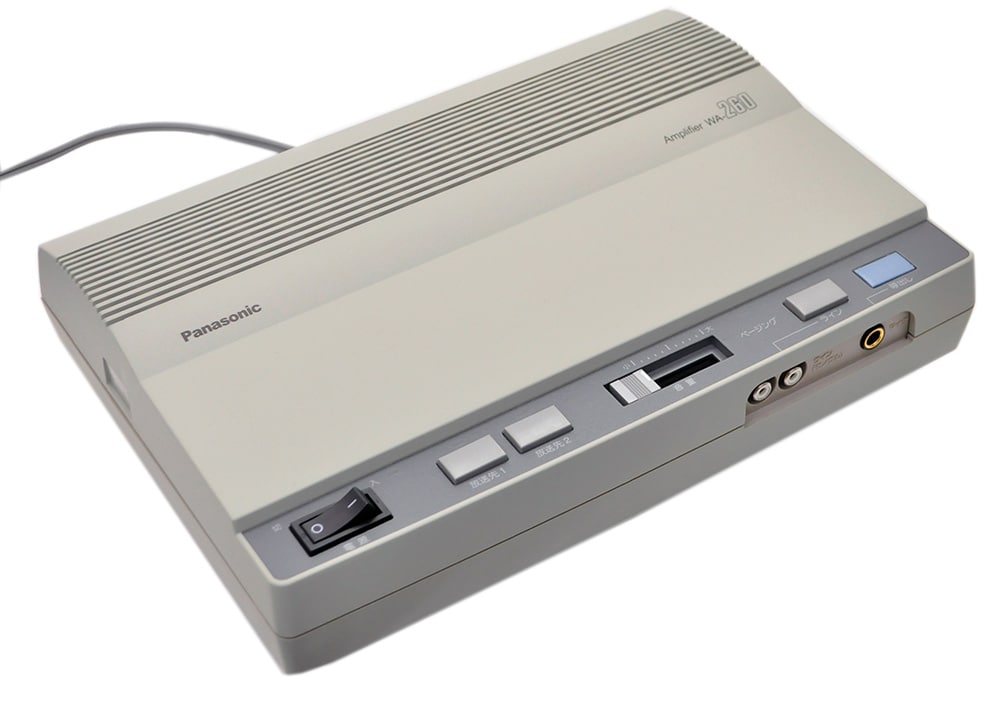

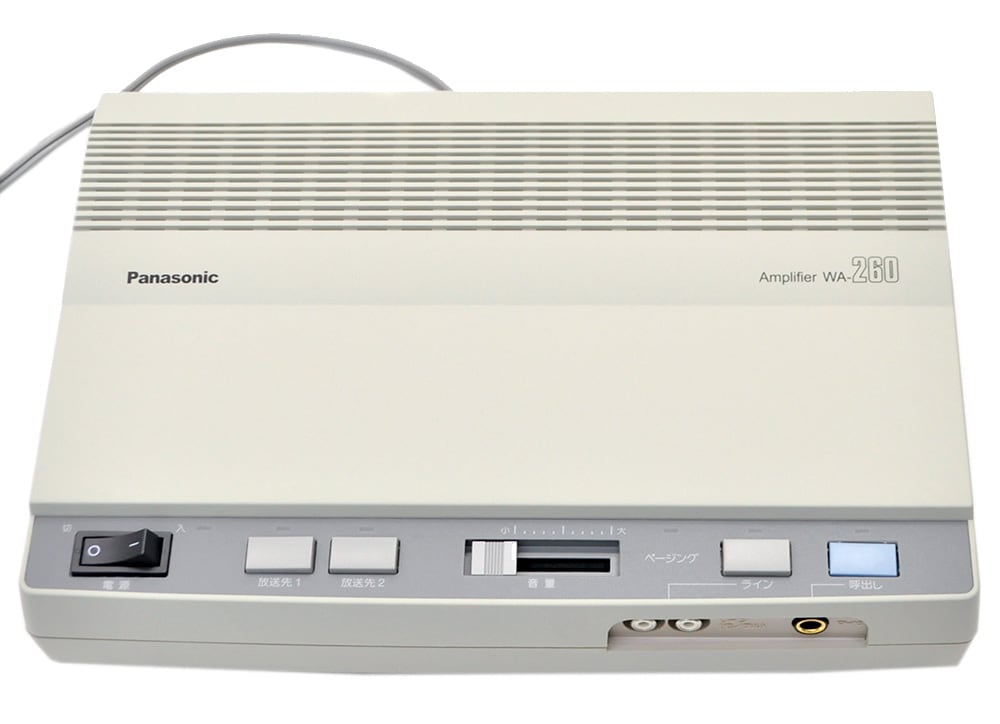

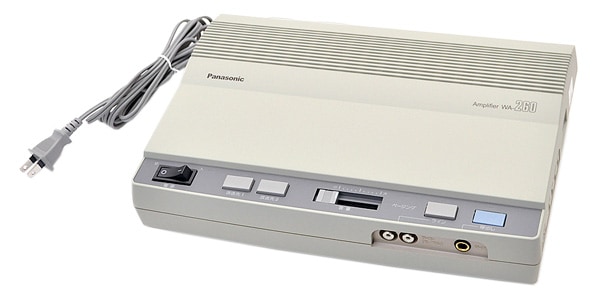

PANASONIC(RAMSA) / WA-260

高音質でコンパクトに設置できる2タイプのRAMSA製呼出しアンプです。

Product specifications
● Power supply: AC100 V 50/60 Hz
● Power consumption (Note): 26 W
● Rated power consumption: 64 W (at 30 W rated output)

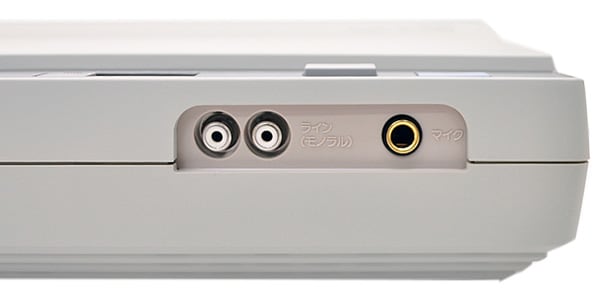

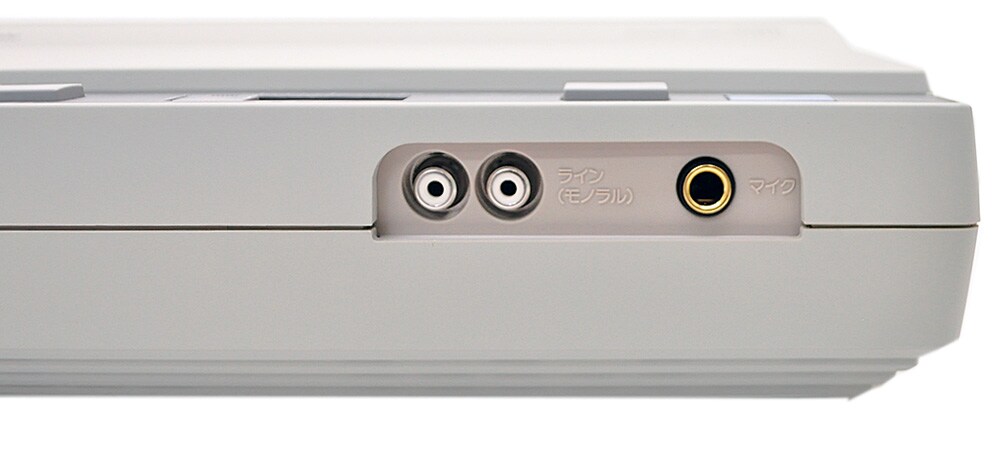

● Input circuit:
Microphone: -63 dBs / 3 kΩ unbalanced (one large single jack)
Line: 10 dBs 10 kΩ unbalanced (one monaural circuit)
Jack x 2: RL is mixed internally.)
Phone paging:
10 dBs 10 kΩ unbalanced (2-wire terminal block 1 circuit)
● Load impedance:
High impedance (100 series) balanced 330 Ω
Low impedance 4 Ω 16 Ω
● Rated output: 30 W
● Control circuit: Emergency cutoff (24 VDC break)
Paging (no-voltage make contact control)
● Frequency characteristics: 100 Hz 10 kHz +1.5 dB, 4.5 dB (line)
● Distortion rate: 1.0% or less
● Residual noise ratio: 80 dB or more (JIS A)
Output switching: 2 circuits
● Dimensions: 300 (width) x 83 (height) x 213 (depth) (height includes 4 rubber feet)
Weight: Approximately 2.1 kg
● Finish: AV ivory (Munsell 7.9Y6.8 / 0.8 approximate color)
